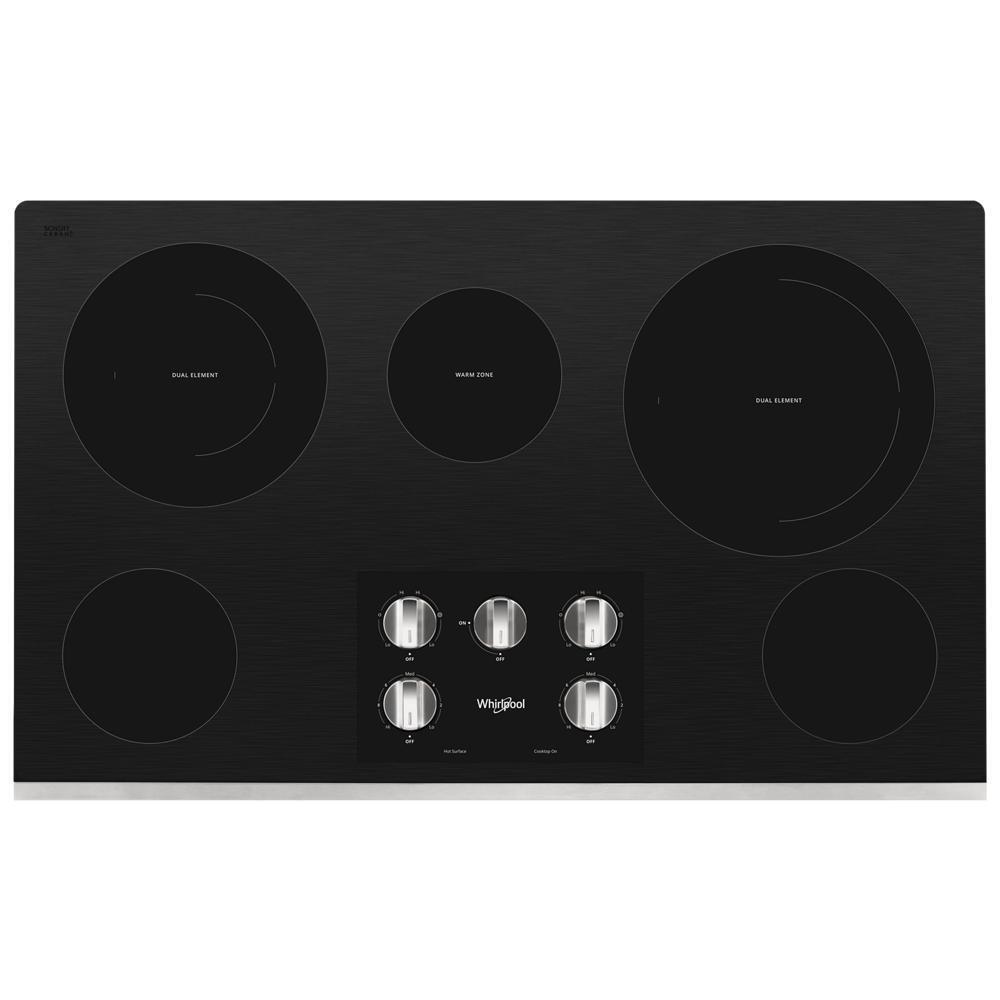

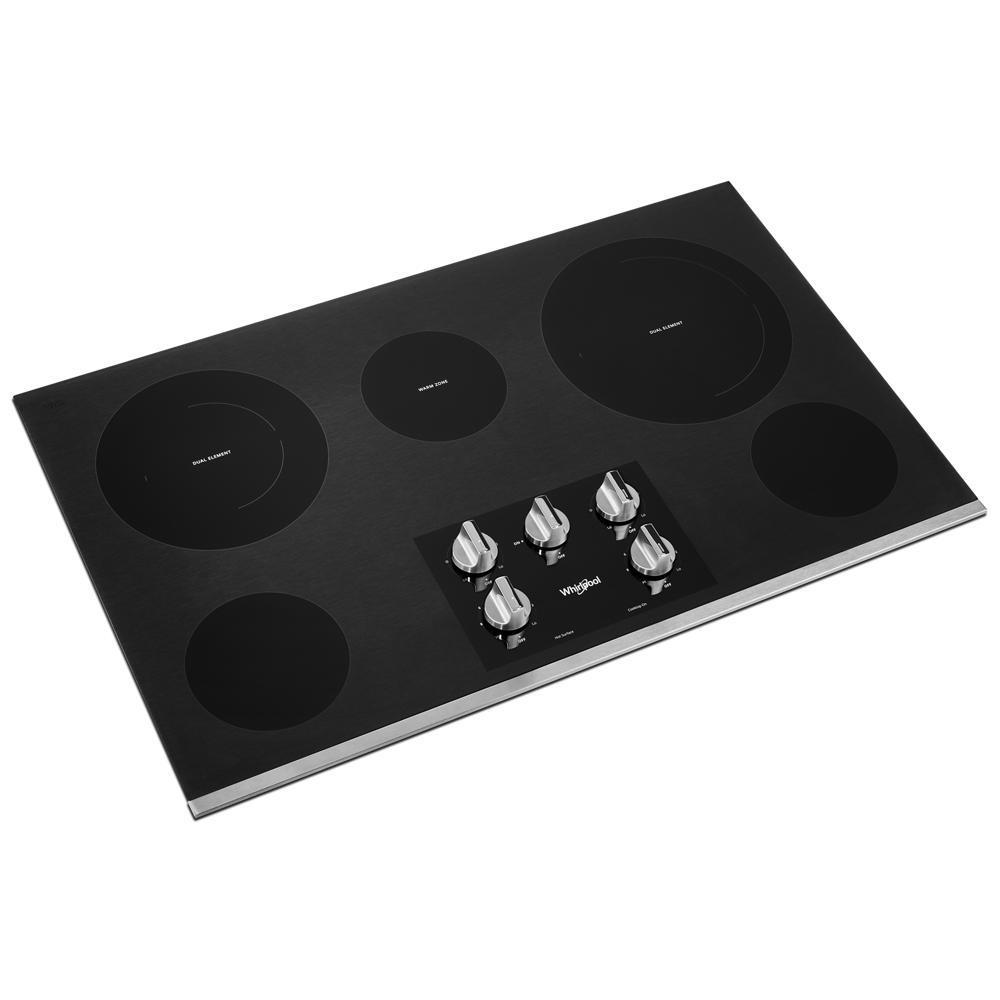

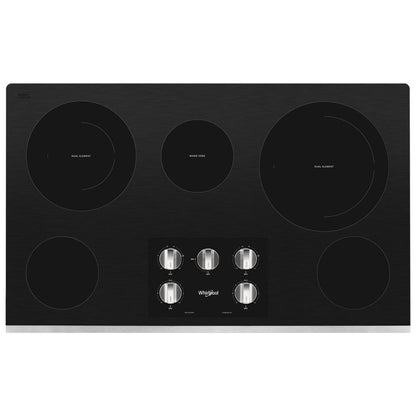

Whirlpool WCE77US6HS 36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
Whirlpool WCE77US6HS 36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements
- Enjoy added versatility with a fifth element
- Cook small dishes on a 6" Extra Element
- Meets ADA Standards for Accessible Design
- Wiping up spills is simple with the easy-to-clean cooktop
- Get two elements in one with a FLEXHEAT dual radiant element
- See when the cooktop's still hot with a light that lets you know

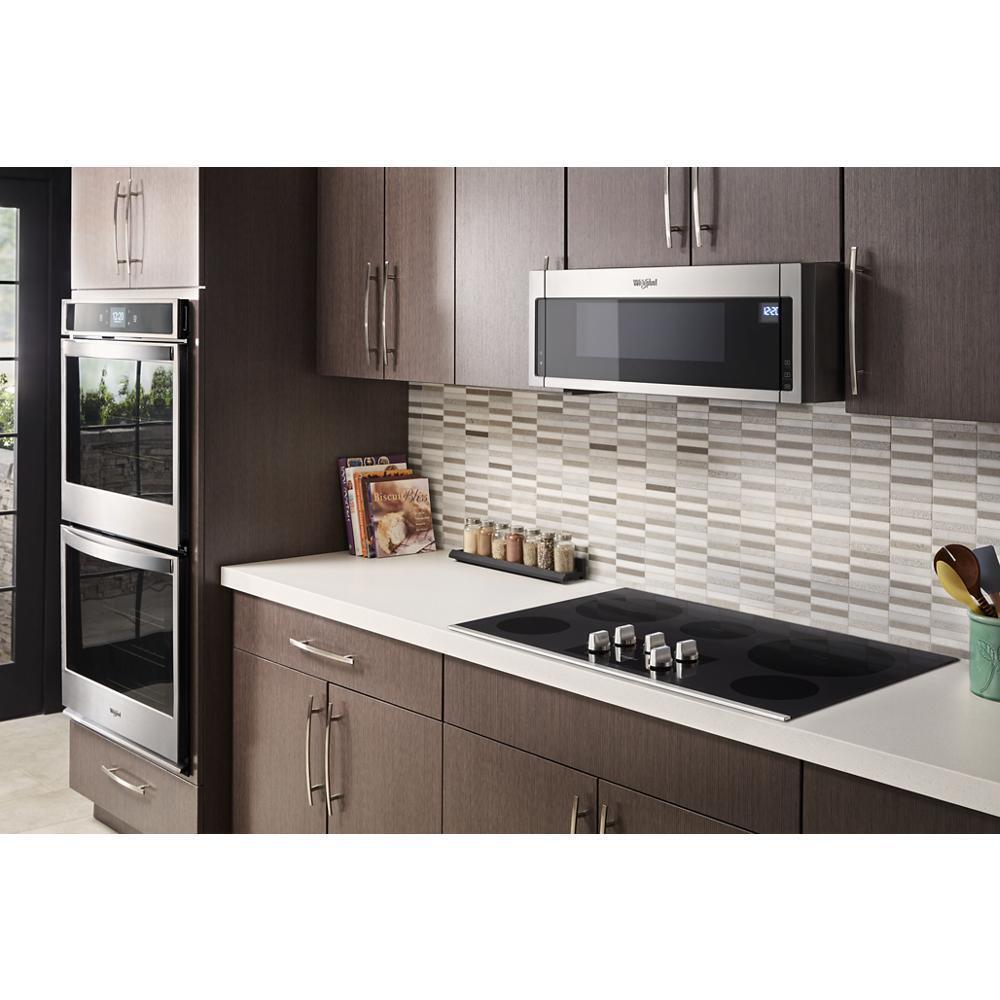

- Install this cooktop with a wall oven or on its own
- Keep food warm with the Warm Zone element
Cook all your family s favorites at once and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. Two FlexHeat™ Dual Radiant Elements give you more flexibility and the Warm Zone Element keeps food warm while you re finishing the rest of the meal. Then, easily wipe messes off the ceramic glass surface.
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Prop65 | Standard |
| Controls | |

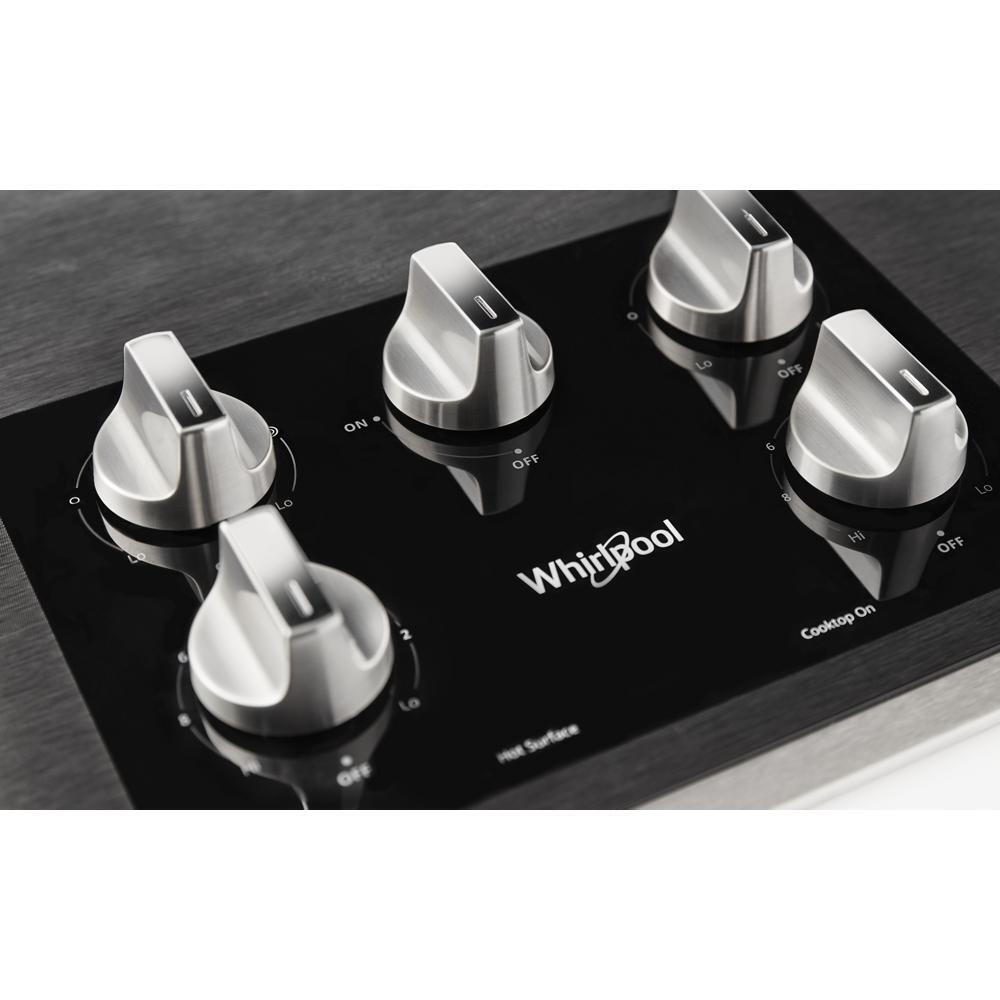

| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | No |
| Power Outage Compatible | No |
| Dimensions | |
| Product Height | 5.25 |
| Carton Height | 9.25 |
| Gross Weight | 50 |
| Carton Width | 40.75 |
| Product Depth | 22.875 |
| Cutout Depth Max | 20.563 |
| Cutout Width Min | 34.563 |
| Cutout Depth | 20.375 |
| Carton Depth | 25 |
| Cutout Width | 34.563 |
| Cutout Depth Min | 20.375 |
| Cutout Width Max | 35.563 |
| Net Weight | 44 |
| Product Width | 36.3125 |
| Electrical | |
| 208v Compatible | Yes |
| Power Cord Included | No |
| Element/burner Details | |
| Center Rear Element-burner Power | 100W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Warming |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 1,200W |
| Left Front Element-burner Size | 6in. |
| Left Front Element-burner Type | Standard |
| Left Rear Element-burner Power | 3000/1900W |
| Left Rear Element-burner Size | 10in./6in. |
| Left Rear Element-burner Type | Standard |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Front Element-burner Power | 1200W |
| Right Front Element-burner Size | 6in. |
| Right Front Element-burner Type | Standard |
| Right Rear Element-burner Power | 3000/1900W |
| Right Rear Element-burner Size | 12in./9in. |
| Right Rear Element-burner Type | Dual-Stacked Burner |
| Exterior Details | |
| Knob Color | Stainless Steel |
| Knob Type | Dishwasher-Safe Plastic |
| General | |
| Combination Match With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Ventilation Details | |
| Downdraft Vent | No |
