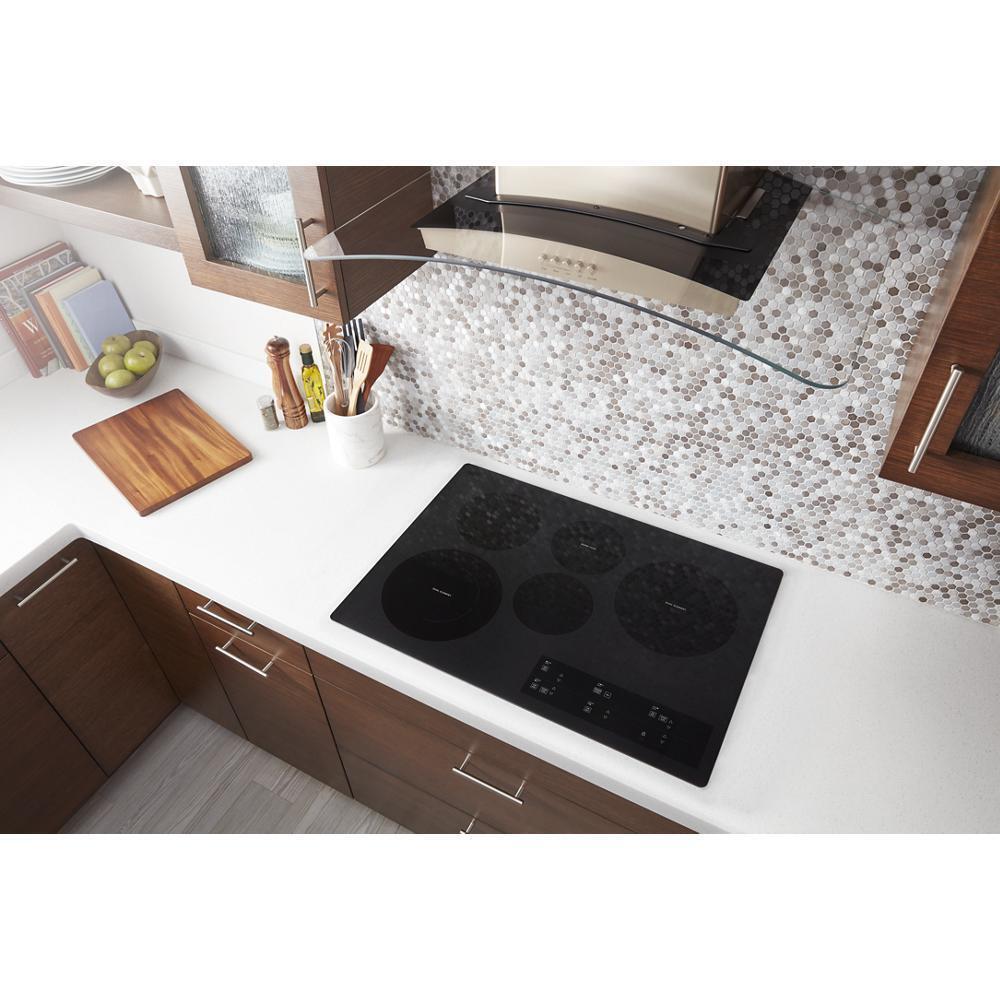

Whirlpool WCE97US0KB 30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE97US0KB
Whirlpool WCE97US0KB 30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements
- Properly install with either a 30 or 40 amp hookup
- Enjoy added versatility with a fifth element
- Cook small dishes on a 6" Extra Element
- Cook small dishes on an 8" Extra Element
- Meets ADA Standards for Accessible Design
- Avoid unintended use with Control Lock Mode
- Wiping up spills is simple with the easy-to-clean cooktop
- Get two elements in one with a FLEXHEAT dual radiant element
- See when the cooktop's still hot with a light that lets you know
- Keep track of cook times with an integrated Kitchen Timer

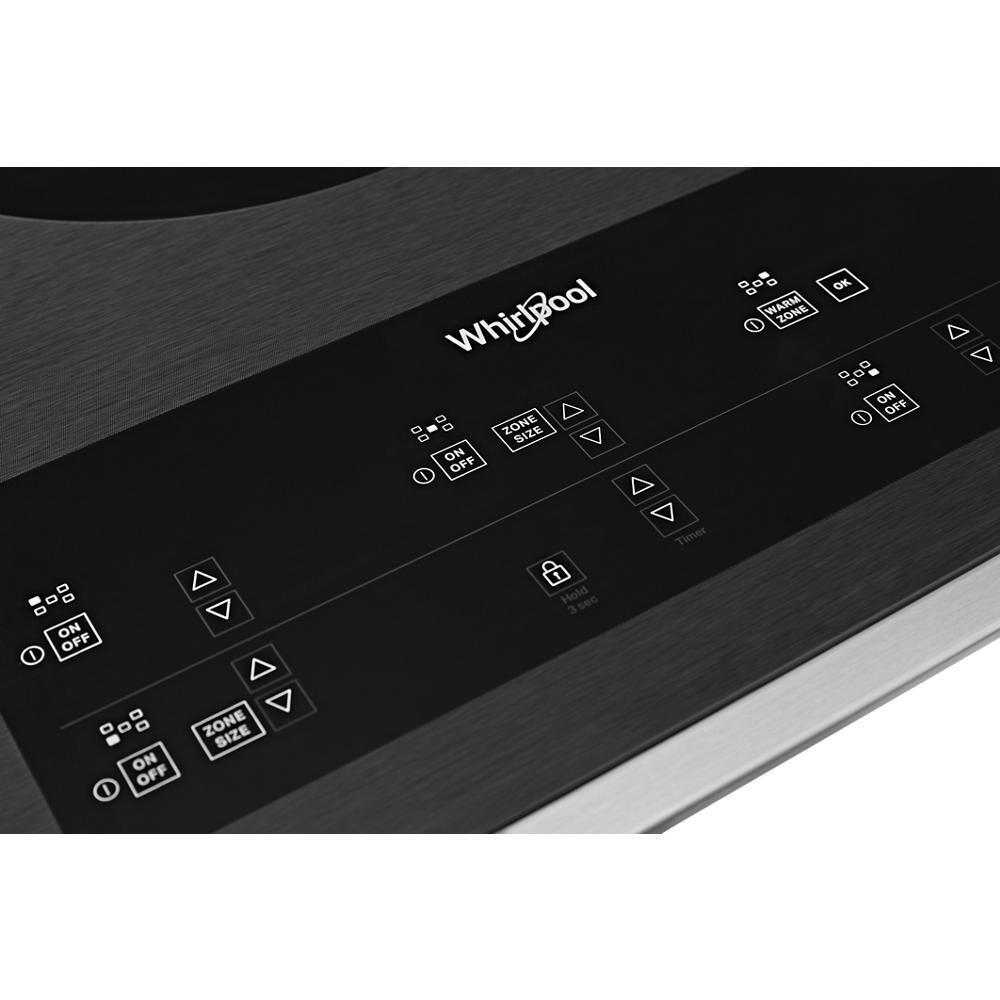

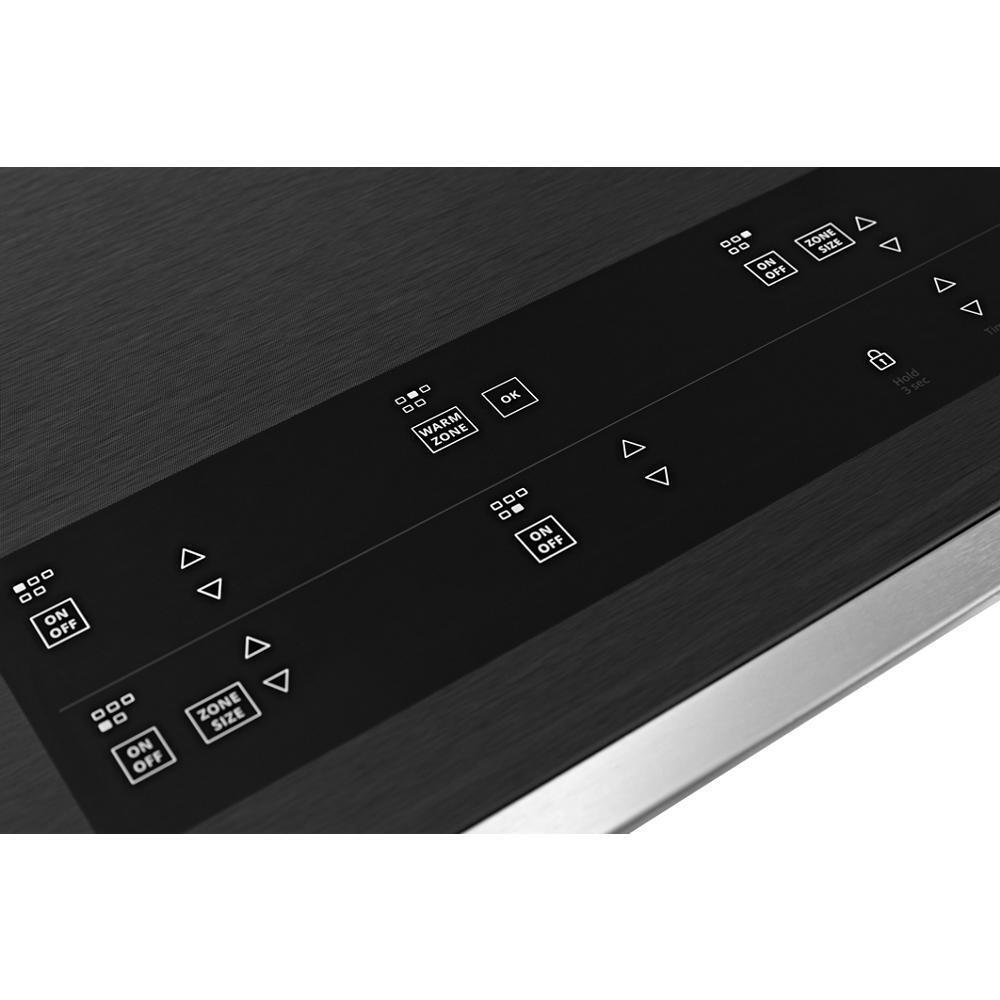

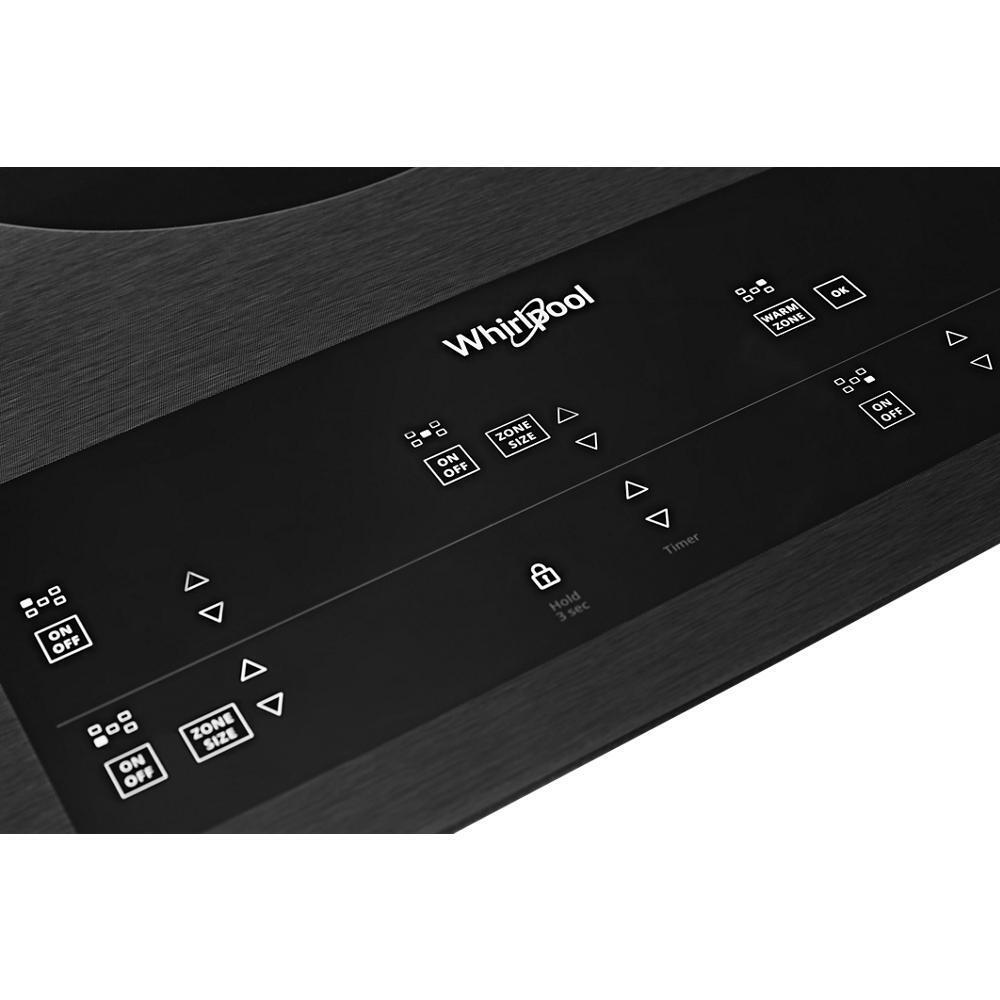

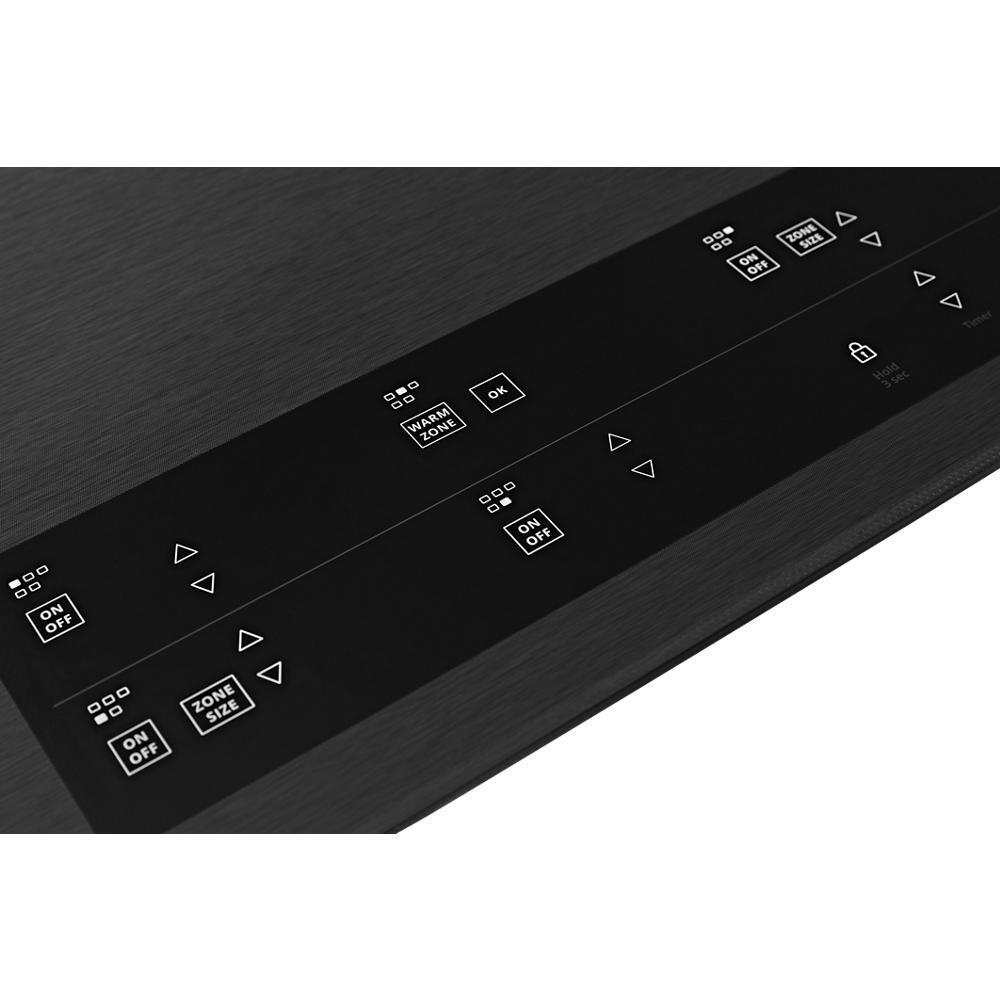

- Clean the Tap Touch Controls as easily as you use them
- Install to work with a wall oven or on its own
- Keep food warm with the Warm Zone element
Cook all your family s favorites at once and clean up quick with a 5-burner cooktop that makes the most of your mealtime routine. Two FlexHeat™ Dual Radiant Elements provide more flexibility, and the Warm Zone Element keeps food warm while you re finishing
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Front |
| Control Type | Tap Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | No |
| Power Outage Compatible | No |

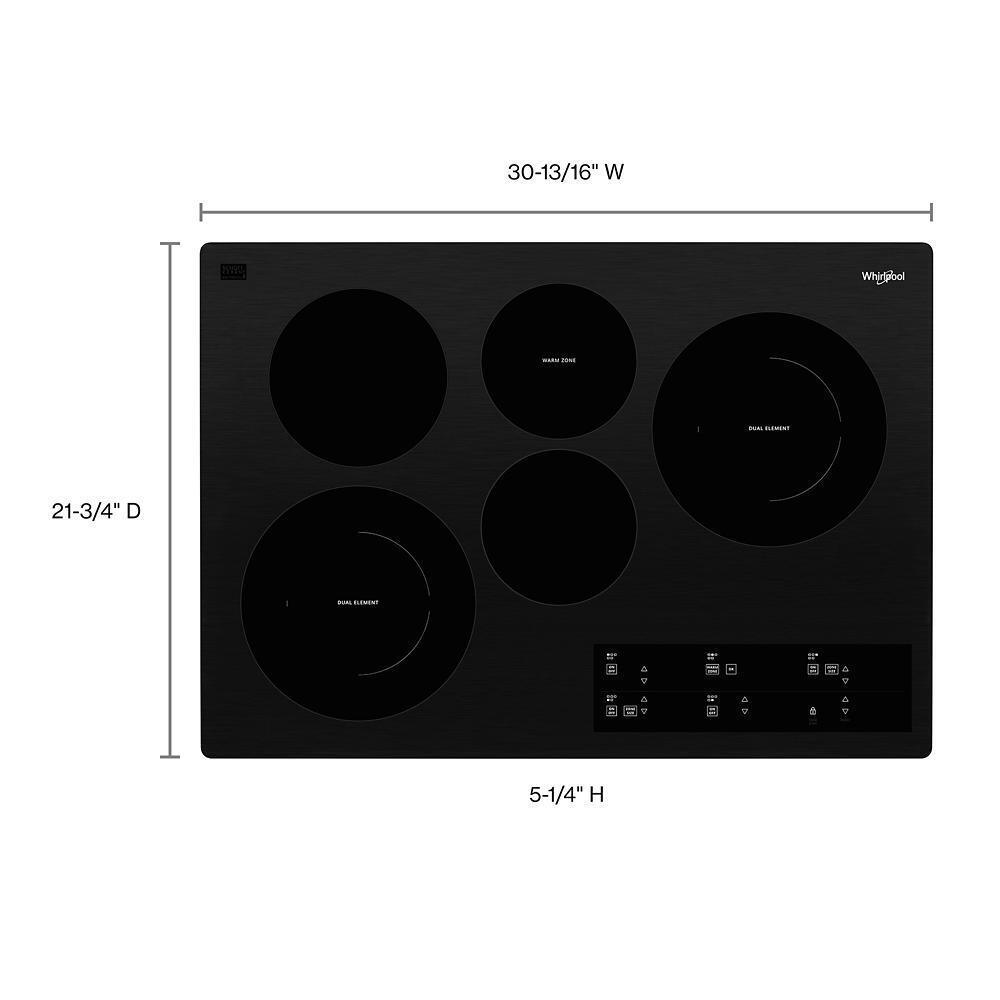

| Dimensions | |
| Product Height | 5.25 |
| Carton Height | 9.25 |
| Gross Weight | 46 |
| Carton Depth | 25 |
| Carton Width | 35 |
| Product Depth | 22.8125 |
| Cutout Depth Min | 20.375 |
| Cutout Width Max | 29.563 |
| Net Weight | 41 |
| Product Width | 30.8125 |
| Cutout Depth Max | 20.563 |
| Cutout Width Min | 29.063 |
| Electrical | |
| 208v Compatible | Yes |
| Power Cord Included | No |
| Element/burner Details | |
| Center Front Element-burner Power | 1,200W |
| Center Front Element-burner Size | 6in. |
| Center Front Element-burner Type | Standard |
| Center Rear Element-burner Power | 100W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Round |
| Cooktop Element Style | Radiant |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 3000W/1900W |
| Left Front Element-burner Size | 10in./6in. |
| Left Front Element-burner Type | Dual |
| Left Rear Element-burner Power | 1,800W |
| Left Rear Element-burner Size | 8in. |
| Left Rear Element-burner Type | Standard |
| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Rear Element-burner Power | 3000W/1900W |
| Right Rear Element-burner Size | 10in./6in. |
| Right Rear Element-burner Type | Dual |
| General | |
| Combination Match With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Ventilation Details | |
| Downdraft Vent | No |
