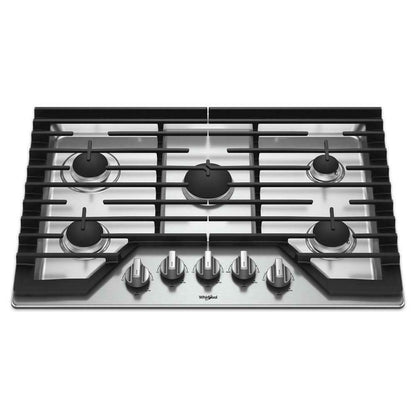

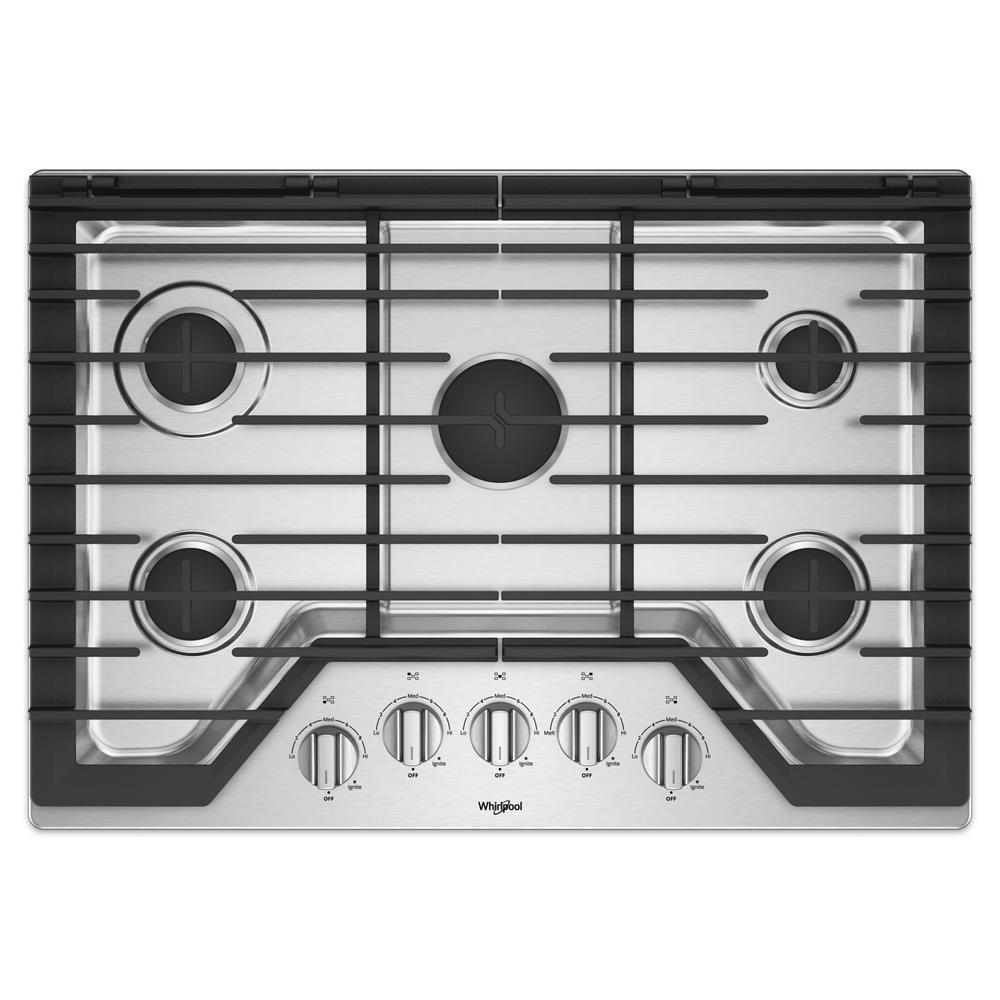

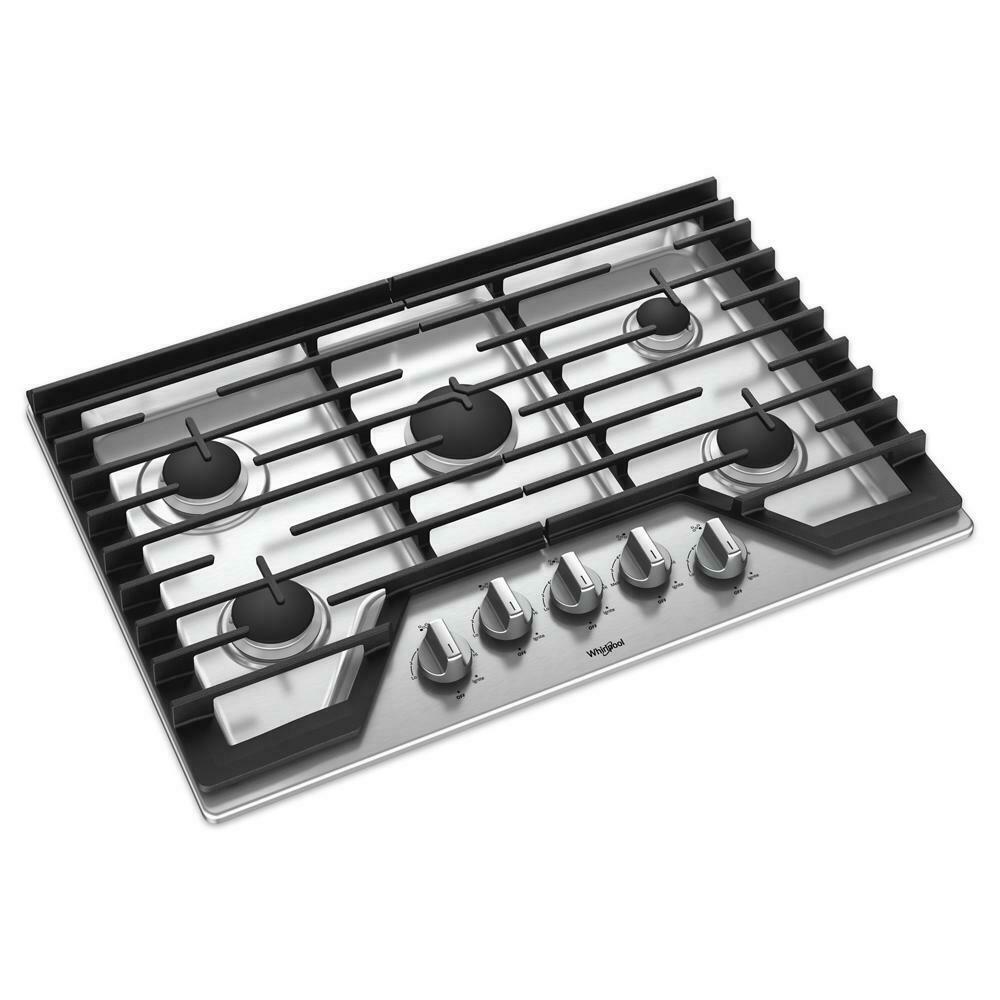

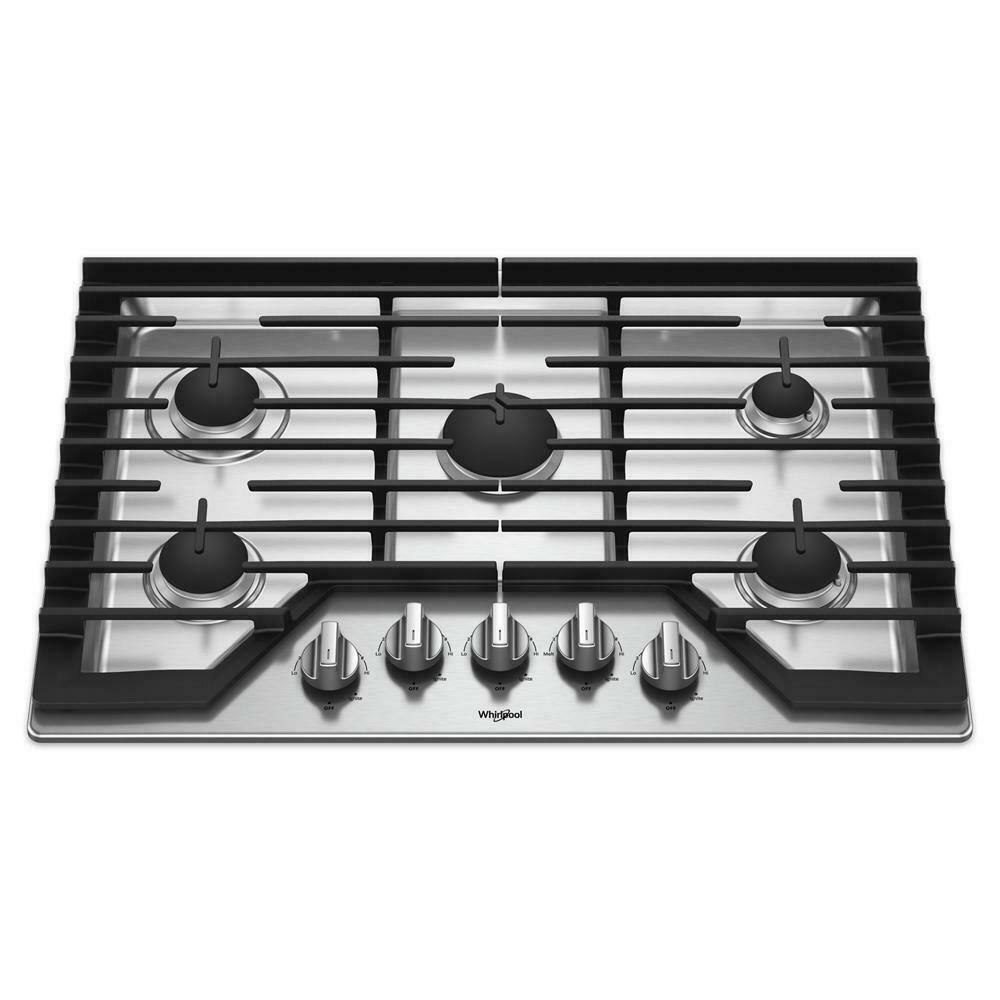

30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates WCG77US0HS

SKU/Model #: WCG77US0HS Discontinued
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
Authorized Reseller
SKU/Model #: WCG77US0HS
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
Free Shipping
$1,088.00
List Price:
Instant Savings:
  • Easily maintain low, even heat with the ACCUSIMMER Burner
  • Make cleanup easy by washing knobs right in the dishwasher
  • EZ-2-LIFT Hinged Cast-Iron Grates make cleaning simple
  • Take advantage of added versatility with a Fifth Burner
  • Place pots and pans anywhere on Full Width Grates
  • Cut down on cleanup with Sealed Burners
  • Sear and boil quickly with the SPEEDHEAT burner
  • Clean up faster with the Upswept SPILLGUARD Cooktop

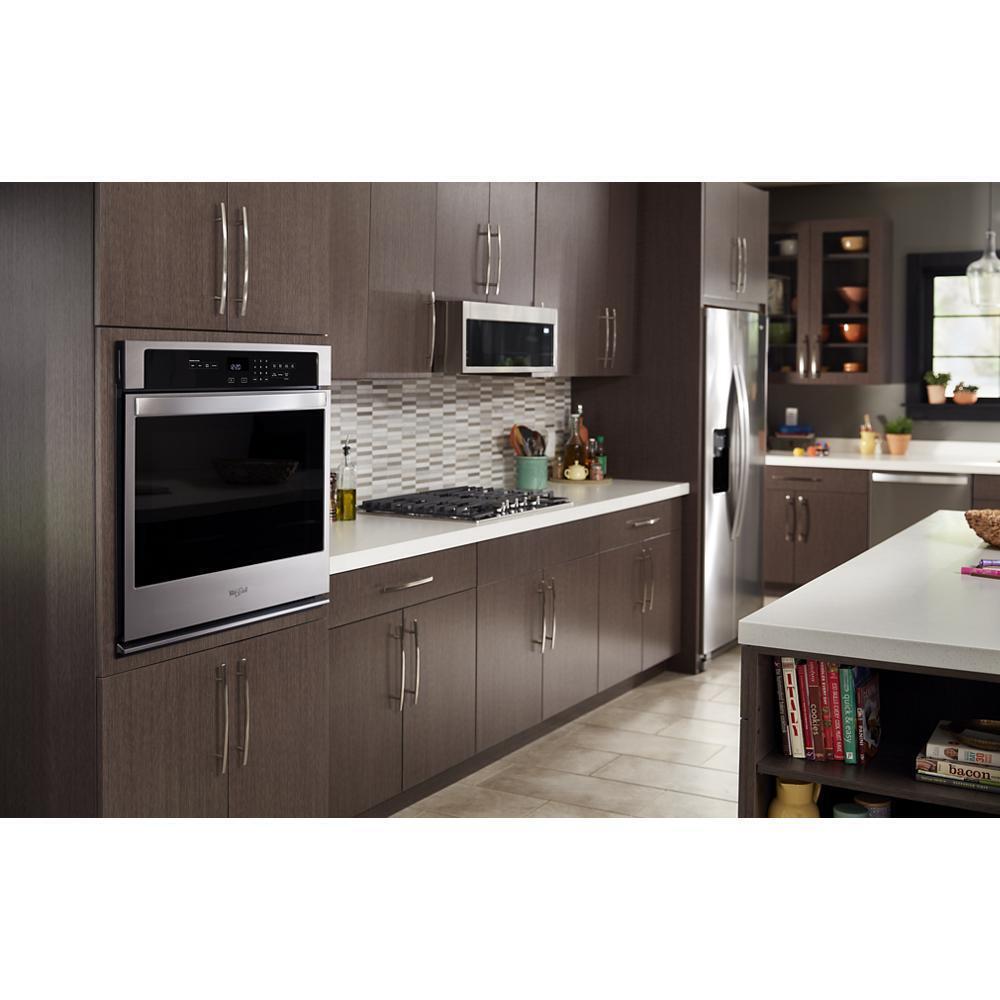

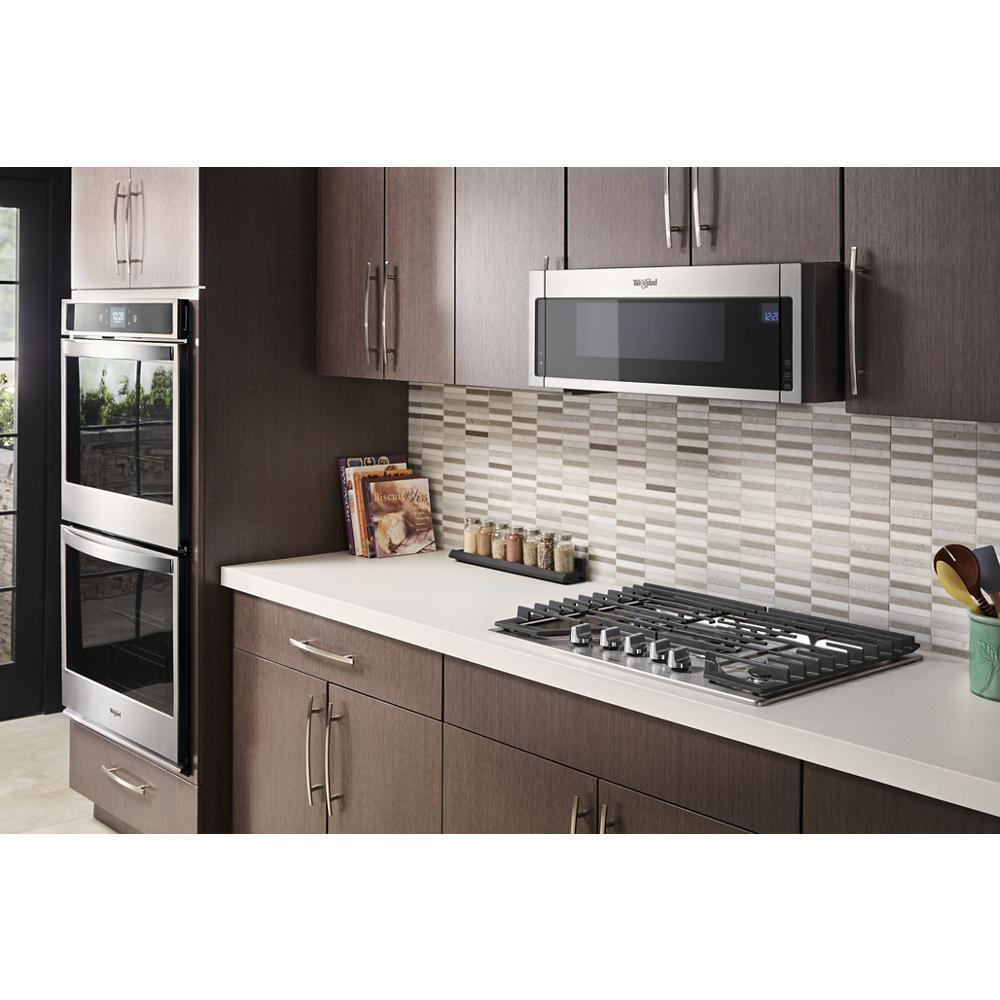

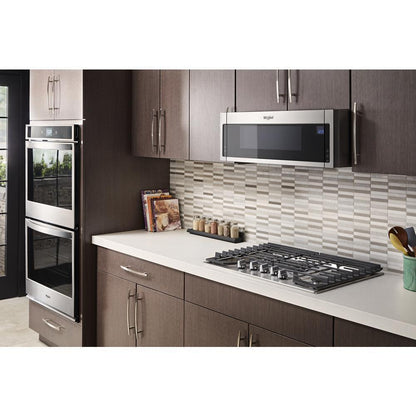

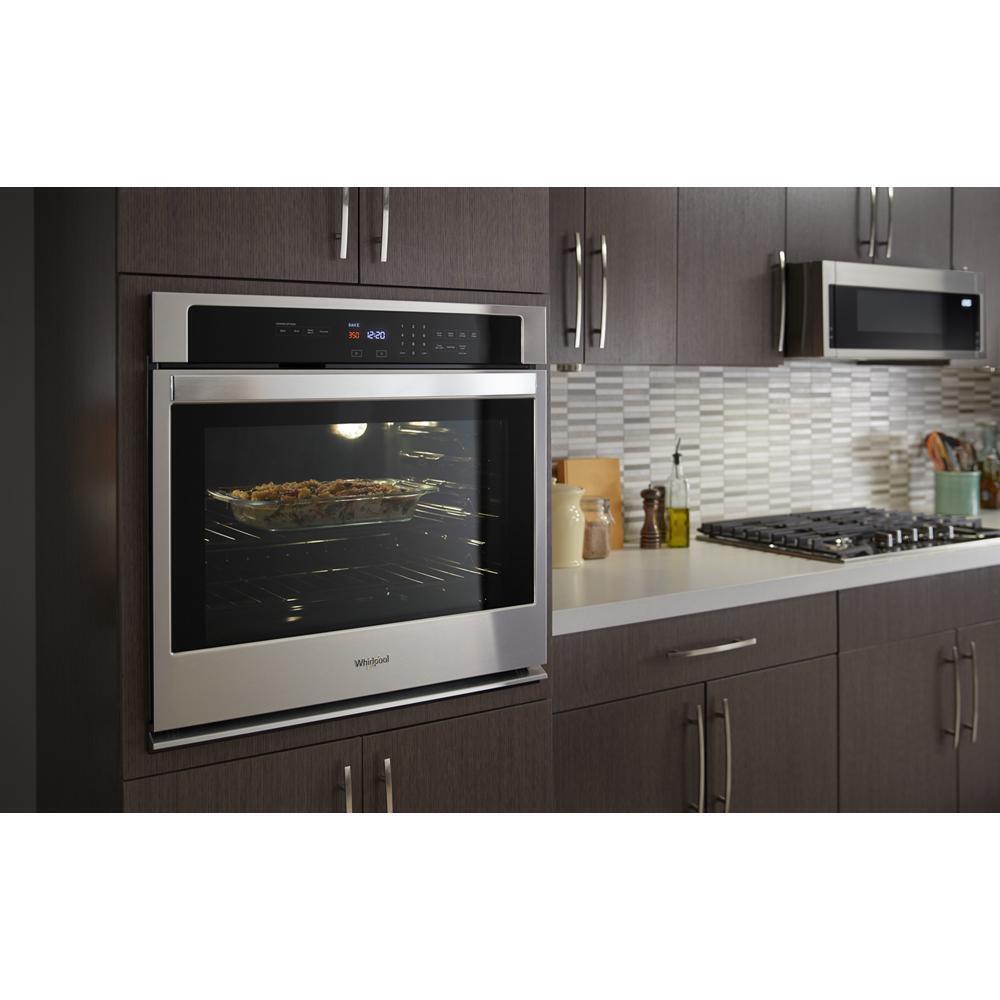

  • Install this cooktop with a wall oven or on its own
Cleanup is quick and easy with a cooktop designed to cut down on messes. Dishwasher-safe, EZ-2-Lift™ Cast Iron Grates are hinged so there s no need to remove them to wipe underneath and raised edges help contain spills. This 5-burner cooktop can be installed over a wall oven or on its own for added flexibility.
Certifications
ADA Compliant ADA Height and Side Reach Compliant
UL Yes
prop65 Standard
Controls
Control Location Front
Control Type Knobs
Infinite Heat Controls Yes
Cooktop Details
Cooktop Surface Color Color Coordinated
Cooktop Surface Material Stainless/Porcelain Coated Steel
Digital Display No
Griddle Included Optional Accessory
Heating Element On Indicator Light No
Hot Surface Indicator Light No
Ignition Type Direct Spark Ignition
Number of Open Bays N/A
Details
Automatic Pan Detection No
Combinations With Oven WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS72EC0; WOS72EC7
Fuel Type Gas
Installs Over Built-In Oven Yes
LP Convertible Yes - Kit Included
Power Outage Compatible Yes
Dimensions
Cutout Depth 19.5
Cutout Depth Max 20
Cutout Depth Min 19
Cutout Width 28.875
Cutout Width Max 29.313
Cutout Width Min 28.5
carton depth 34.5
carton height 12.5
carton width 25
gross weight 52.5
net weight 42.8
Electrical
Power Cord Included Yes
Element/burner Details
Center Front Element-Burner Power 15,000 BTU
Center Front Element-Burner Type SpeedHeat
Cooktop Element Style Sealed Burner
Cooktop Type Standard
Left Front Element-Burner Power 9,100 BTU
Left Front Element-Burner Type Simmer
Left Rear Element-Burner Power 9,100 BTU
Left Rear Element-Burner Type Sealed Burner
Number of Cooking Element-Burners 5
Power Boost No
Right Front Element-Burner Power 10,000 BTU
Right Front Element-Burner Type SpeedHeat™
Right Rear Element-Burner Power 5,000 BTU
Right Rear Element-Burner Type Simmer
Exterior Details
Knob Color Color Coordinated
Knob Type Dishwasher-Safe Plastic
Grate Details
Grate Details Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish
Number of Grates 2
Ventilation Details
Downdraft Vent No
