Whirlpool WCGK3030PW 30-inch Gas Cooktop with SpeedHeat™ Burners WCGK3030PW

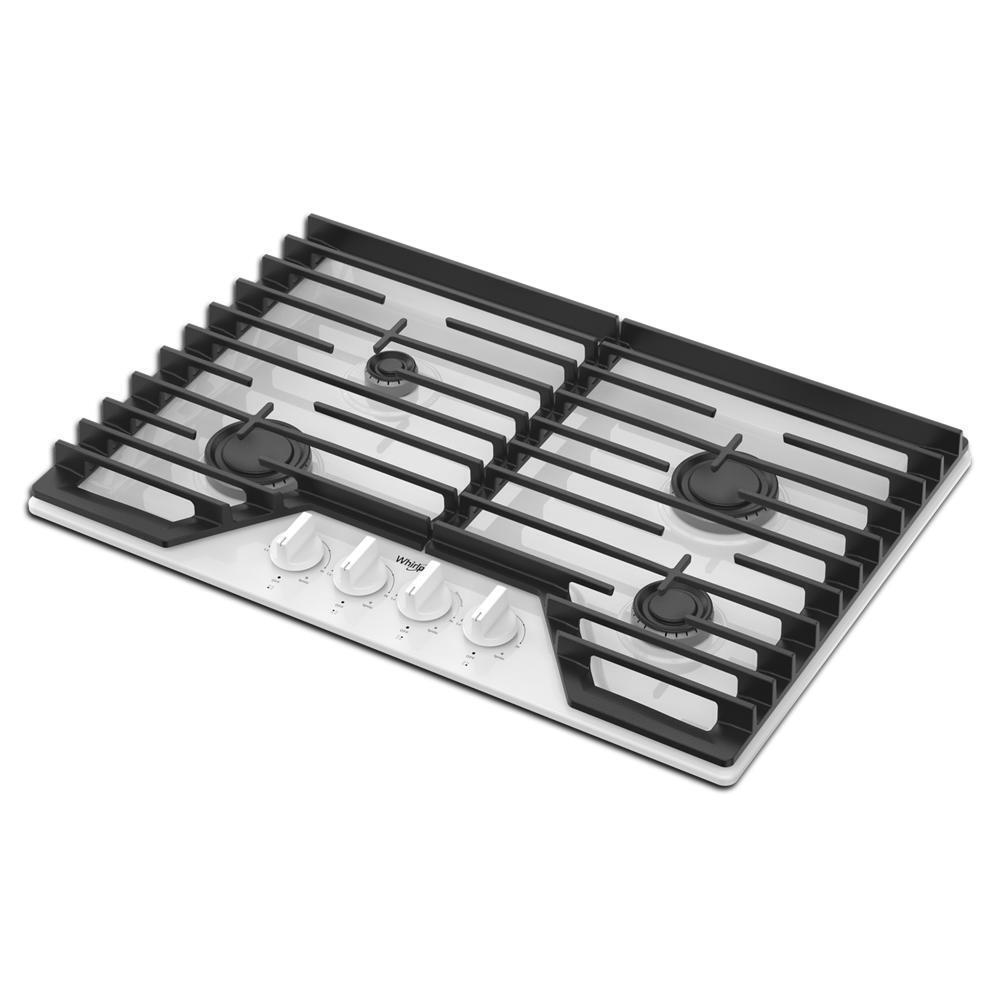

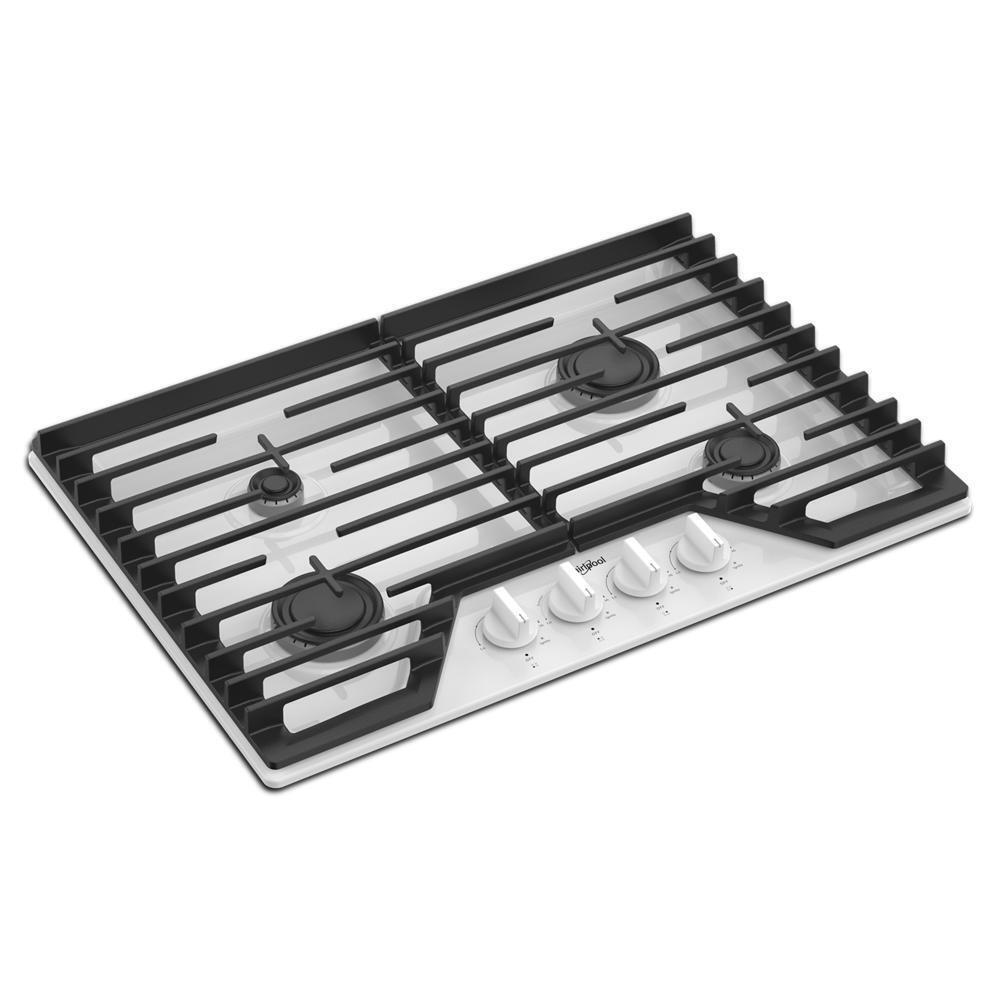

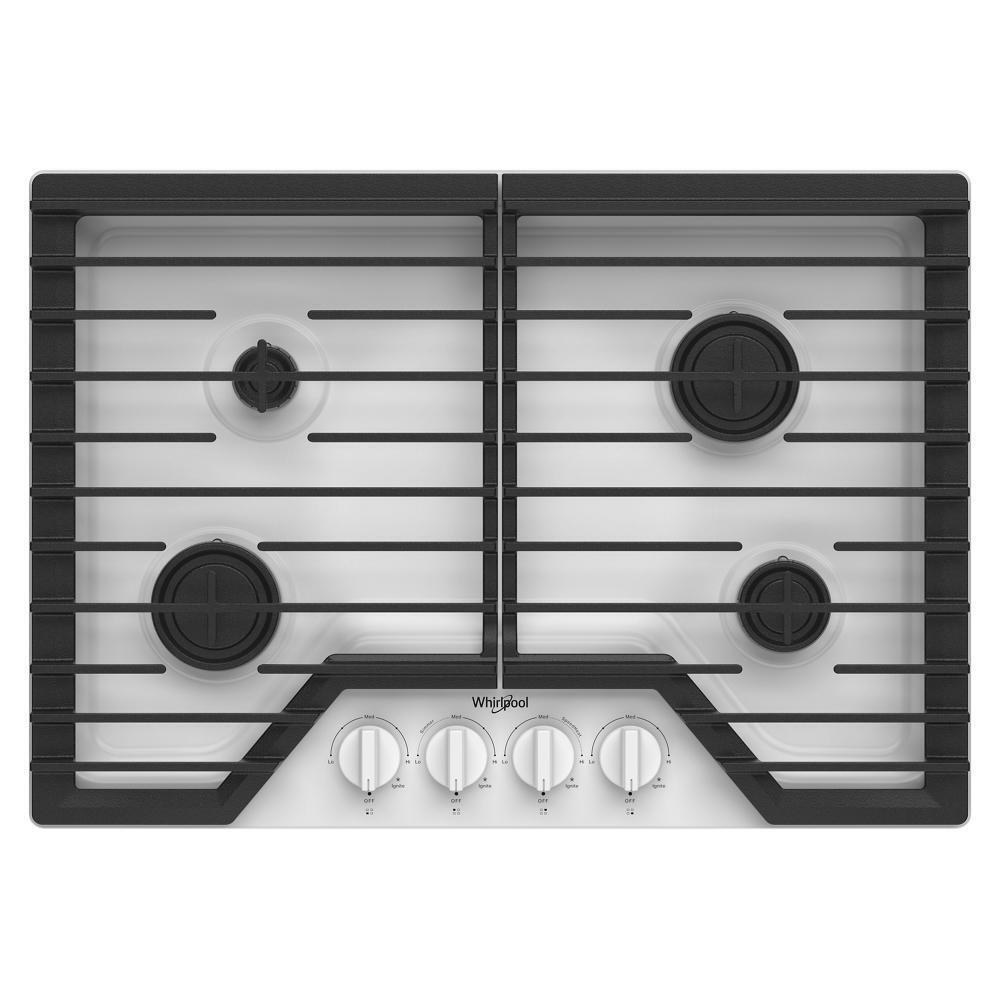

Whirlpool WCGK3030PW 30-inch Gas Cooktop with SpeedHeat™ Burners

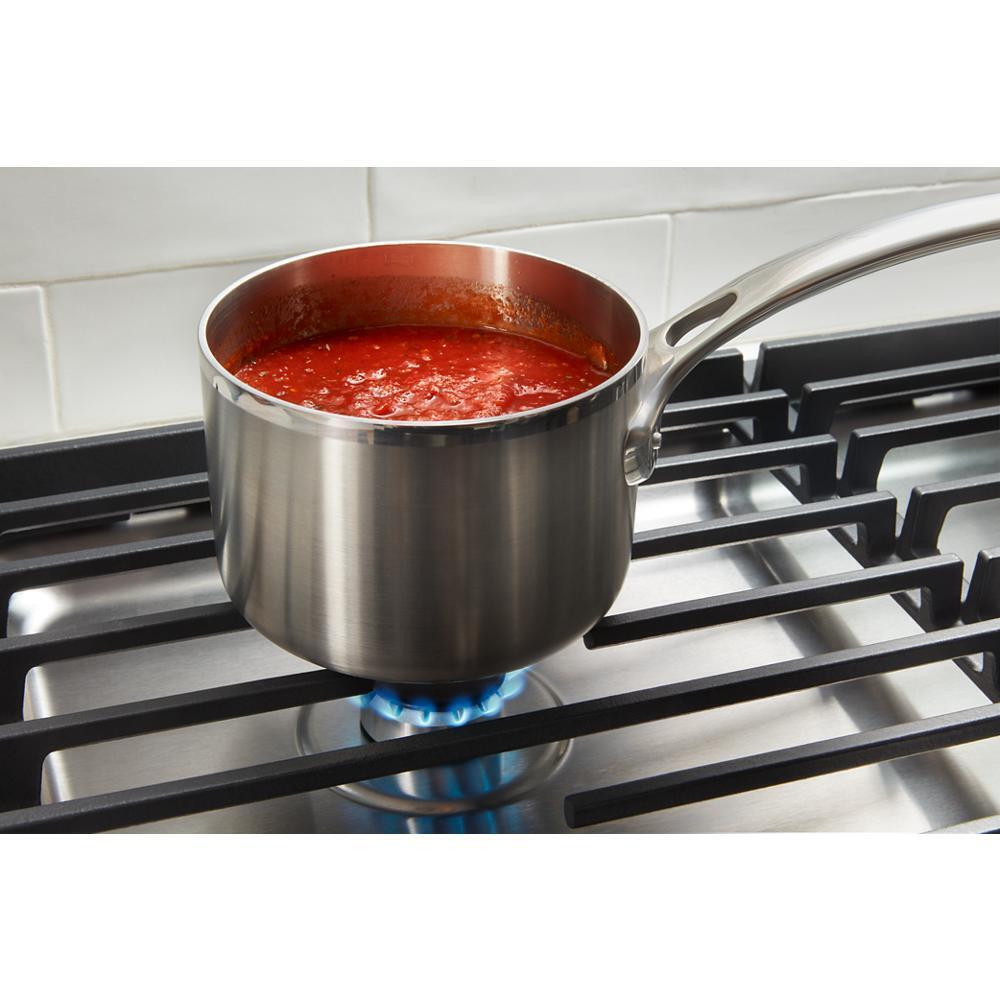

- Easily maintain low, even heat with the 5K BTU Simmer Burner

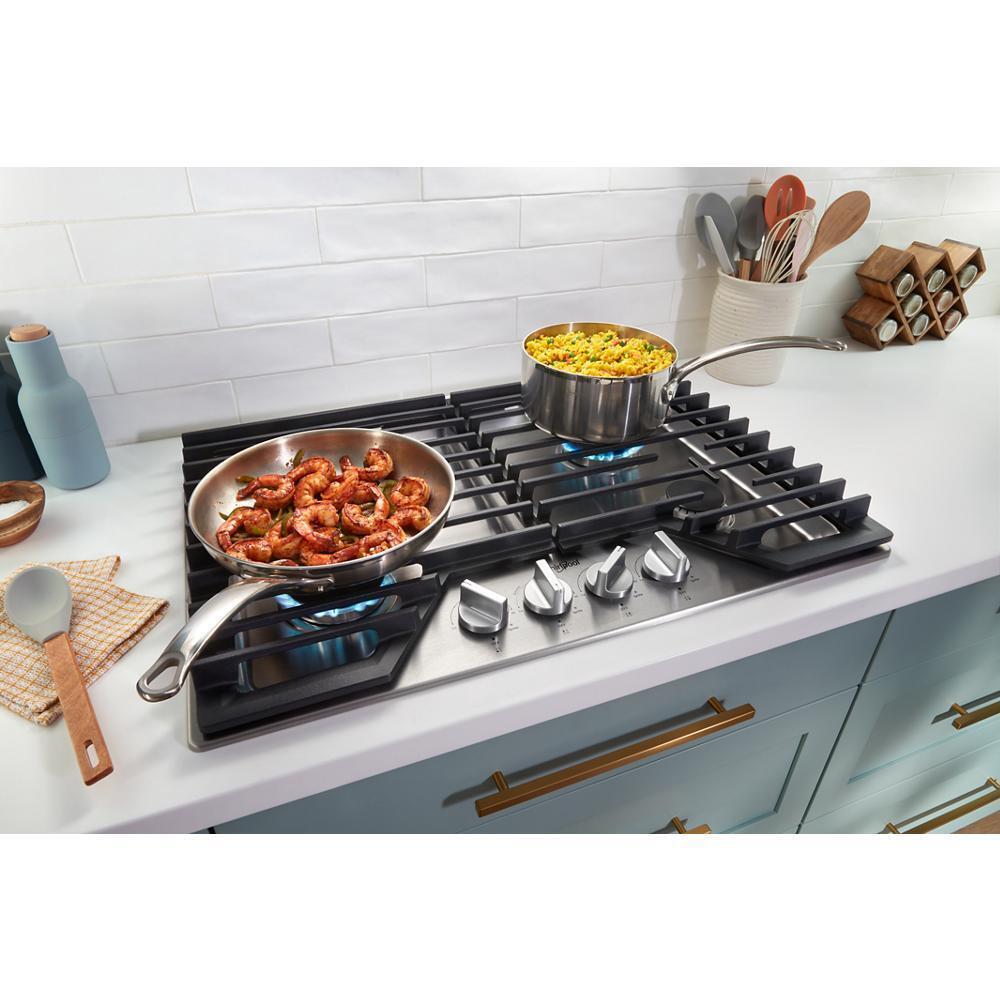

- Use your multi-purpose burners for daily cooking and searing
- Meets ADA Standards for Accessible Design

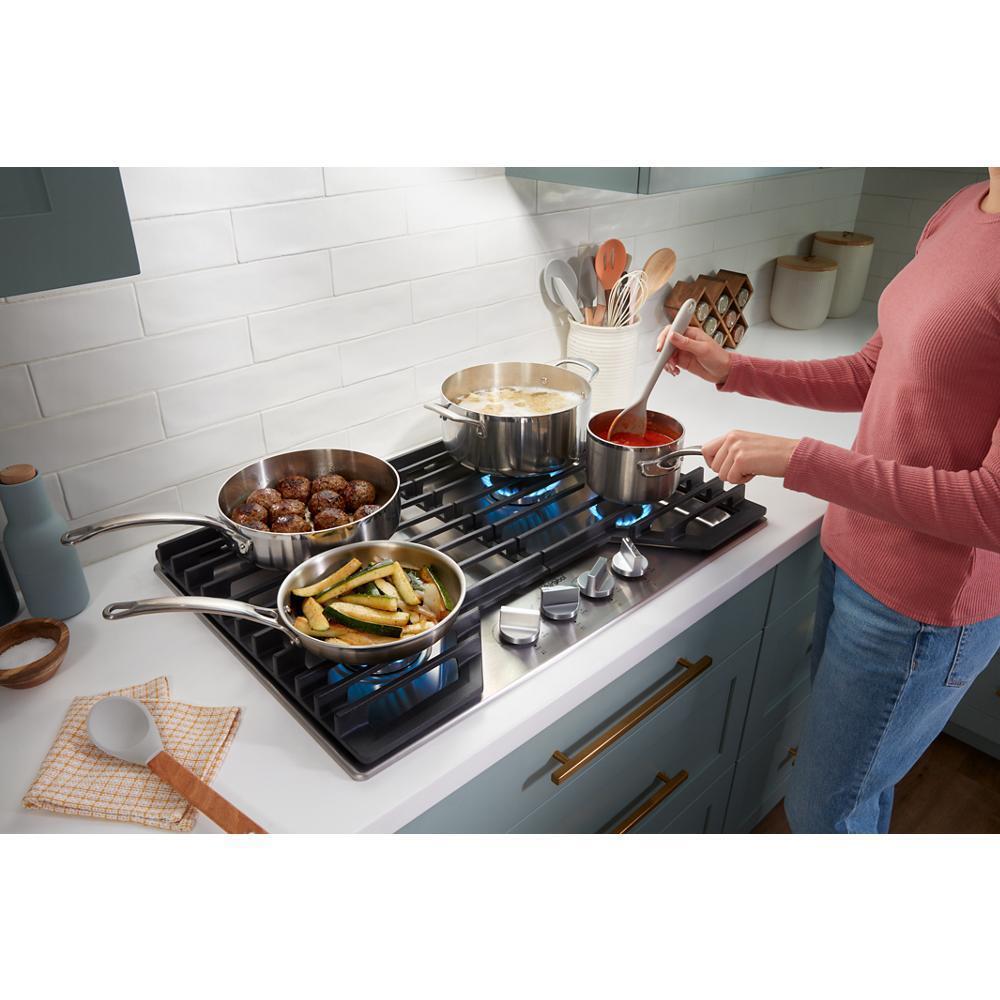

- Get Cooking Flexibility with a range of burner sizes and power levels

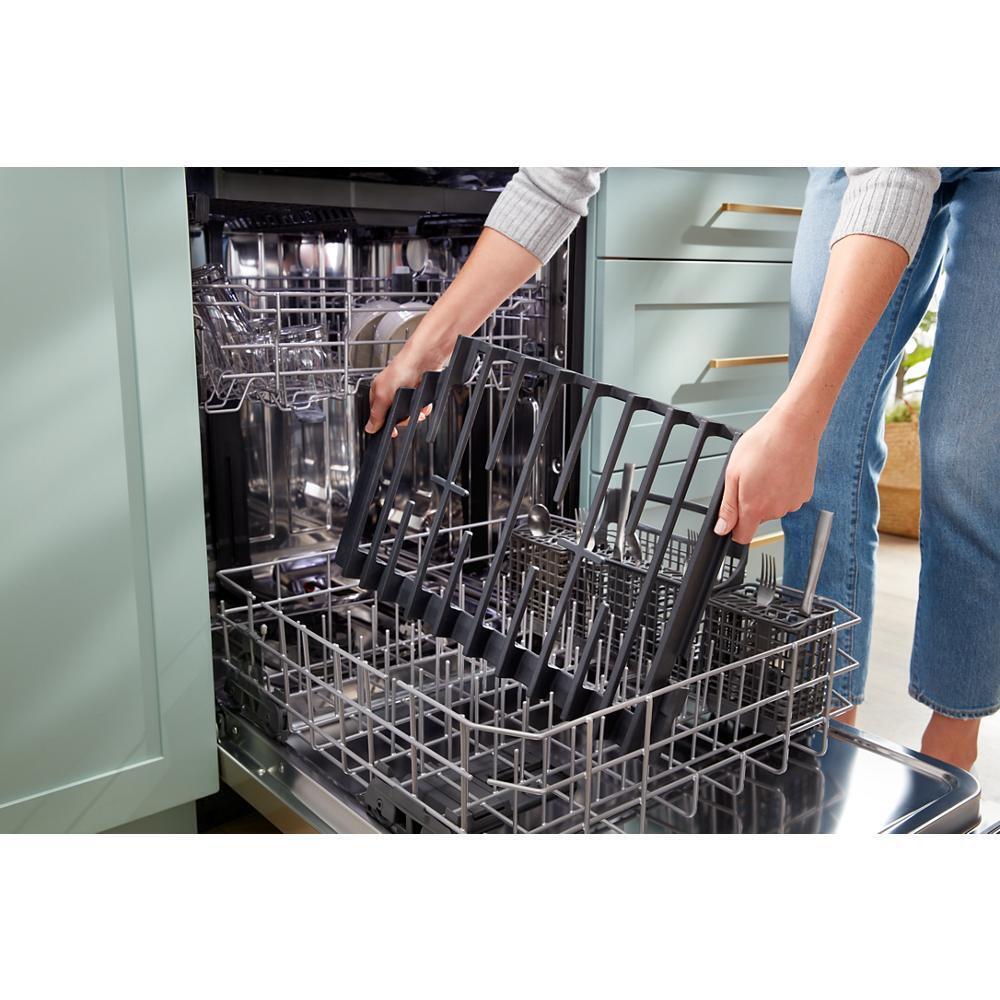

- The cast-iron grates are dishwasher-safe for easy cleaning
- Get more flexibility with grates that extend across the cooktop

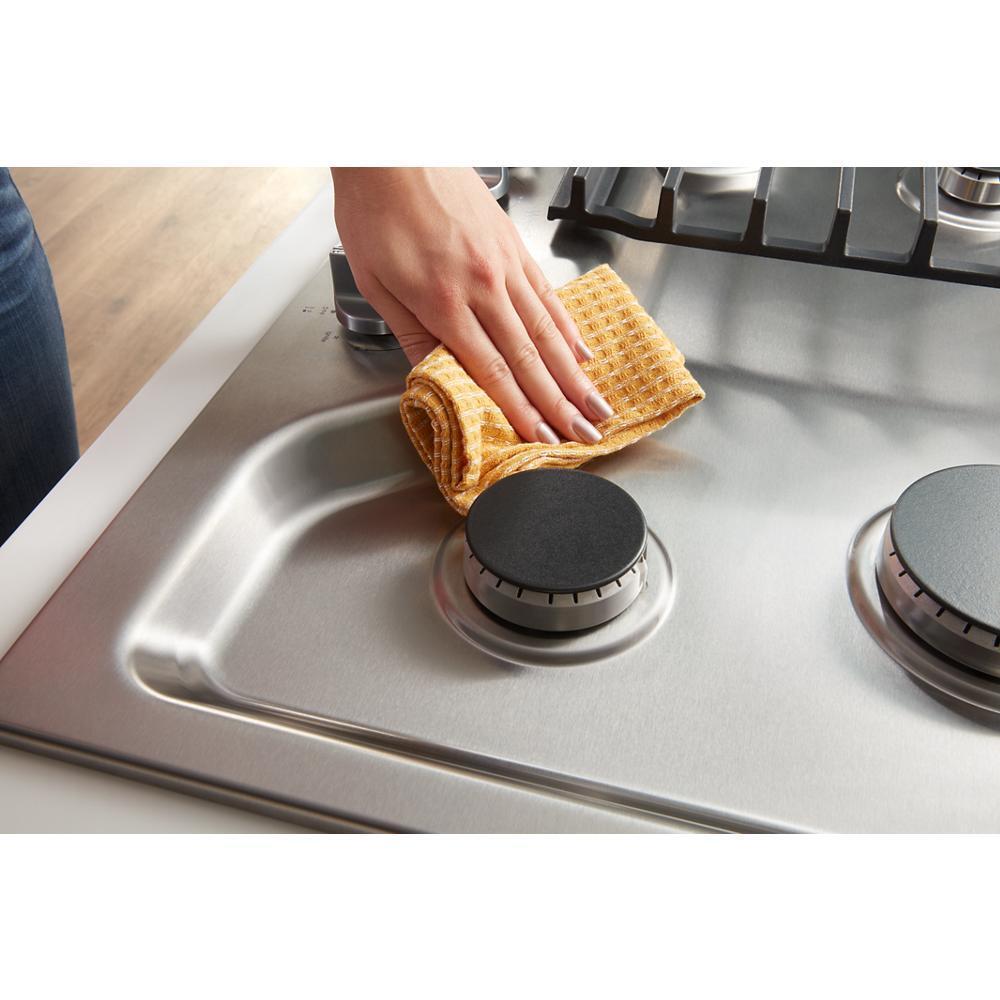

- Clean up easily with the smooth porcelain surface

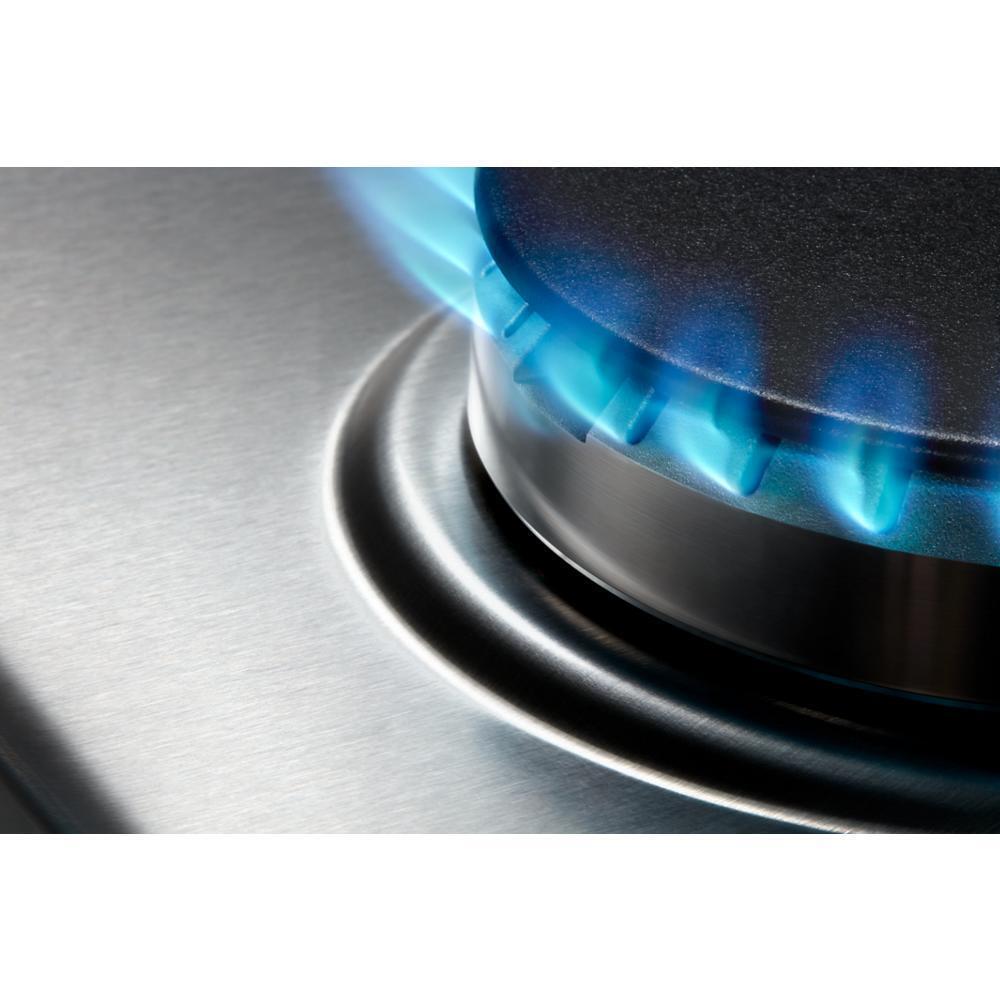

- Cut down on cleanup with Sealed Burners

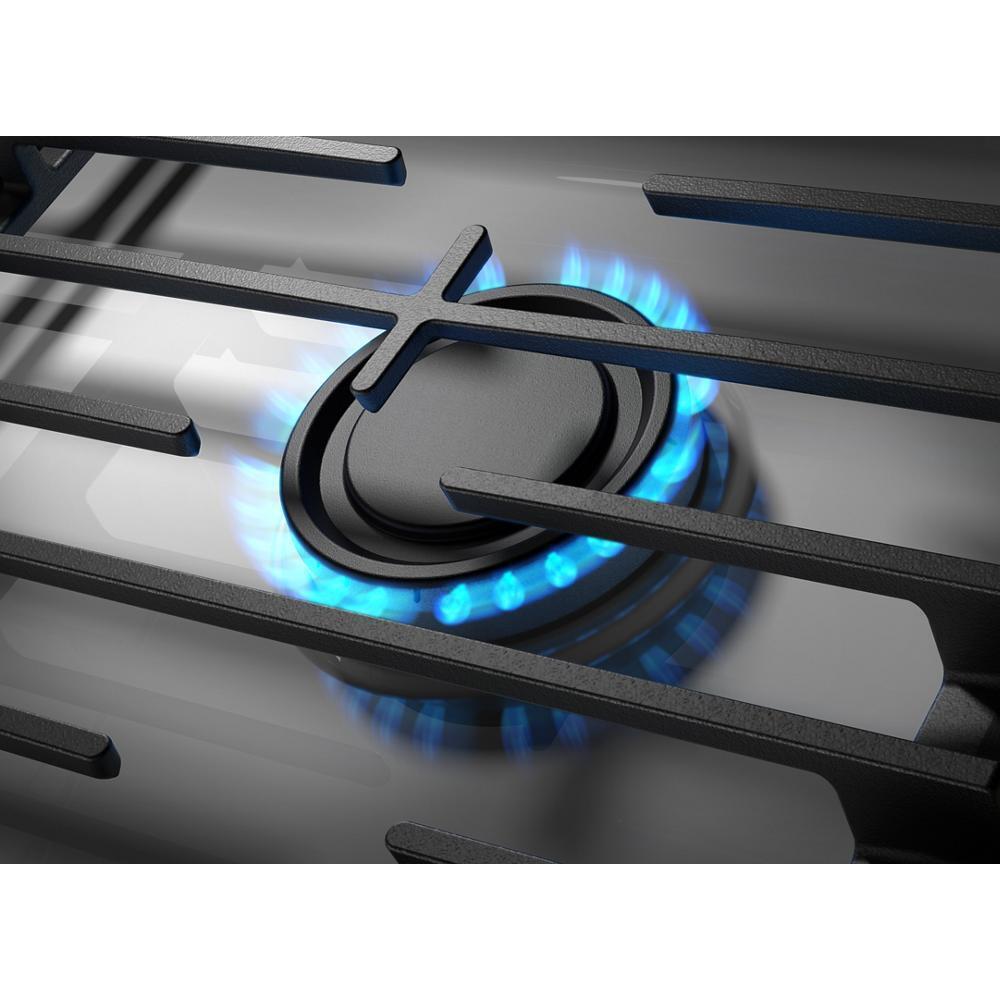

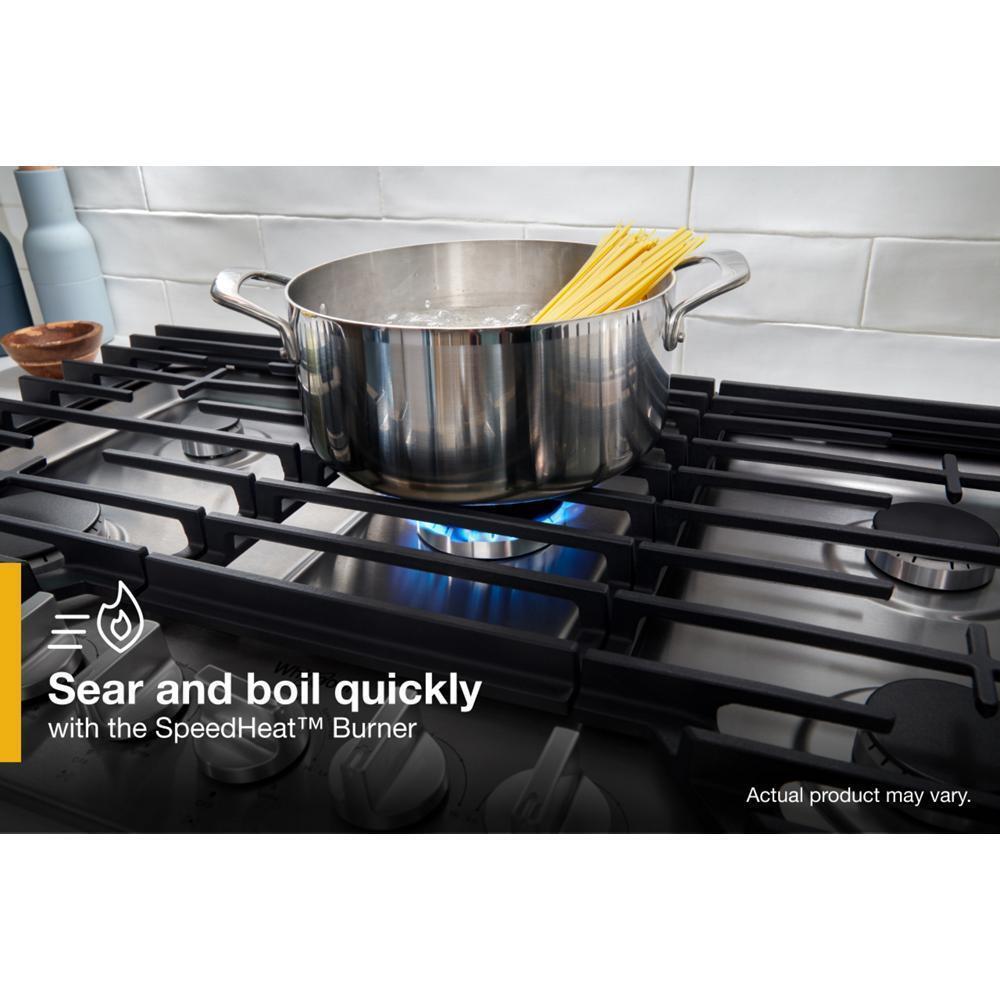

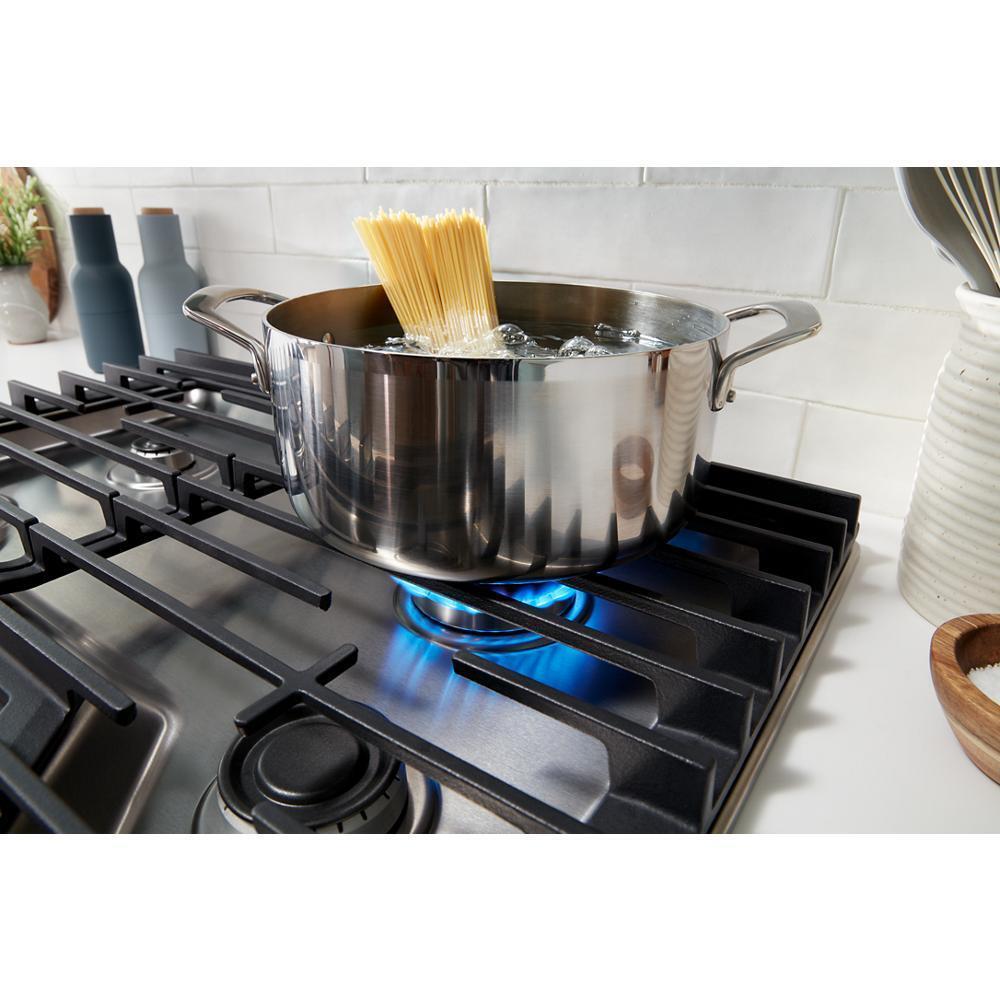

- Sear and boil quickly with the SPEEDHEAT Burner
- Clean up faster with the Upswept SPILLGUARD Cooktop

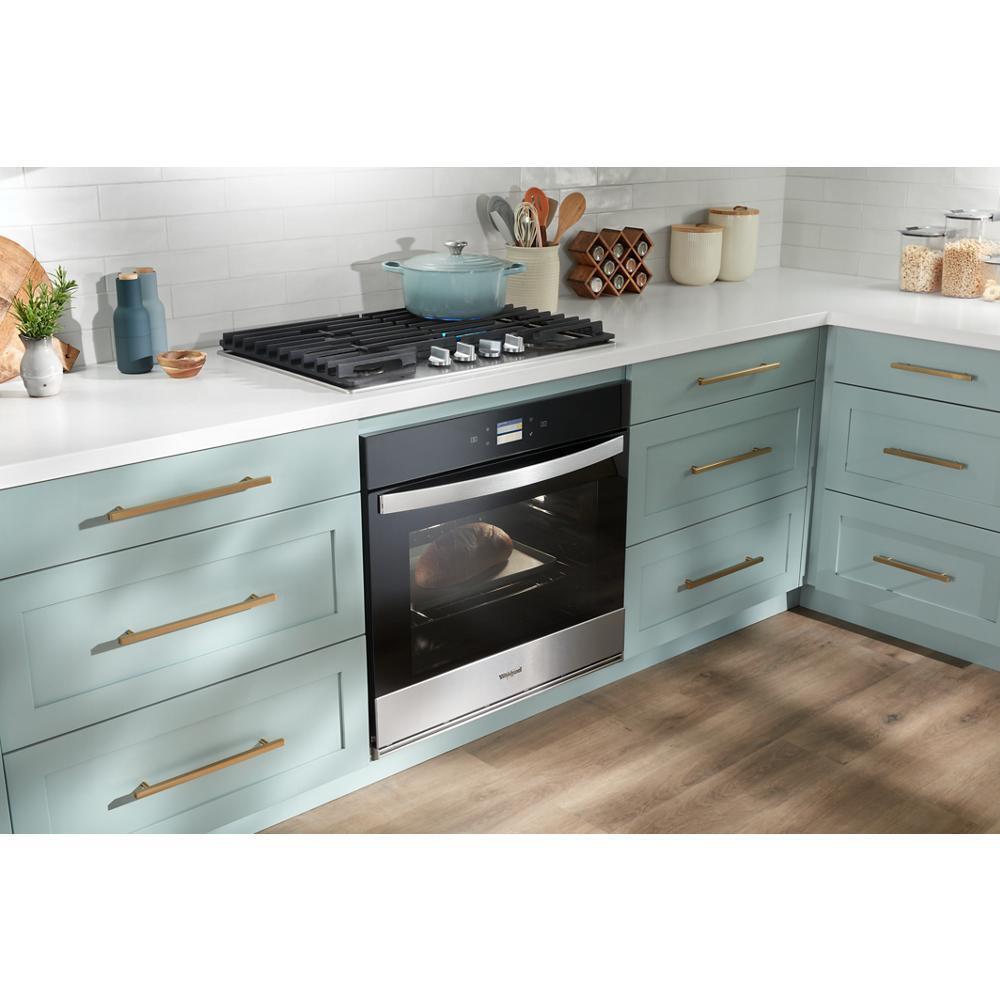

- Install this cooktop with a wall oven or on its own
30-inch Gas Cooktop with SpeedHeat™ Burners
| Certifications | |
| Ada Compliant | ADA Height and Side Reach Compliant |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Color | White |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Details | |
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Combinations With Oven | WOES3027L; WOES5027L; WOES5030L; WOES7027P; WOES7030P; WOS11EM4; WOS51EC7; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS72EC7H; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Cooktop Configuration | All Burners |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

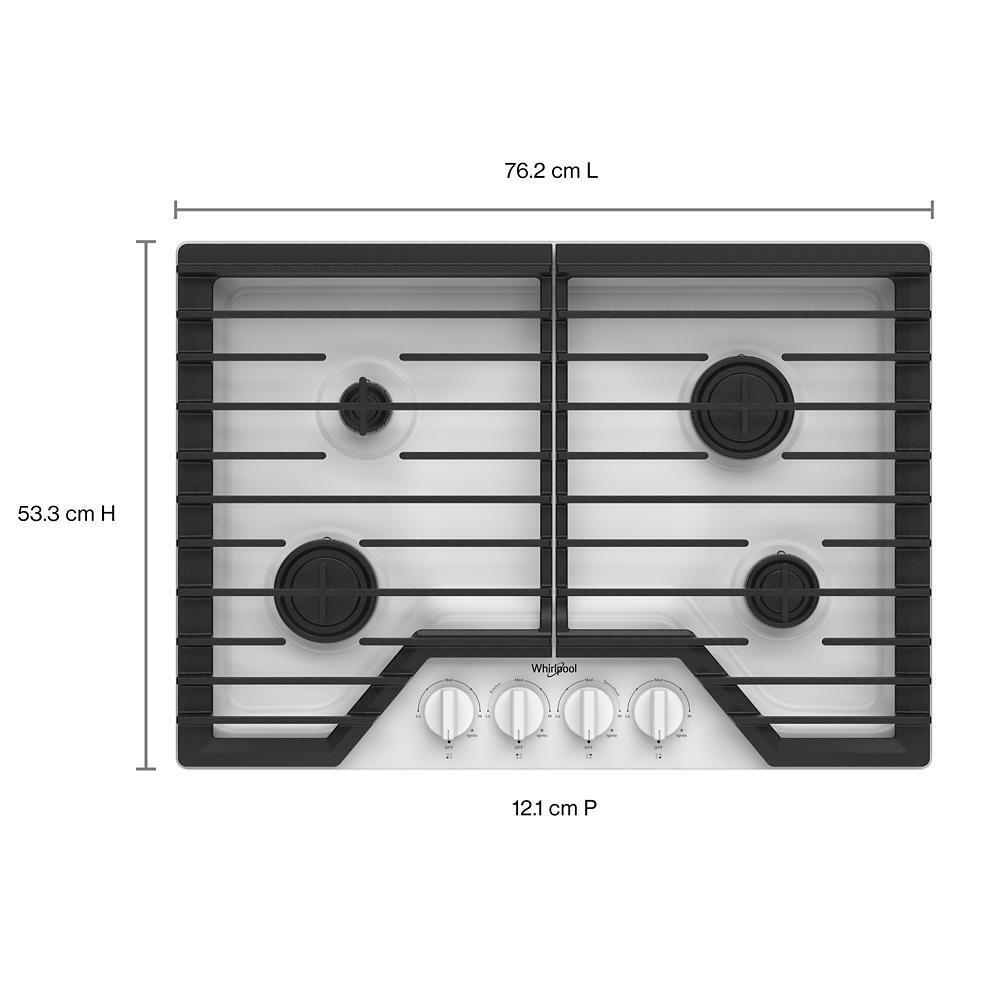

| Dimensions | |
| Product Height | 5.5625 |
| Carton Height | 12.99 |
| Gross Weight | 61.3 |
| Carton Width | 34.68 |
| Product Depth | 21.0 |
| Cutout Depth Max | 20 |
| Cutout Width Min | 28.5 |
| Cutout Depth | 20 |
| Carton Depth | 24.96 |
| Cutout Width | 29.563 |
| Cutout Depth Min | 19 |
| Cutout Width Max | 29.563 |
| Net Weight | 56.9 |
| Product Width | 30.0 |
| Electrical | |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Sealed Burner |
| Left Front Element-burner Power | 12000 BTU |
| Left Front Element-burner Type | Standard |
| Left Rear Element-burner Power | 5000 BTU |
| Left Rear Element-burner Type | Simmer |
| Number of Cooking Element-burners | 4 |
| Power Boost | No |
| Right Front Element-burner Power | 9100 BTU |
| Right Front Element-burner Type | Standard |
| Right Rear Element-burner Power | 18,000 BTU |
| Right Rear Element-burner Type | Power |
| Exterior Details | |
| Knob Color | White |
| Knob Type | Plastic |
| General | |
| Combination Match With Oven | WOES3027L; WOES5027L; WOES5030L; WOES7027P; WOES7030P; WOS11EM4; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
| Grate Details | |
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
| Number of Grates | 2 |
| Smart Compatibility | |
| Works With | No |
| Ventilation Details | |
| Downdraft Vent | No |
| Ventilation Type | N/A |
| Venting | N/A |
