- Easily fit a variety of dishes with 1.7 Cu. Ft. Capacity.
- Adjust to your food or recipe with 10 power levels.
- 1,000-Watt Cooking Power for quick cooking.
- 2-Speed hood venting helps clear smoke, odors and moisture
- Add cook time with one touch using the Add 30 Seconds Option
- Adjustable Cooktop Lighting features two warm brightness levels
- The dark interior helps hide stains and splatters.
- Let the dishwasher handle turntable spills.

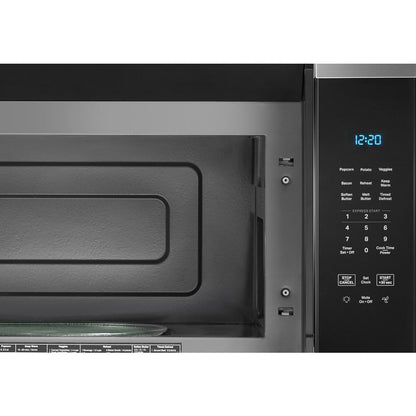

- Sleek controls are as easy to use, as they are to clean
- Skip typing times with Express Cooking Buttons
- Prepare snacks with the press of a button with Preset options
- Get the right settings to cook popcorn and help prevent burning.
- Help trap unwanted grease with a removable filter.

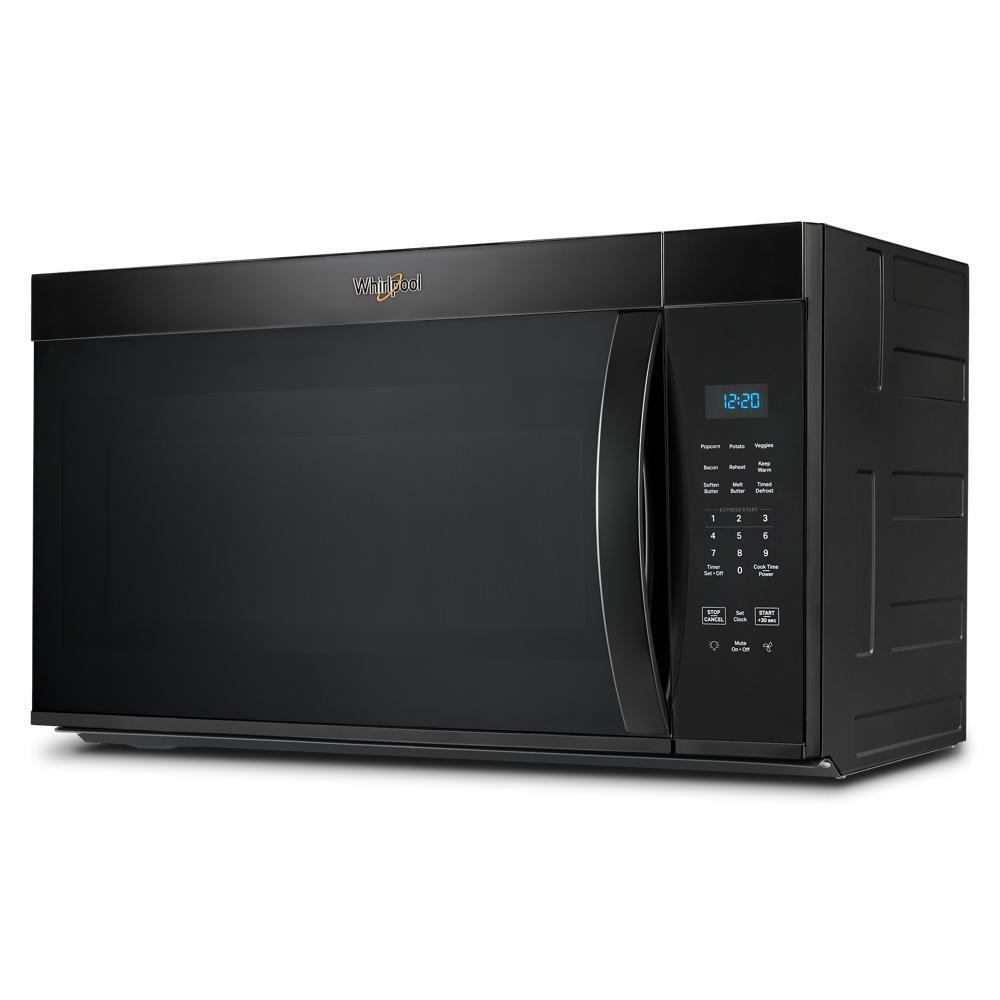

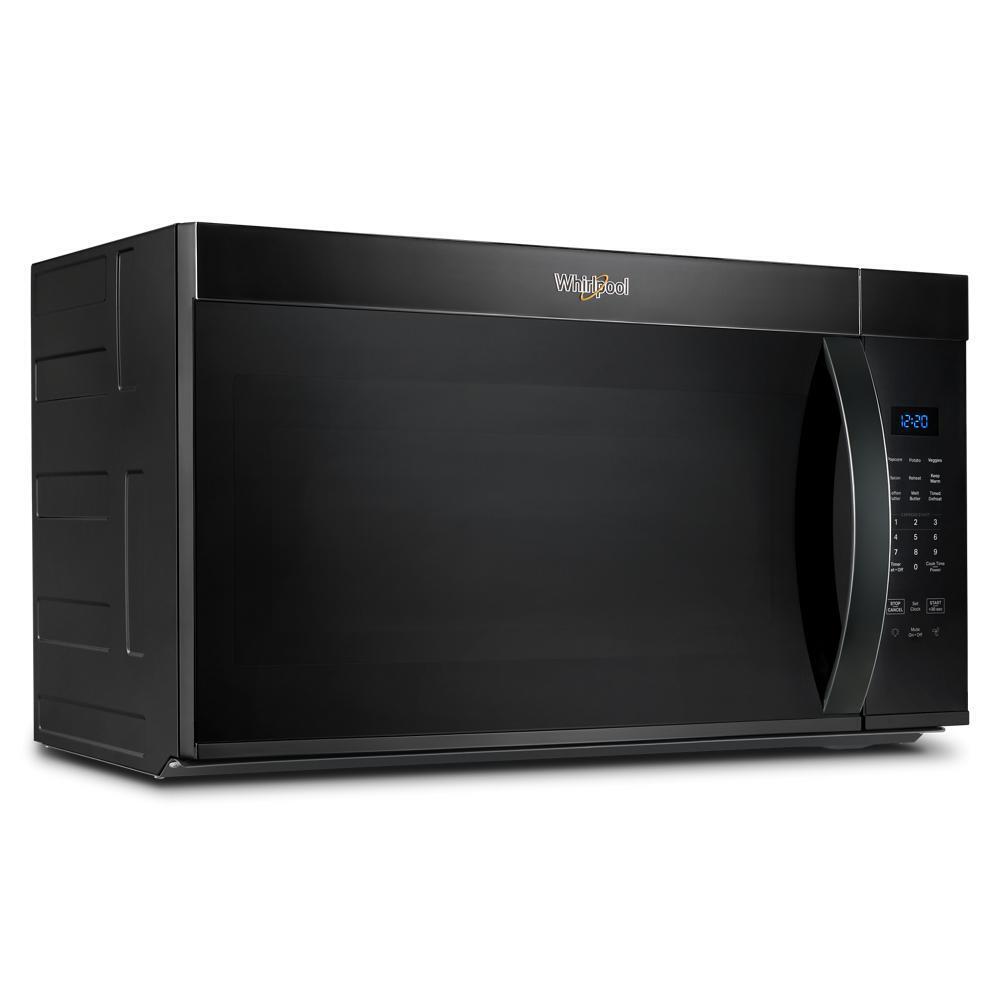

30 W 1.7 cu. ft Over the range Microwave with 1000-Watts Cooking Power
| Certifications | |
| Ada Compliant | No |
| Cec Listed | Yes |
| Cul | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right |
| Control Type | Electronic Touch |
| Convenience Cooking Controls | Yes |
| Display Color | Blue |
| Electronic Display Type | LED |
| Microwave Selections | Add 30 Seconds; Add A Minute; Auto Cook; Beverage; Cook Power; Cook Time; Cook/Start; Defrost; Dinner Plate; End of Cycle Signal; Fresh Vegetable; Frozen Entree; Frozen Vegetable; Keep Warm; Off/Cancel; Pause; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup; Time Cook; Timer |
| Number of Keypads | 27 |
| Number of Power Levels | 10 |
| Number of Quick Touch/one-touch Selections | 4 |
| Number of Sensor Control Keypads | 0 |
| One Touch Cooking | Yes |
| Scrolling Electronic Display | No |
| Details | |
| 90 Degree Articulating Hinge | No |
| Cavity Finish | Powder Coat |
| Clock | Yes |
| Door Opening Direction | Left |
| Grill | No |
| Microwave Configuration | Microwave Hood Combination |
| Microwave Type | Over-the-Range |
| Number of Vent Speeds | 2 |
| Turntable | Yes |
| Work Surface Light | Halogen |
| Dimensions | |
| Product Height | 17.125 |
| Cutout Height Max | 17.125 |
| Carton Height | 20.7 |
| Gross Weight | 59.9 |
| Display Screen Diagonal Length | 2.45 |
| Carton Width | 31.9 |
| Product Depth | 15.5625 |
| Cutout Depth Max | 14 |
| Depth With Door Open 90 Degree | 39.375 |
| Cutout Width Min | 30 |
| Interior Depth | 14 |
| Cutout Height Min | 17.125 |
| Depth Excluding Doors | 15.875 |
| Depth Closed Excluding Handles | 15.563 |
| Depth Closed Including Handles | 17.875 |
| Interior Height | 9.5 |
| Carton Depth | 19.25 |
| Cutout Depth Min | 12 |
| Cutout Width Max | 30 |
| Net Weight | 51.3 |
| Product Width | 29.875 |
| Interior Width | 21.063 |
| Electrical | |
| Power Cord Included | Yes |
| Exterior Details | |
| Cabinet Color | Black |
| Handle Color | Black |
| General | |
| Microwave Interior Light | Incandescent |
| Microwave Details | |
| Door Release | Handle |
| Number of Microwave Racks | 0 |
| Sensor Cooking | No |
| Turntable Diameter Size | 12 |
| Oven Details | |
| Convection | No |
| Cooking Power | 1,000 |
| Smart Compatibility | |
| Connectivity | No |
| Smart Appliance | No |
| Ventilation Details | |
| Blower Type | Centrifugal |
| Cfm Motor Class | 300 |
| Duct Direction | Vertical or Horizontal |
| Duct Outlet Size | 3.25 W x 10 H |
| Duct Type | Rectangular |
| Fan Speed Indicator | Yes |
| Filters | Charcoal Odor Removing Filter |
| Night Light | Yes |
| Vent Fan Location | Back |
| Ventilation Type | Updraft |
| Venting | Exterior or Recirculating |
