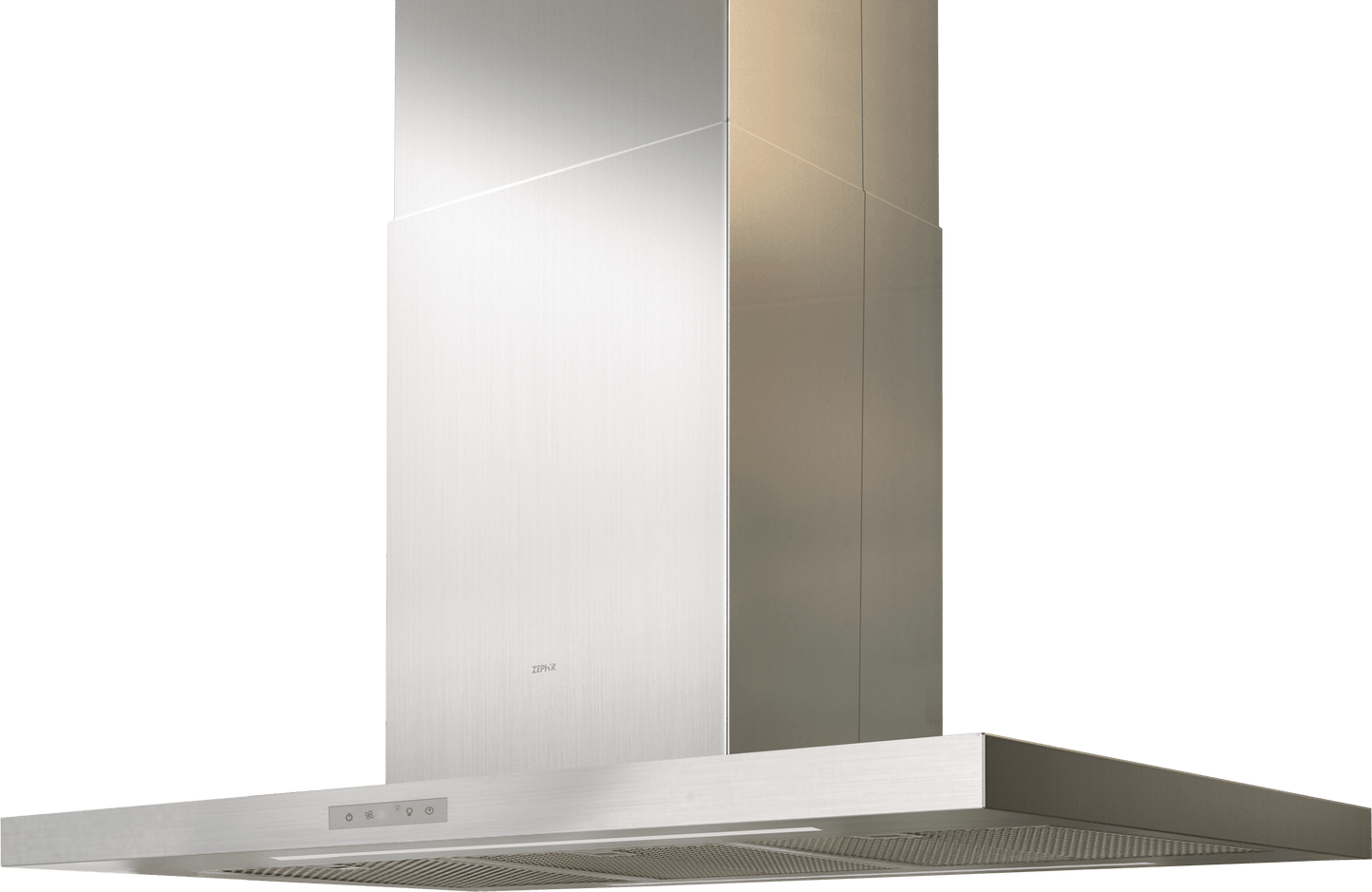

Zephyr ADLM90BSX Duo, Island, 90cm, SS, LED, BODY ONLY ADLM90BSX
Zephyr ADLM90BSX Duo, Island, 90cm, SS, LED, BODY ONLY
- Capacitive touch controls
- CleanAir Function
- Includes wireless remote control
- LED light strip
- Low-profile body
- Quick-Lock installation system
Duo, Island, 90cm, SS, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328004209 |
| GTIN | 00646328004209 |
| Country of Origin | Italy |
| Model Group | ADL-B |
| Model Name | Duo Island |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 8.5 |
| Lights Levels | 3 |
| Grease Filter Type | Decorative Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200031 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-01LL, Z1C-02LL, MUA006A, MUA008A, Z0F-01AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.375 |
| Net Depth; IN | 23.625 |
| Net Height; IN | 29.5 - 49 |
| Weight; LBS | 101 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 28 |
| Chimney Width in. | 12.93 |
| Chimney Depth in. | 11.25 |
| Shipping Length; IN | 20.87 |
| Shipping Width; IN | 40.55 |
| Shipping Height; IN | 31.5 |
| Shipping Weight; LBS | 110.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
