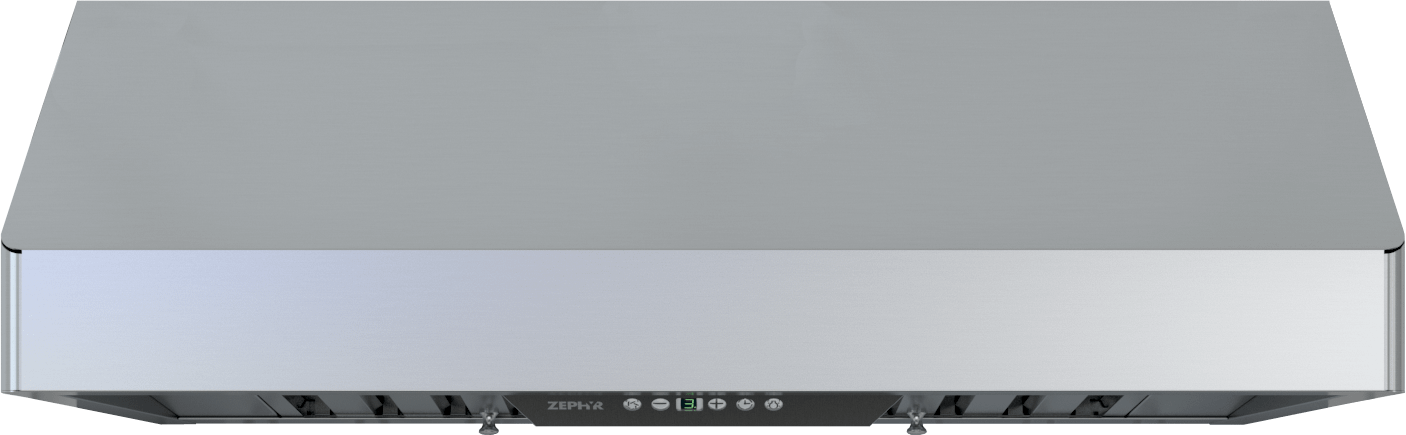

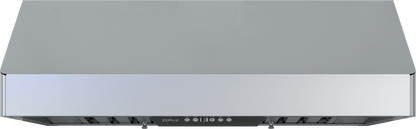

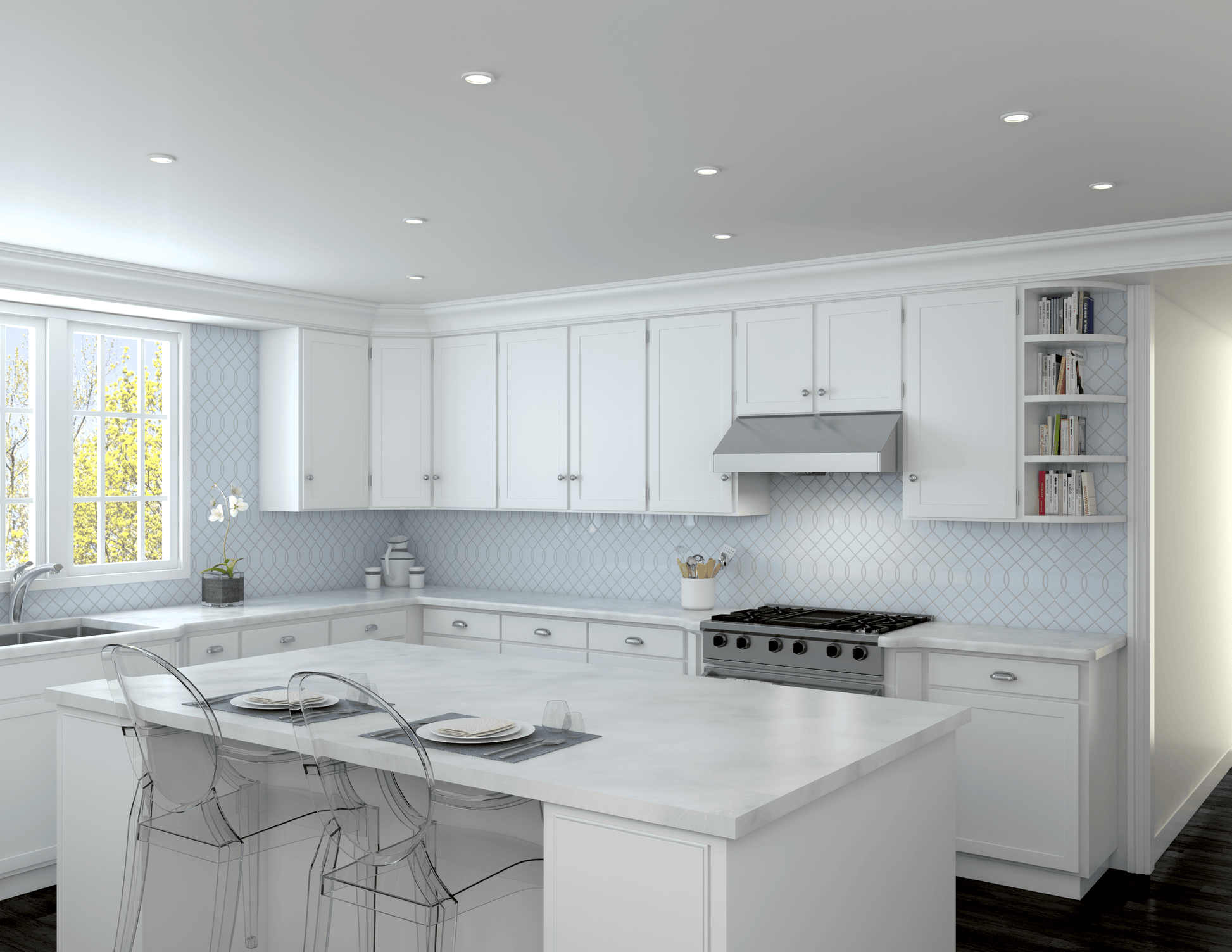

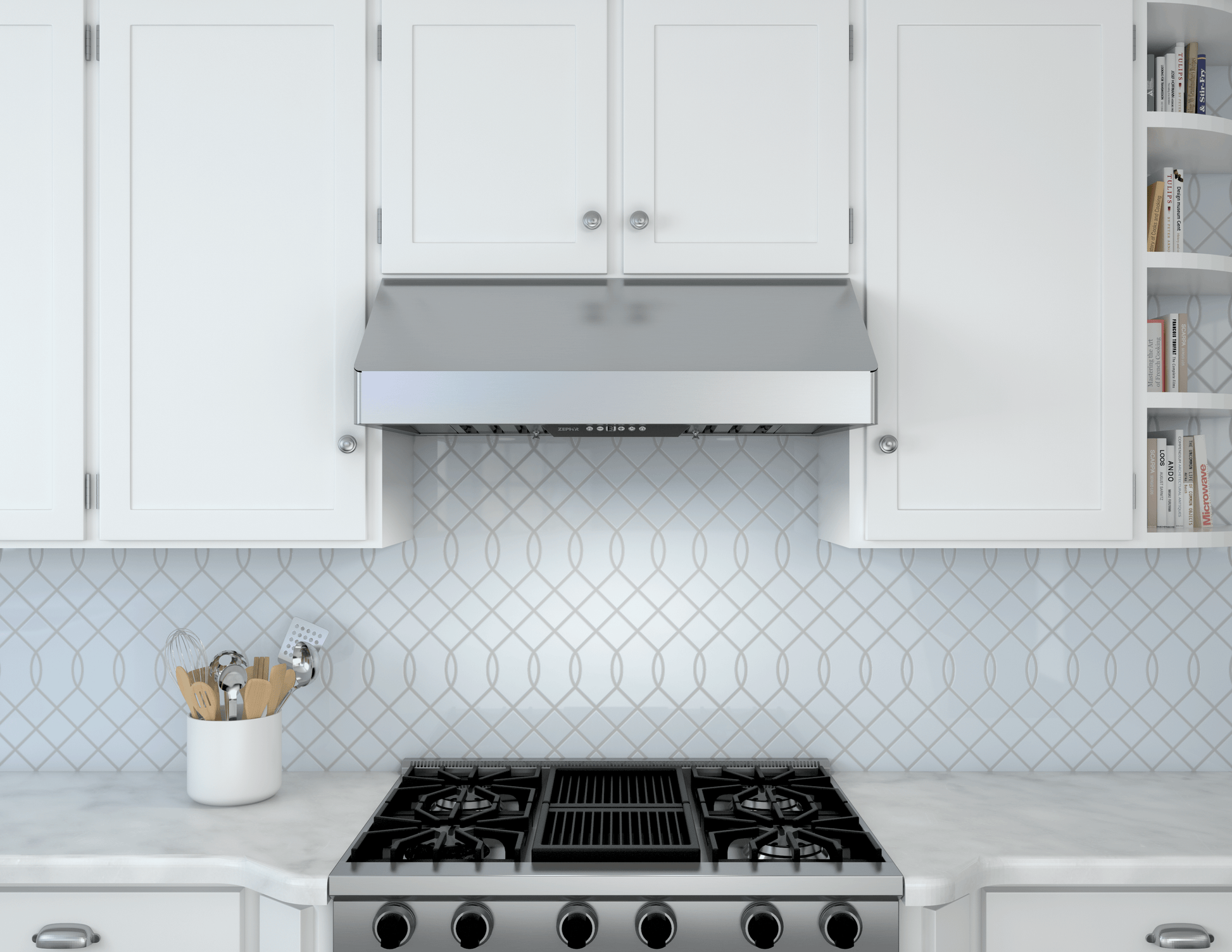

Zephyr AK7048BS Tempest I, 11in Pro, 48", SS, 650 CFM, ACT
Zephyr AK7048BS Tempest I, 11in Pro, 48", SS, 650 CFM, ACT
Item Not Available
Couldn't load pickup availability
Check Delivery:
- Airflow Control Technologyâ„¢ (ACTâ„¢)
- Professional Baffle Filters
- Welded and polished body
- CleanAir Function
- Optional wireless remote control
- Optional Ductless Recirculating Kit
Tempest I, 11in Pro, 48", SS, 650 CFM, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328007491 |
| GTIN | 00646328007491 |
| Country of Origin | Taiwan |
| Model Group | AK70-B |
| Model Name | Tempest I Under-Cabinet |
| Collection | Pro Collection |
| Replacement Model | AK7048CS |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 650 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 1200 |
| Internal Blower 2 Max Sones | 9 |
| Minimum CFM | 200 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210021 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 3.25 x 10 |
| Duct Size; Vertical; IN | 8, 10 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1200A, ZRC-7042B, AK0722, 14000005, AK0712, Z0B0040, MUA008A, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.875 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 11 |
| Weight; LBS | 62 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 16.54 |
| Shipping Width; IN | 54.5 |
| Shipping Height; IN | 30 |
| Shipping Weight; LBS | 72.5 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
