ZEPHYR AK7136BS290BF
Authorized Reseller

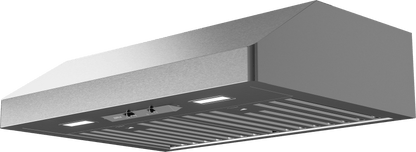

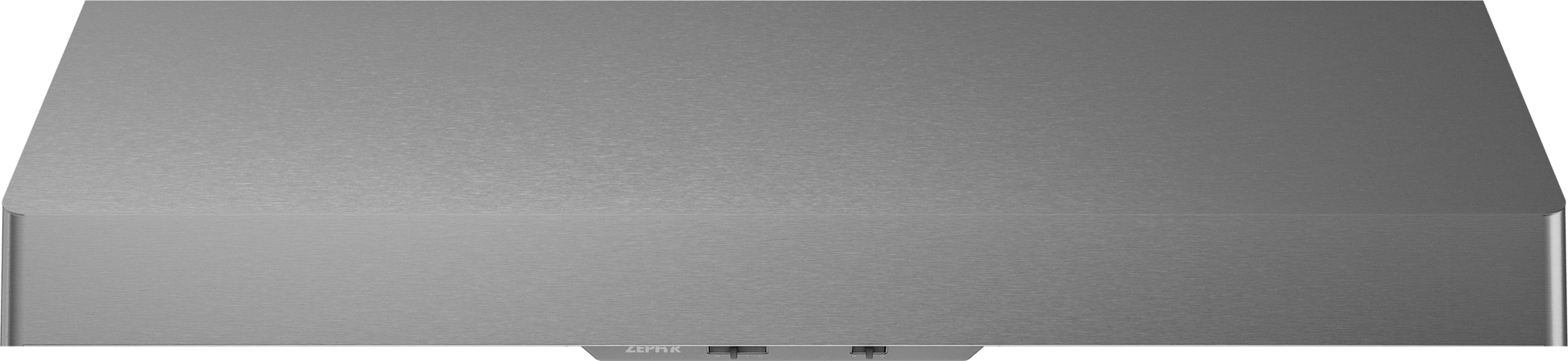

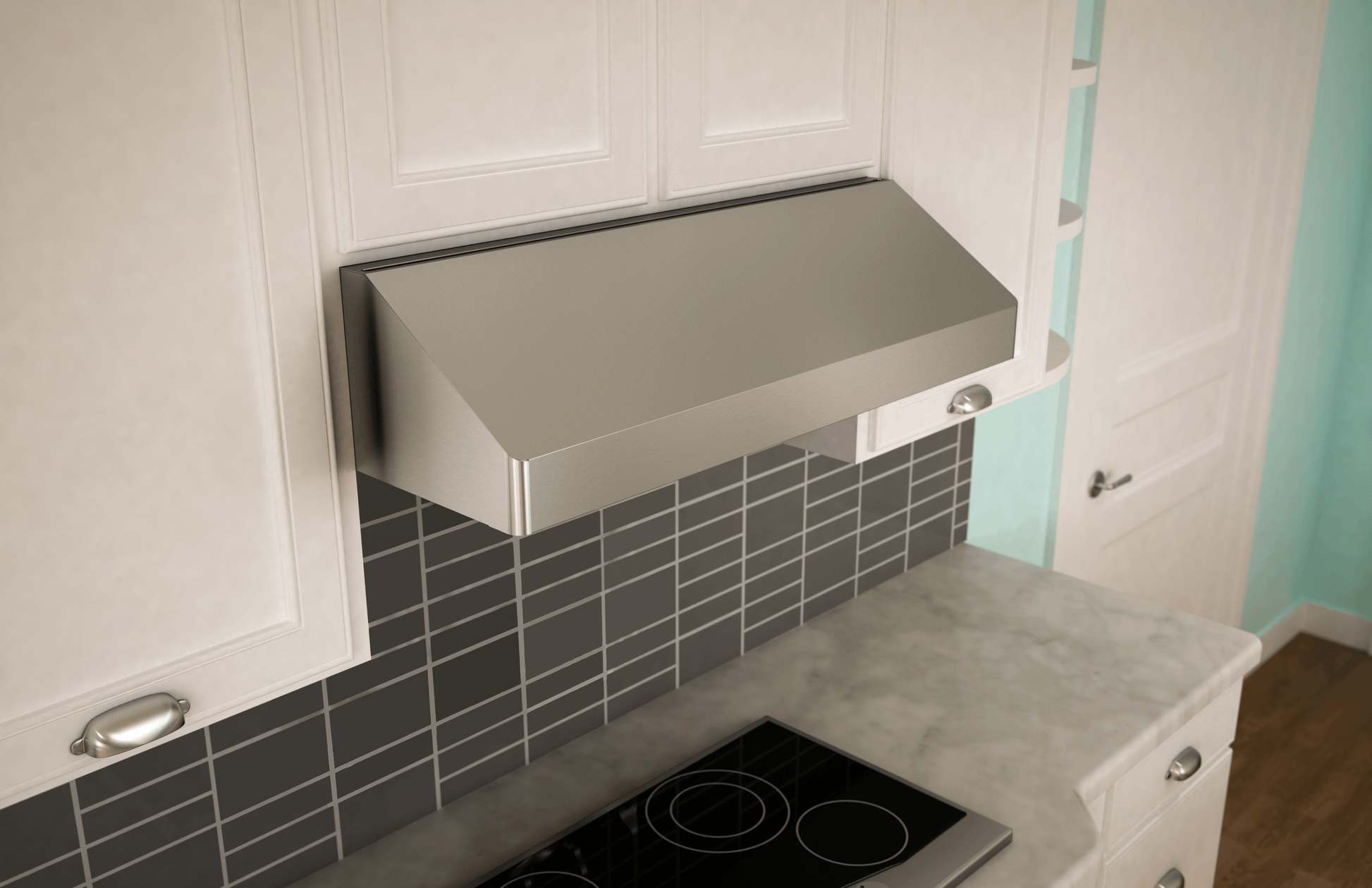

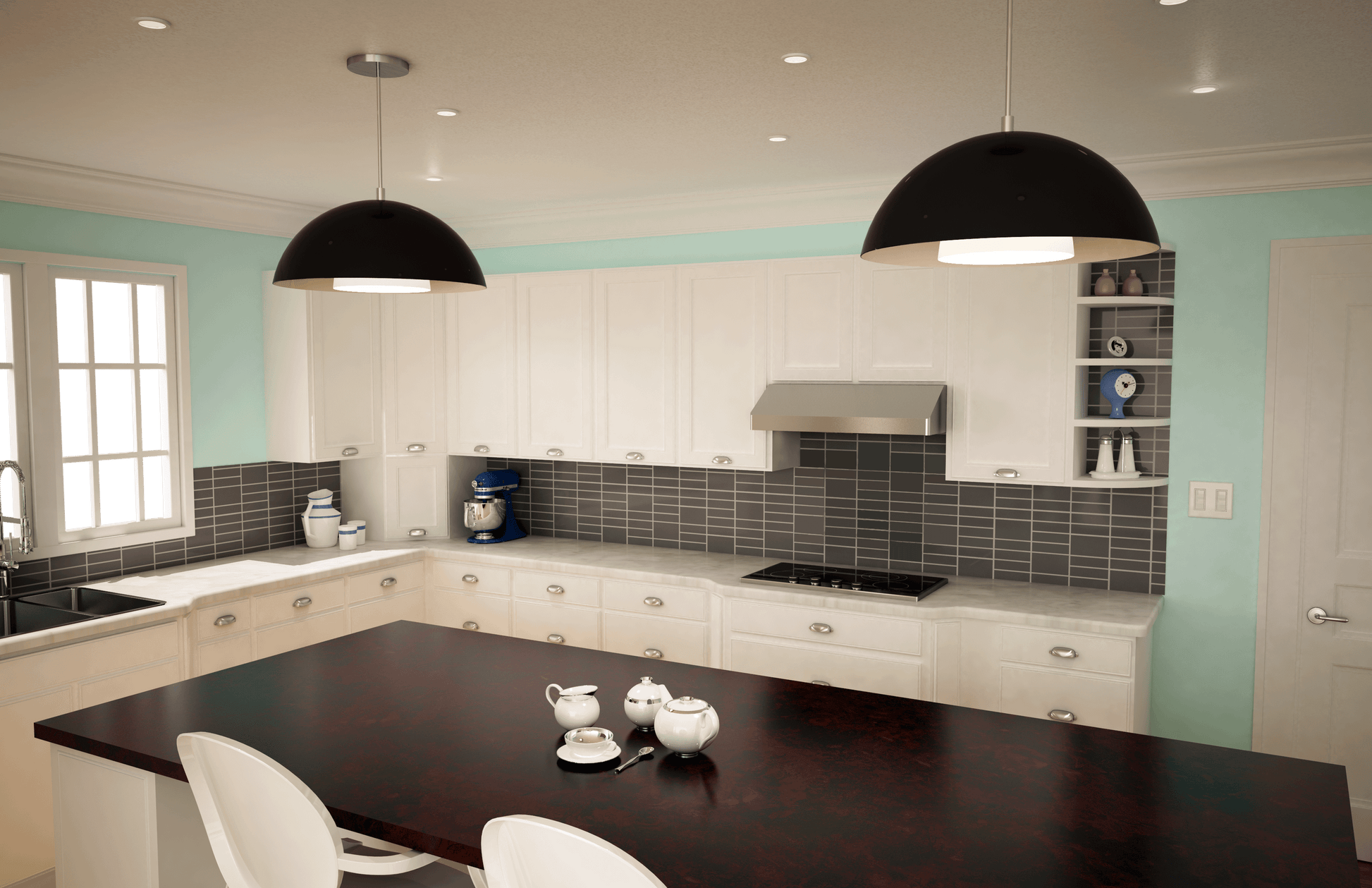

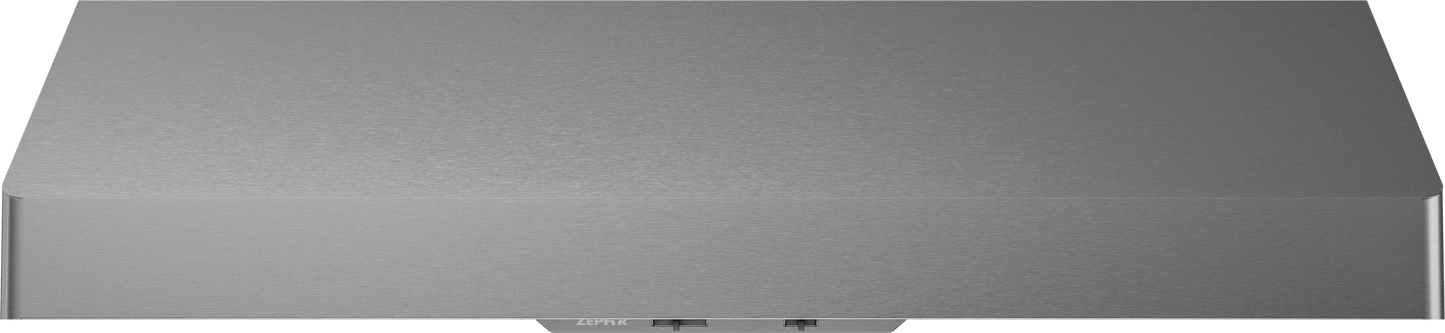

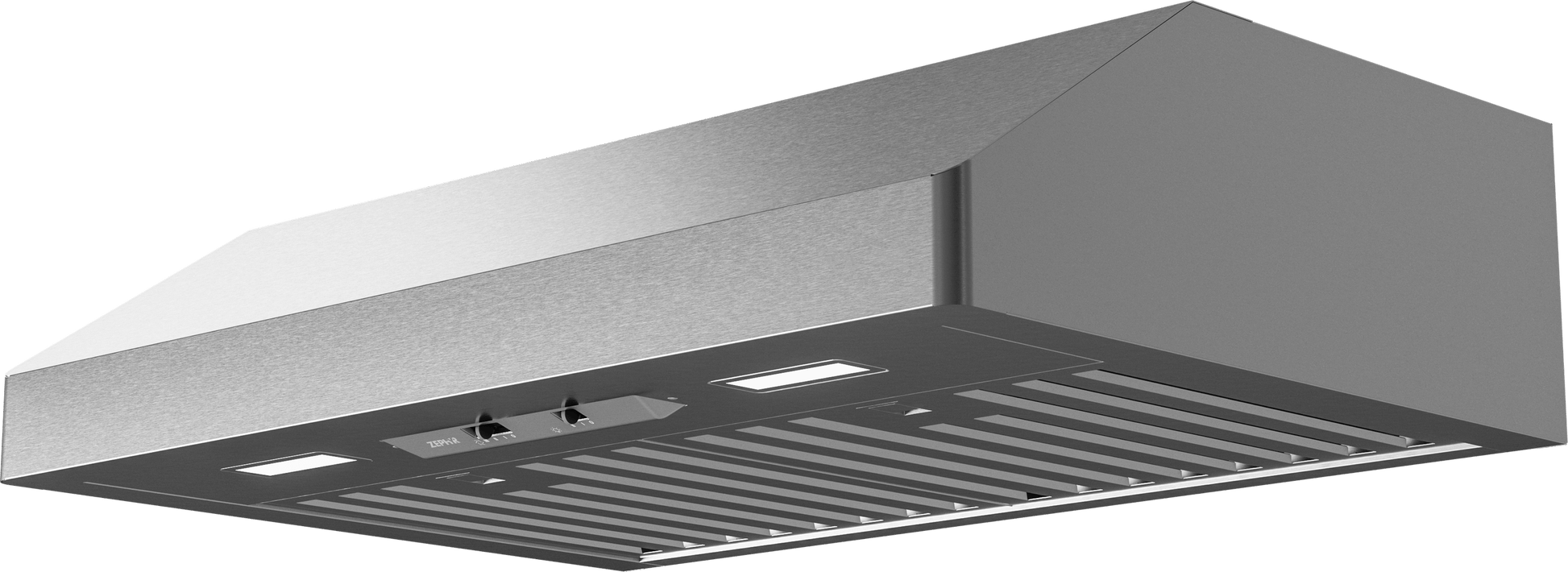

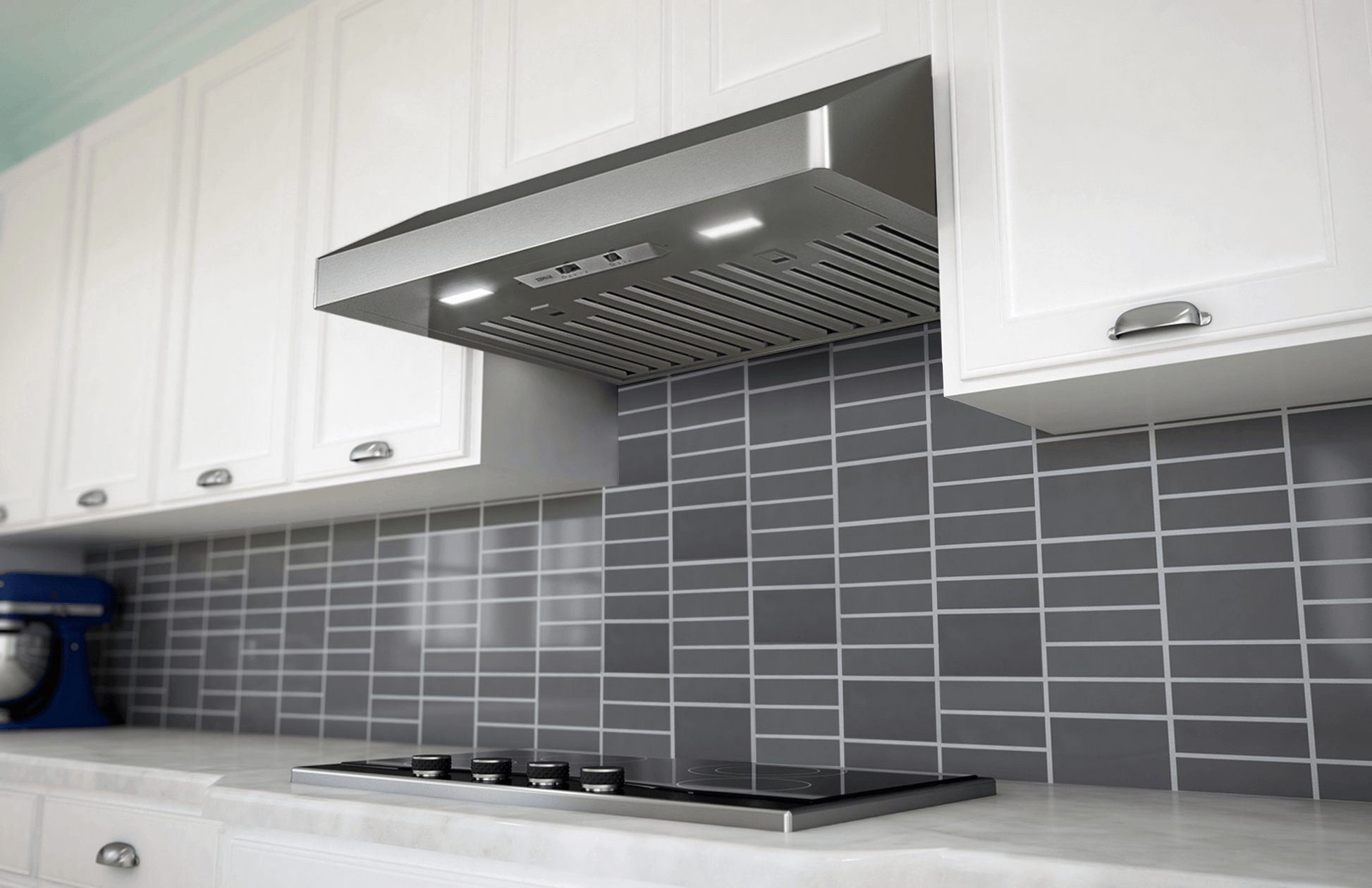

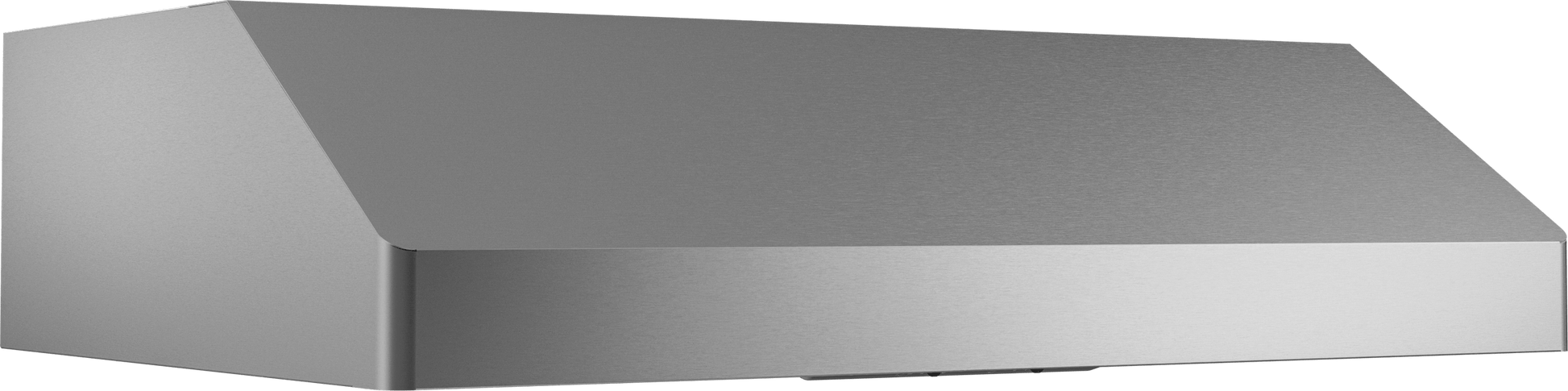

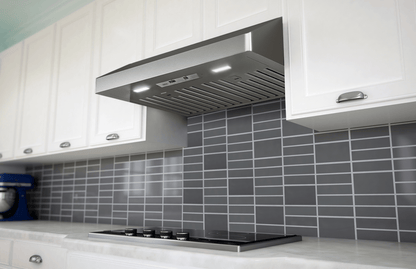

Zephyr AK7136BS290BF Gust, UC, 36in, SS, Baffles, LED, 290
Zephyr AK7136BS290BF Gust, UC, 36in, SS, Baffles, LED, 290
Regular price
$799.00
Regular price
Sale price
$799.00
Unit price
per
In Stock By Manufacturer
Couldn't load pickup availability
When Will I Get My Order?
- Welded and polished body
- LumiLight LED Lighting
- Mechanical Slide Controls
- Dual-Level Lighting
- Baffle filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Gust, UC, 36in, SS, Baffles, LED, 290
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328008788 |
| GTIN | 00646328008788 |
| Country of Origin | Taiwan |
| Model Group | AK71-B |
| Model Name | Gust Under-Cabinet |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.1 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 120 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Baffle |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 1.55 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-0071, MUA006A, AK00067, Z0F-C005, AK1716 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 186 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.9 |
| Net Depth; IN | 21 |
| Net Height; IN | 7.375 |
| Weight; LBS | 37.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39 |
| Shipping Width; IN | 26 |
| Shipping Height; IN | 11 |
| Shipping Weight; LBS | 43 |
| Shipping Method | Small Parcel |
| Freight Class | 125 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
