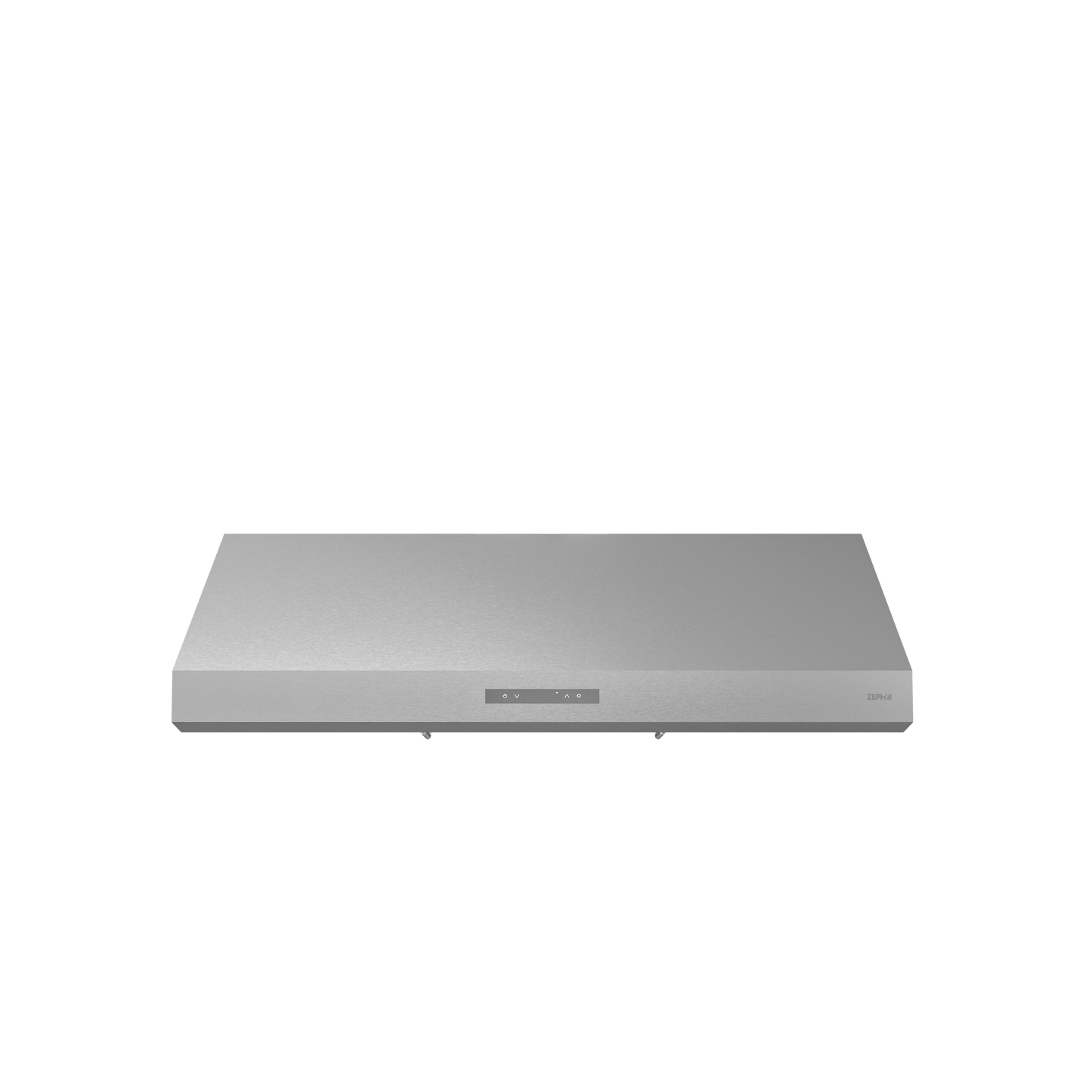

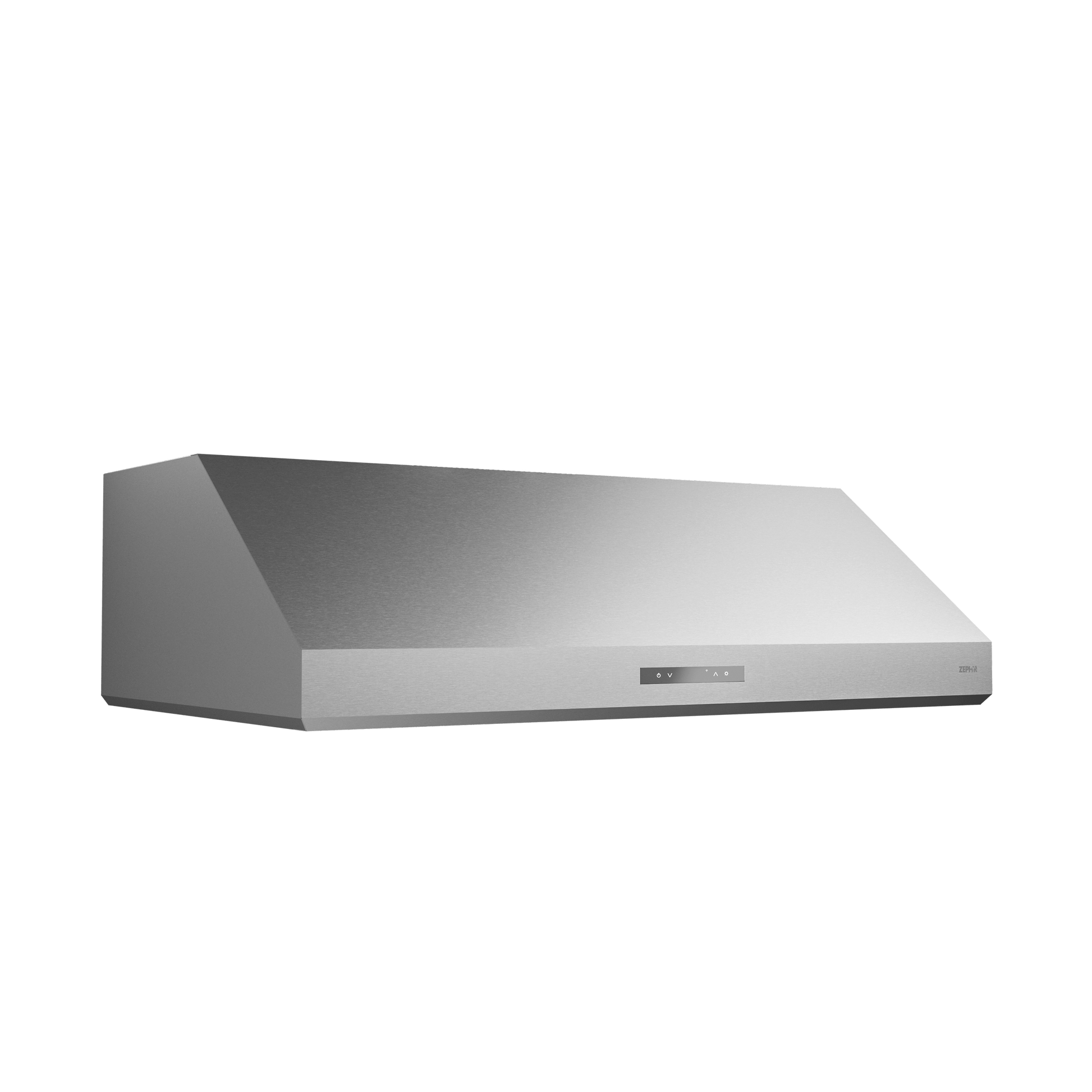

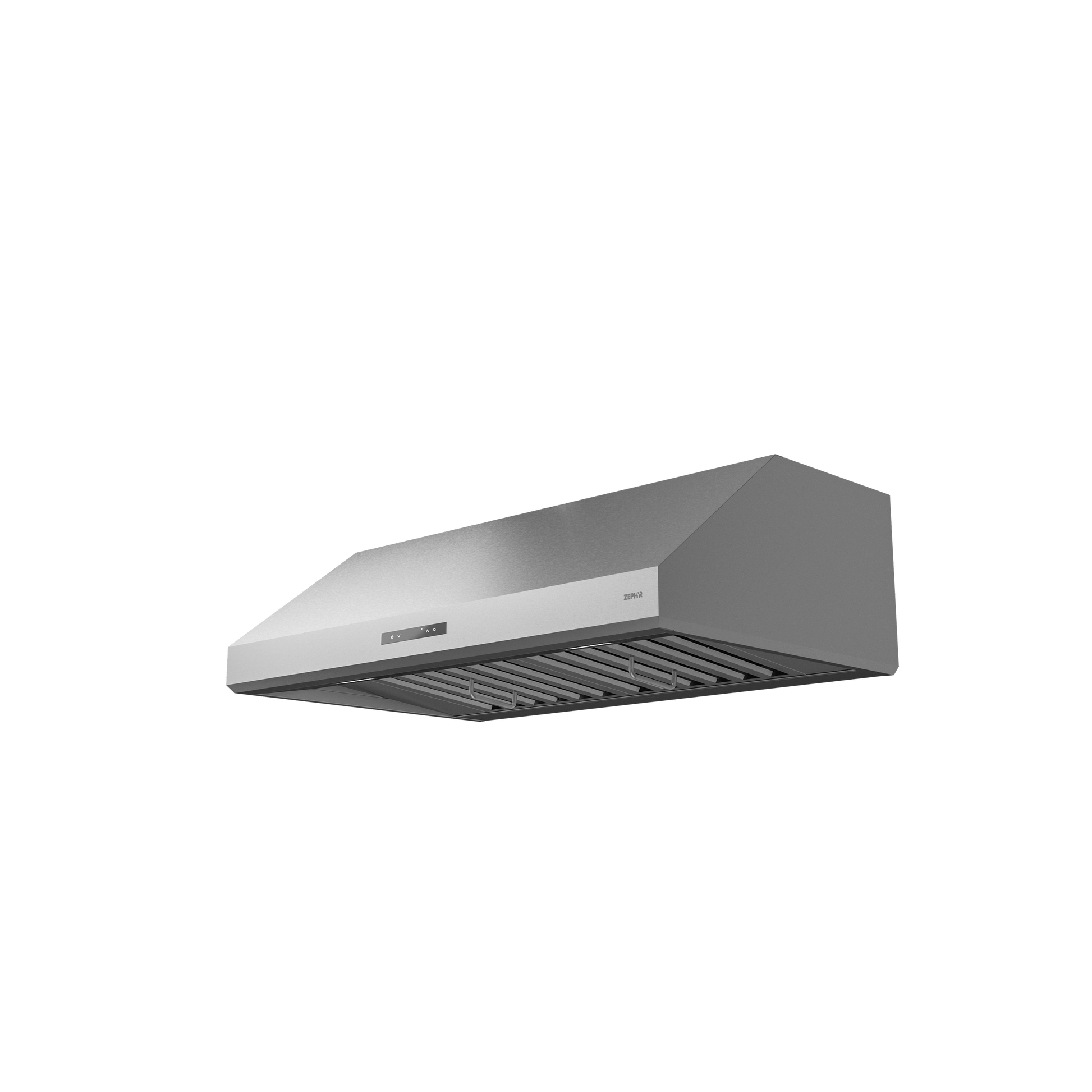

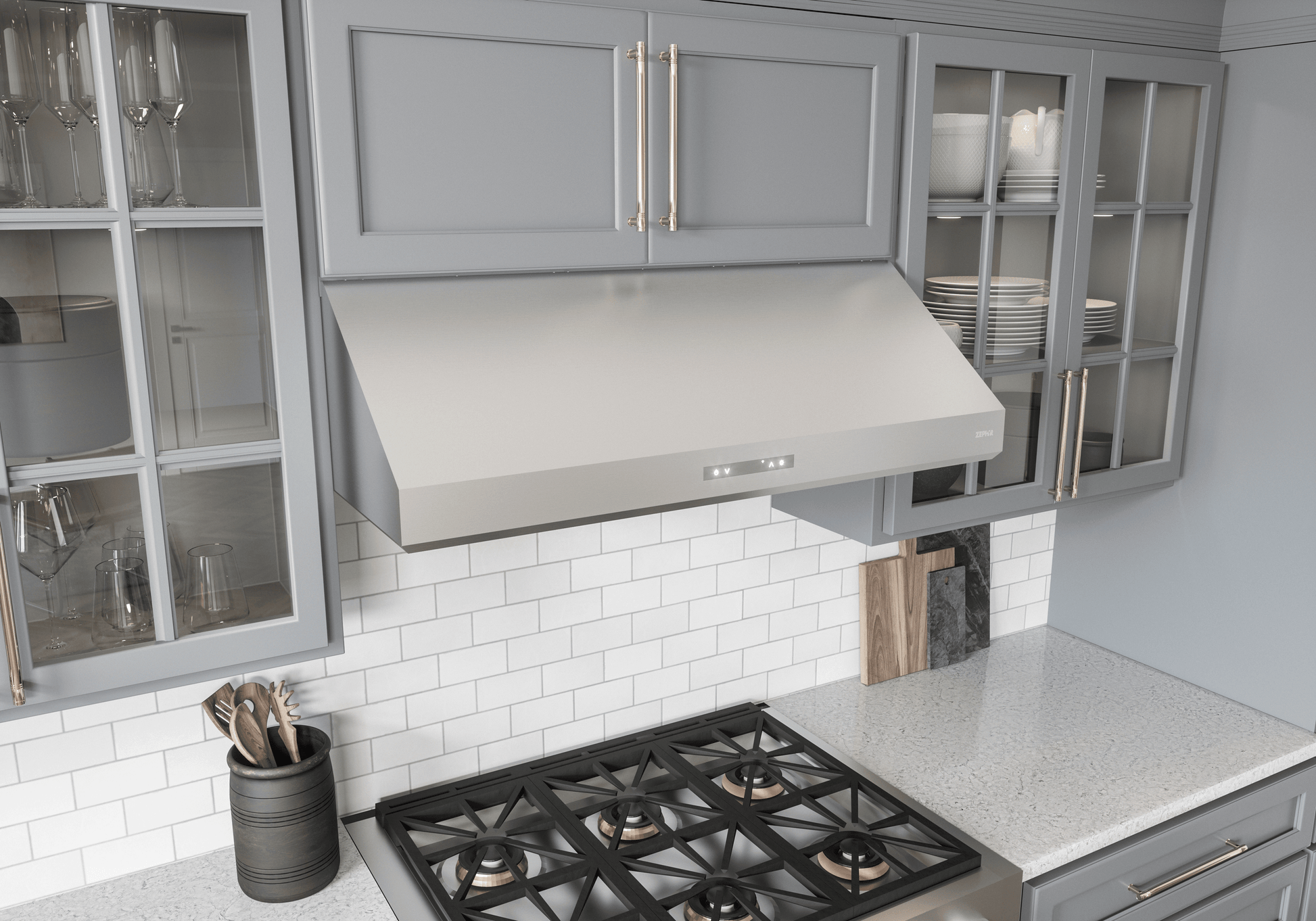

Zephyr AK7336AS Tidal I Connect 11in UC, 36in, SS, LED, ACT AK7336AS
Zephyr AK7336AS Tidal I Connect 11in UC, 36in, SS, LED, ACT
- Airflow Control Technology™ (ACT™)
- LumiLight LED Lighting
- Compatible with Zephyr Connect App
- Professional Baffle Filters
- CleanAir Function
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Tidal I Connect 11in UC, 36in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328009204 |
| GTIN | 00646328009204 |
| Country of Origin | Taiwan |
| Model Group | AK73-A |
| Model Name | Tidal I Under-Cabinet |
| Collection | Pro Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 700 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 1300 |
| Minimum CFM | 200 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Proximity Touch |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 3.25 x 10 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 14000005, PBD-1300B, ZRC-7036C, AK0726, AK1726, MUA008A, MUA010A, Z0F-C002, AK1716 |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.875 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 11 |
| Weight; LBS | 52.000 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 40.9 |
| Shipping Width; IN | 16.5 |
| Shipping Height; IN | 29.5 |
| Shipping Weight; LBS | 57.3 |
| Shipping Method | Small Parcel |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
