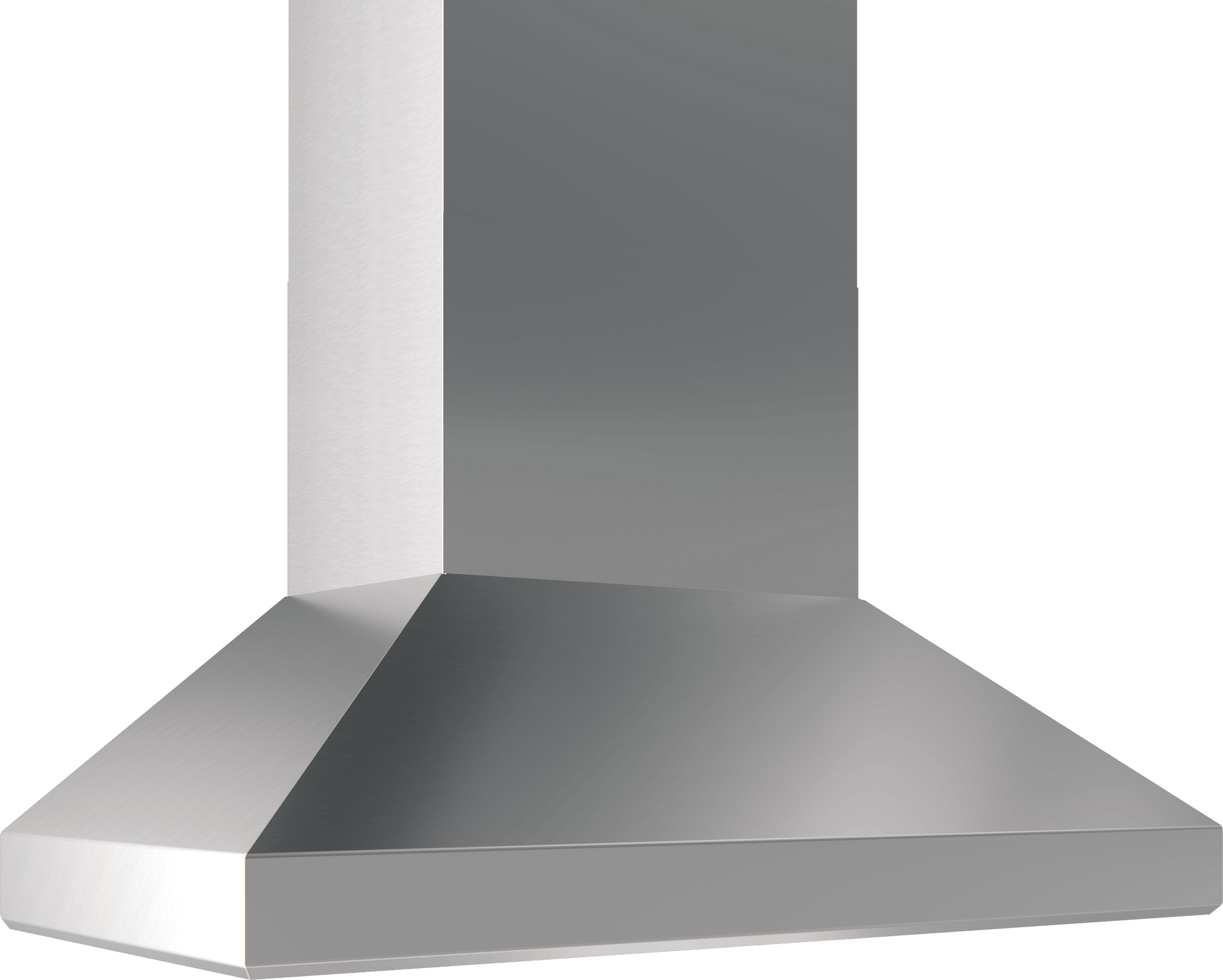

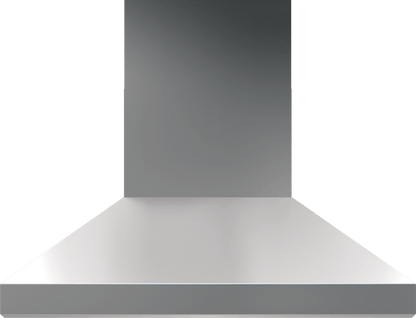

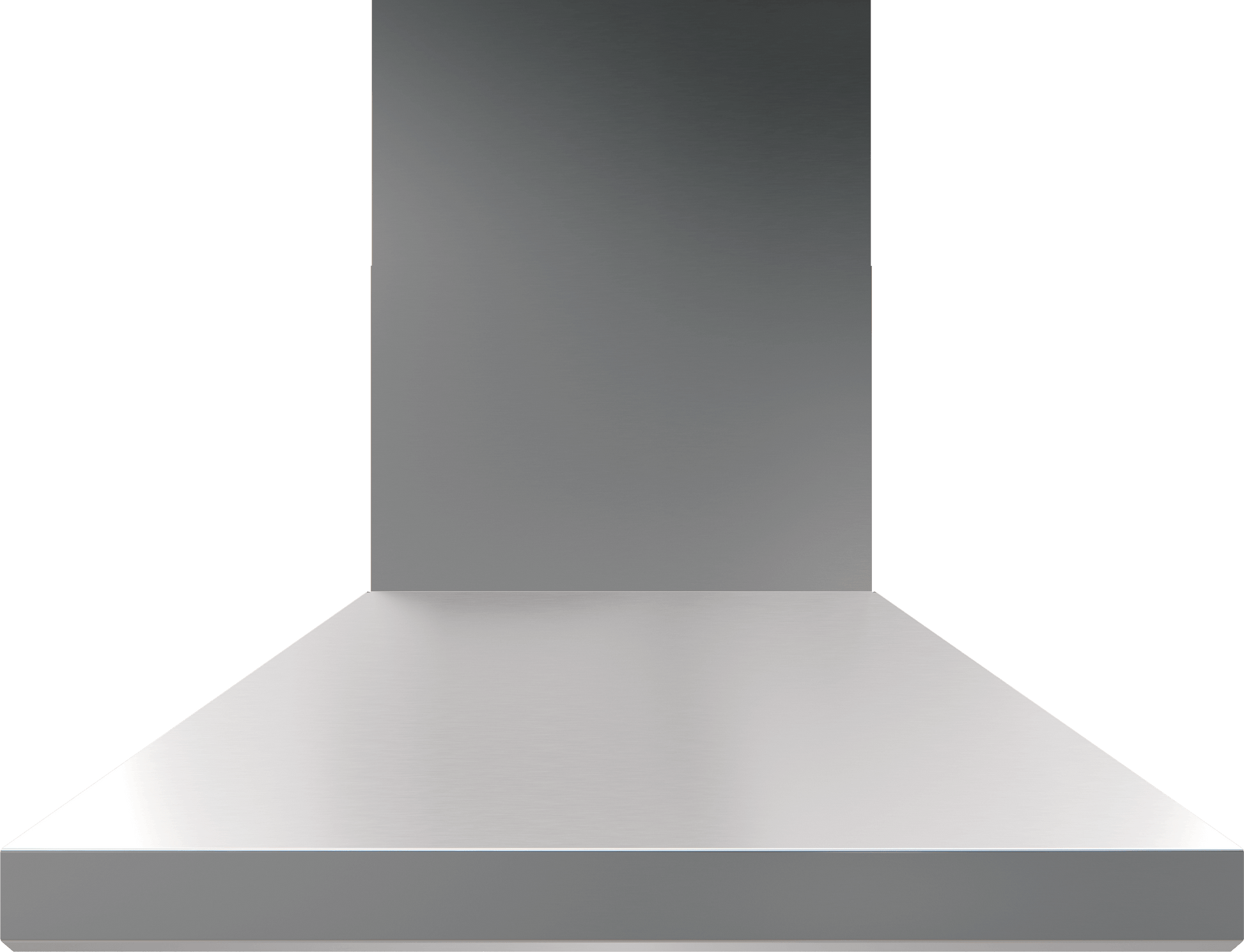

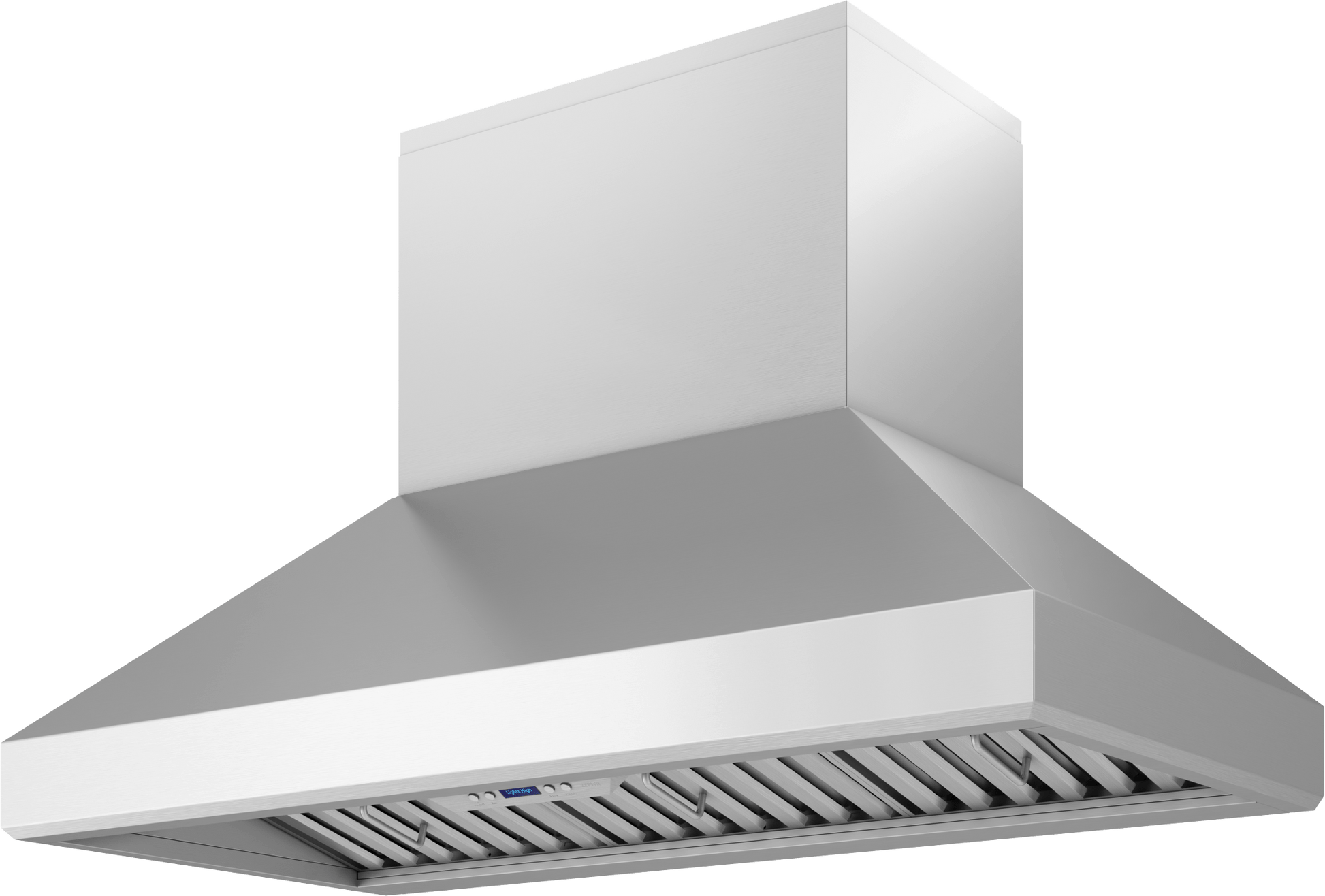

Zephyr AK7654BS Titan Wall, 54in, SS, PowerWave, 750 CFM w/ACT AK7654BS
Zephyr AK7654BS Titan Wall, 54in, SS, PowerWave, 750 CFM w/ACT
Free Shipping
$2,799.00
When Will I Get My Order?
- Airflow Control Technology™ (ACT™)
- Professional Baffle Filters
- Tri-Level Lighting
- Welded and polished body
- CleanAir Function
- Optional Wireless Remote Control (14000005)
- Optional Extension Duct Cover Kit
Titan Wall, 54in, SS, PowerWave, 750 CFM w/ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328010521 |
| GTIN | 00646328010521 |
| Country of Origin | Taiwan |
| Model Group | AK76-B |
| Model Name | Titan Wall |
| Collection | Pro Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 750 |
| Internal Blower 1 Min. Sones | 0.5 |
| Internal Blower 1 Max Sones | 7 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210031 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 10 |
| Duct Size; Vertical; IN | 8, 10 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1300B, Z1C-0176, 14000005, MUA008A, MUA010A, AK1714 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 300 |
| Certification | UL |
| Nominal Width; IN | 54 |
| Net Width; IN | 53.875 |
| Net Depth; IN | 24 |
| Net Height; IN | 30 - 42.5 |
| Weight; LBS | 97 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 15.5 |
| Chimney Width in. | 22 |
| Chimney Depth in. | 13.93 |
| Shipping Length; IN | 22.44 |
| Shipping Width; IN | 56.3 |
| Shipping Height; IN | 27.56 |
| Shipping Weight; LBS | 108.5 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
