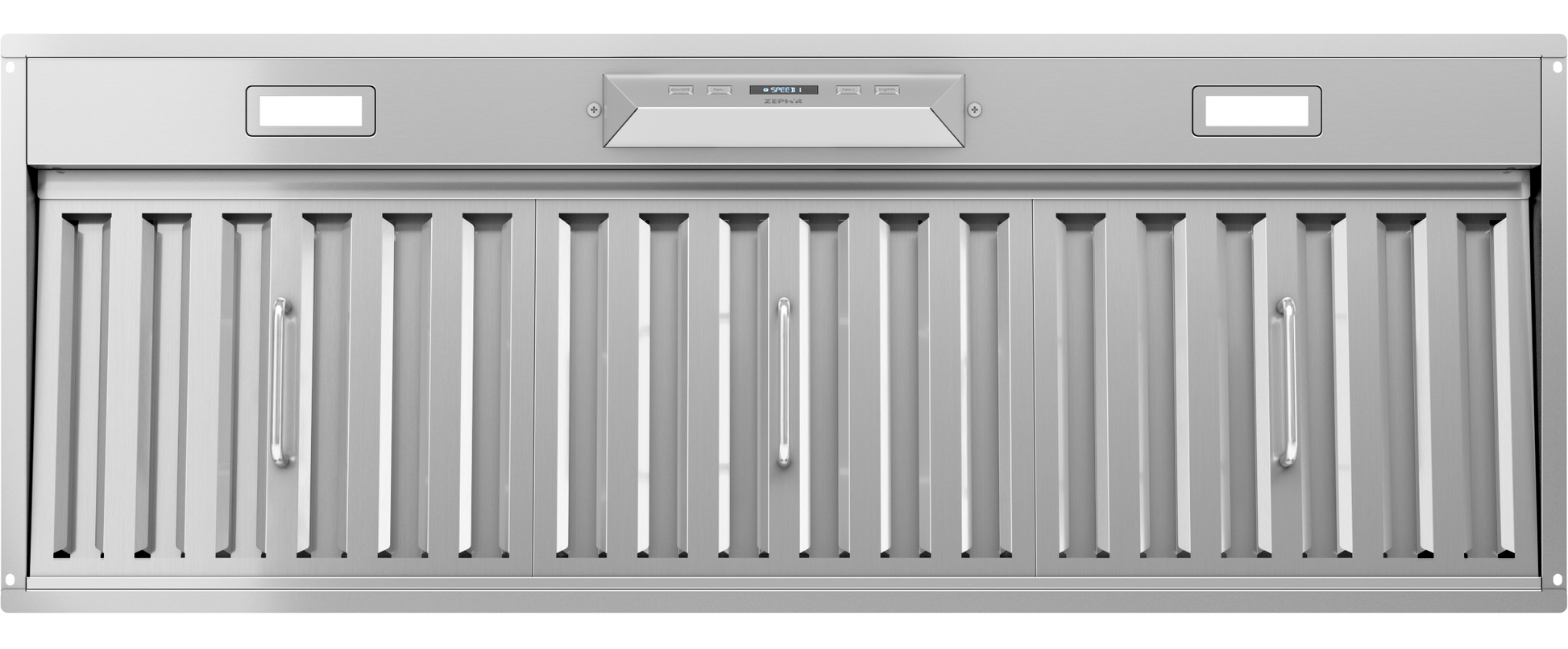

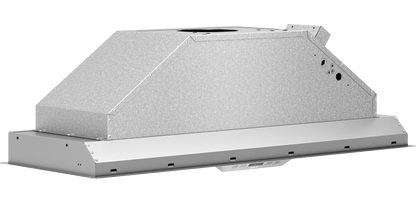

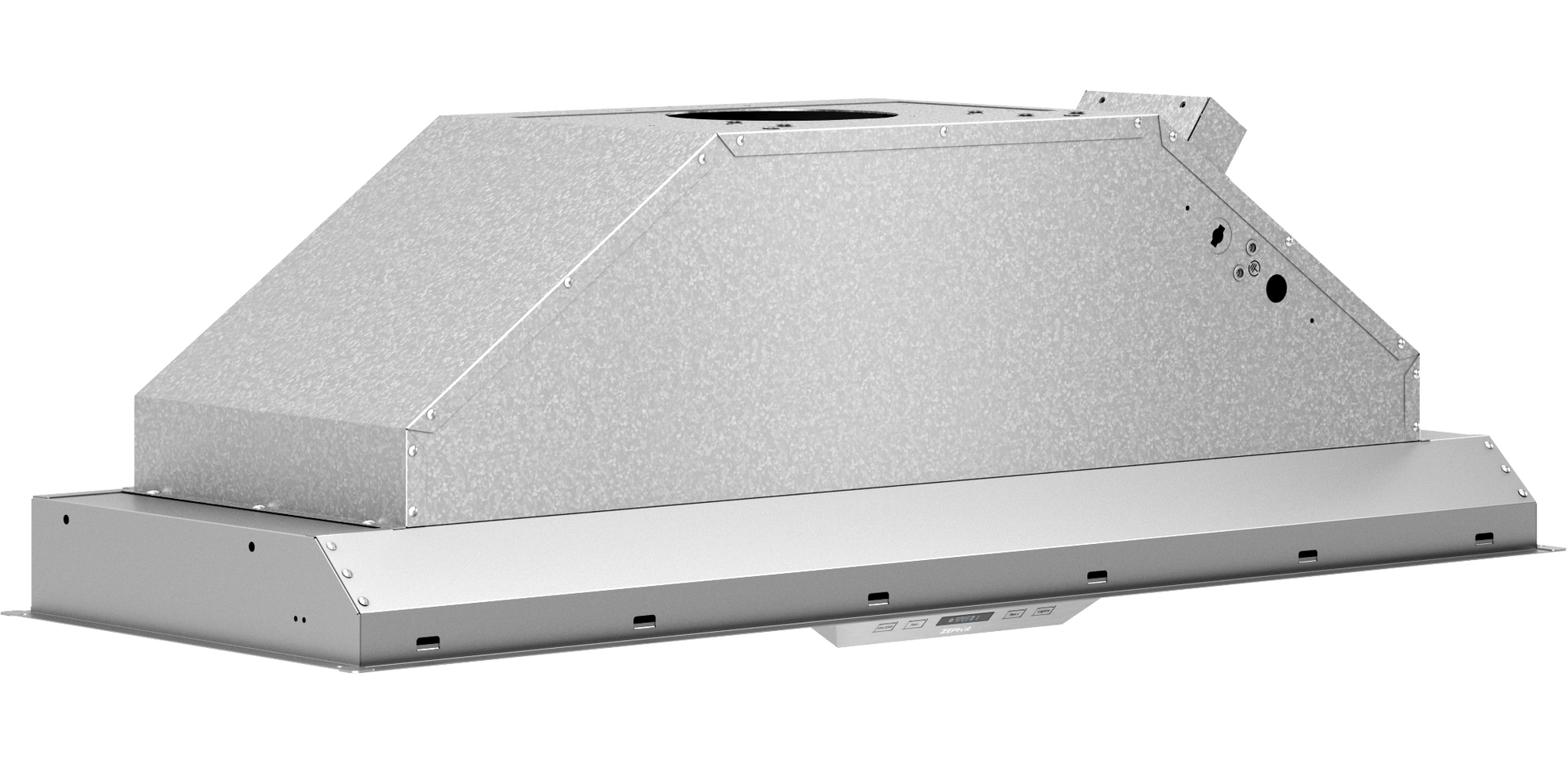

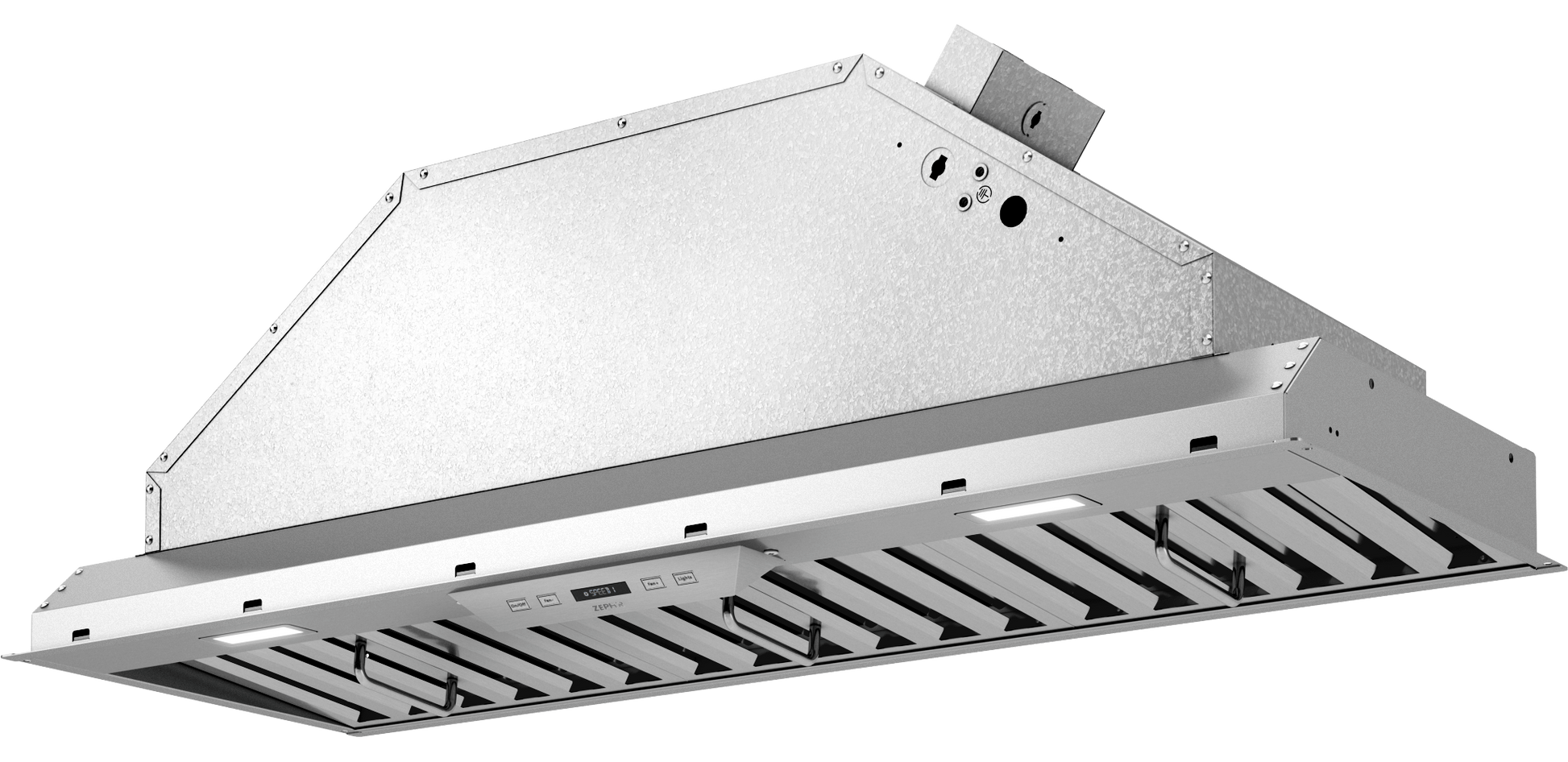

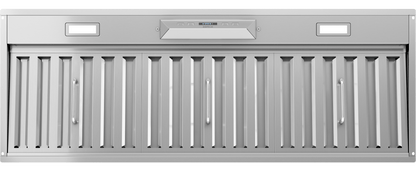

Zephyr AK8340ASX Tornado III Insert, 40in x 15in, SS, BODY ONLY
Zephyr AK8340ASX Tornado III Insert, 40in x 15in, SS, BODY ONLY
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Waiting for Stock
Couldn't load pickup availability
When Will I Get My Order?
- LumiLight LED Lighting with TruHue™
- Professional Baffle Filters
- Electronic Touch Controls
- Dual-Level Lighting
- Multiple Blower Options
- Optional Wireless Remote Control (14000005)
- Optional Liner Accessories Available
Tornado III Insert, 40in x 15in, SS, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328013171 |
| GTIN | 00646328013171 |
| Country of Origin | Taiwan |
| Model Group | AK83-A |
| Model Name | Tornado III Insert |
| Collection | Pro Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 390 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 5 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 3 CFM | 1000 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210054 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5.8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | CBI-290C, CBI-390A, CBI-600A, PBI-1000B, CBE-1000, PBN-1000A, AK083480AS, AK083481AS, MUA006A, MUA010A, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 760 |
| Certification | UL |
| Nominal Width; IN | 40 |
| Net Width; IN | 40.25 |
| Net Depth; IN | 14.9 |
| Net Height; IN | 12 |
| Weight; LBS | 22.7 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 44.6 |
| Shipping Width; IN | 17.4 |
| Shipping Height; IN | 19.6 |
| Shipping Weight; LBS | 39.2 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
