ZEPHYR AK9034BS
Authorized Reseller

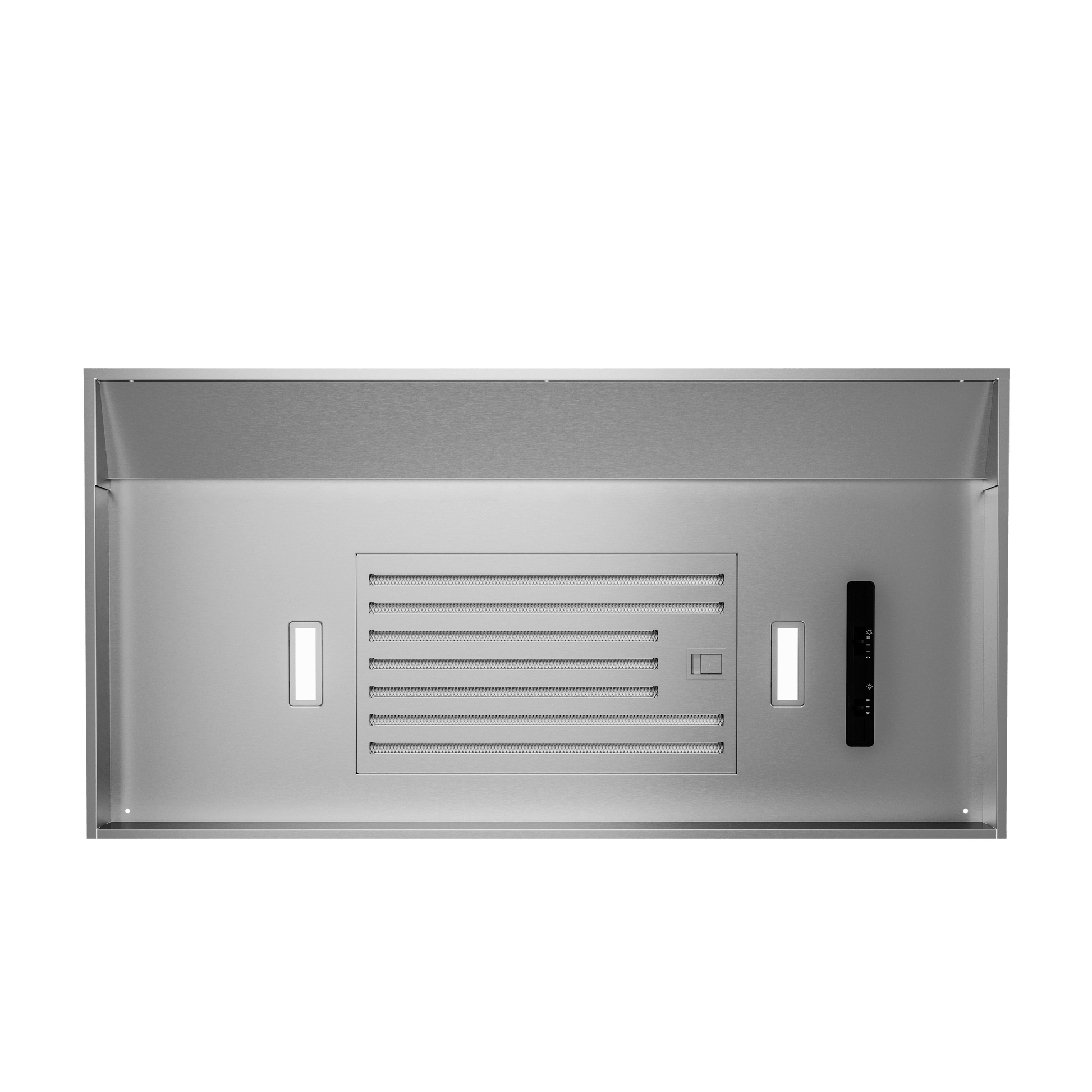

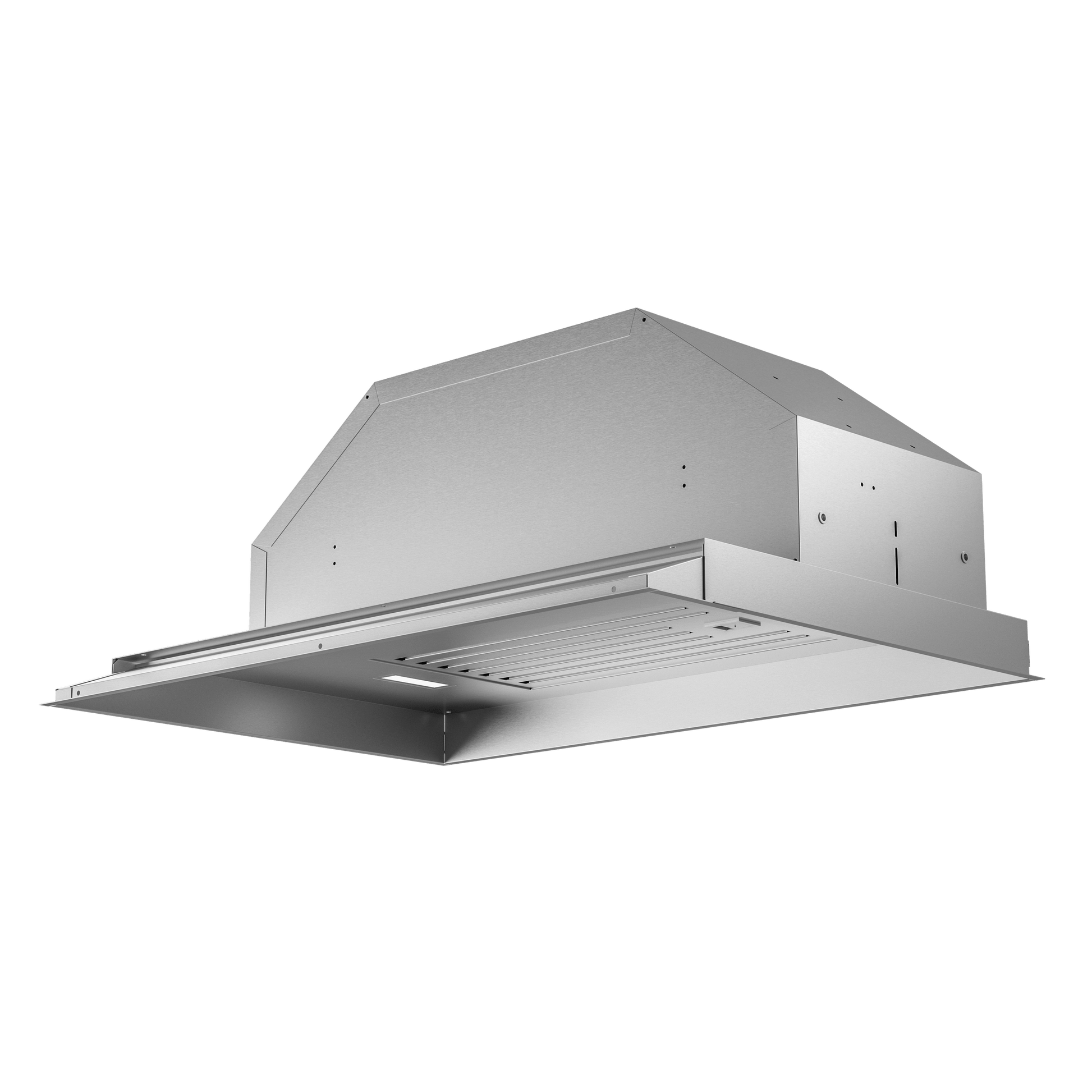

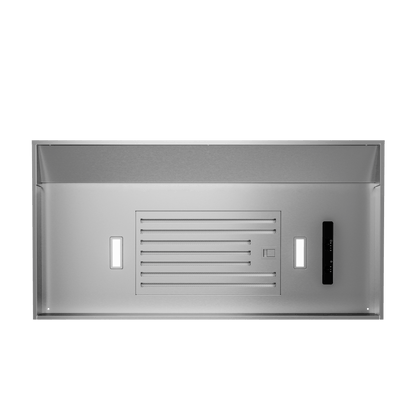

Zephyr AK9034BS Vortex, 36 in. SS, LED
Zephyr AK9034BS Vortex, 36 in. SS, LED
Regular price
$769.00
Regular price
Sale price
$769.00
Unit price
per
In Stock By Manufacturer
Couldn't load pickup availability
When Will I Get My Order?
- LumiLight LED Lighting
- Hybrid Baffle Filters
- Powerful 390-CFM Blower
- Mechanical Slide Controls
- Adjustable Depth
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
Vortex, 36 in. SS, LED
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328009556 |
| GTIN | 00646328009556 |
| Country of Origin | Taiwan |
| Model Group | AK90-B |
| Model Name | Vortex Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 390 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 5 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6 |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9000, Z0F-C090 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 17.5 |
| Net Height; IN | 12.3125 |
| Weight; LBS | 34.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39.37 |
| Shipping Width; IN | 22.64 |
| Shipping Height; IN | 19.09 |
| Shipping Weight; LBS | 39.5 |
| Shipping Method | Small Parcel |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 10.5 |
| Cutout Width in. | 26.625 |
| Duct Type | Vertical |
| Duct Type | Vertical |
