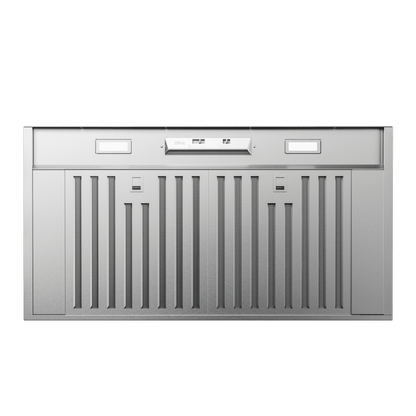

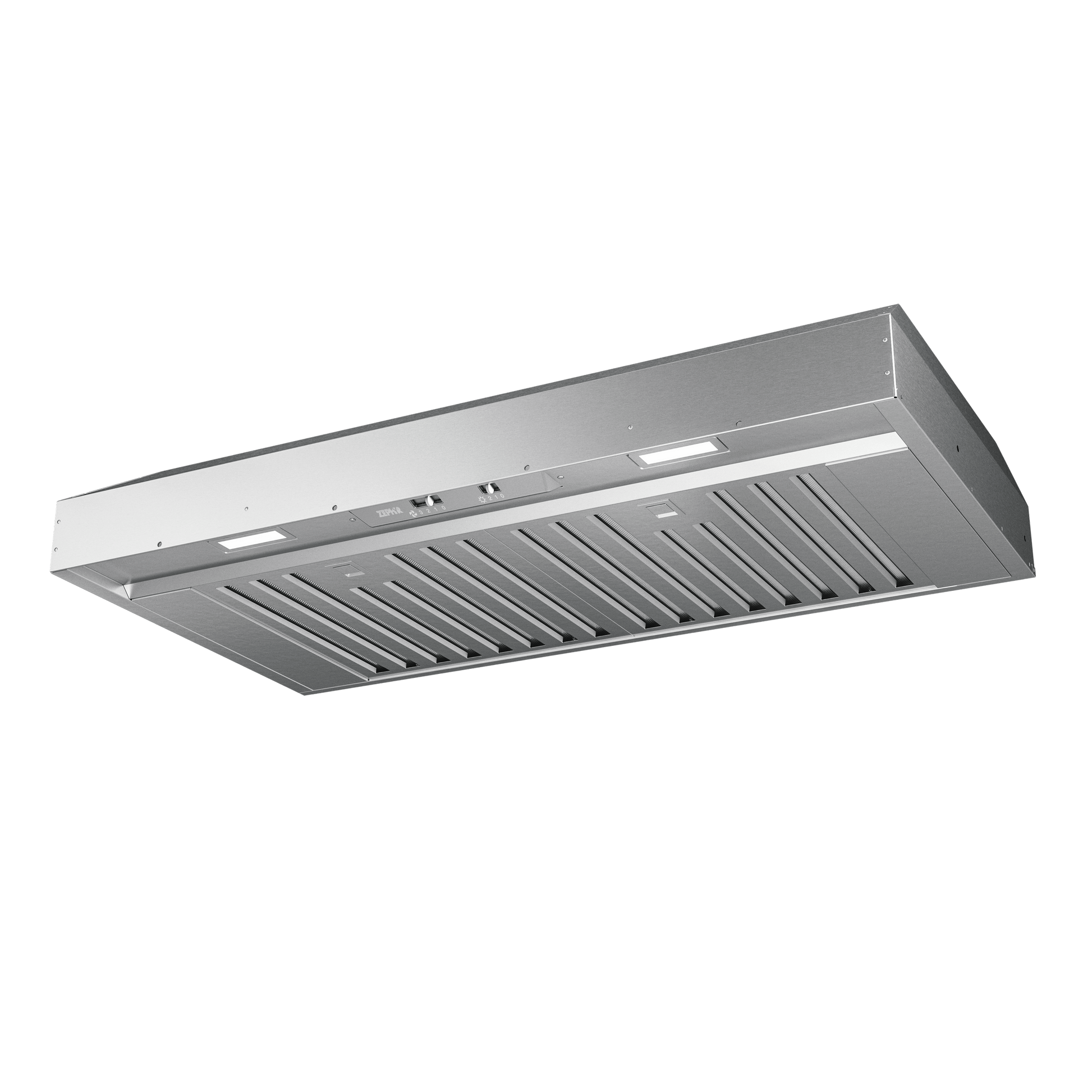

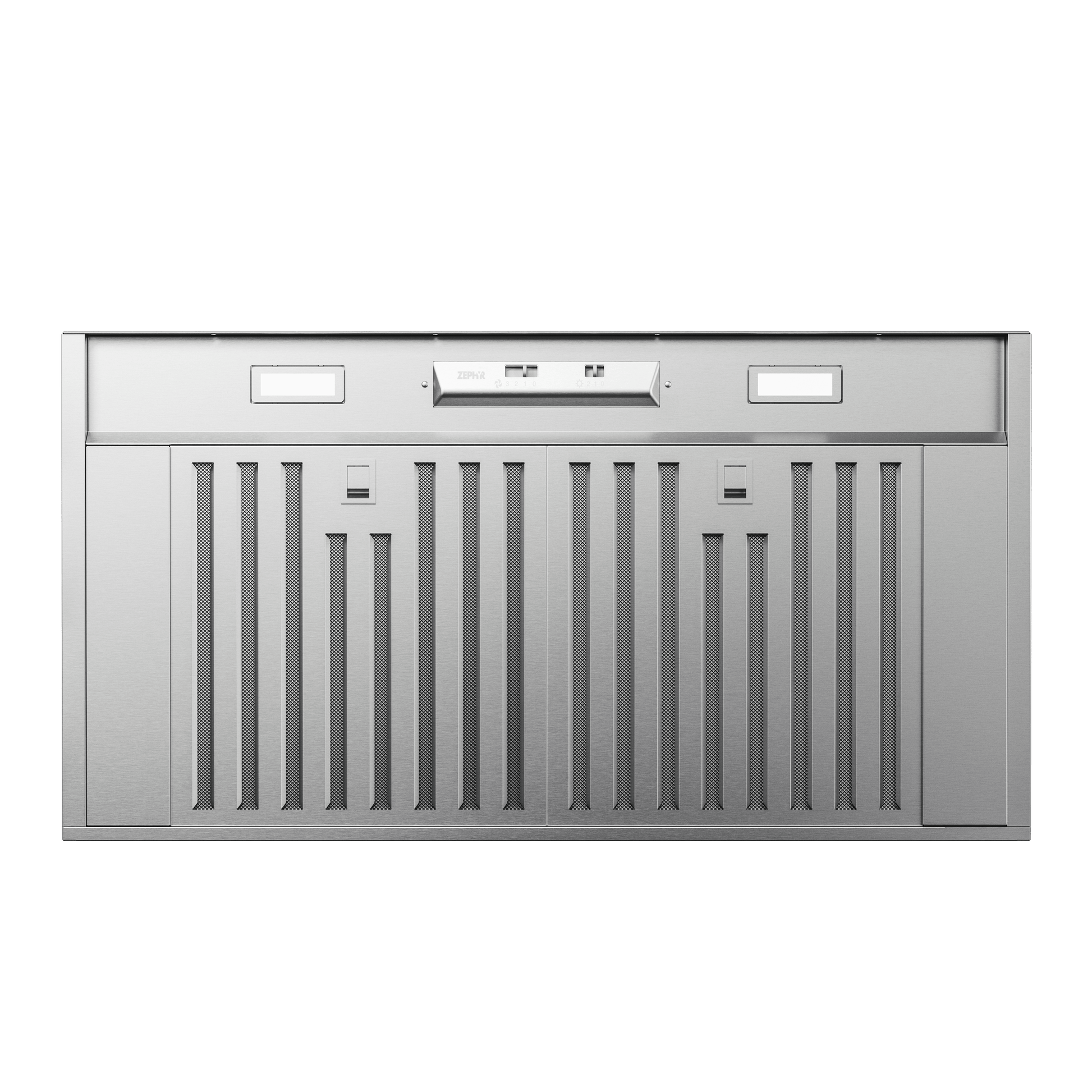

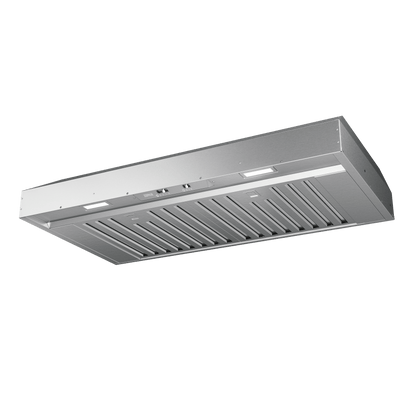

Zephyr AK9134BS Monsoon Mini, Insert, 36", SS, 300 CFM AK9134BS
Zephyr AK9134BS Monsoon Mini, Insert, 36", SS, 300 CFM
$651.30
When Will I Get My Order?
- Mechanical Slide Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Monsoon Mini, Insert, 36", SS, 300 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328009570 |
| GTIN | 00646328009570 |
| Country of Origin | Taiwan |
| Model Group | AK91-B |
| Model Name | Monsoon Mini Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 300 |
| Internal Blower 1 Min. Sones | 1.5 |
| Internal Blower 1 Max Sones | 4 |
| Minimum CFM | 150 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210041 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9100A, AK00067, Z0F-C091 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 17.875 |
| Net Height; IN | 6.125 |
| Weight; LBS | 26 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 38.7 |
| Shipping Width; IN | 9.4 |
| Shipping Height; IN | 22.9 |
| Shipping Weight; LBS | 29.9 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 18.5 |
| Cutout Width in. | 34.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
