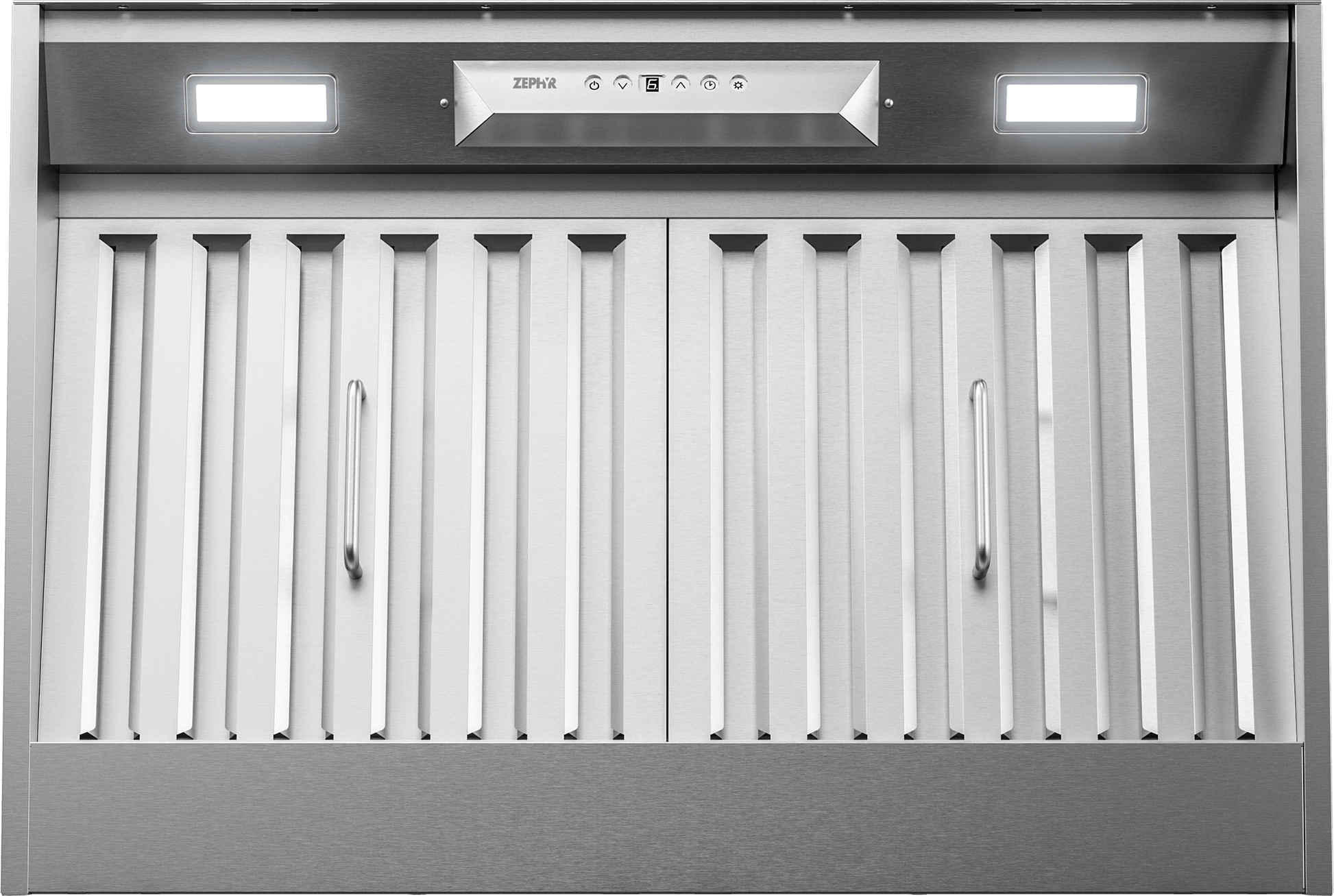

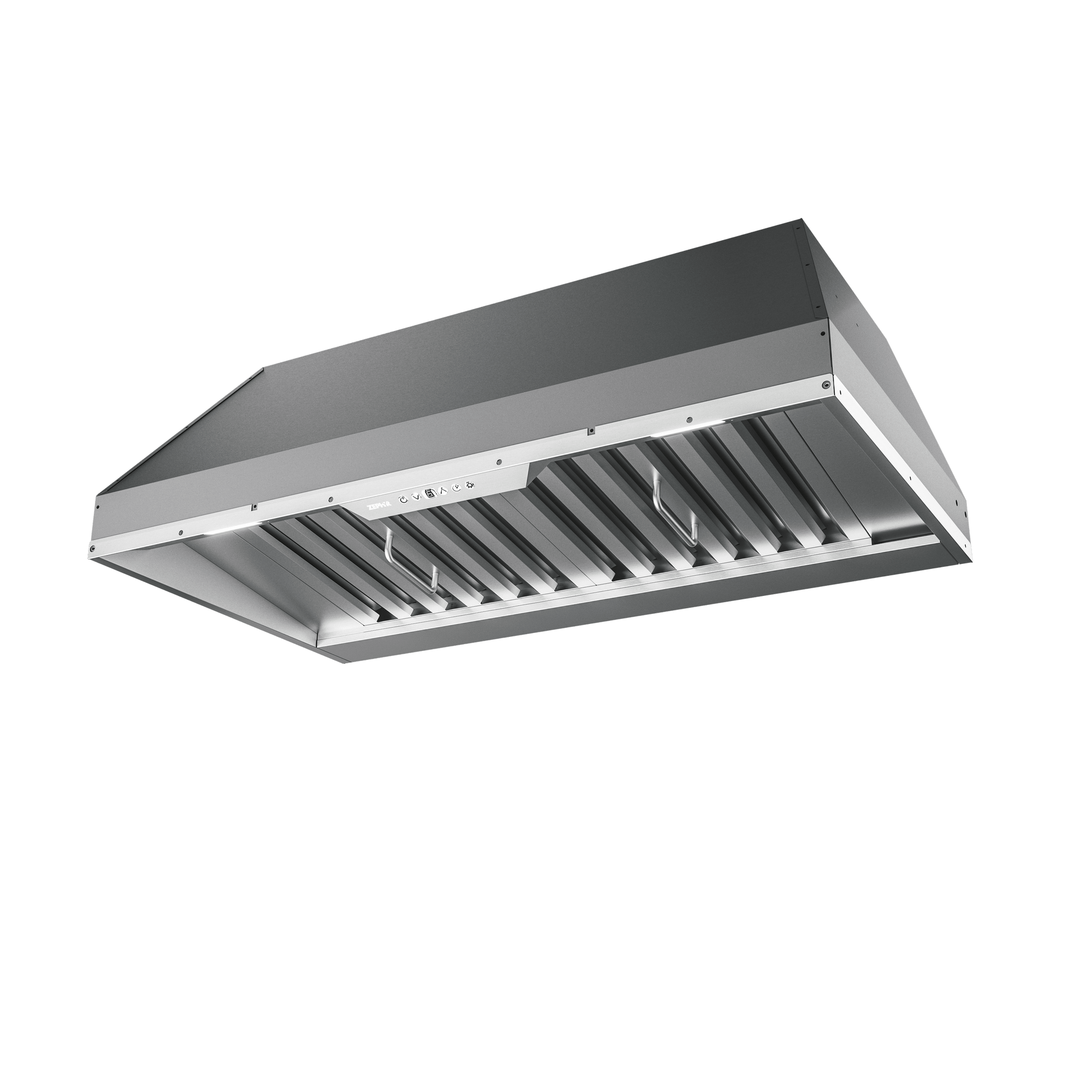

Zephyr AK9228BS Monsoon I, Insert, 28-3/8in, SS, LED, ACT AK9228BS
Zephyr AK9228BS Monsoon I, Insert, 28-3/8in, SS, LED, ACT
In Stock By Manufacturer
Free Shipping
$1,102.00
When Will I Get My Order?
- Airflow Control Technology™ (ACT™)
- LumiLight LED Lighting
- CleanAir Function
- Electronic Touch Controls
- Professional Baffle Filters
- Vertical or horizontal ducting
- Dual-Level Lighting
Monsoon I, Insert, 28-3/8in, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328008276 |
| GTIN | 00646328008276 |
| Country of Origin | Taiwan |
| Model Group | AK92-B |
| Model Name | Monsoon I Insert |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | MUA010A, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 28.375 |
| Net Depth; IN | 19.25 |
| Net Height; IN | 12 |
| Weight; LBS | 40.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 31.4 |
| Shipping Width; IN | 16.7 |
| Shipping Height; IN | 25 |
| Shipping Weight; LBS | 46.1 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 22.625 |
| Cutout Width in. | 28.625 |
| Duct Type | Vertical |
| Duct Type | Vertical |
