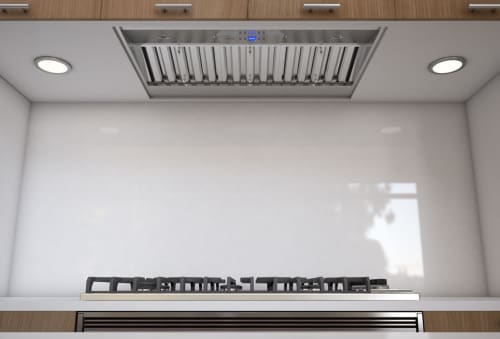

Zephyr AK9428AS Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT AK9428AS
Zephyr AK9428AS Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT
- DCBL Suppression System®
- Bloom™ HD LED light bulbs
- Airflow Control Technology™ (ACT™)
- Ultra-Quiet Performance
- Includes wireless remote control
- Professional Baffle Filters
Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328002809 |
| GTIN | 00646328002809 |
| Country of Origin | Taiwan |
| Model Group | AK94 |
| Model Name | Monsoon DCBL |
| Collection | Core Collection |
| Replacement Model | AK9428BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 715 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 5.8 |
| Minimum CFM | 250 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 3.25 x 10 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | MUA008A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 28.375 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 12 |
| Weight; LBS | 40 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 17.48 |
| Shipping Width; IN | 31.89 |
| Shipping Height; IN | 28.54 |
| Shipping Weight; LBS | 50.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
