ZEPHYR ALAE42BBX
Authorized Reseller

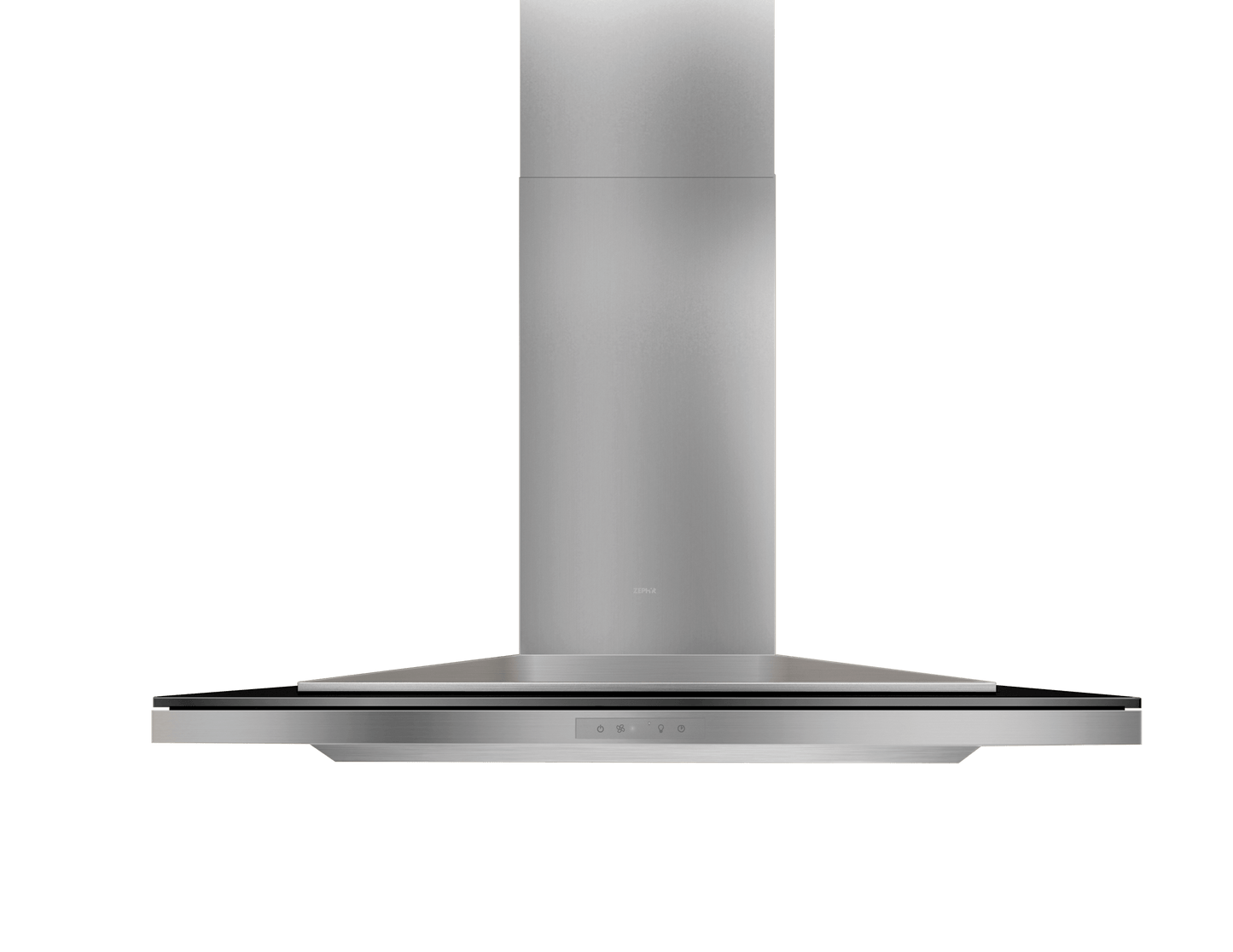

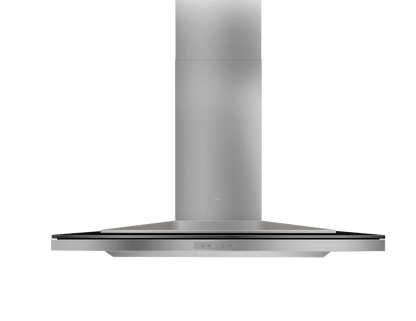

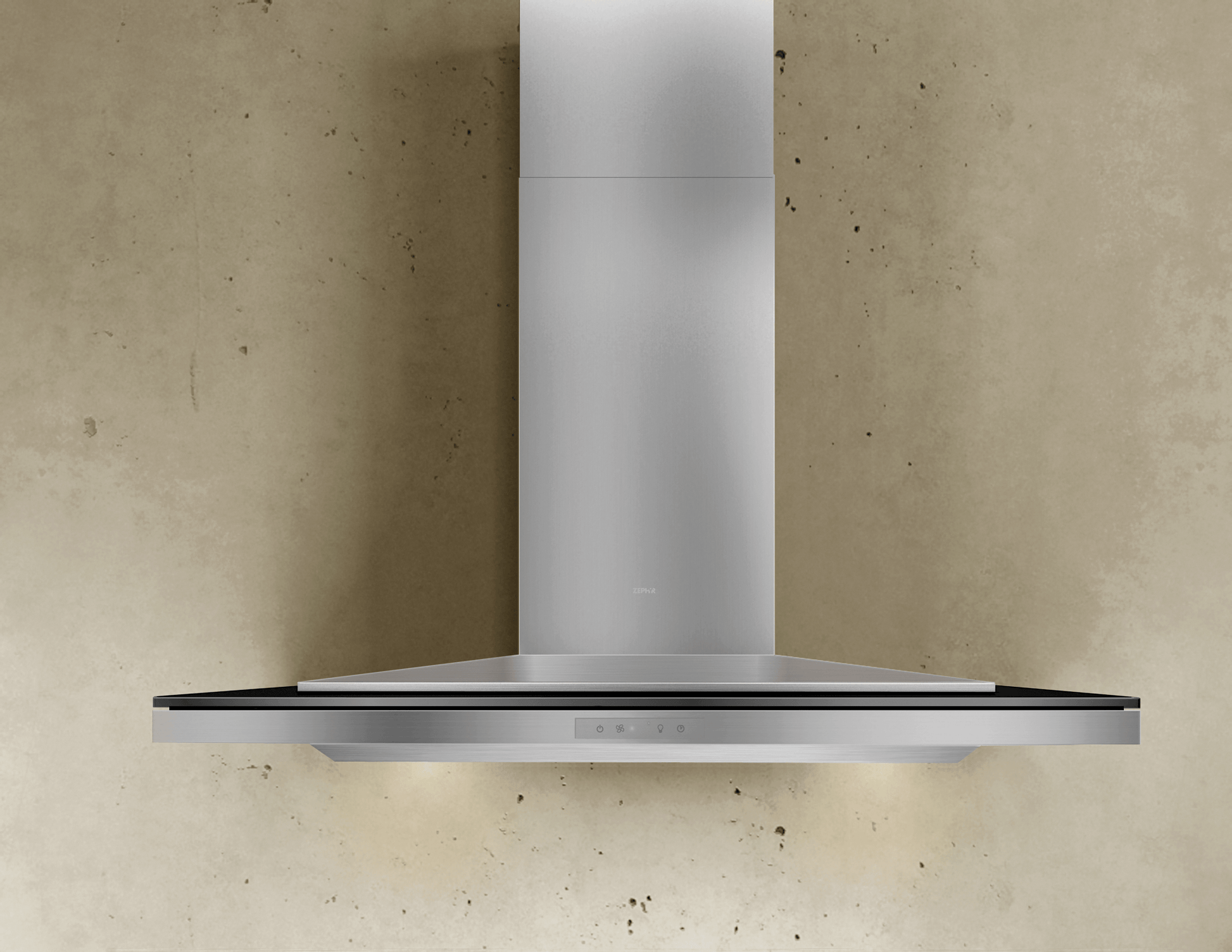

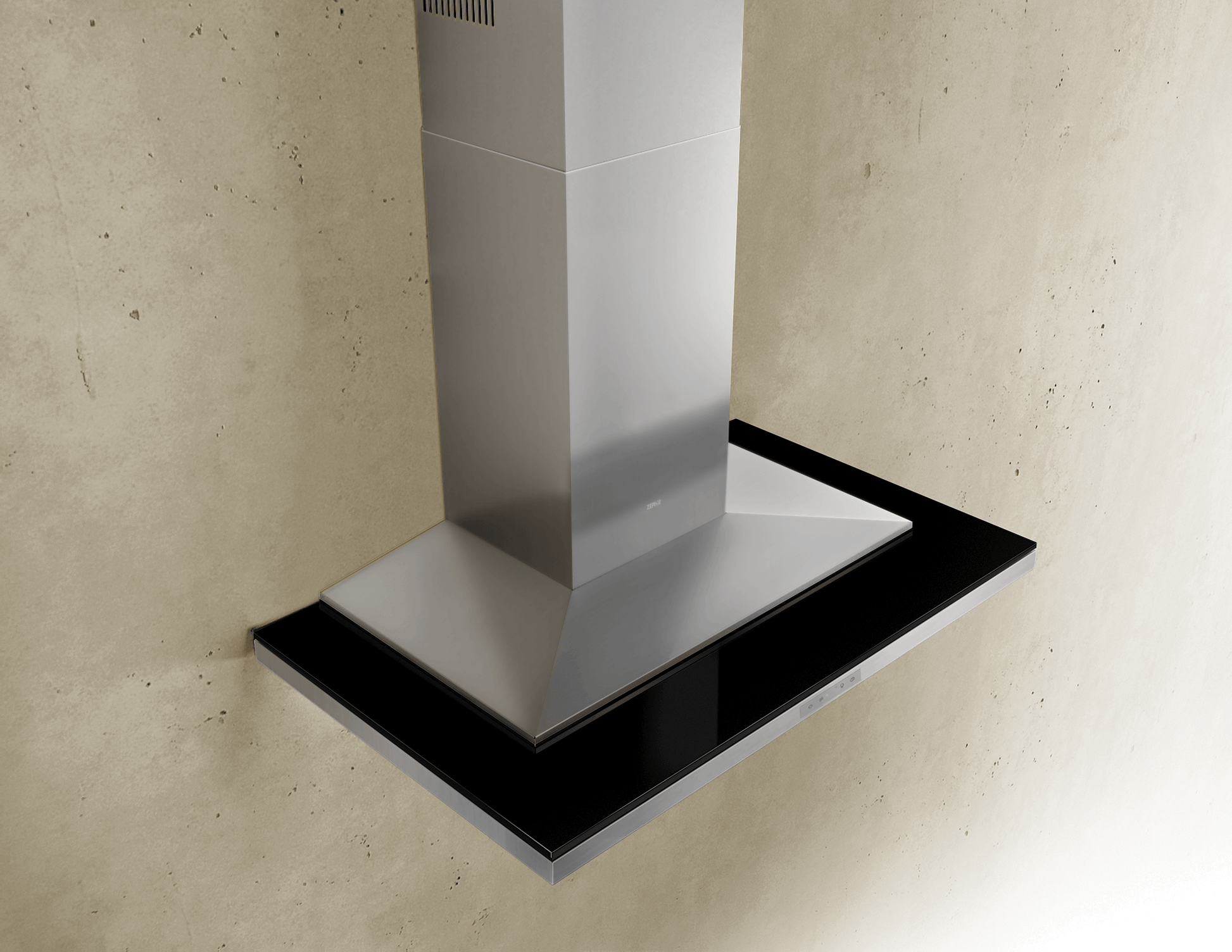

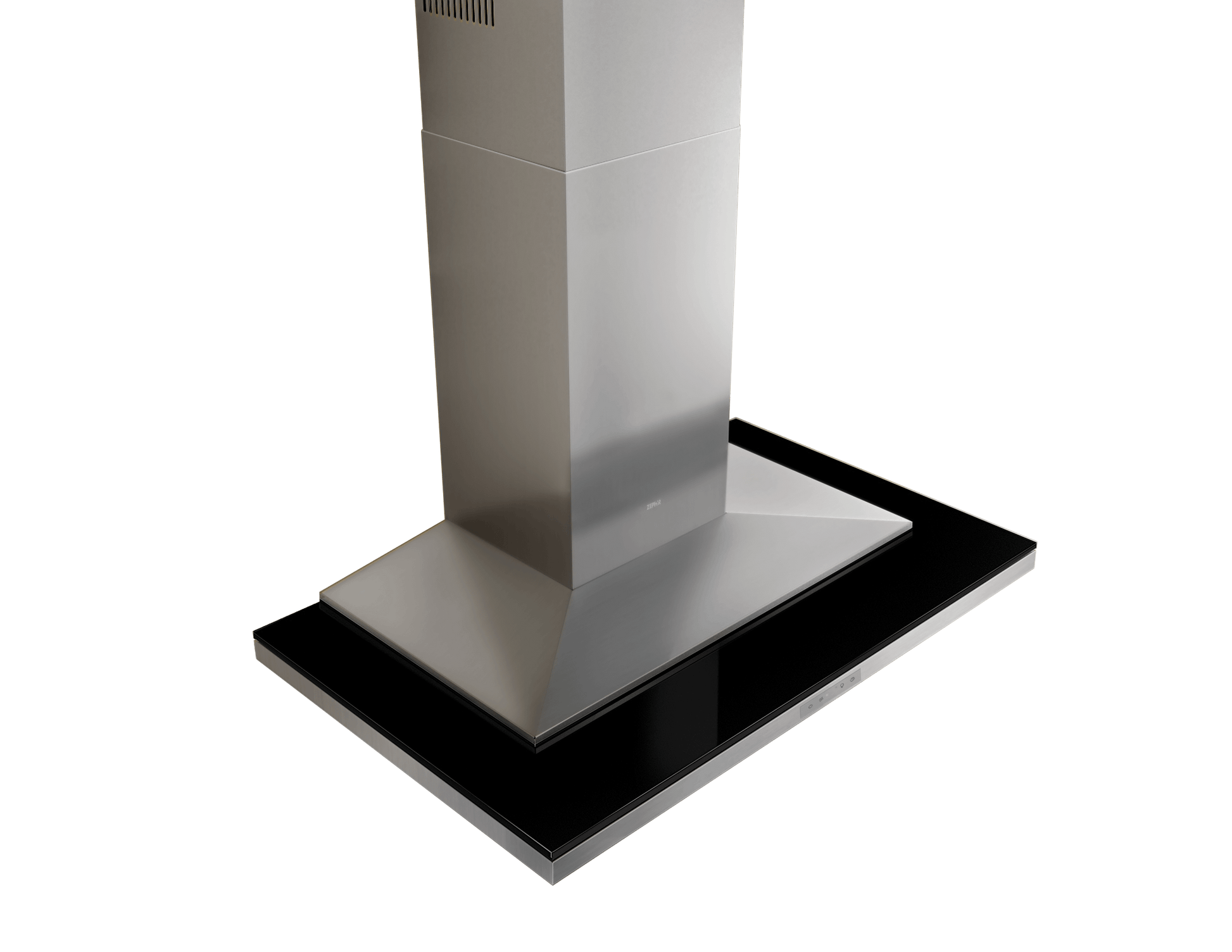

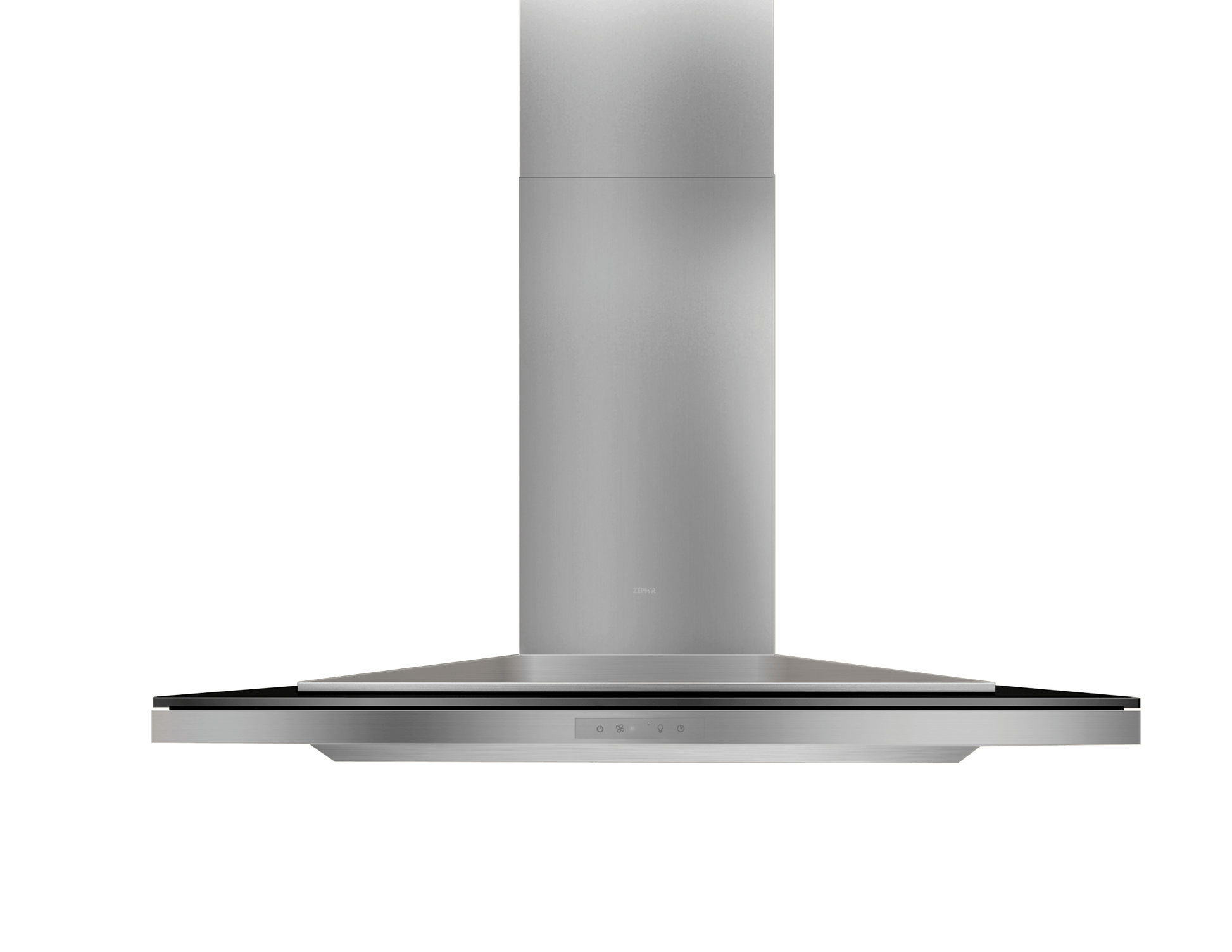

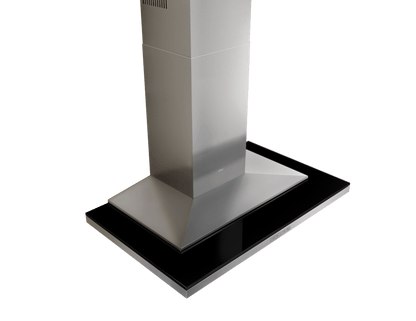

Zephyr ALAE42BBX Layers, Wall, 42", SS/Blk Glass, LED, BODY ONLY
Zephyr ALAE42BBX Layers, Wall, 42", SS/Blk Glass, LED, BODY ONLY
Regular price
$2,040.00
Regular price
Sale price
$2,040.00
Unit price
per
Couldn't load pickup availability
When Will I Get My Order?
- Includes wireless remote control
- Invisible Touch Controls
- Low-profile body
- CleanAir Function
- Tri-Level Lighting
- Optional extension duct cover kit
- Optional Ductless Recirculating Kit
Layers, Wall, 42", SS/Blk Glass, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328004247 |
| GTIN | 00646328004247 |
| Country of Origin | Italy |
| Model Group | ALA-B |
| Model Name | Layers Wall |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 180 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Black |
| Controls Type | Invisible Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Decorative Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200033 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.45 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-01LA, Z1C-00LA, MUA006A, MUA008A, Z0F-01AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 138 |
| Certification | UL |
| Nominal Width; IN | 42 |
| Net Width; IN | 41.9375 |
| Net Depth; IN | 22 |
| Net Height; IN | 28 - 50 |
| Weight; LBS | 116 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 25.59 |
| Shipping Width; IN | 46.5 |
| Shipping Height; IN | 24.4 |
| Shipping Weight; LBS | 121.25 |
| Shipping Method | LTL |
| Freight Class | 200 |
| Duct Type | Vertical |
| Duct Type | Vertical |
