ZEPHYR ALUE63CSX
Authorized Reseller

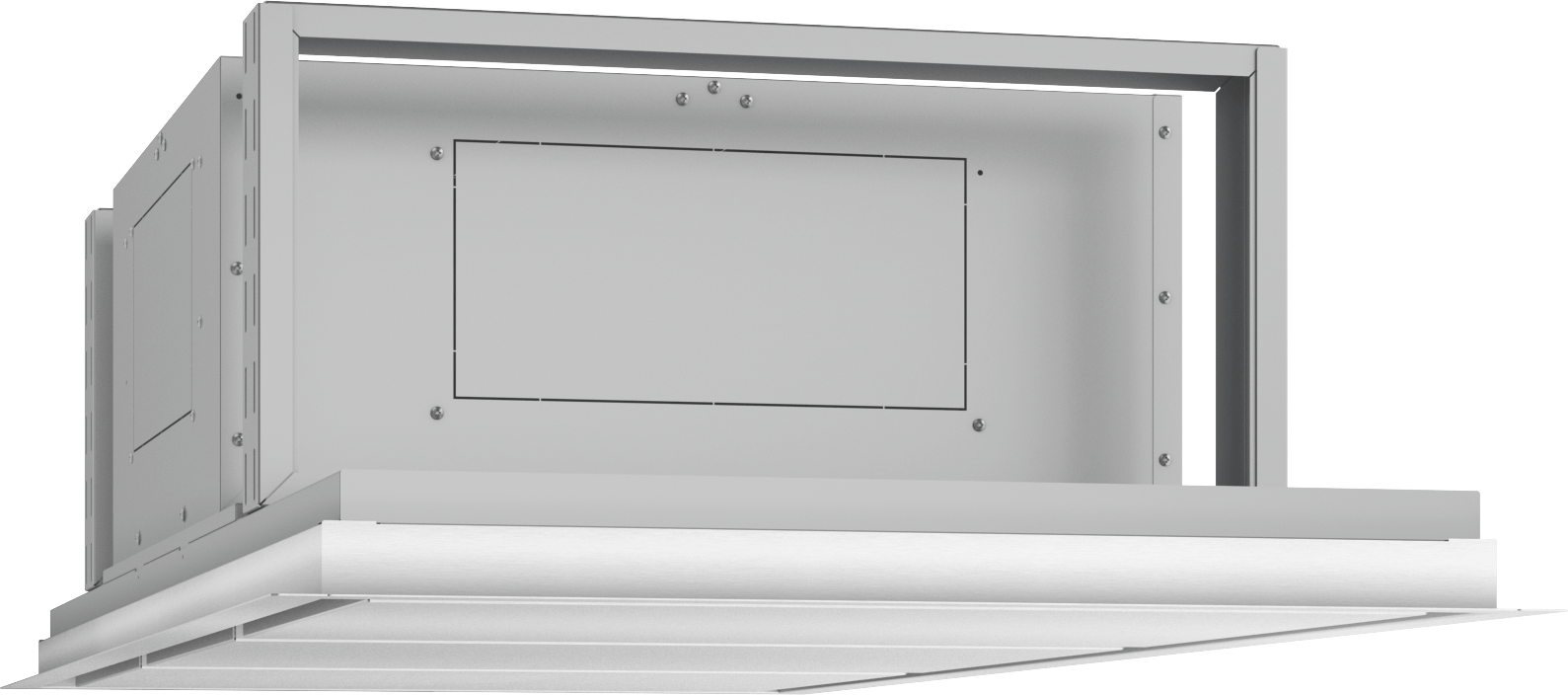

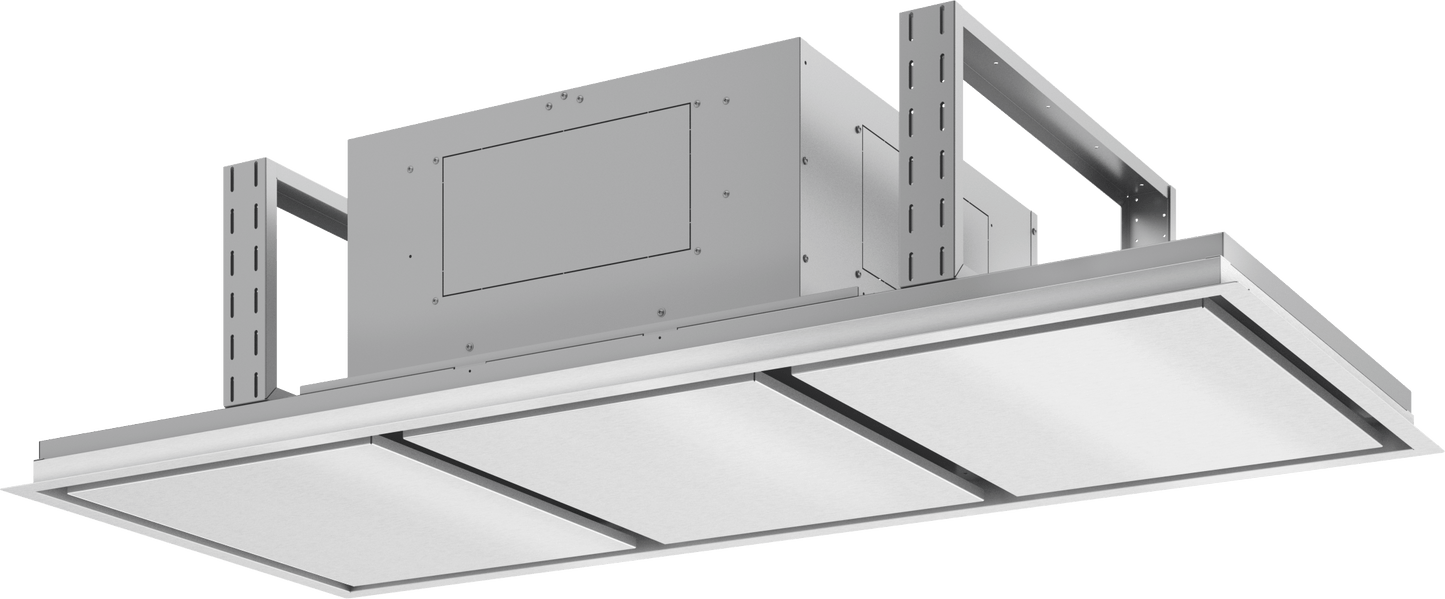

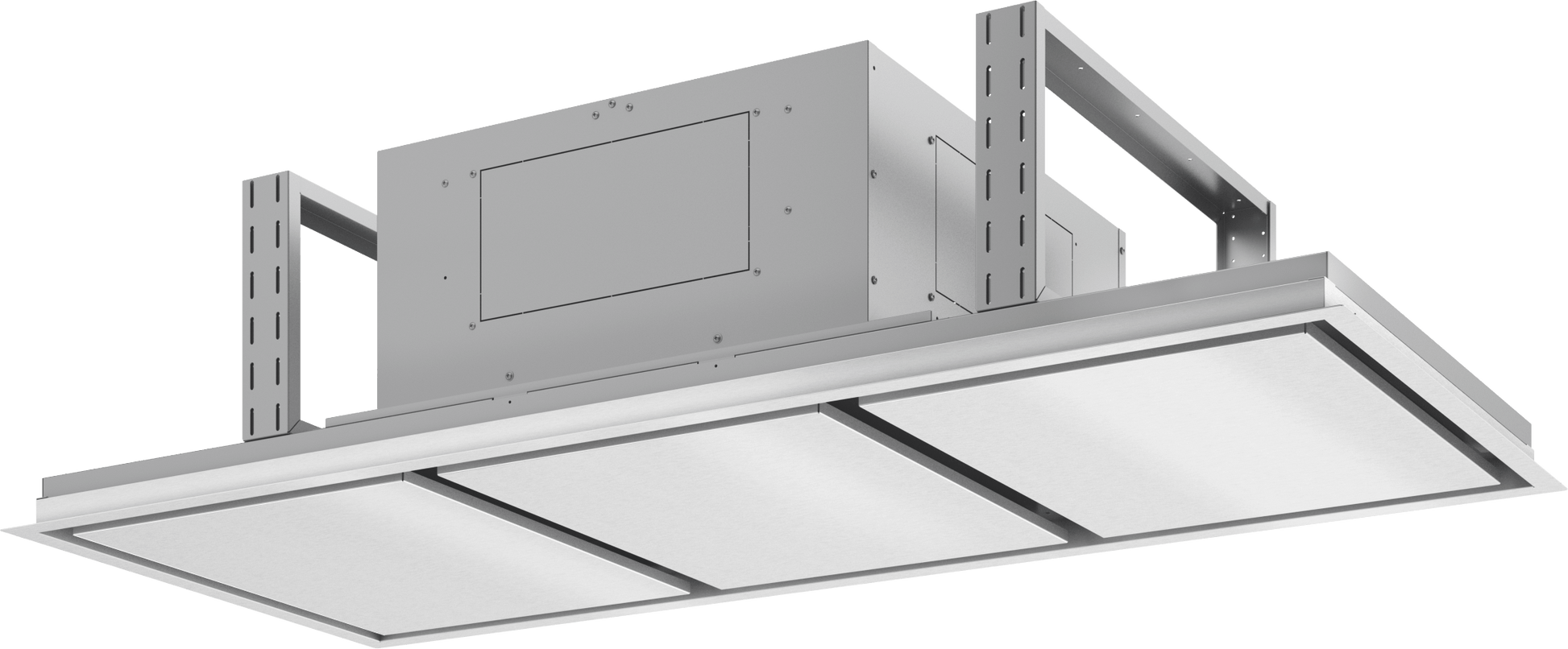

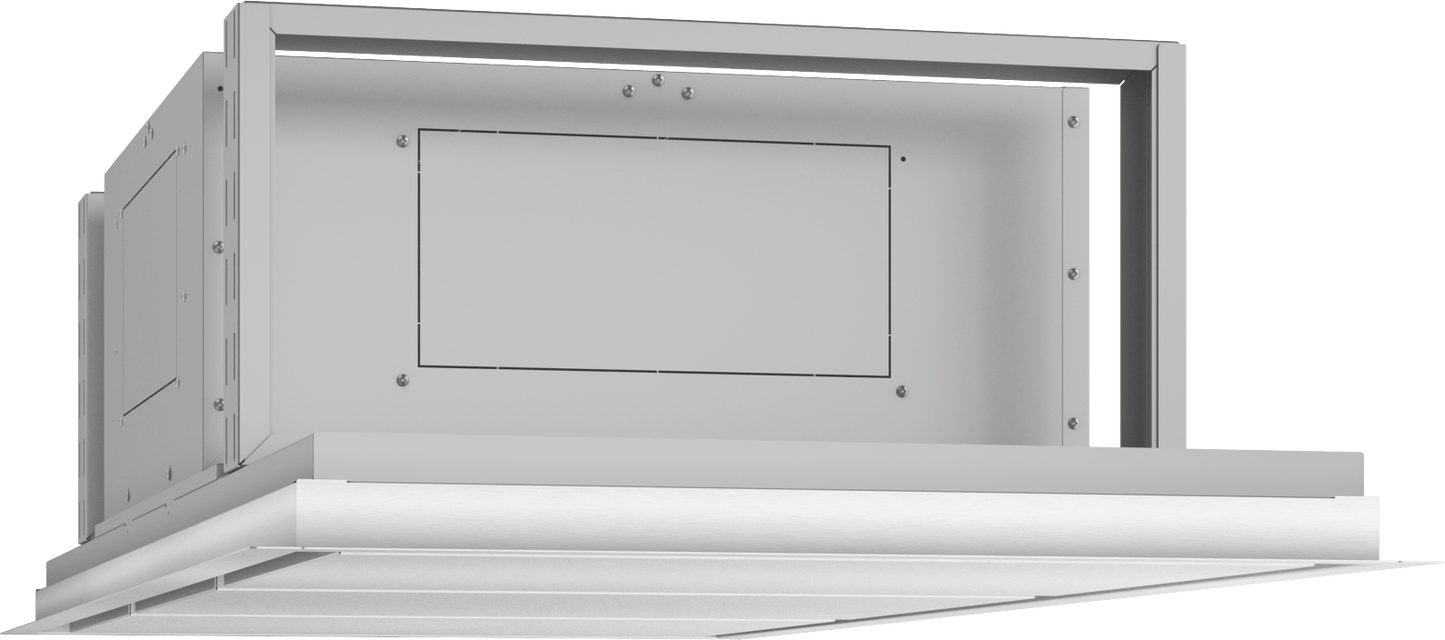

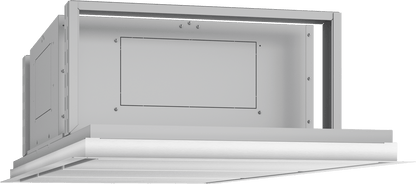

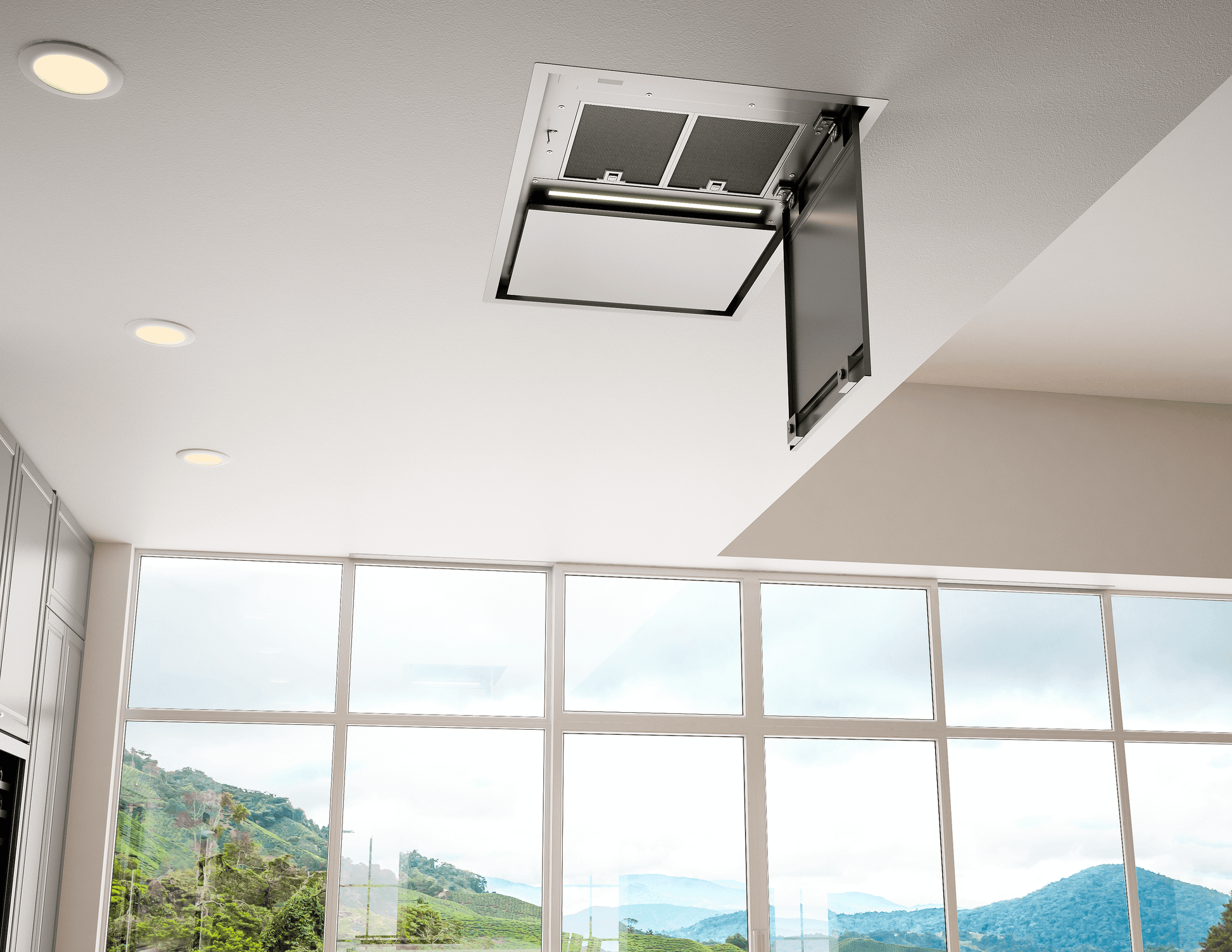

Zephyr ALUE63CSX Lux Connect, 63in, SS, LED, BODY ONLY
Zephyr ALUE63CSX Lux Connect, 63in, SS, LED, BODY ONLY
Regular price
$3,099.97
Regular price
Sale price
$3,099.97
Unit price
per
Waiting for Stock
Couldn't load pickup availability
When Will I Get My Order?
- Compatible with Zephyr Connect App
- Includes wireless remote control
- LED light strip
- Perimeter Aspiration System
- Multiple Blower Options
- CleanAir Function
- Optional Ductless Recirculating Kit
Lux Connect, 63in, SS, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328010477 |
| GTIN | 00646328010477 |
| Country of Origin | Taiwan |
| Model Group | ALU-C |
| Model Name | Lux Connect Island |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| Internal Blower 3 CFM | 1100 |
| Internal Blower 3 Max Sones | 8 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200046 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6, 10 |
| Duct Size; Vertical; IN | 6, 10 |
| Mounting Height Above Cooktop; IN | 30 - 72 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | CBI-290C, CBI-600A, PBI-1100B, PBN-1000A, CBE-1000, CBI-390A, ZRC-01LX, MUA006A, MUA008A, Z0F-C002, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 780 |
| Certification | UL |
| Nominal Width; IN | 63 |
| Net Width; IN | 63.5 |
| Net Depth; IN | 27.5 |
| Net Height; IN | 14.375 - 23.875 |
| Weight; LBS | 92 |
| Ceiling Height Minimum | 6 ft. |
| Ceiling Height Maximum | 9 ft. |
| Shipping Length; IN | 30.8 |
| Shipping Width; IN | 66.4 |
| Shipping Height; IN | 16.4 |
| Shipping Weight; LBS | 117.5 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
