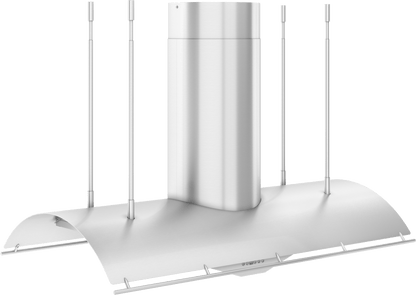

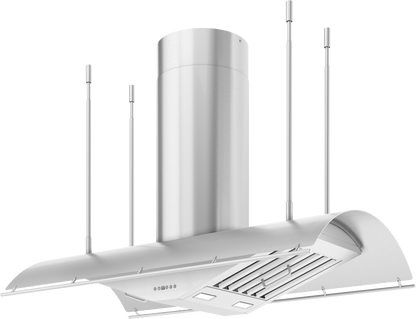

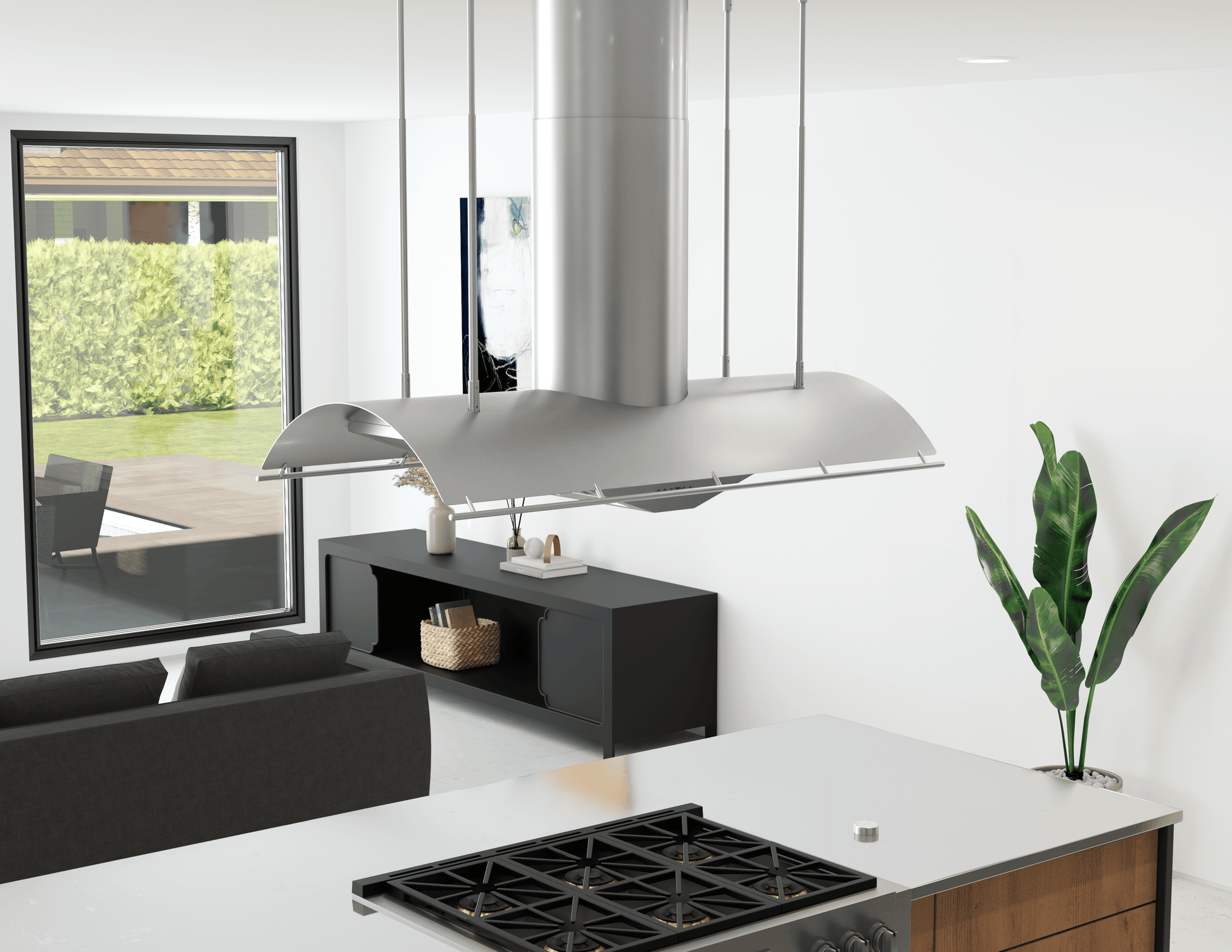

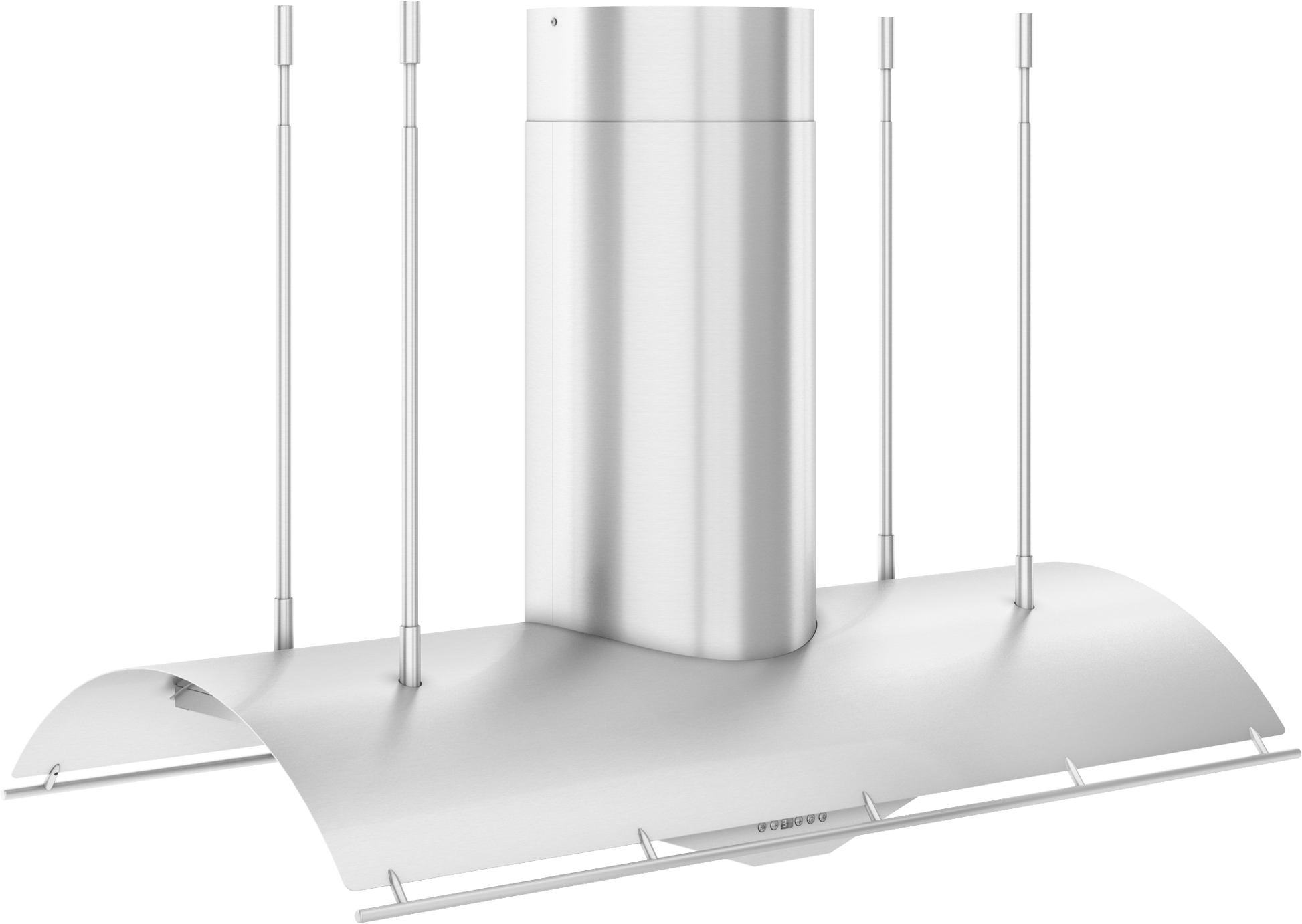

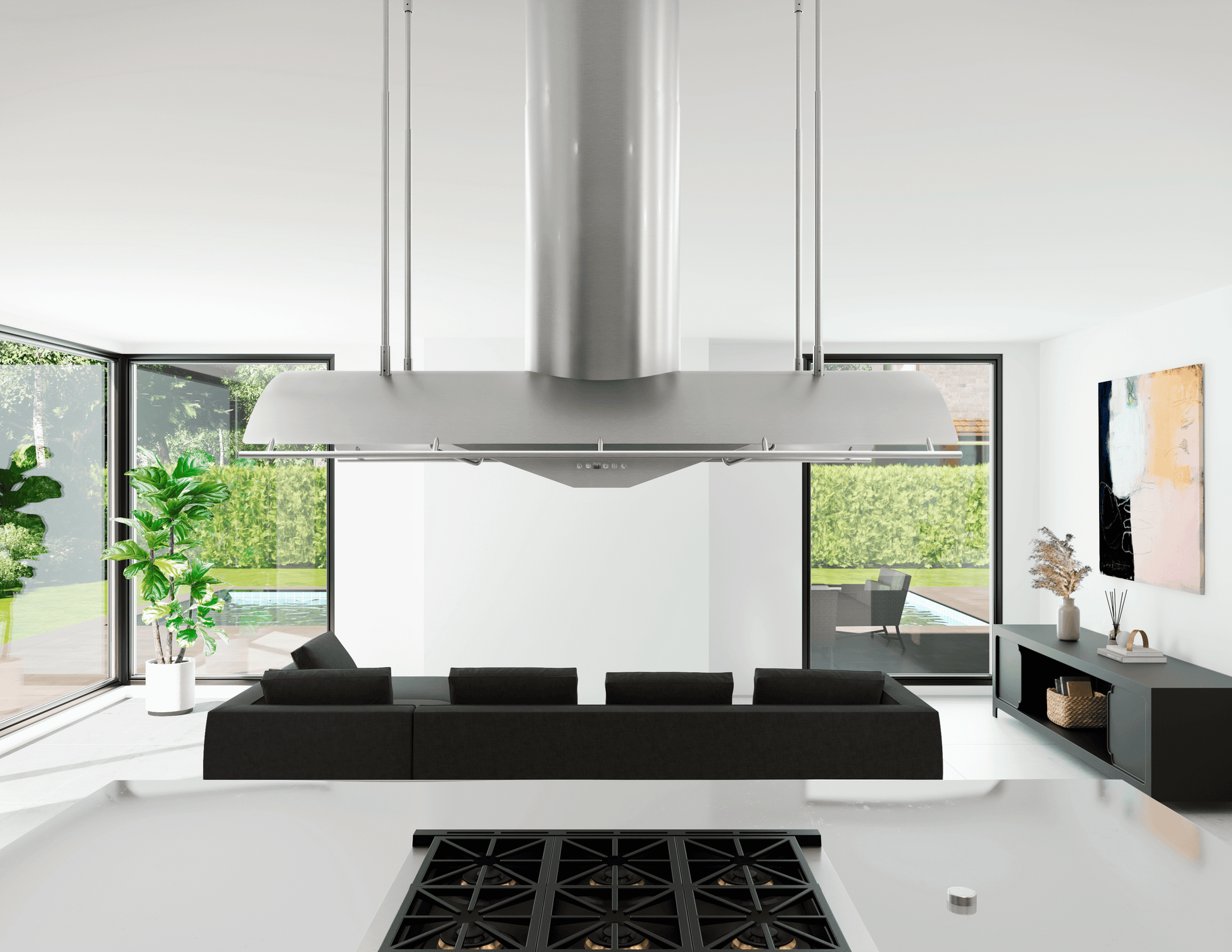

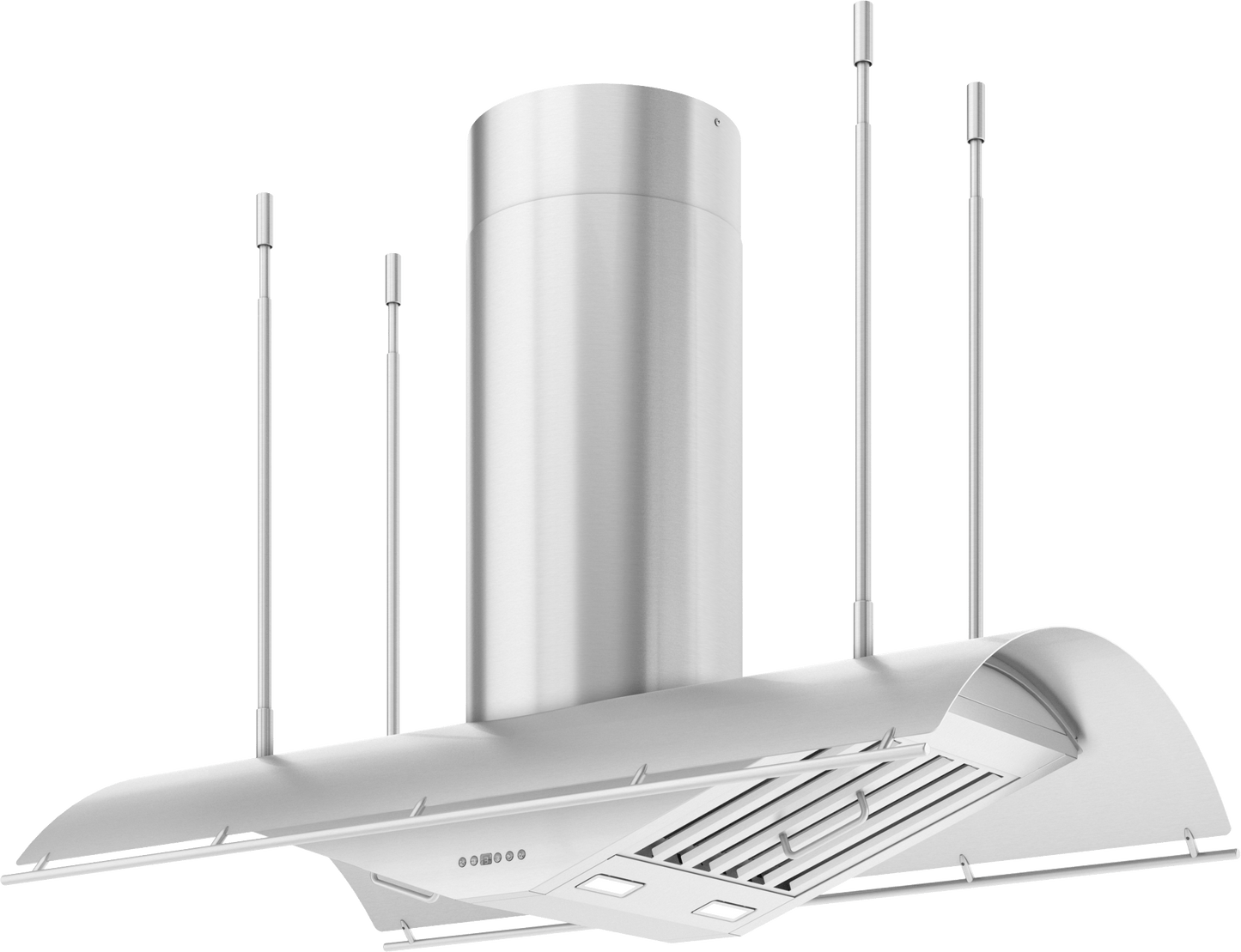

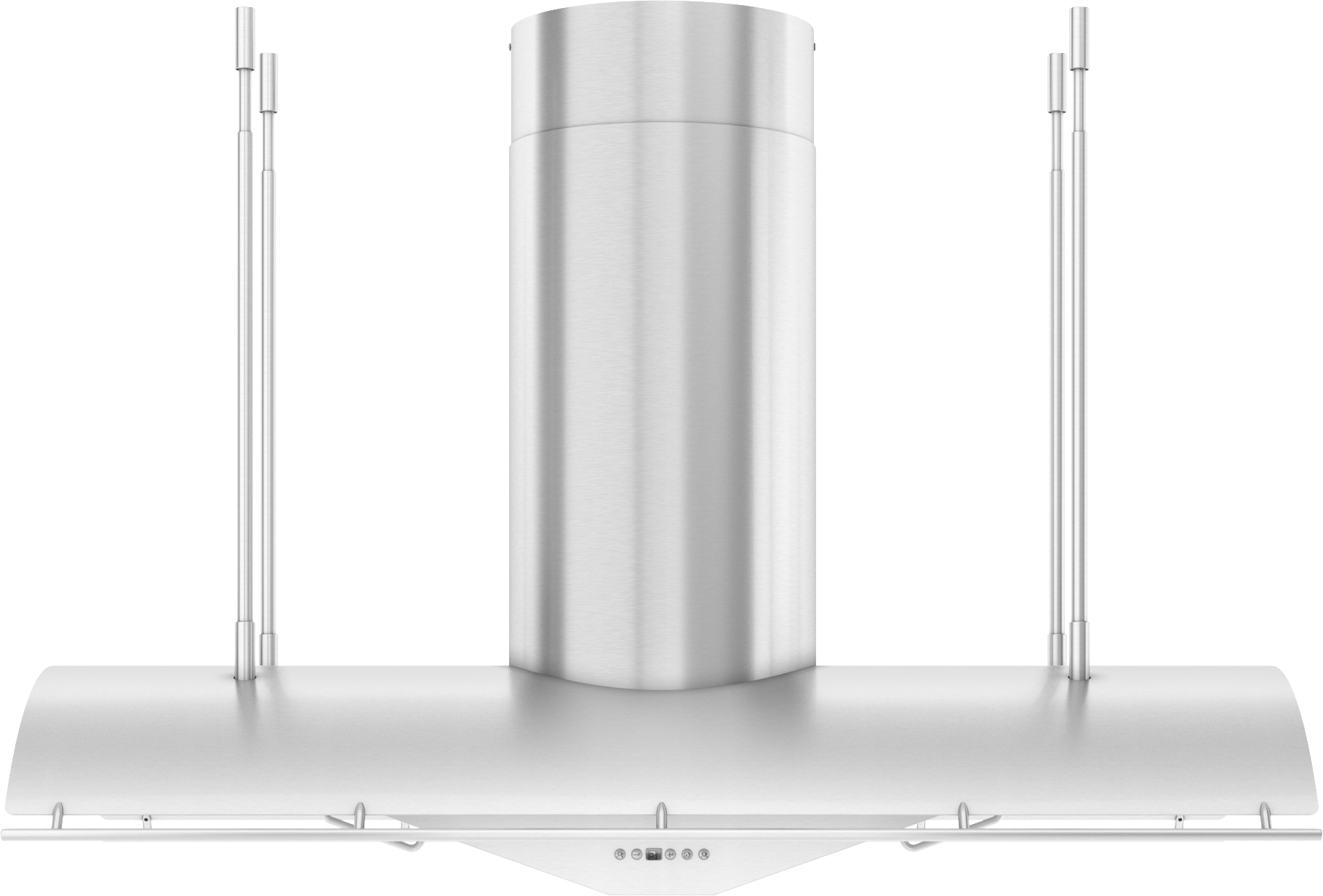

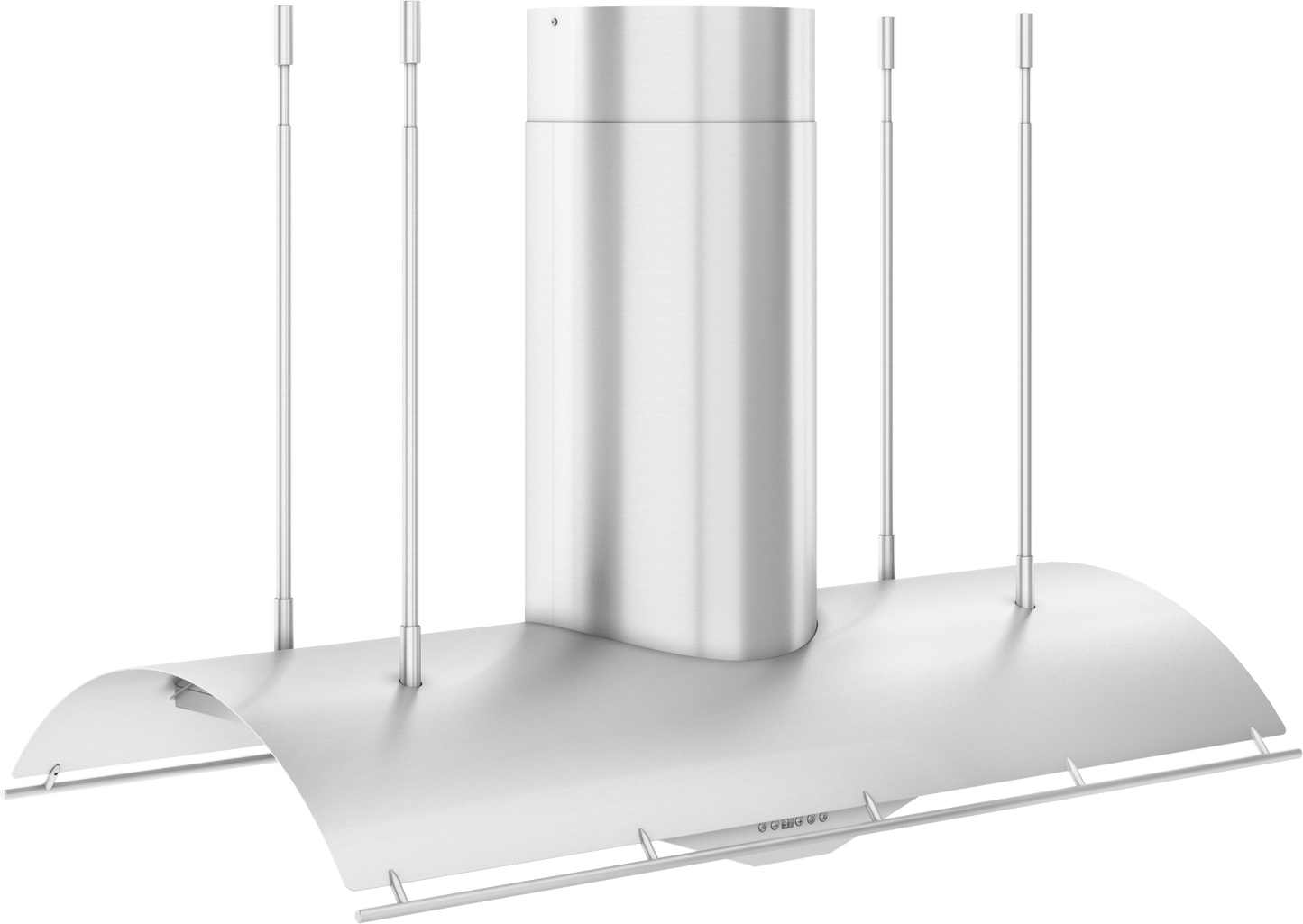

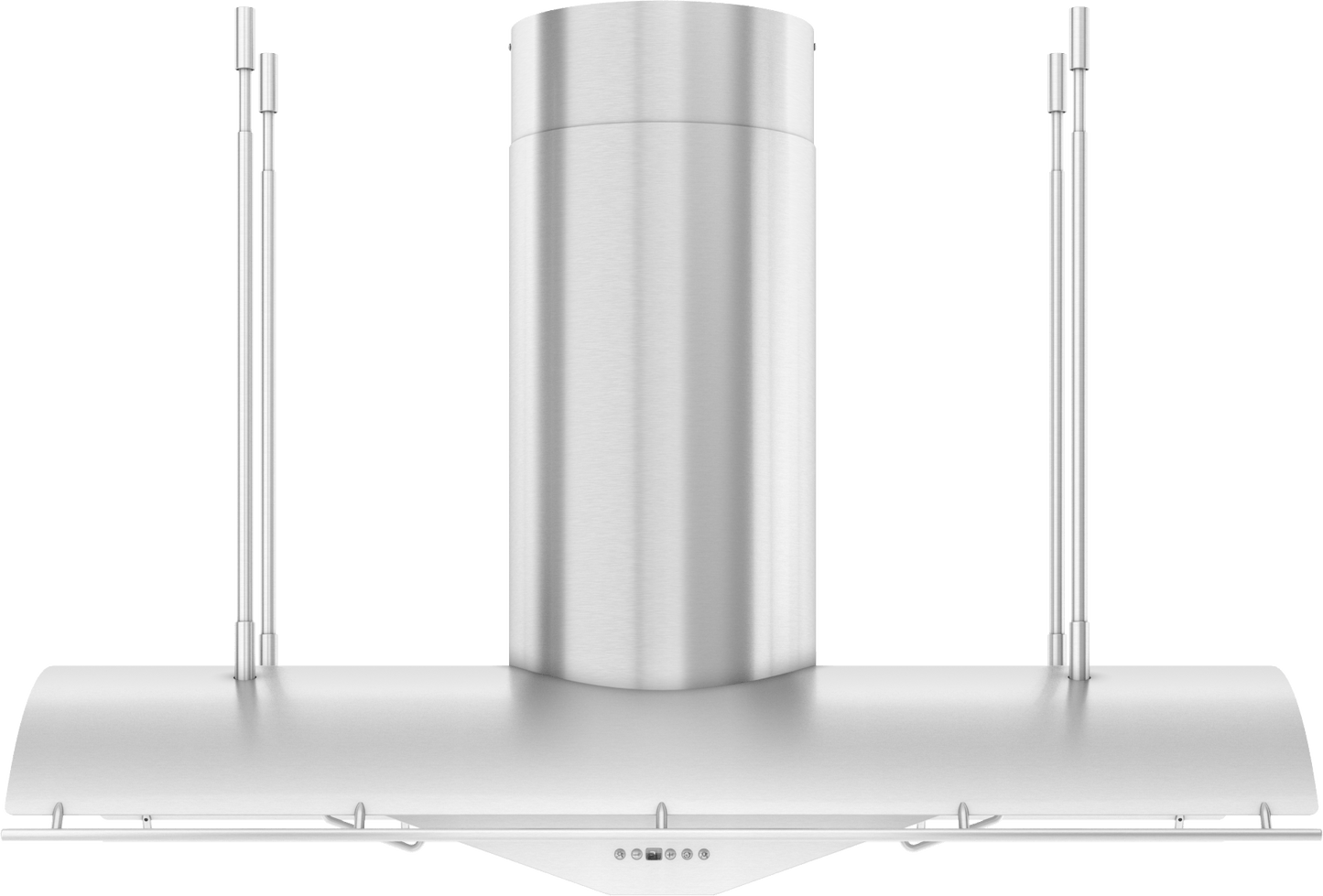

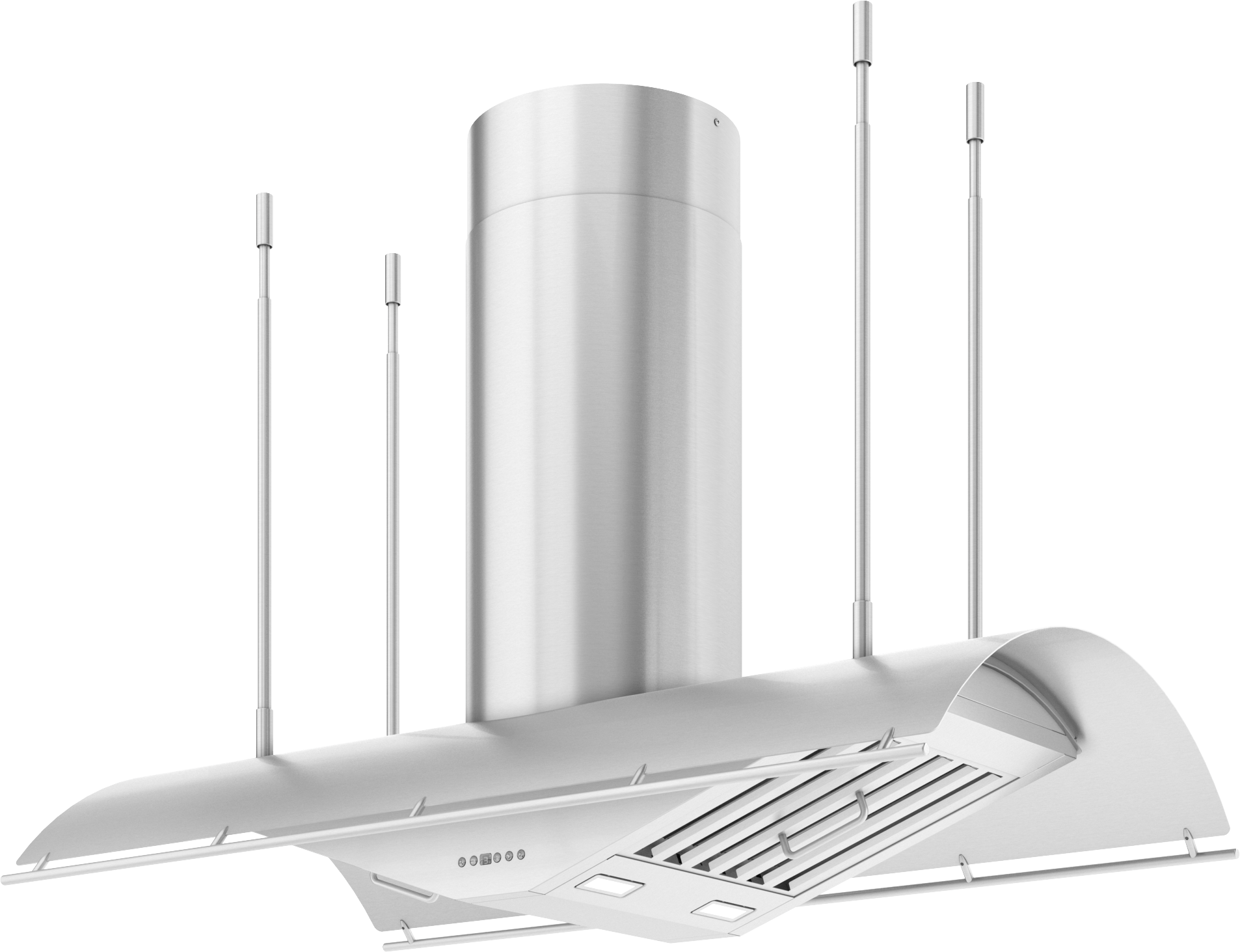

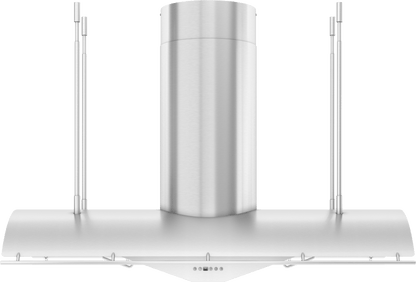

Zephyr CTPE48CSX Trapeze, 48in, SS, LED, BODY ONLY
Zephyr CTPE48CSX Trapeze, 48in, SS, LED, BODY ONLY
Regular price
$4,799.00
Regular price
Sale price
$4,799.00
Unit price
per
Couldn't load pickup availability
When Will I Get My Order?
- Multiple Blower Options
- LumiLight LED Lighting
- Directional lighting
- Professional Baffle Filters
- Electronic Touch Controls
- Optional Wireless Remote Control (14000005)
- Optional Extension Duct Cover Kit
Trapeze, 48in, SS, LED, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Ducted |
| UPC | 646328010422 |
| GTIN | 00646328010422 |
| Country of Origin | Taiwan |
| Model Group | CTP-C |
| Model Name | Trapeze Island |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210039 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | CBI-290C, CBI-600A, PBN-1000A, CBE-1000, CBI-390A, Z1C-00TP, 14000005, MUA006A, MUA008A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 780 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 48 |
| Net Depth; IN | 26.625 |
| Net Height; IN | 34 - 52 |
| Weight; LBS | 84 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 51.9 |
| Shipping Width; IN | 29.5 |
| Shipping Height; IN | 26.4 |
| Shipping Weight; LBS | 109.8 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
