ZEPHYR DLAE42ASSX
Authorized Reseller

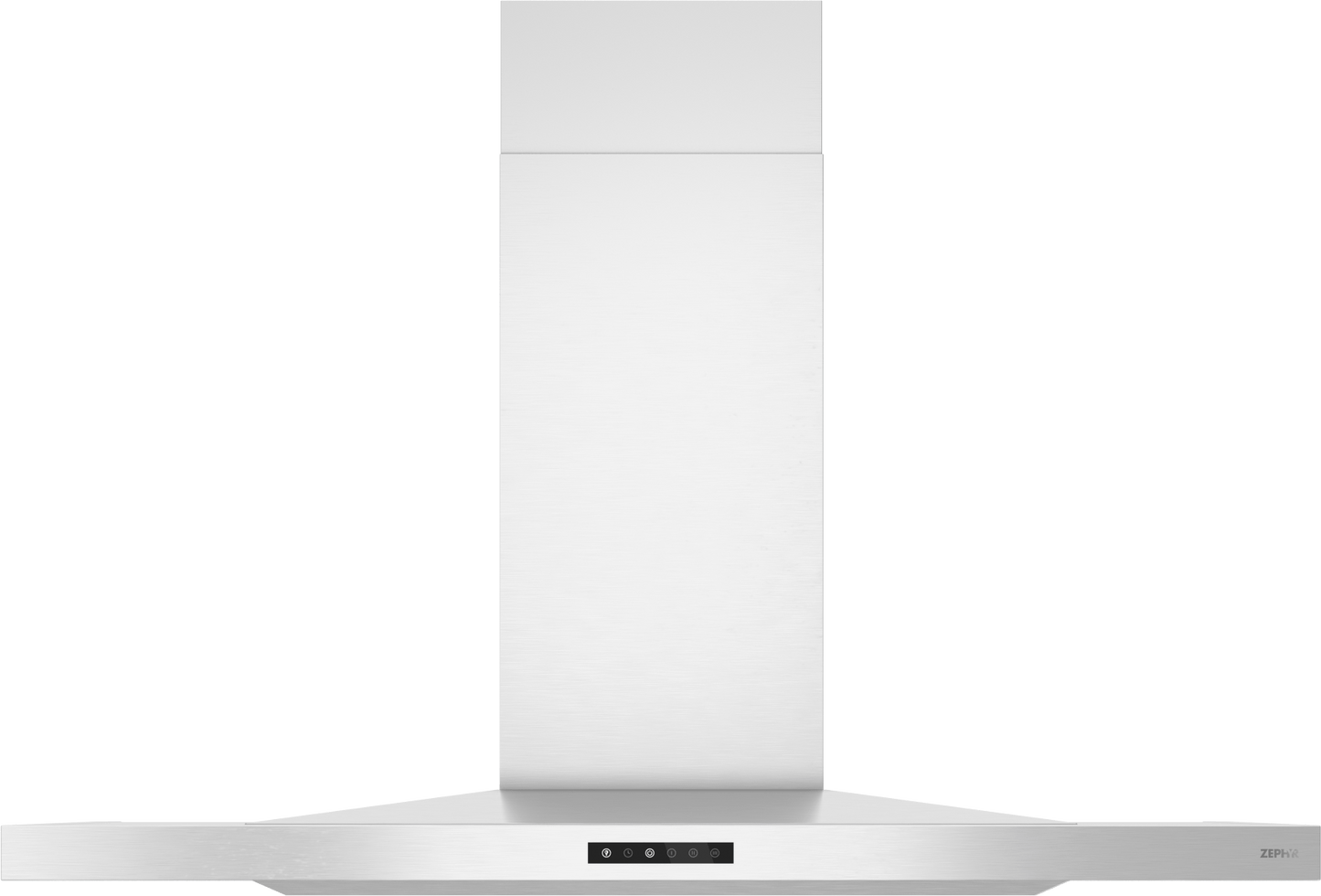

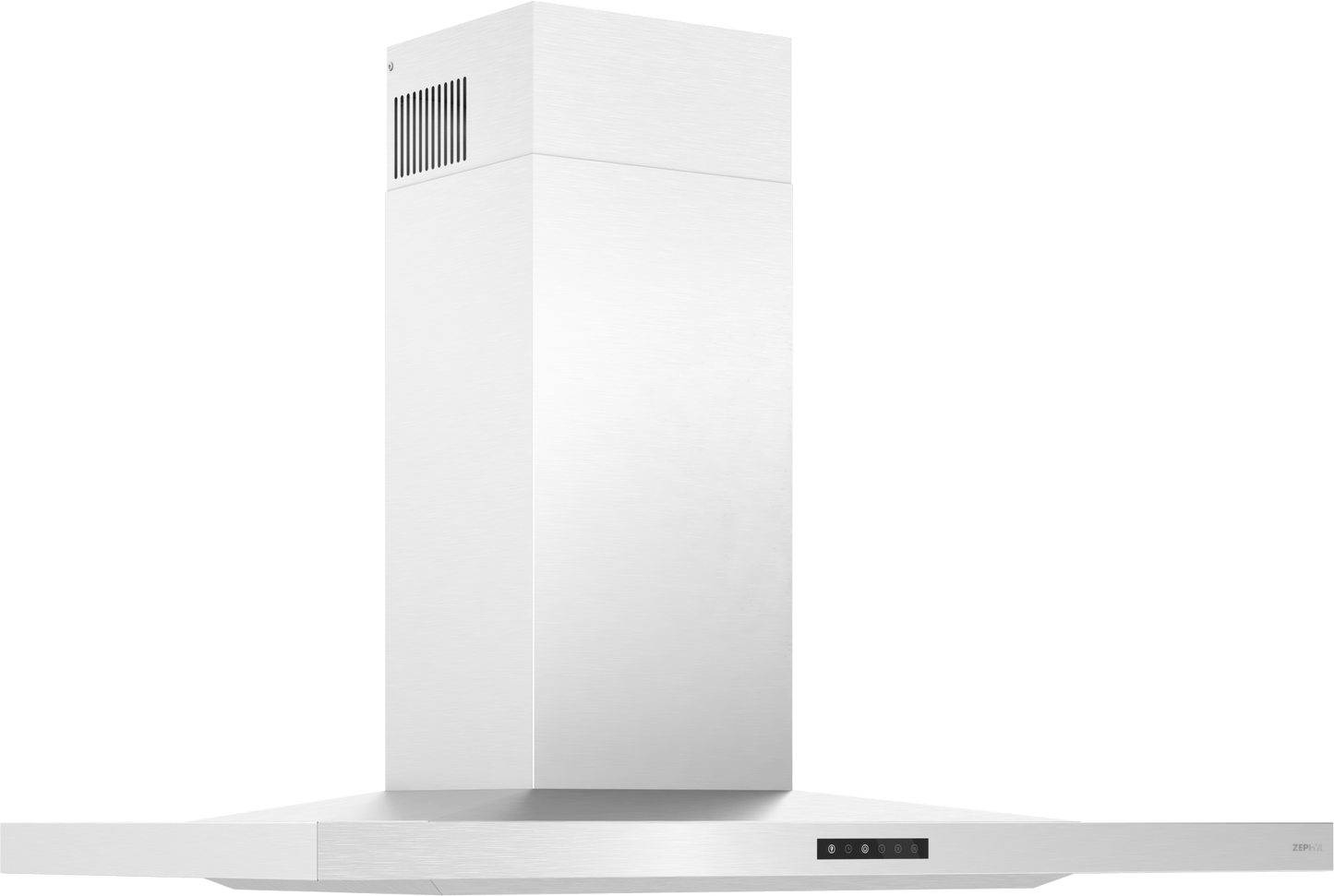

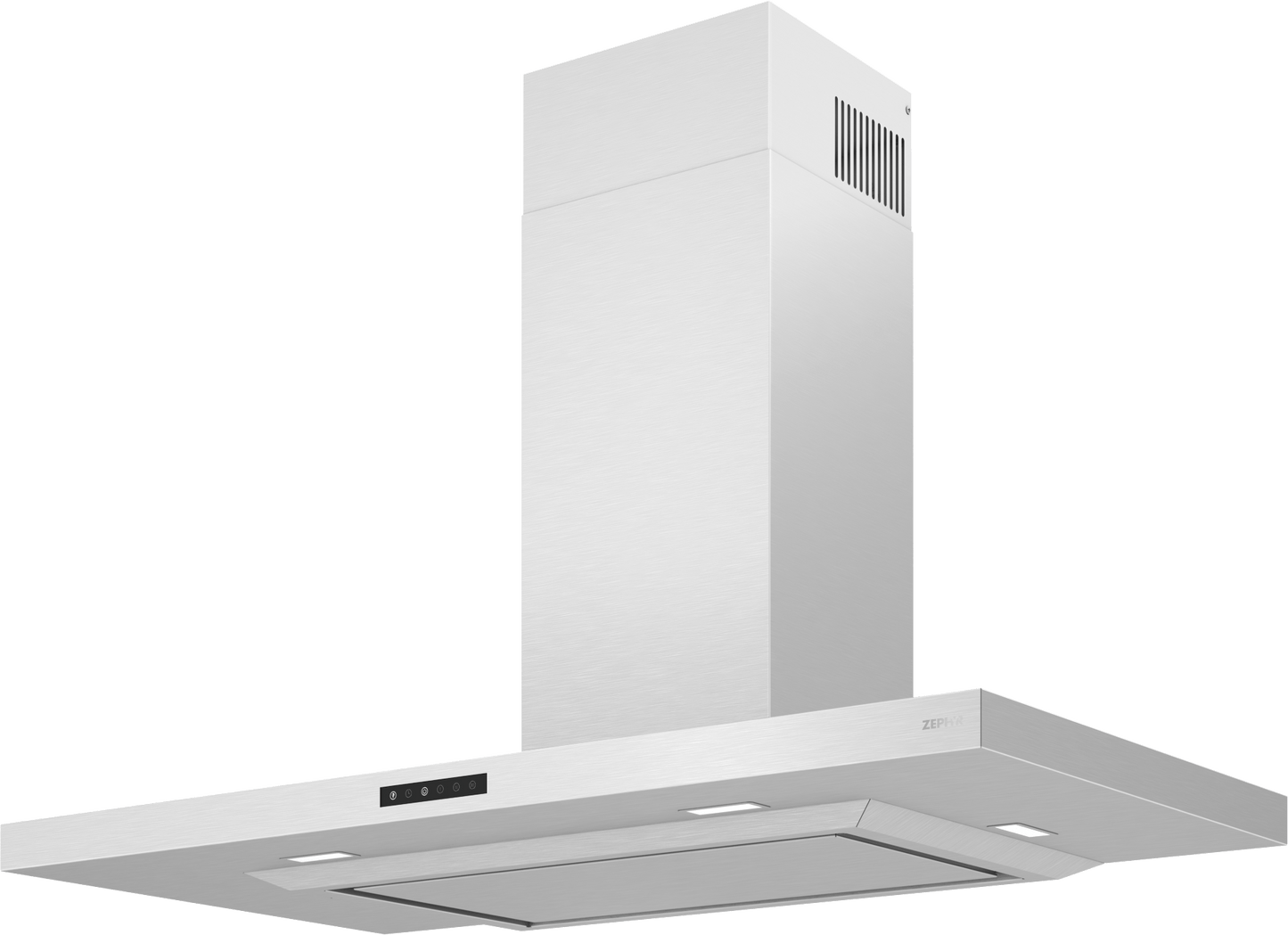

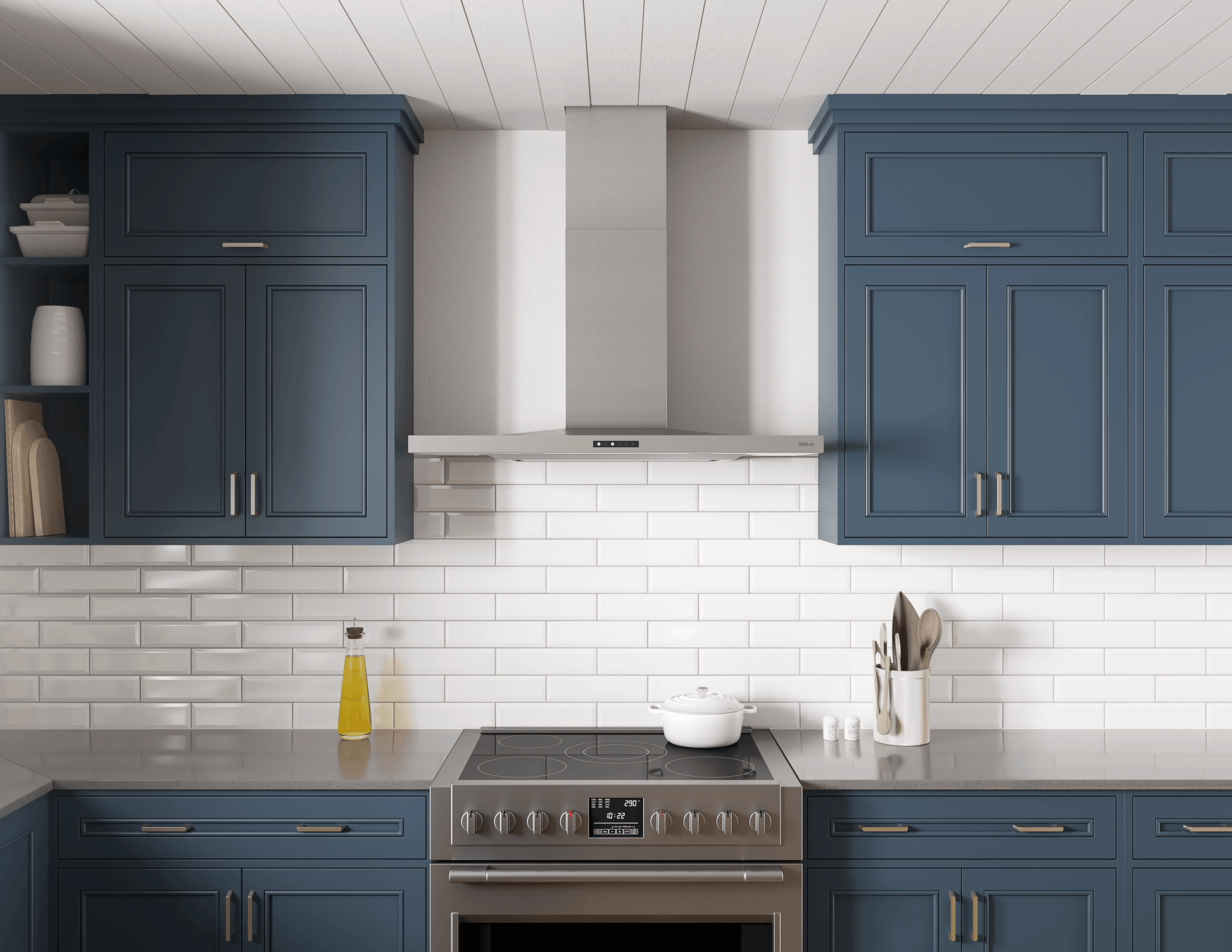

Zephyr DLAE42ASSX Layers Wall, 42in, SS, BODY ONLY
Zephyr DLAE42ASSX Layers Wall, 42in, SS, BODY ONLY
Regular price
$2,099.97
Regular price
Sale price
$2,099.97
Unit price
per
In Stock!
Couldn't load pickup availability
When Will I Get My Order?
- Multiple Blower Options
- Invisible Touch Controls

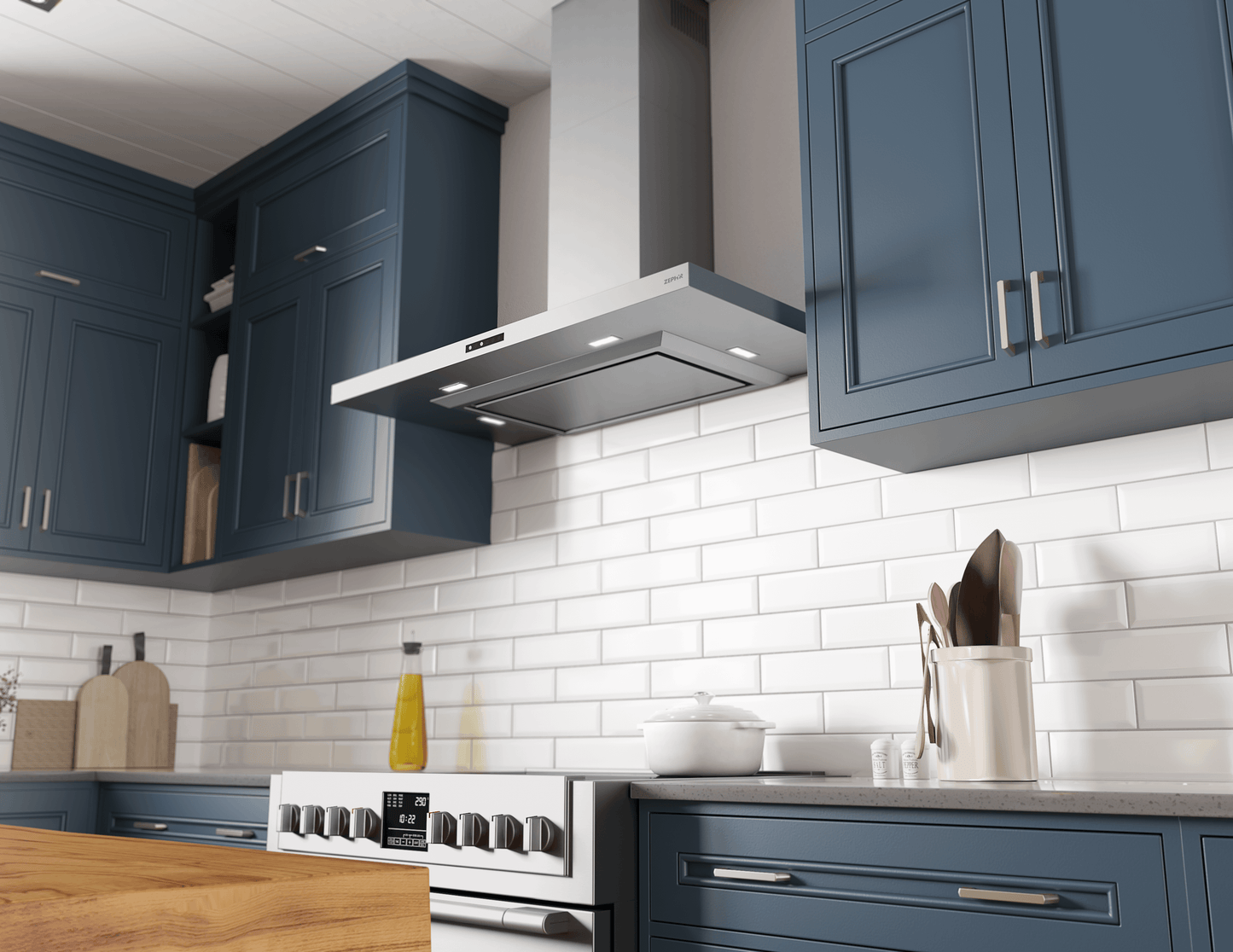

- Tri-Level Lighting
- Dishwasher Safe Aluminum Mesh Filters
- Optional Wireless Remote Control (RC-0003)
- Optional Extension Duct Cover Kit
- Optional Ductless Recirculating Kit
Layers Wall, 42in, SS, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328008887 |
| GTIN | 00646328008887 |
| Country of Origin | Italy |
| Model Group | DLA-A |
| Model Name | Layers Wall |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 290 |
| Internal Blower 2 Max Sones | 3 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Invisible Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 5 |
| Lights Levels | 3 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200066 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.63 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | CBI-390A, CBE-1000, CBI-290A, CBI-600A, PBN-1000A,CBI-290C, Z0F-C010, Z1C-00VS, ZRC-00VS, MUA006A, MUA008A, RC-0003 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 795 |
| Certification | UL |
| Nominal Width; IN | 42 |
| Net Width; IN | 41.9375 |
| Net Depth; IN | 22 |
| Net Height; IN | 27 |
| Weight; LBS | 90 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Chimney Width in. | 27 |
| Shipping Length; IN | 44.6 |
| Shipping Width; IN | 21.8 |
| Shipping Height; IN | 24.7 |
| Shipping Weight; LBS | 83.1 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E503546 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
