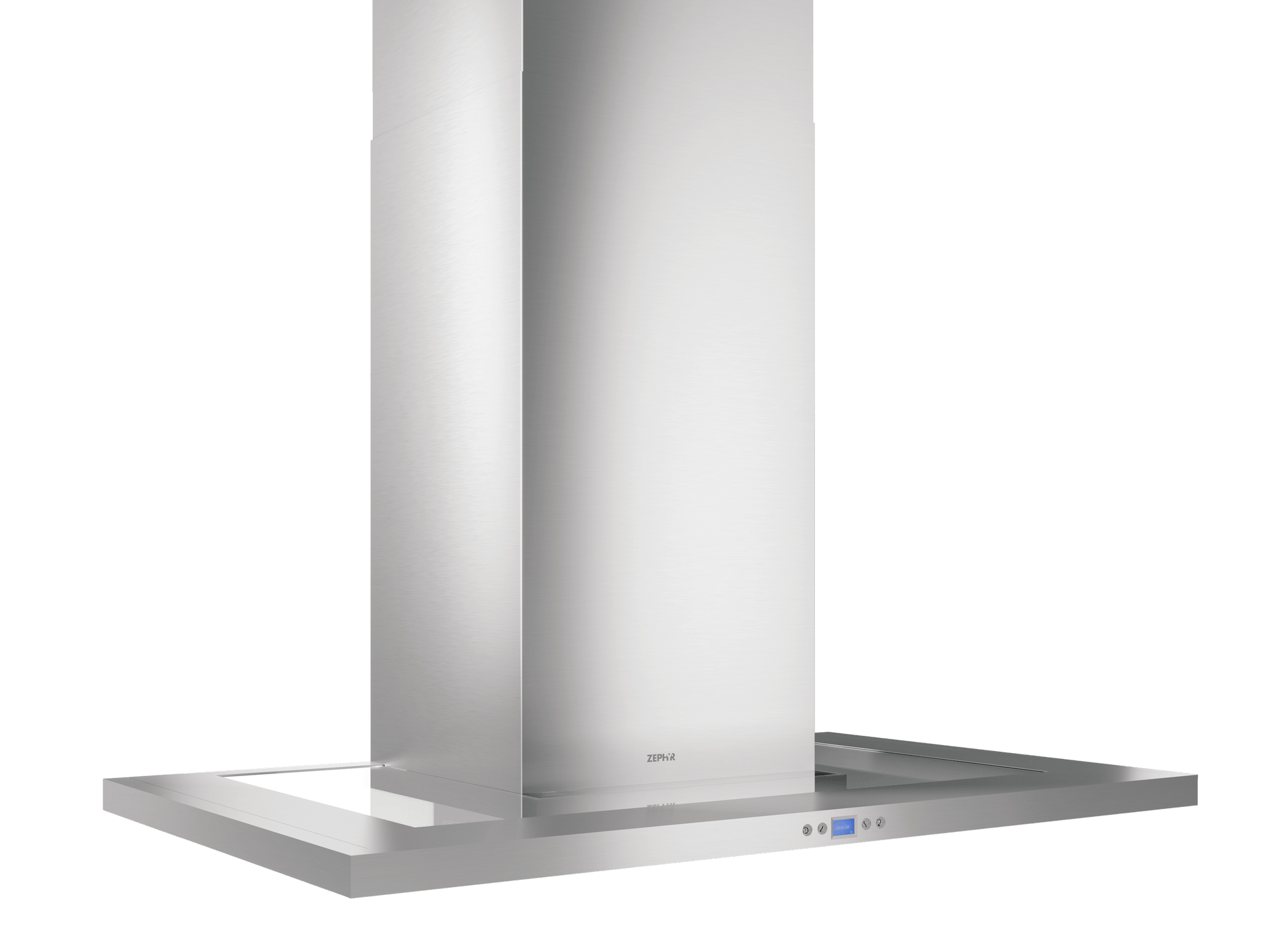

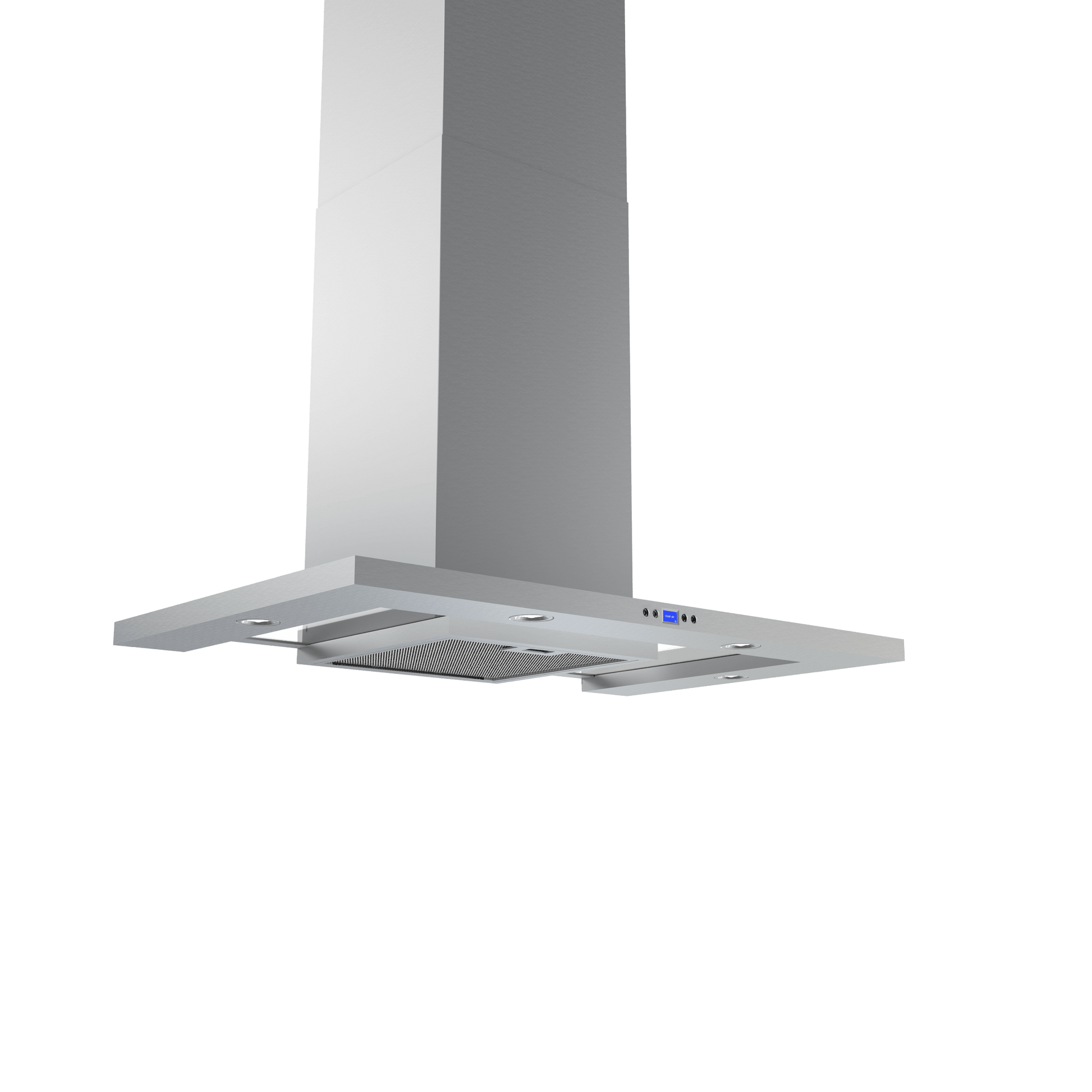

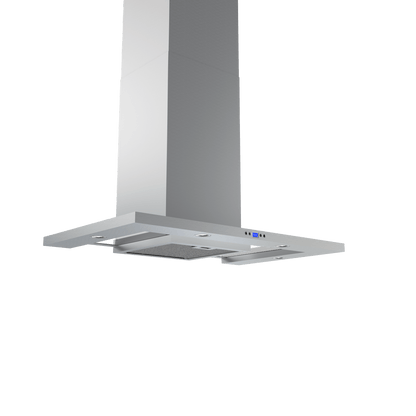

Zephyr ZMOE30AS Modena, Wall, 30", SS, DCBL, ACT ZMOE30AS
Zephyr ZMOE30AS Modena, Wall, 30", SS, DCBL, ACT
- DCBL Suppression System®
- Bloom™ HD LED light bulbs
- Airflow Control Technology™ (ACT™)
- Ultra-Quiet Performance
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
Modena, Wall, 30", SS, DCBL, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328001963 |
| GTIN | 00646328001963 |
| Country of Origin | Taiwan |
| Model Group | ZMO |
| Model Name | Modena |
| Collection | Core Collection |
| Replacement Model | ZMO-E30BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 715 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 5.8 |
| Minimum CFM | 250 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 3 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200042 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00MO, Z1C-00MO, RC-0001, MUA008A, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9375 |
| Net Depth; IN | 22.125 |
| Net Height; IN | 27 - 50 |
| Weight; LBS | 54.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 25.5 |
| Chimney Width in. | 13.37 |
| Chimney Depth in. | 12.37 |
| Shipping Length; IN | 27.52 |
| Shipping Width; IN | 36.22 |
| Shipping Height; IN | 30.24 |
| Shipping Weight; LBS | 75.9 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
