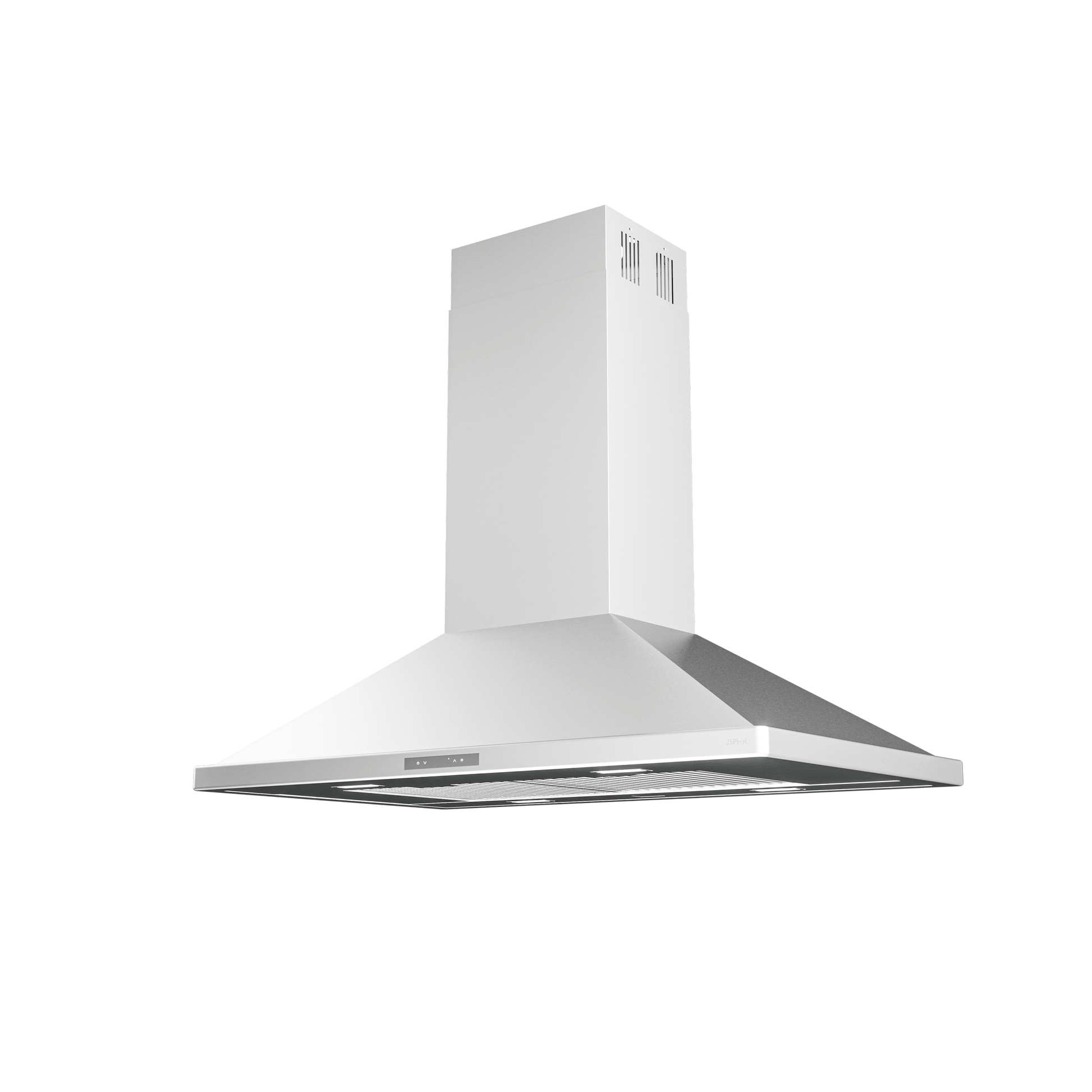

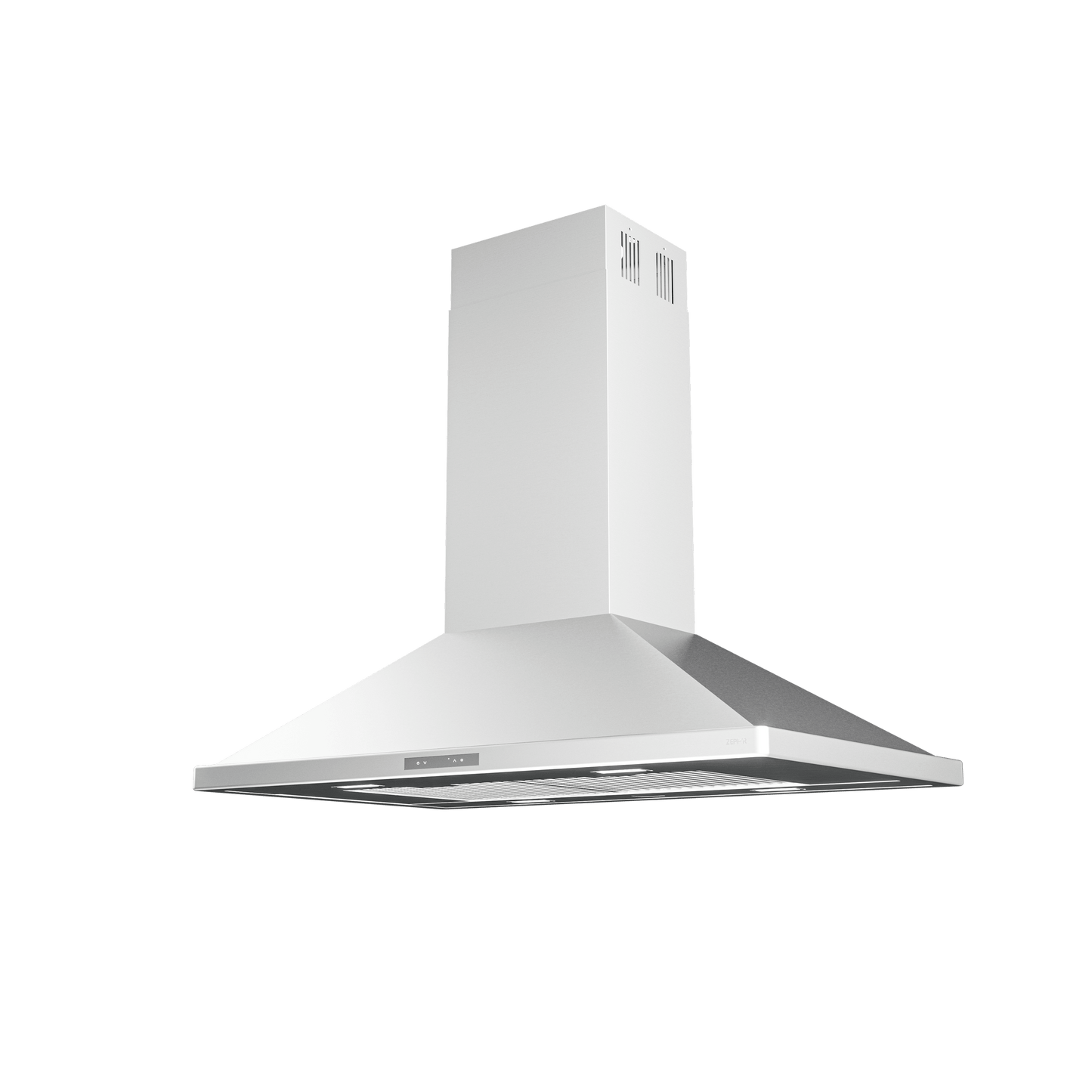

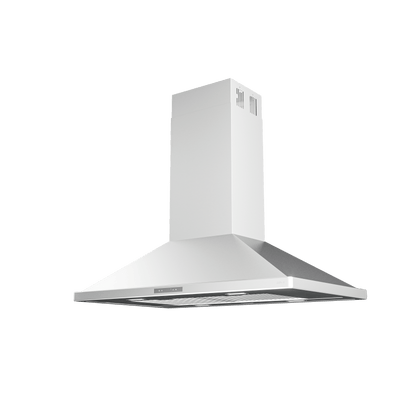

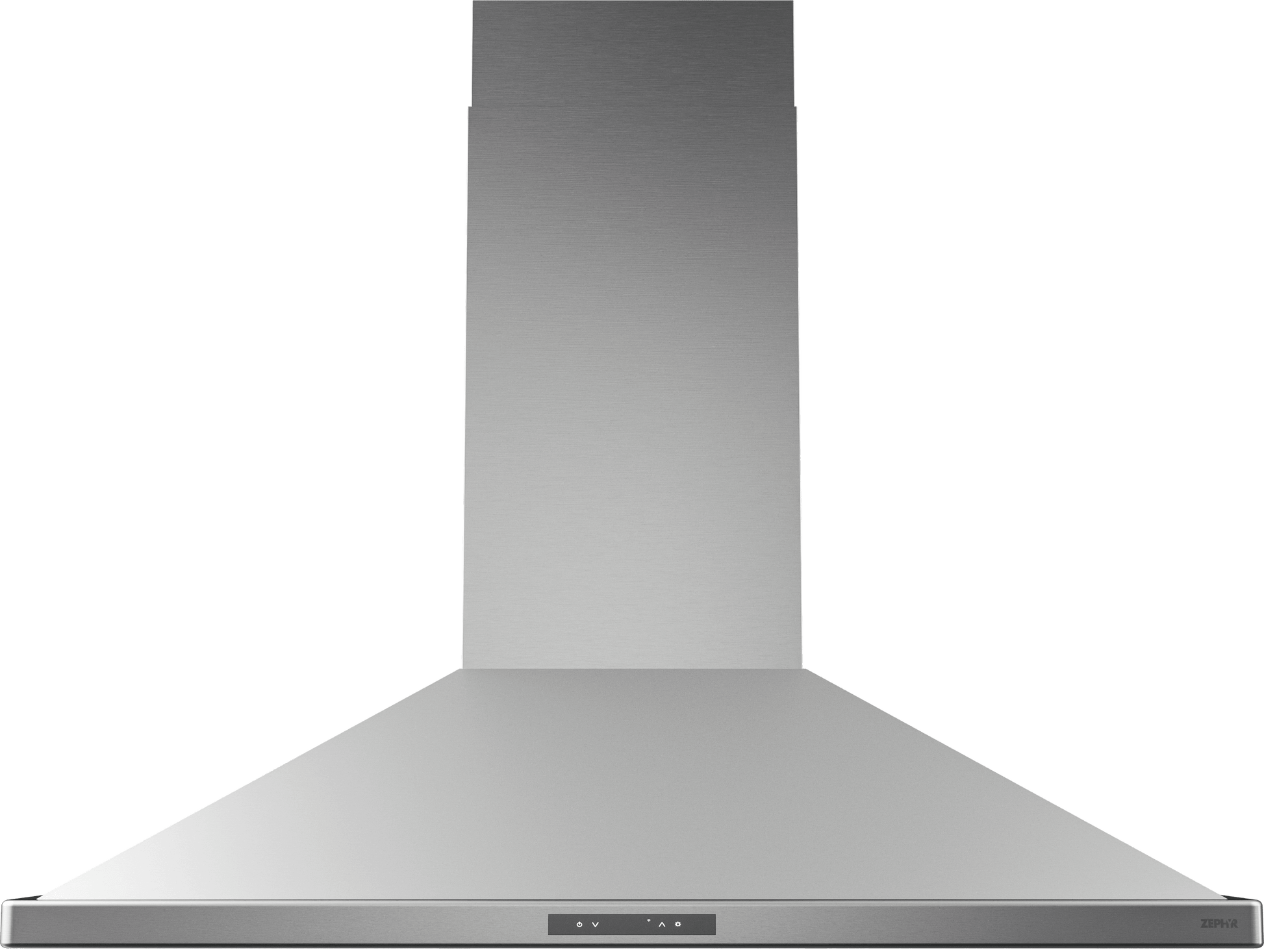

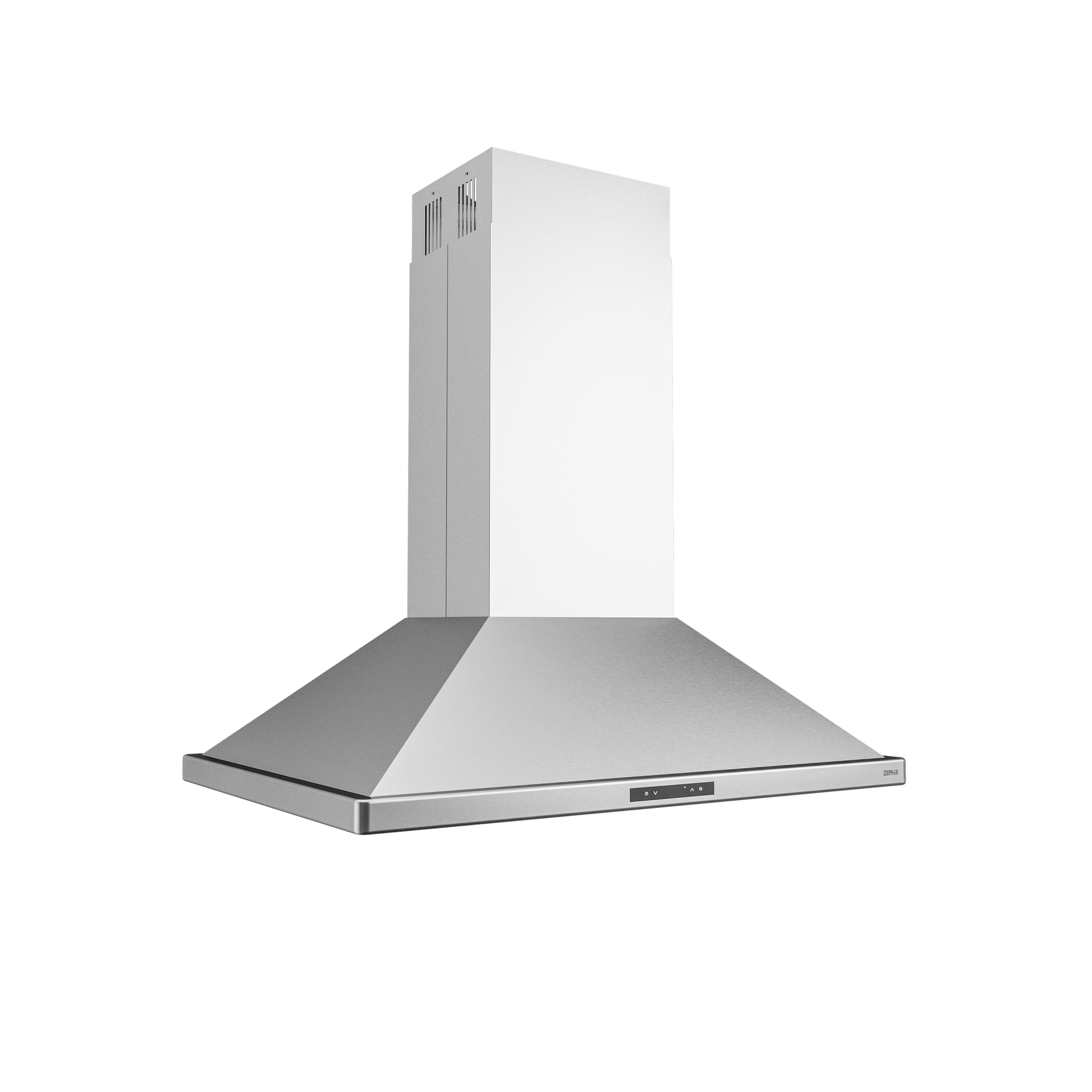

Zephyr ZNAE42DS Napoli Connect Island, 42in, SS, LED, ACT ZNAE42DS
Zephyr ZNAE42DS Napoli Connect Island, 42in, SS, LED, ACT







- LumiLight LED Lighting
- Airflow Control Technology™ (ACT™)
- Compatible with Zephyr Connect App
- CleanAir Function
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
- Optional Wireless Remote Control (14000005)
Napoli Connect Island, 42in, SS, LED, ACT
Brand | Zephyr |
Manufacturer | Zephyr |
Category | Range Hood |
Sub-Category | Island |
Vent Type | Convertible |
UPC | 646328008450 |
GTIN | 00646328008450 |
Country of Origin | Taiwan |
Model Group | ZNA-D |
Model Name | Napoli Island |
Collection | Core Collection |
Blower Included | Yes |
Blower CFM w/ACT | 590, 390, 290 |
Internal Blower 1 CFM | 700 |
Internal Blower 1 Min. Sones | 0.8 |
Internal Blower 1 Max Sones | 6 |
Minimum CFM | 200 |
Installation Type | Island |
Installation Type | Island |
For Outdoor Use | No |
Color | Stainless Steel |
Controls Type | Proximity Touch |
Blower Speeds | 6 |
Automatic Delay-Off | Yes |
Clean Air Function | Yes |
Lighting Type | LED |
Lights Quantity | 4 |
Watts Per Bulb | 6 |
Lights Levels | 3 |
Grease Filter Type | Hybrid Baffle |
Compatible Mesh or Baffle Filter Part Number | 50210041 |
Duct Discharge | Vertical |
Duct Size; Vertical; IN | 8 |
Mounting Height Above Cooktop; IN | 24 - 36 |
Voltage | 120 |
Maximum Amperage | 5 |
ADA Compliant | Yes, with optional remote |
Warranty Parts / Labor | 3 / 1 |
Compatible Appliances | 14000005, ZRC-03NA, Z1C-02NA, MUA008A, Z0F-C005 |
Bluetooth Connected | No |
Wi-Fi Connected | Yes |
Remote Included | No |
Remote Optional | Yes |
Energy Star Certified | No |
Alexa & Google Home Compatible | Yes |
CEC Title 20 Compliant | Yes |
CEC Title 24 Compliant | Yes |
Primary Material | Stainless Steel |
Wattage | 600 |
Certification | UL |
Nominal Width; IN | 42 |
Net Width; IN | 41.9 |
Net Depth; IN | 25.56 |
Net Height; IN | 32 - 50 |
Weight; LBS | 75.000 |
Ceiling Height Minimum | 8 ft. |
Ceiling Height Maximum | 10 ft. |
Chimney Height in. | 21.5 |
Chimney Width in. | 12.81 |
Chimney Depth in. | 9.81 |
Shipping Length; IN | 45.6 |
Shipping Width; IN | 21.4 |
Shipping Height; IN | 31.8 |
Shipping Weight; LBS | 87 |
Shipping Method | LTL |
Freight Class | 300 |
Certification # | E127334 |
Clean Filter Alert | Yes |
Duct Type | Vertical |
Duct Type | Vertical |
