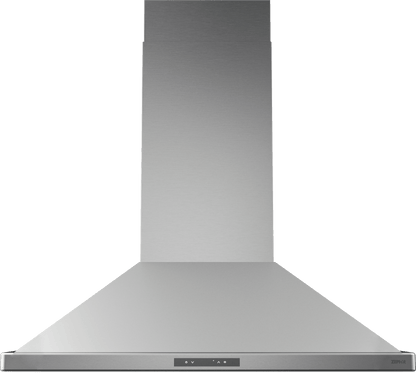

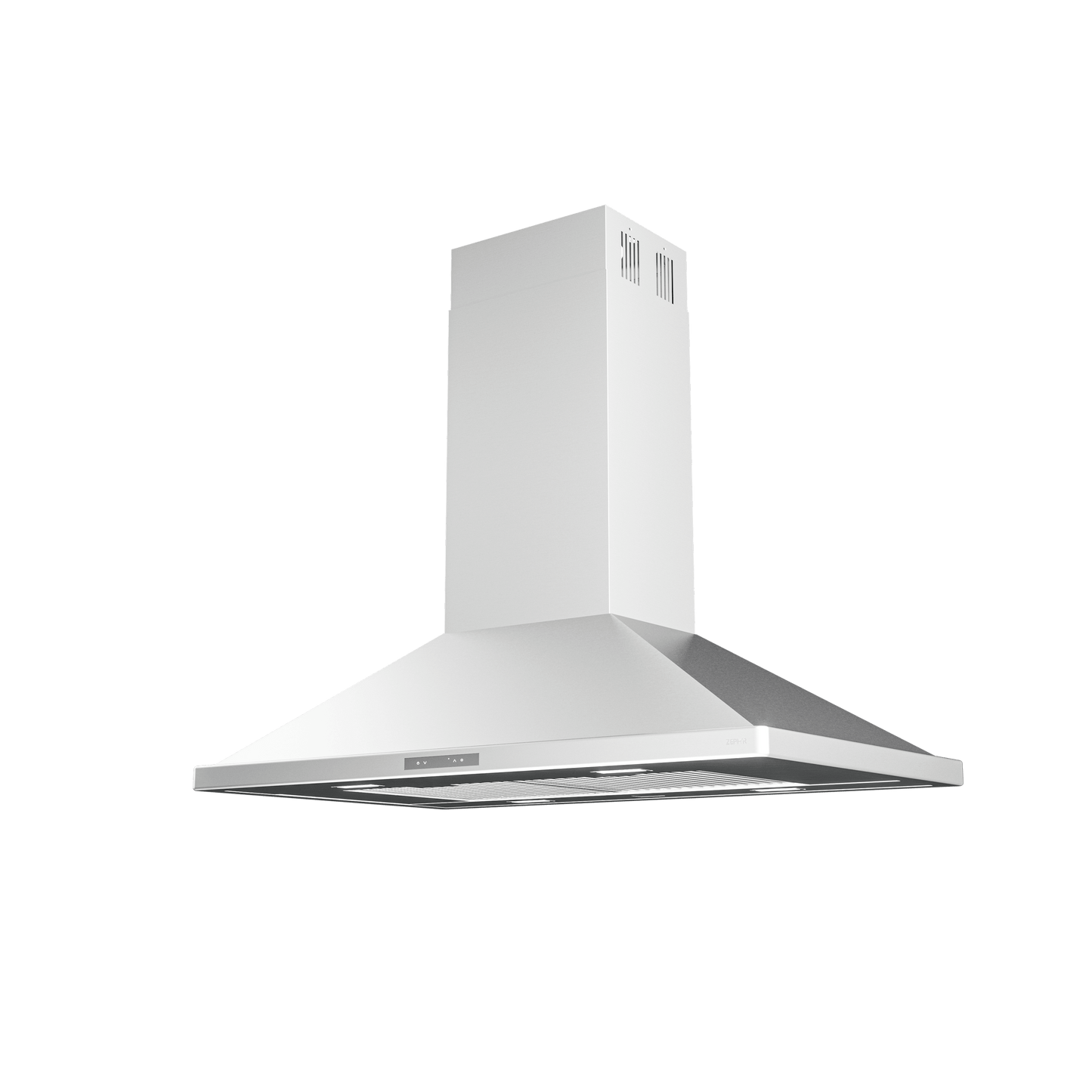

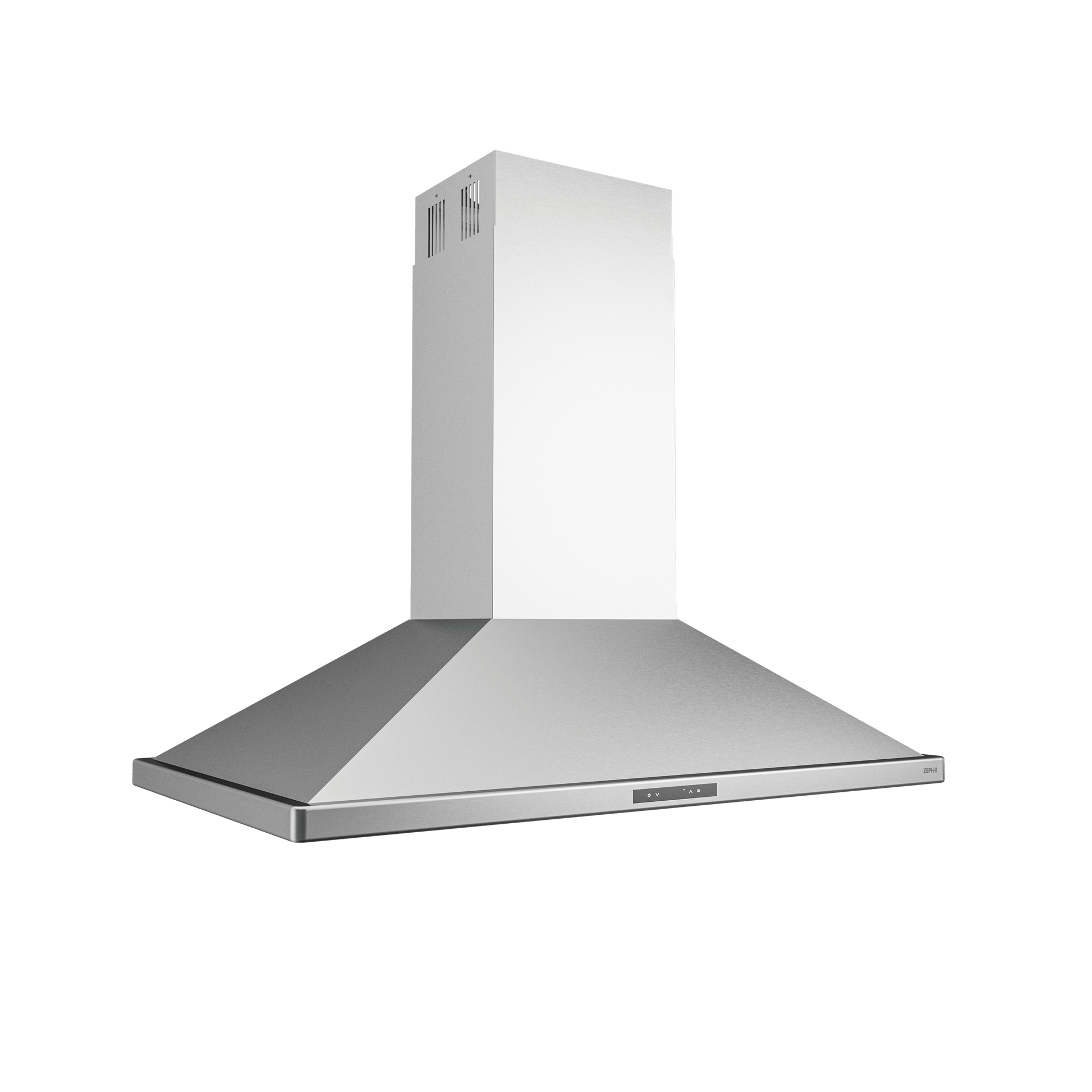

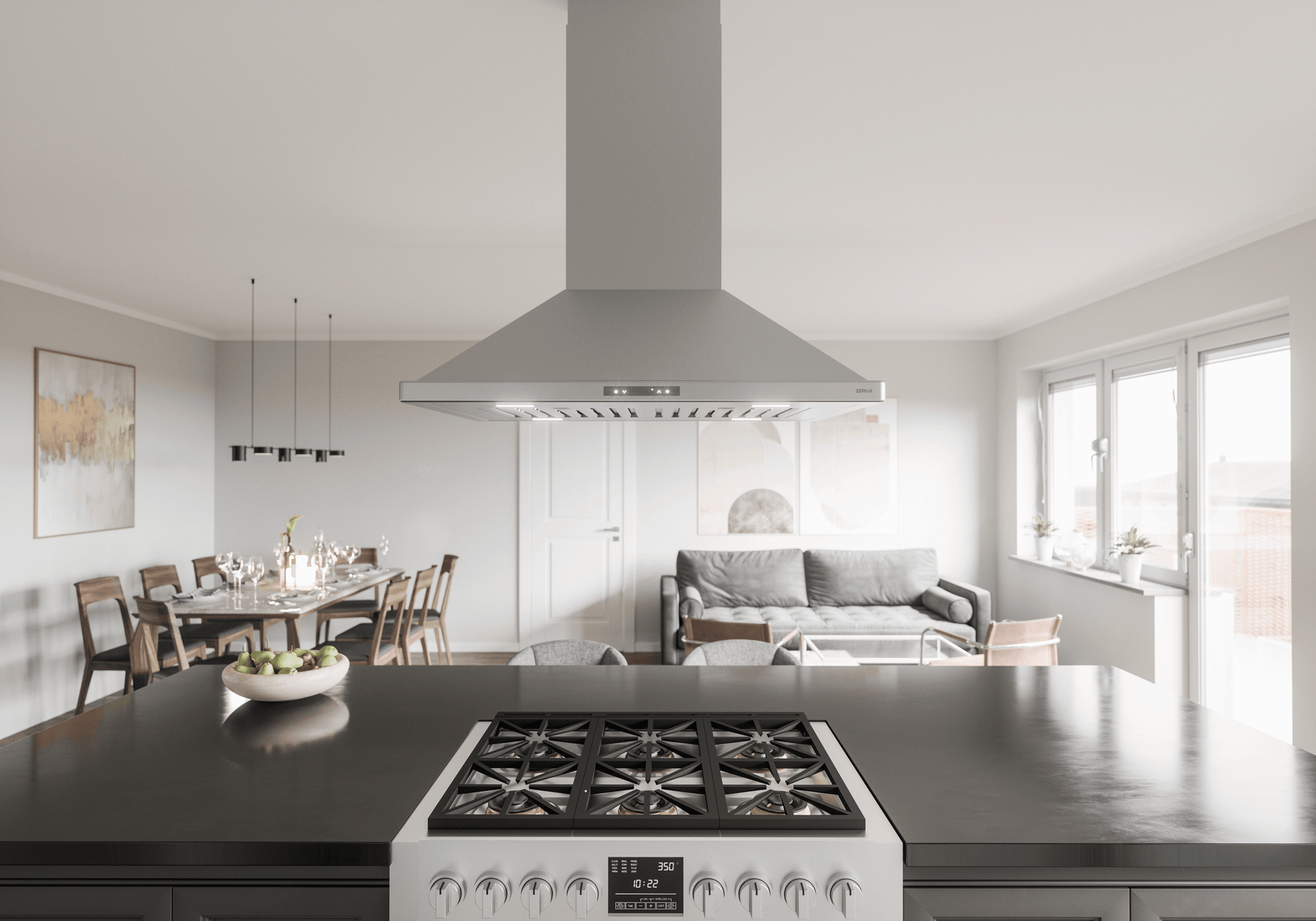

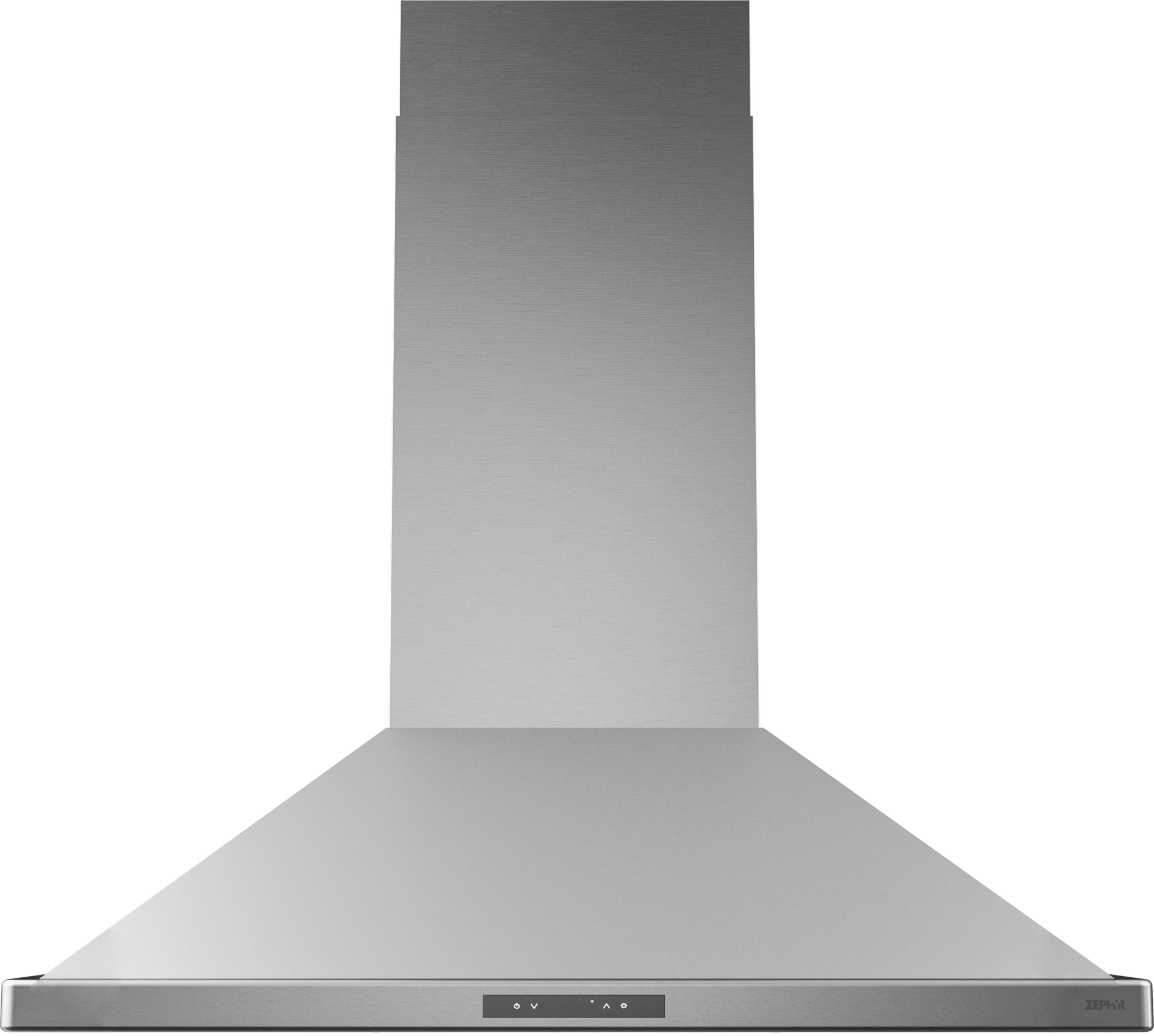

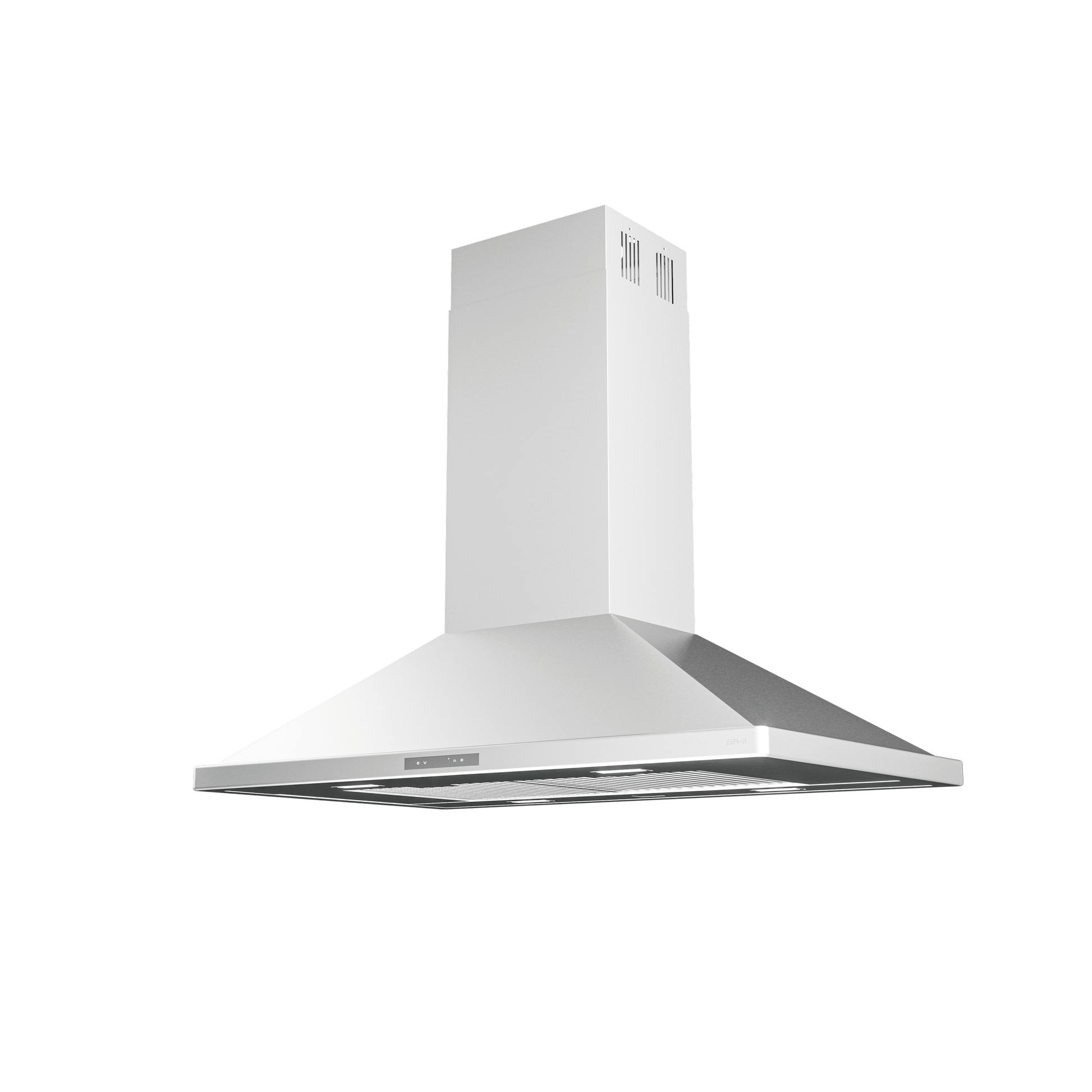

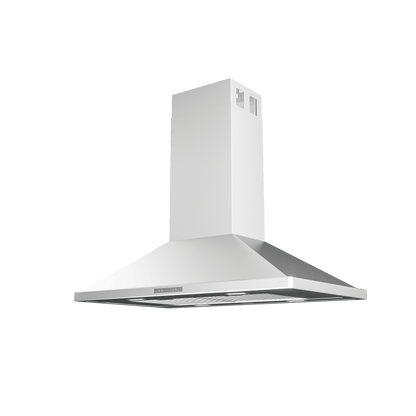

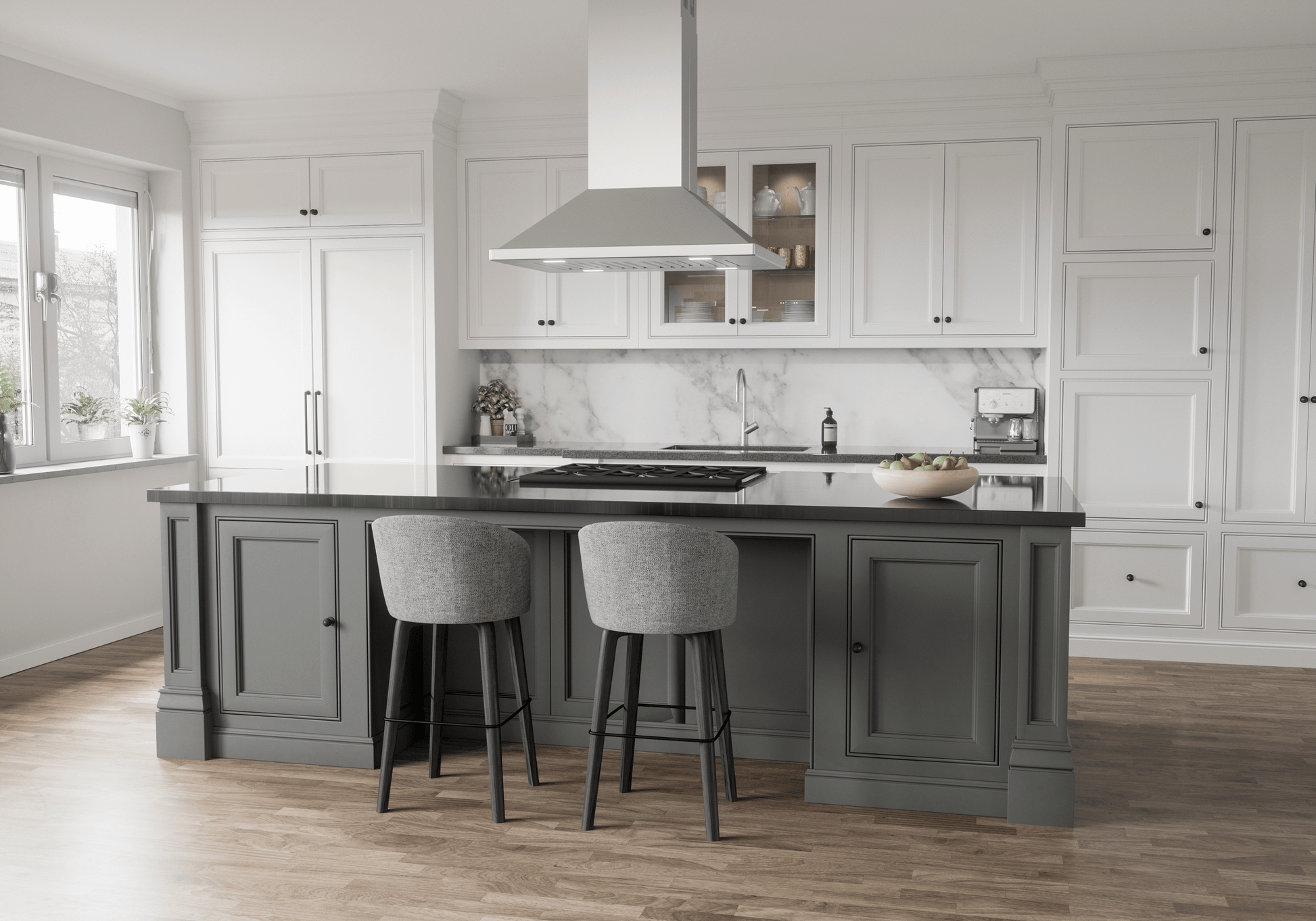

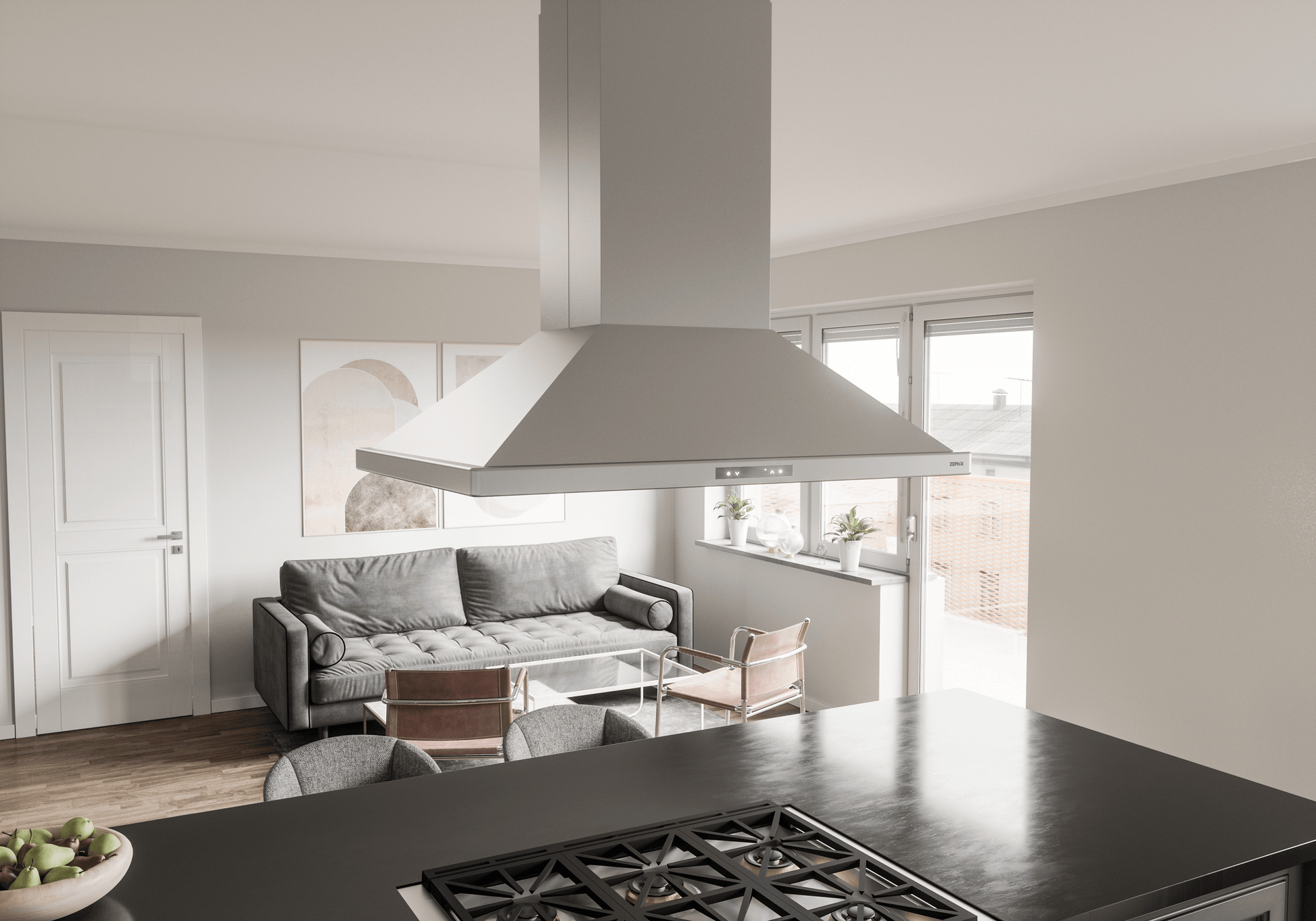

Zephyr ZNAM90DS Napoli Connect Island, 90cm, SS, LED, ACT ZNAM90DS
Zephyr ZNAM90DS Napoli Connect Island, 90cm, SS, LED, ACT

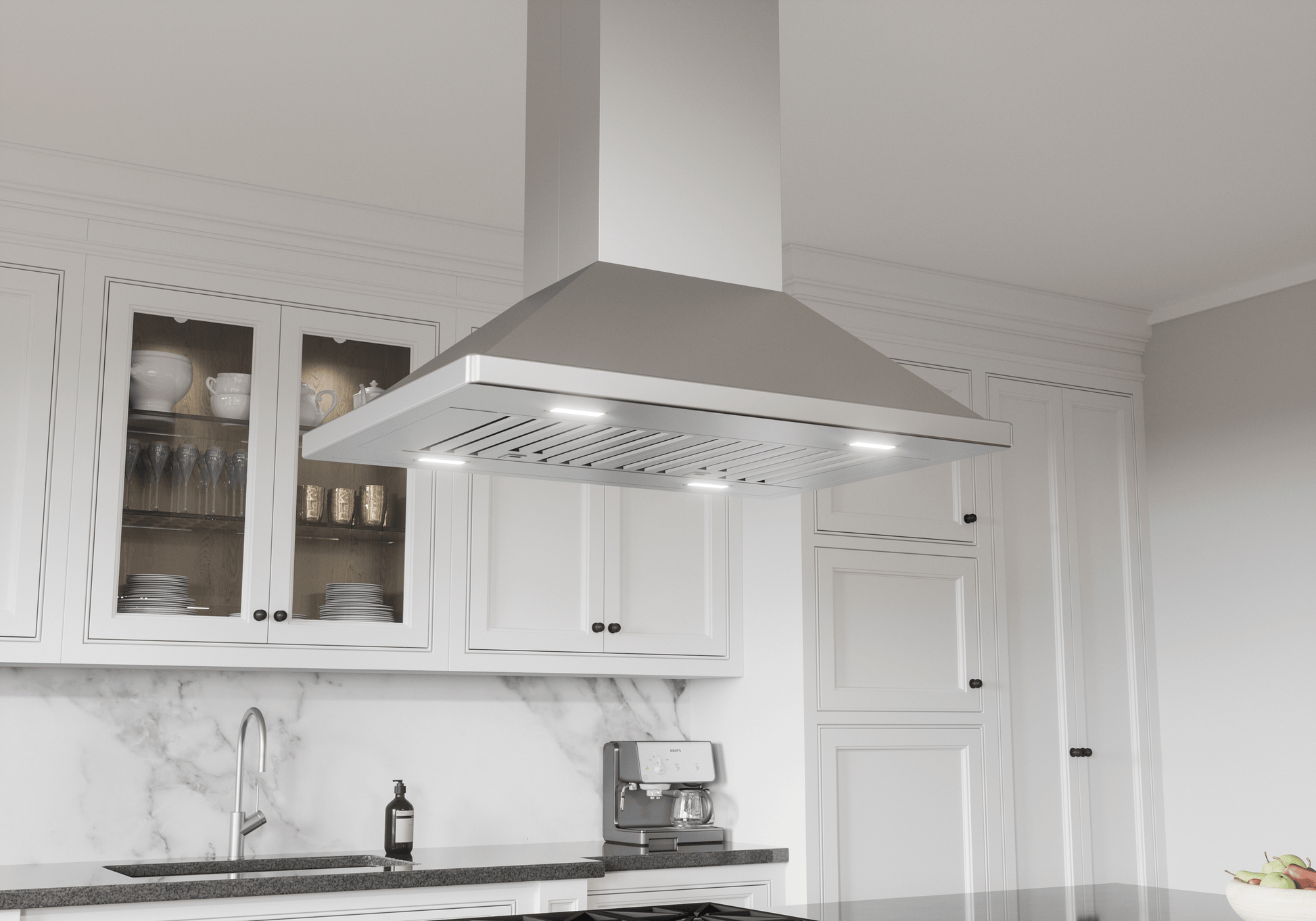

- LumiLight LED Lighting
- Airflow Control Technology™ (ACT™)
- Compatible with Zephyr Connect App
- CleanAir Function
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
- Optional Wireless Remote Control (14000005)
Napoli Connect Island, 90cm, SS, LED, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Convertible |
| UPC | 646328008467 |
| GTIN | 00646328008467 |
| Country of Origin | Taiwan |
| Model Group | ZNA-D |
| Model Name | Napoli Island |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 700 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Proximity Touch |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210041 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 14000005, ZRC-03NA, Z1C-02NA, MUA008A, Z0F-C005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.5 |
| Net Depth; IN | 25.56 |
| Net Height; IN | 32 - 50 |
| Weight; LBS | 70.000 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 21.5 |
| Chimney Width in. | 12.81 |
| Chimney Depth in. | 9.81 |
| Shipping Length; IN | 39.3 |
| Shipping Width; IN | 23.1 |
| Shipping Height; IN | 31.4 |
| Shipping Weight; LBS | 82.8 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
