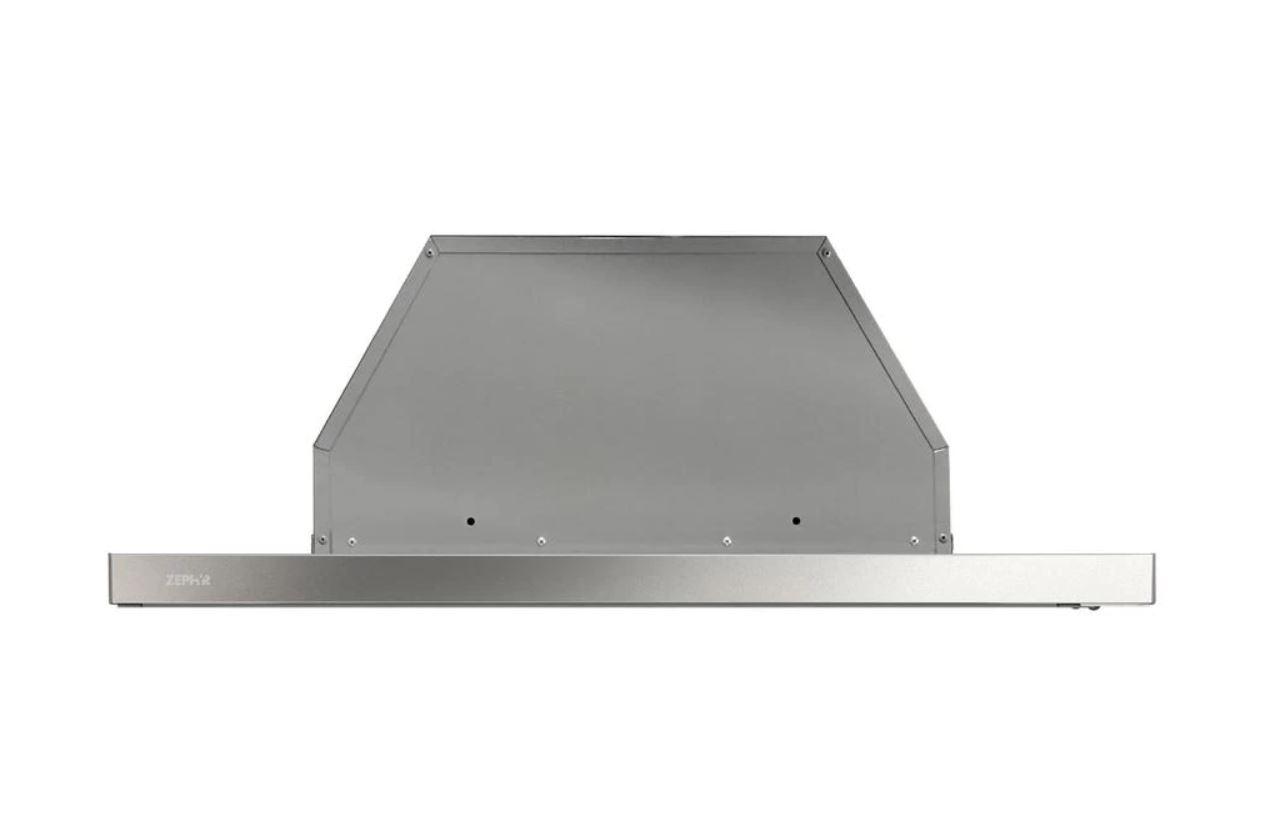

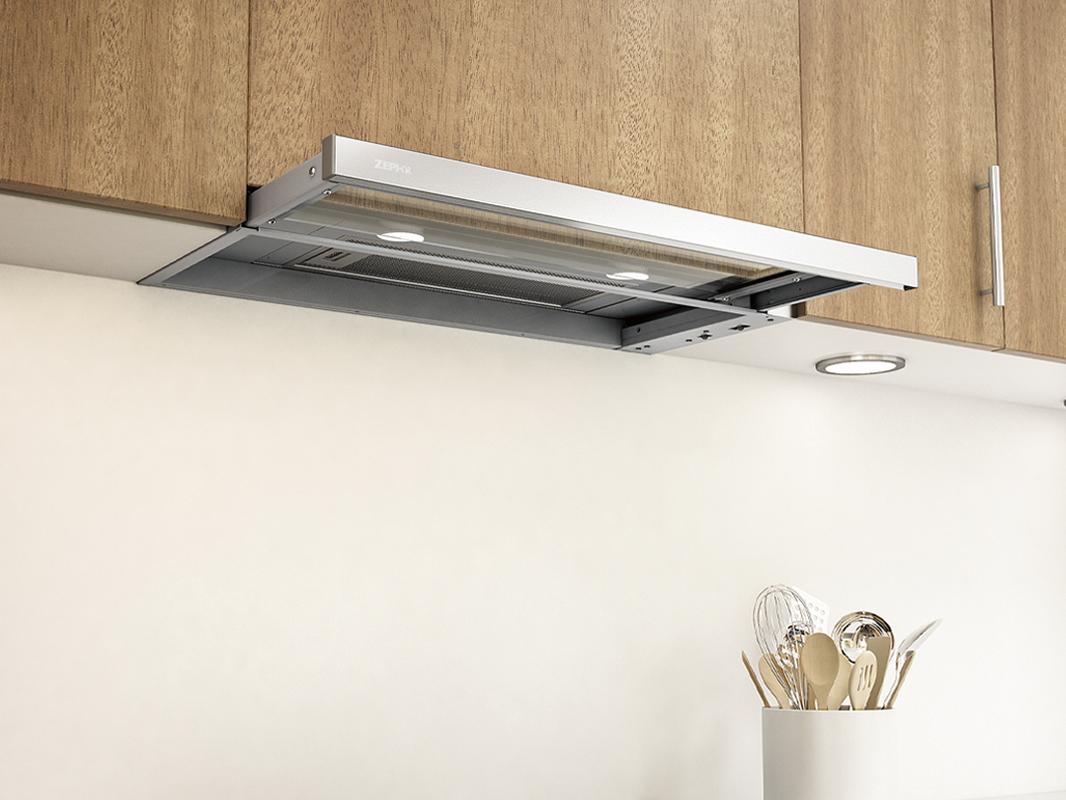

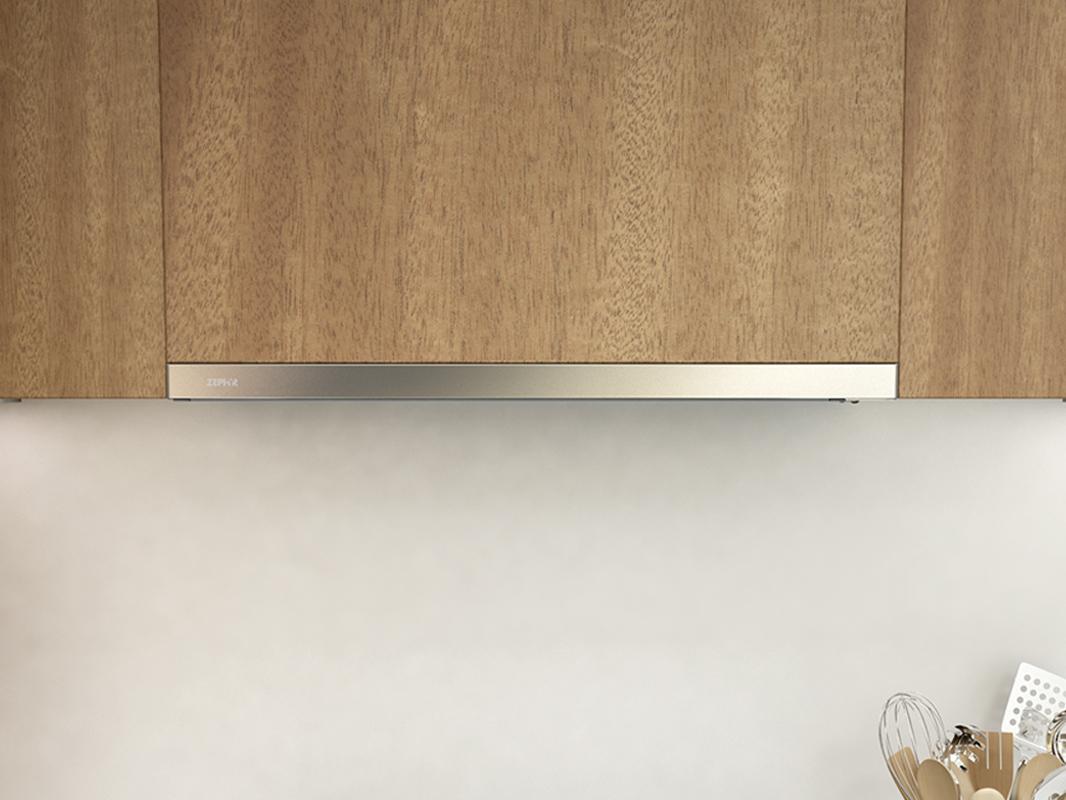

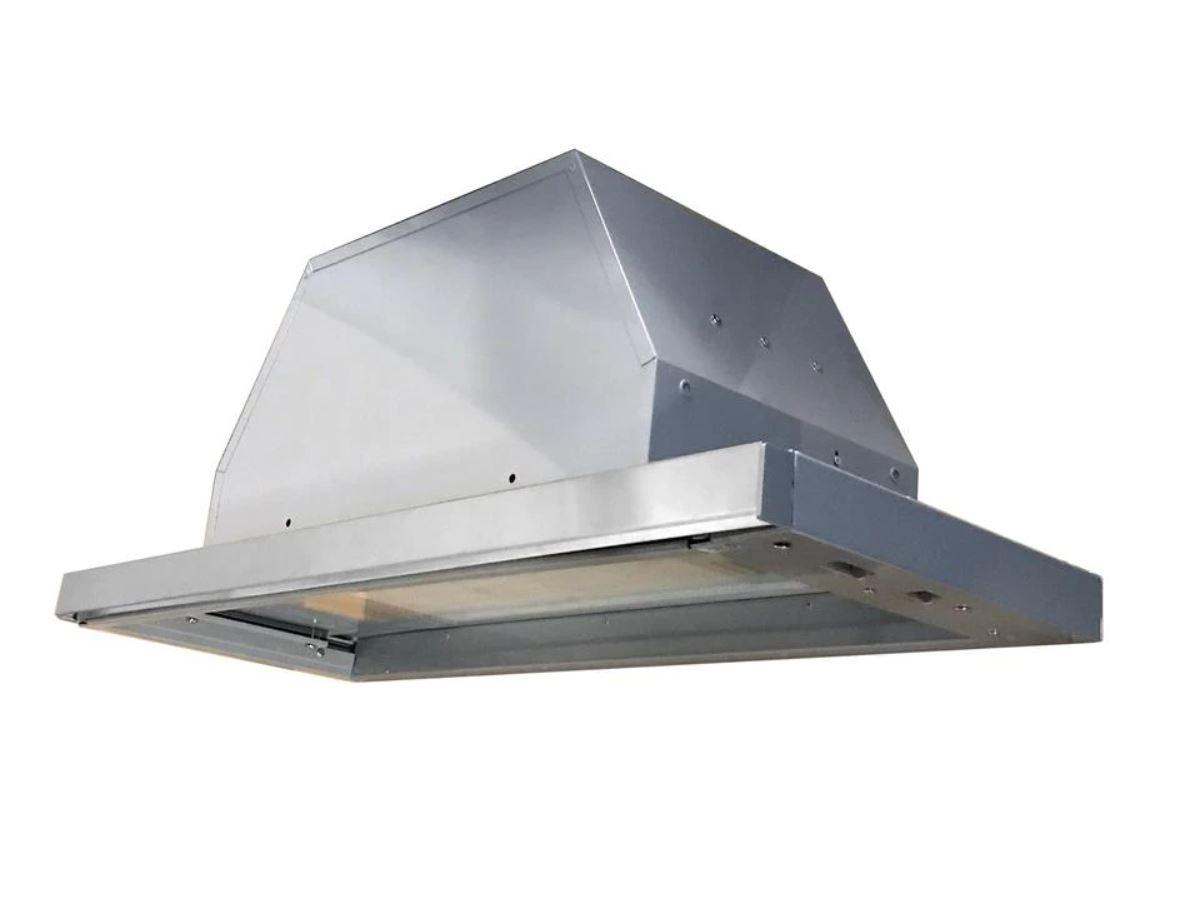

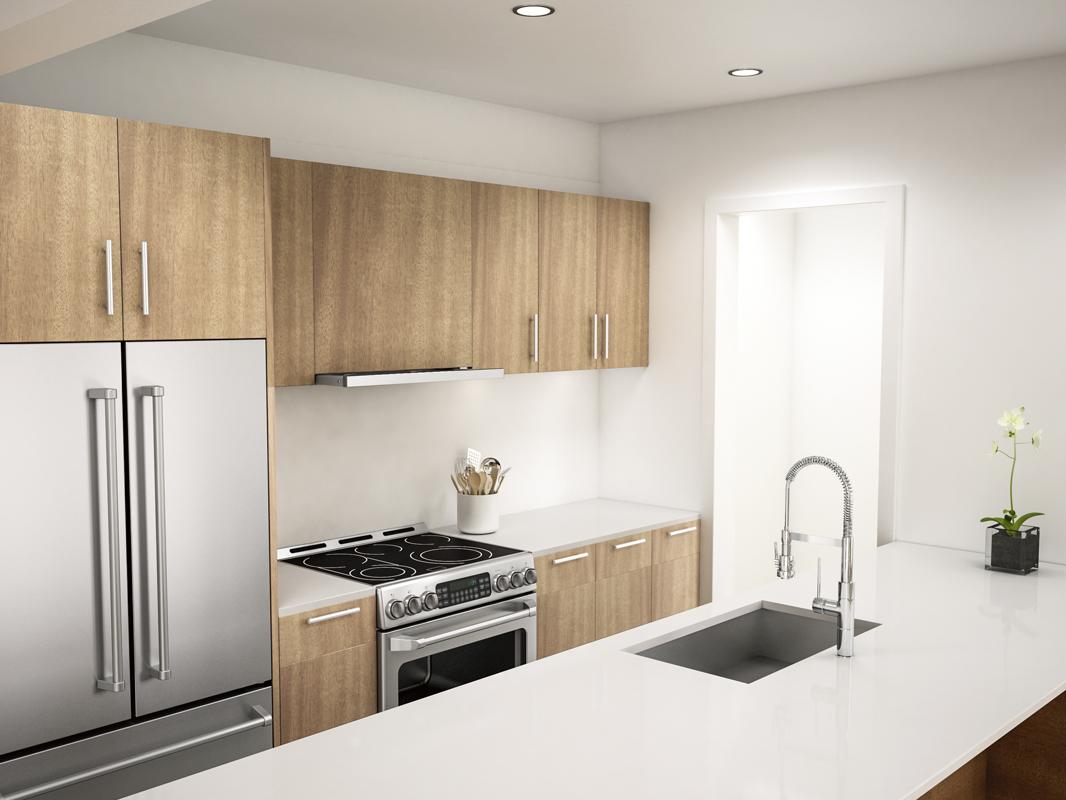

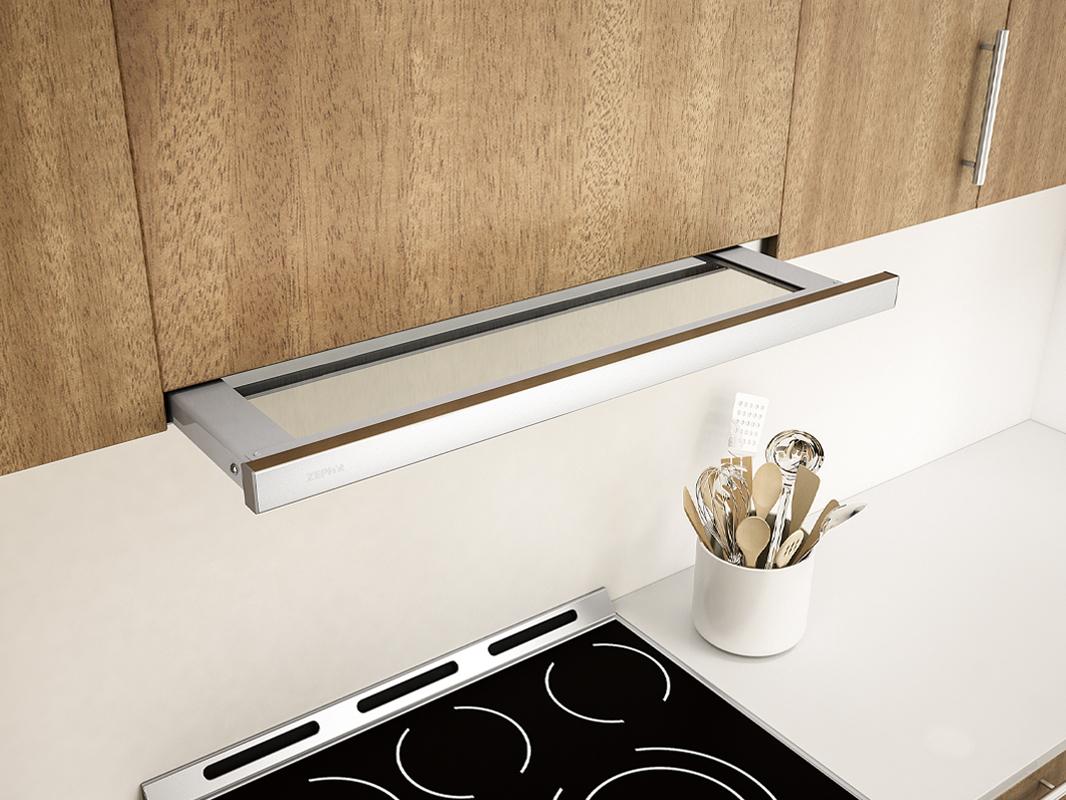

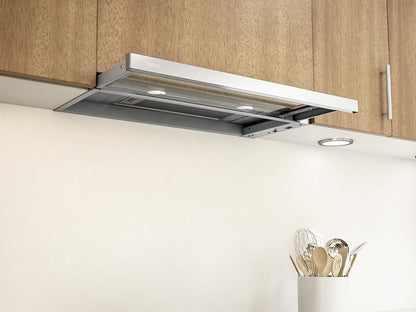

Zephyr ZPIE24AW290 Pisa, UC, 24", Wht+Glass, 290 CFM ZPIE24AW290
Zephyr ZPIE24AW290 Pisa, UC, 24", Wht+Glass, 290 CFM
- Low-profile body
- Optional Ductless Recirculating Kit
- Vertical or horizontal ducting
Pisa, UC, 24", Wht+Glass, 290 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328006463 |
| GTIN | 00646328006463 |
| Country of Origin | Taiwan |
| Model Group | ZPI-A |
| Model Name | Pisa |
| Collection | Core Collection |
| Replacement Model | ZPI-E24BW290 |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.3 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 180 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | White |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200054 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 1.55 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00PI, Z0B0040, Z0F-C0PI |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 186 |
| Certification | UL |
| Nominal Width; IN | 24 |
| Net Width; IN | 24.9375 |
| Net Depth; IN | 11.9375 - 18.75 |
| Net Height; IN | 1.5 |
| Weight; LBS | 26.2 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 15.55 |
| Shipping Width; IN | 28.2 |
| Shipping Height; IN | 16.34 |
| Shipping Weight; LBS | 33.4 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Duct Type | Vertical |
| Duct Type | Vertical |
