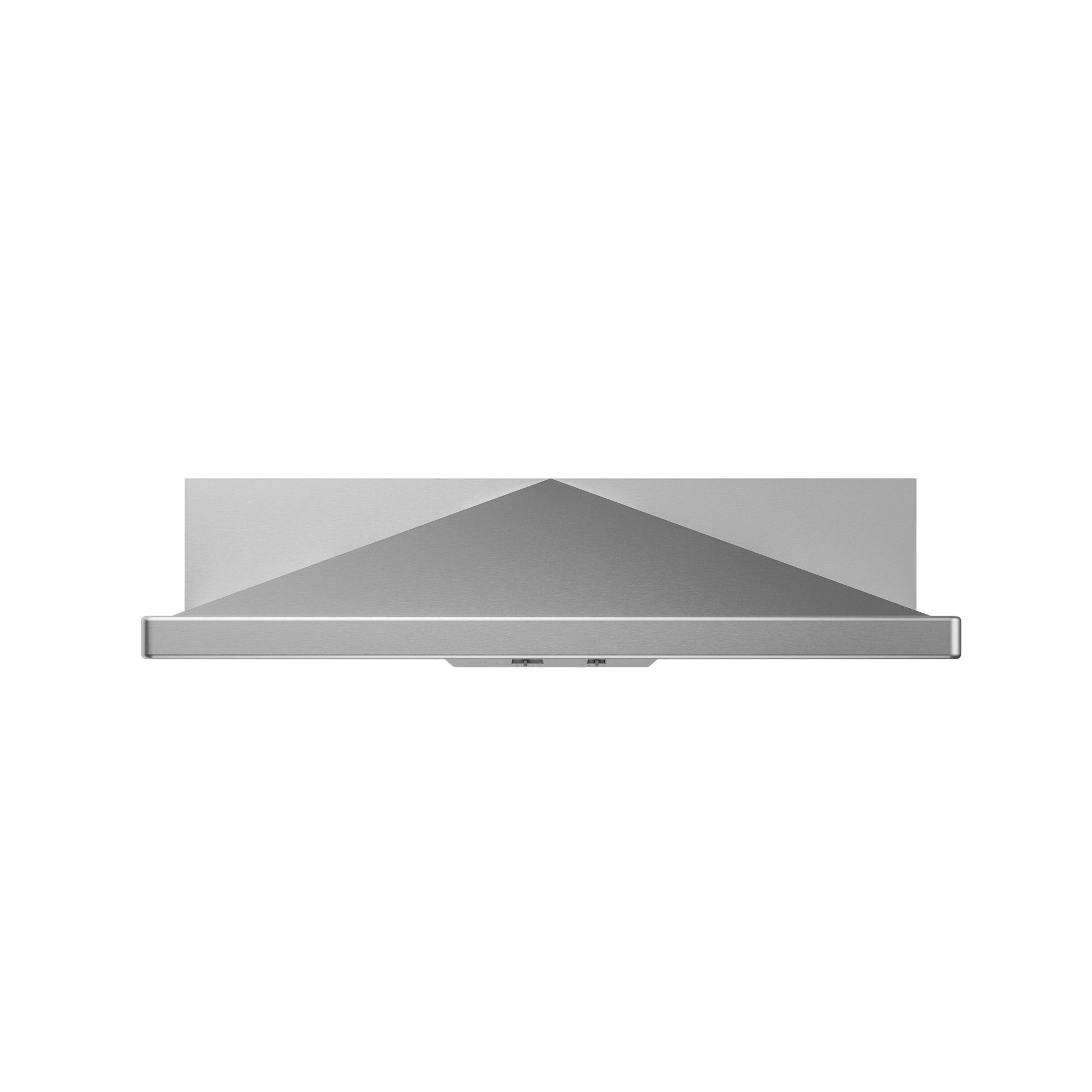

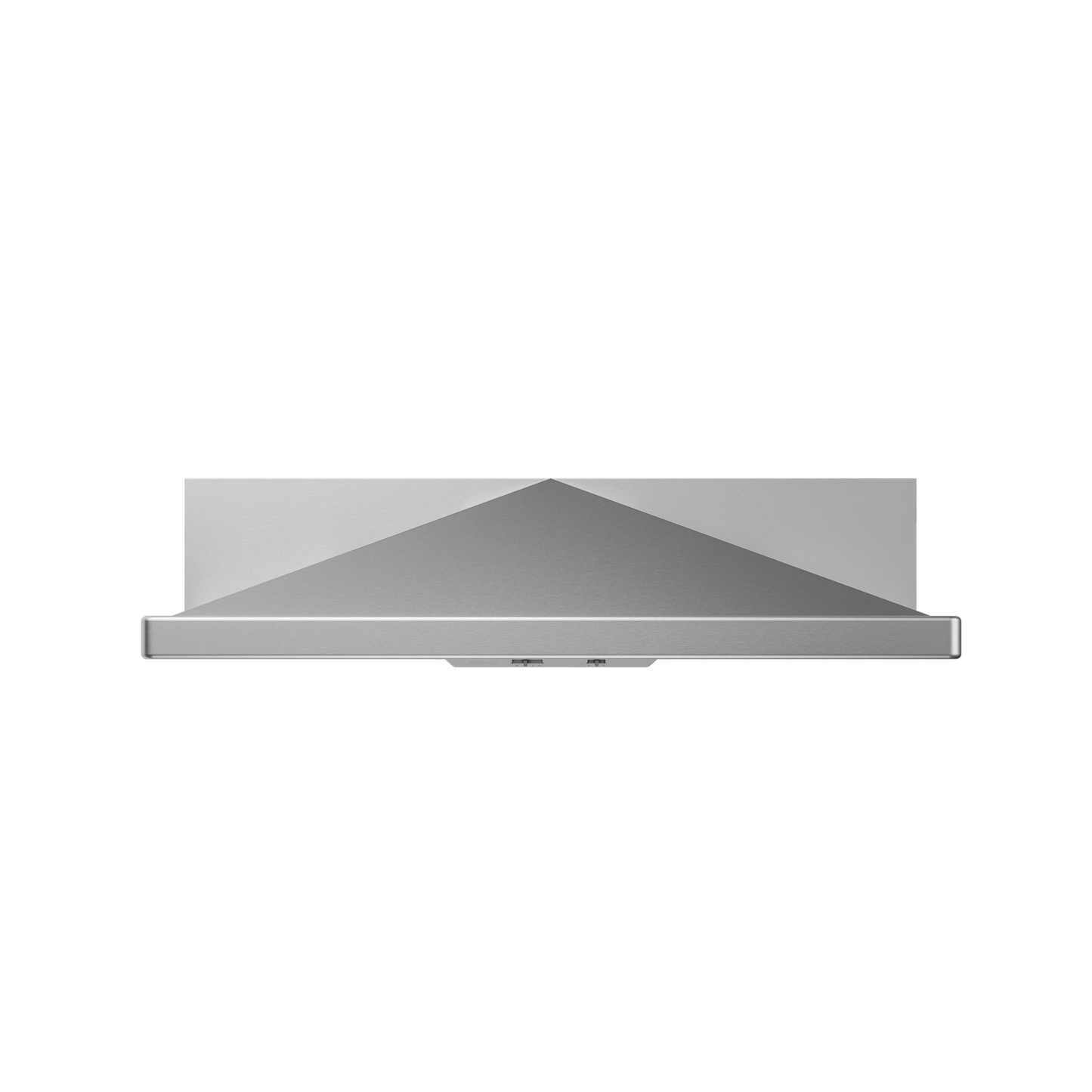

Zephyr ZPYE30AS290 Pyramid, UC, 30", SS, 290 ZPYE30AS290
Zephyr ZPYE30AS290 Pyramid, UC, 30", SS, 290
- Mechanical Slide Controls
- Adjustable Utensil Bar
- Vertical or horizontal ducting

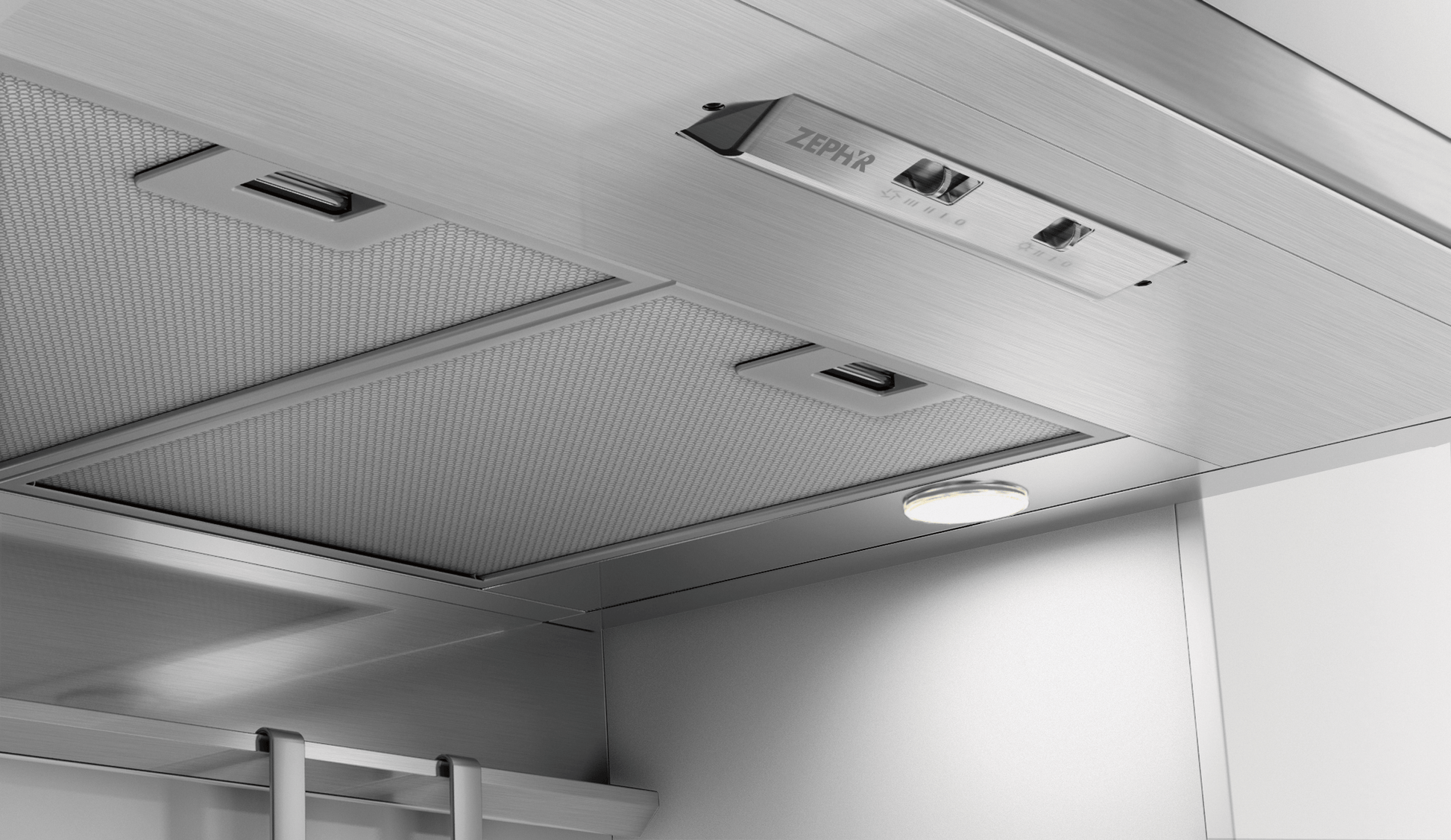

- Dishwasher Safe Aluminum Mesh Filter
- Dual Level Halogen Lighting
- 3 Year Parts, 1 Year Labor Warranty
- Optional Ductless Recirculating Kit
Pyramid, UC, 30", SS, 290
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328000683 |
| GTIN | 00646328000683 |
| Country of Origin | Taiwan |
| Model Group | ZPY-A |
| Model Name | Pyramid Under-Cabinet |
| Collection | Core Collection |
| Replacement Model | ZPY-E30BS290 |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.1 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 210 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200030 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-0200, MUA006A, Z0B0040, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9375 |
| Net Depth; IN | 21 |
| Net Height; IN | 7.375 |
| Weight; LBS | 27.8 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 12.6 |
| Shipping Width; IN | 34.13 |
| Shipping Height; IN | 26.14 |
| Shipping Weight; LBS | 35.5 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
