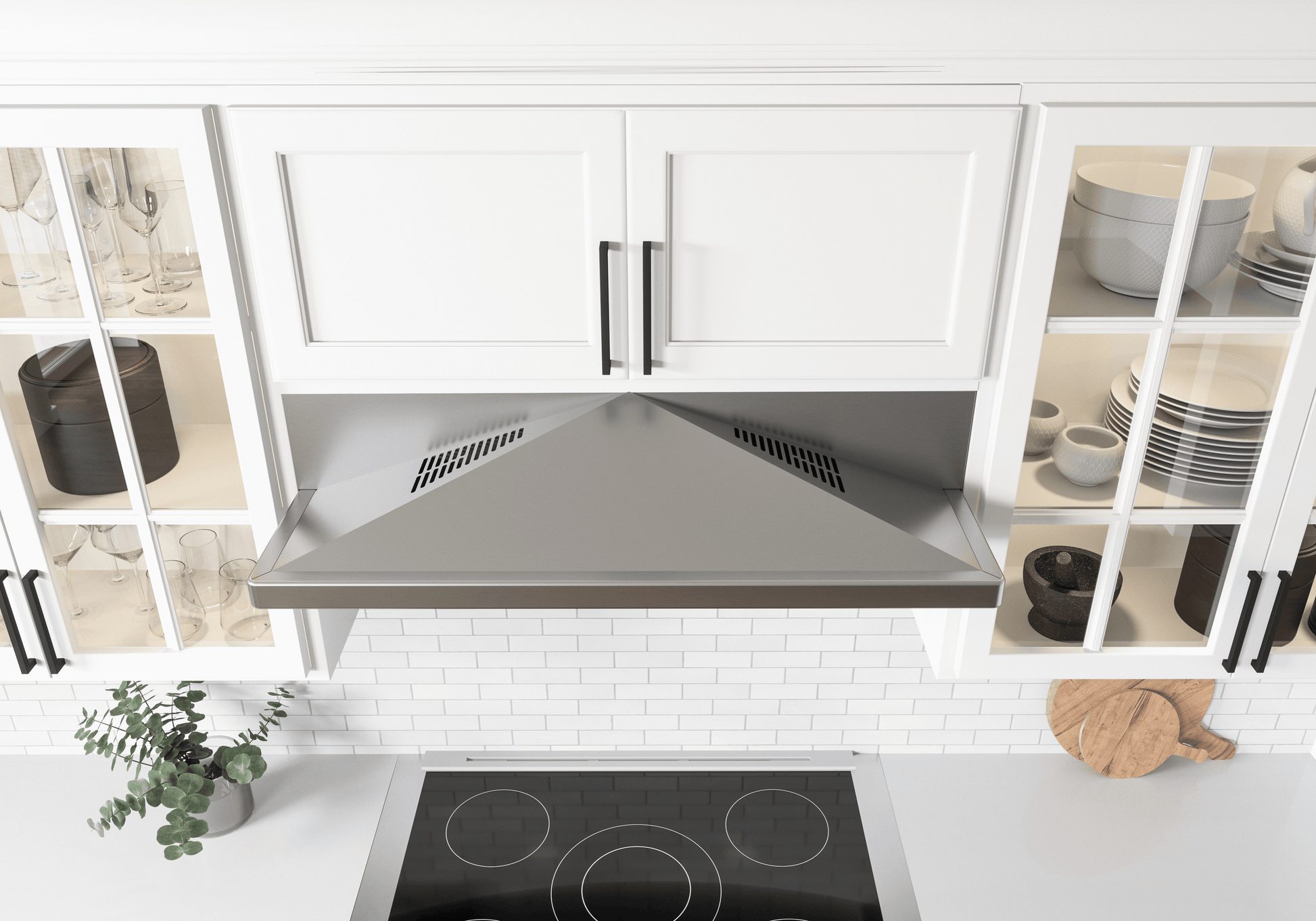

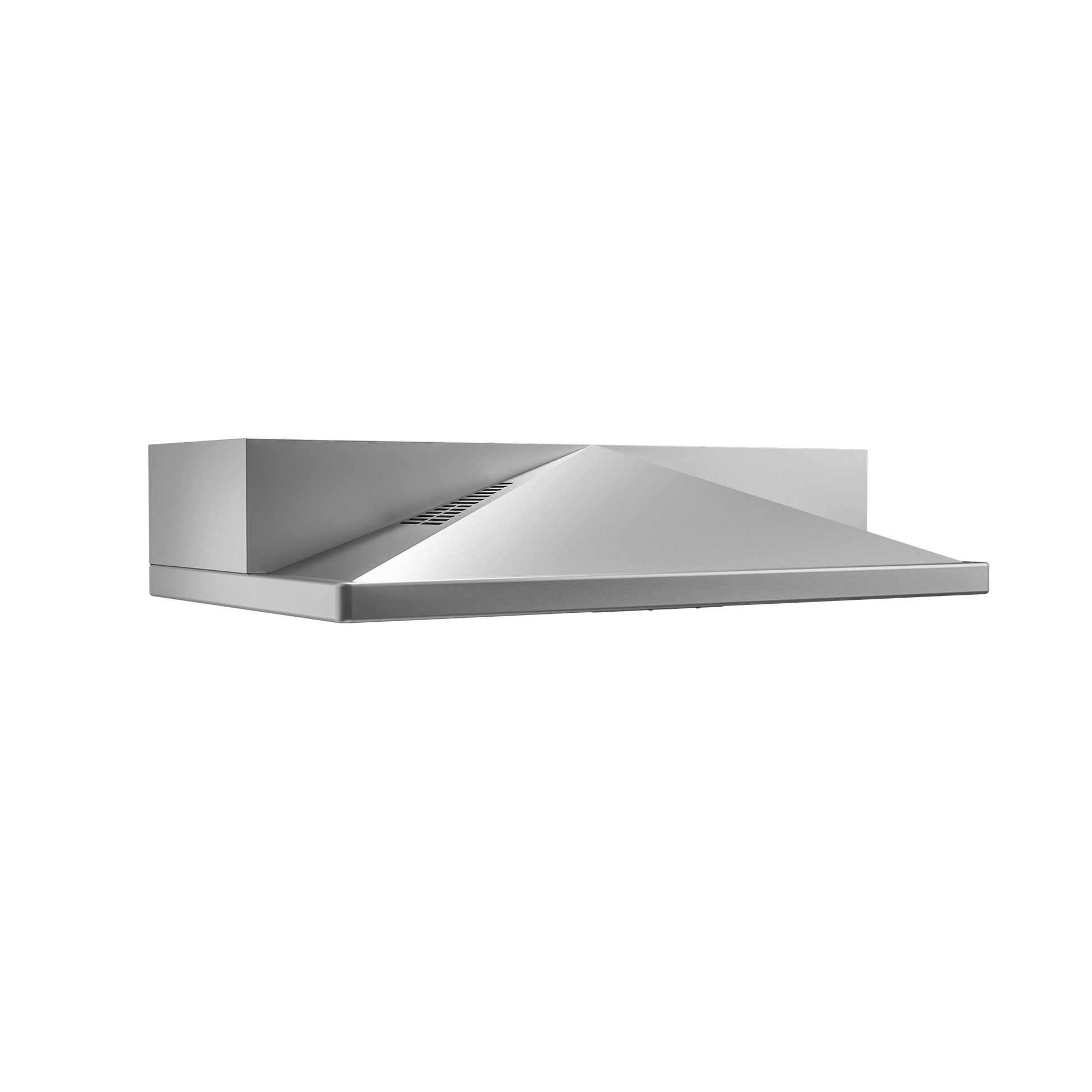

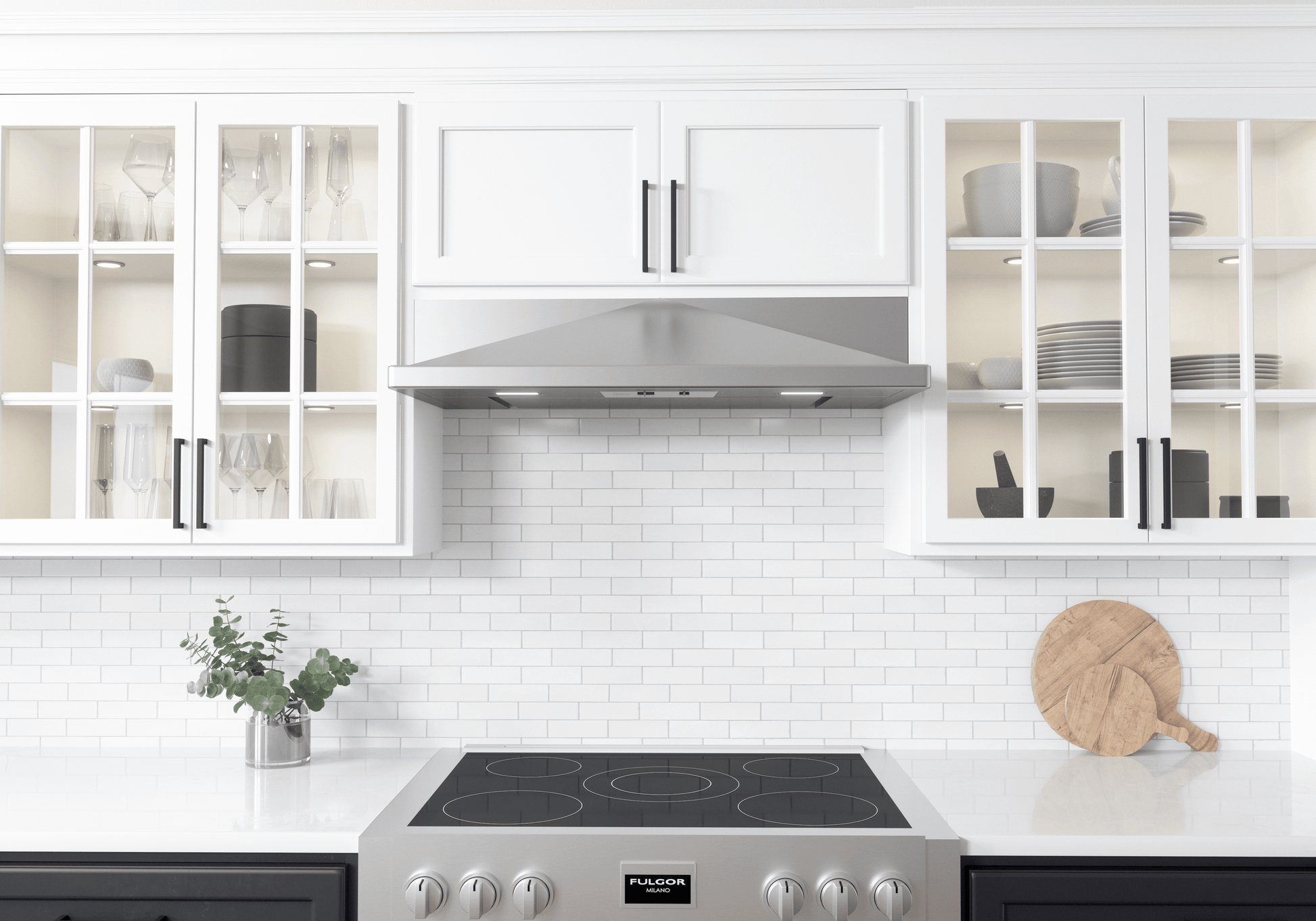

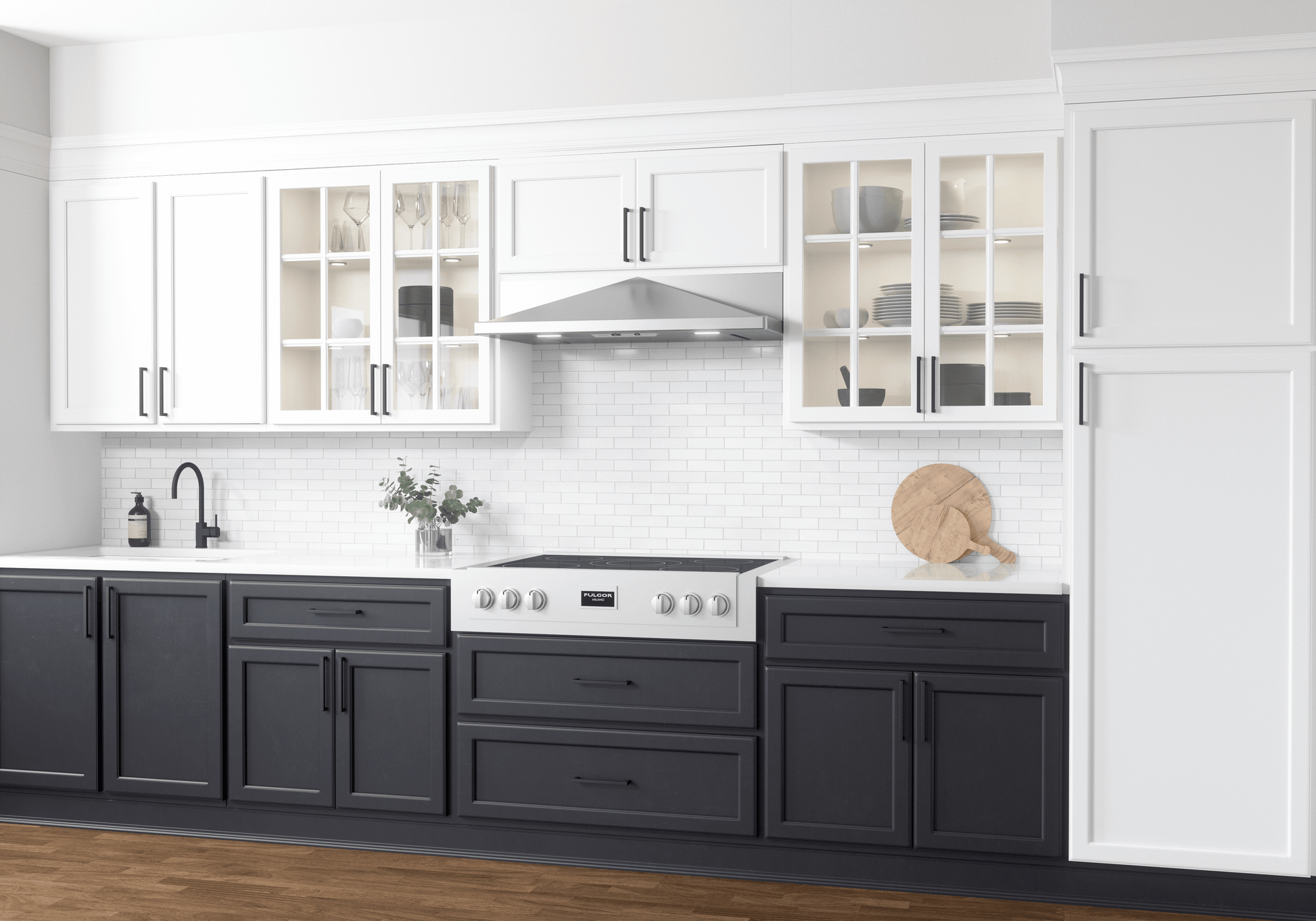

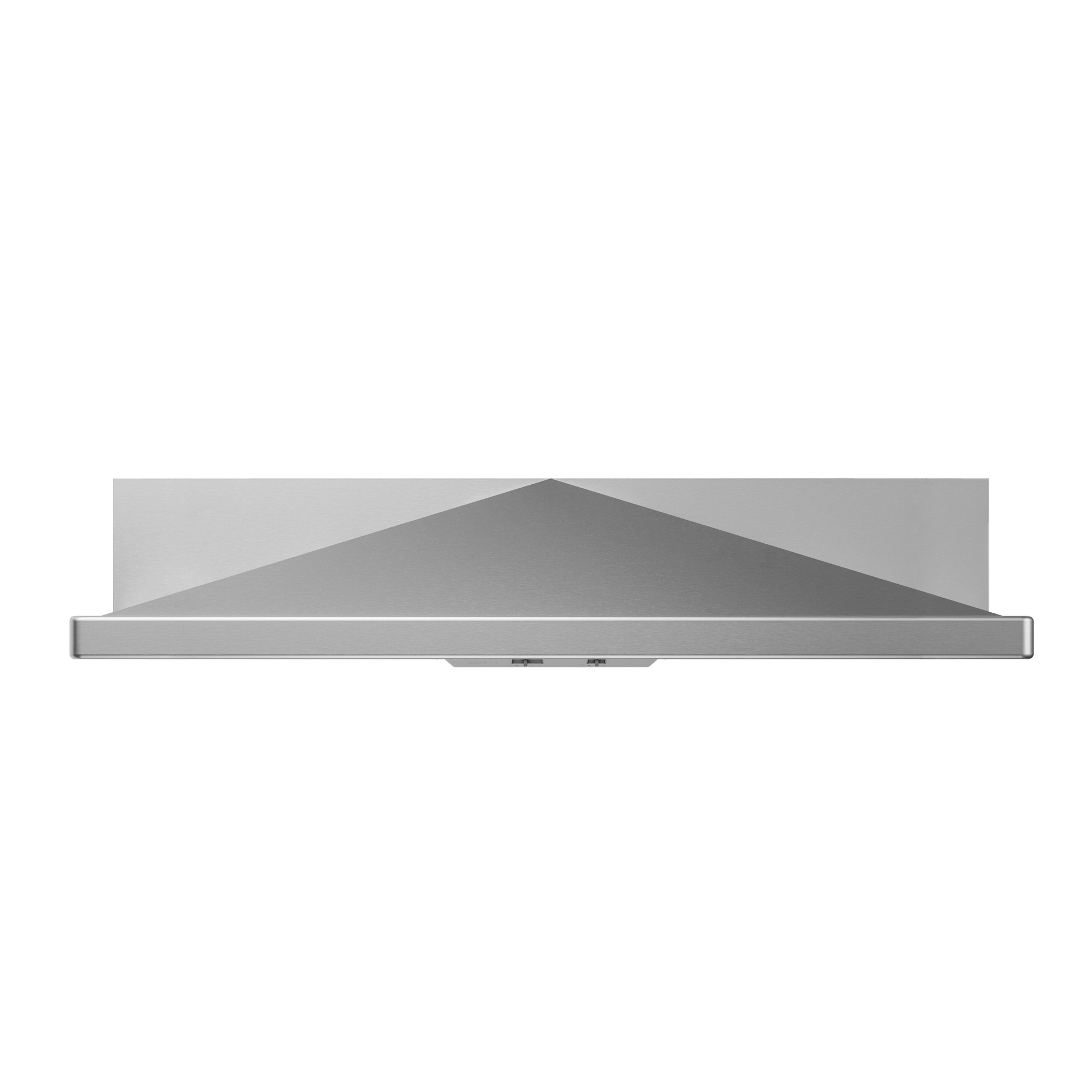

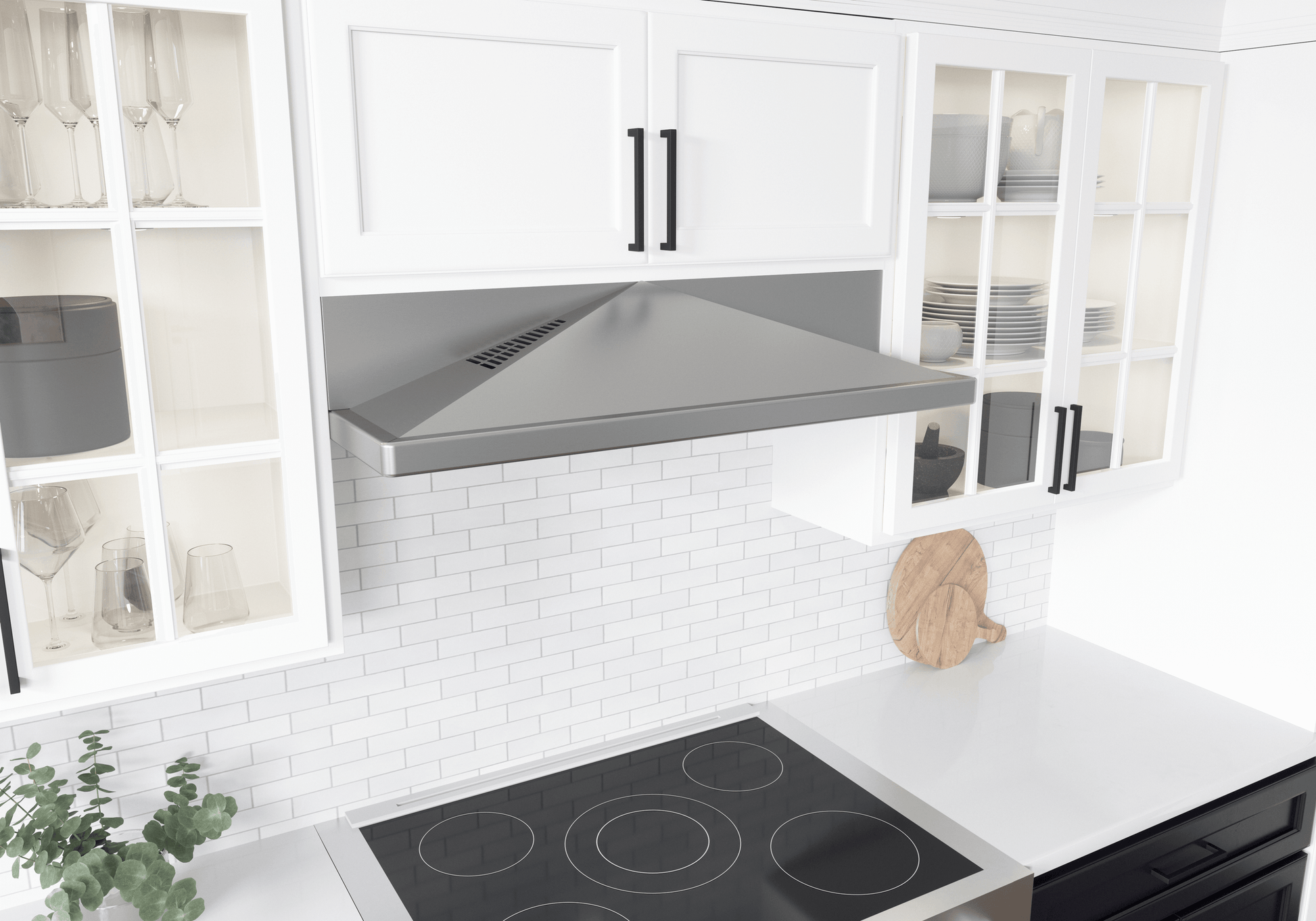

Zephyr ZPYE36BS Pyramid, 36in, SS, LED, PAS ZPYE36BS
Zephyr ZPYE36BS Pyramid, 36in, SS, LED, PAS

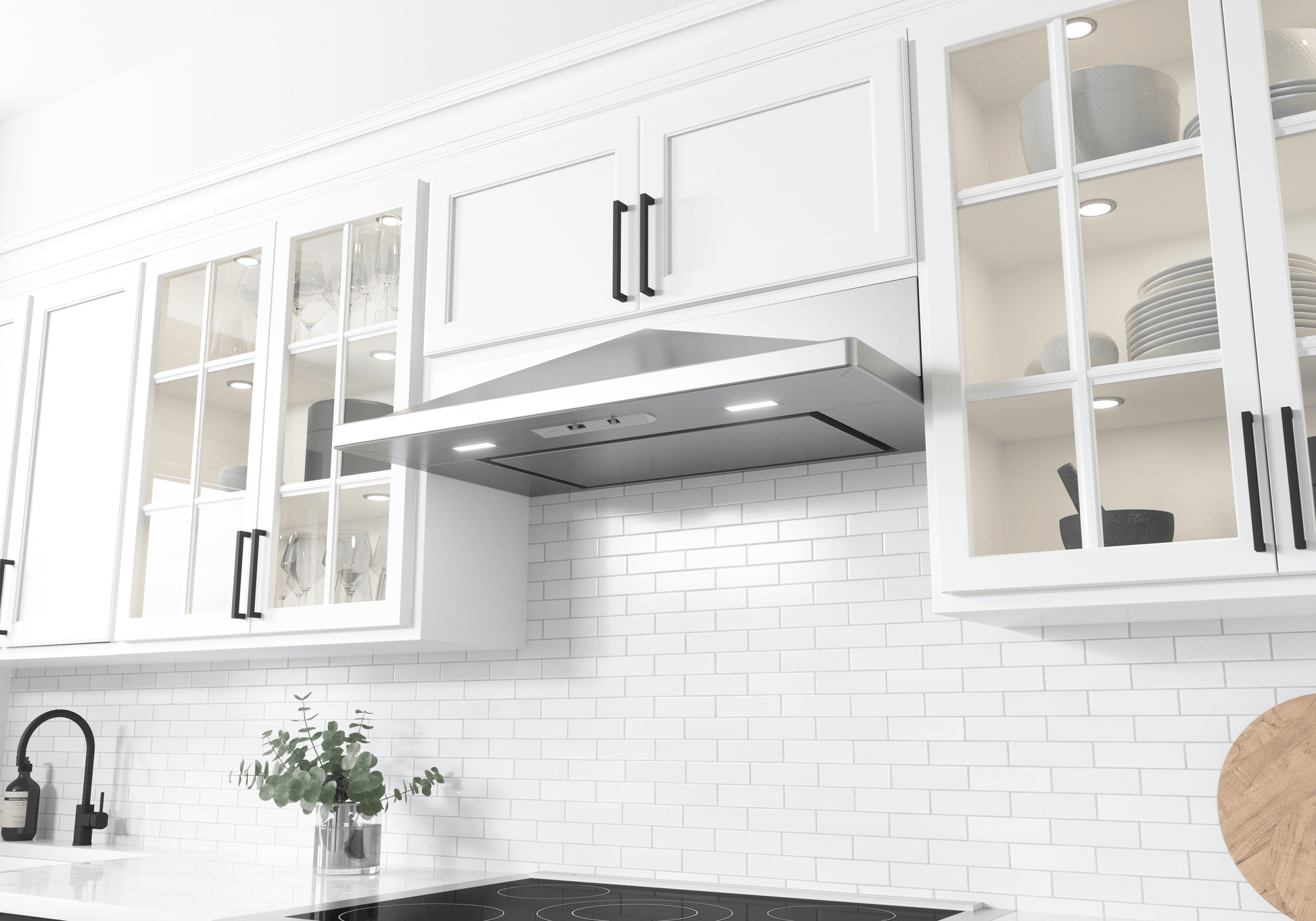

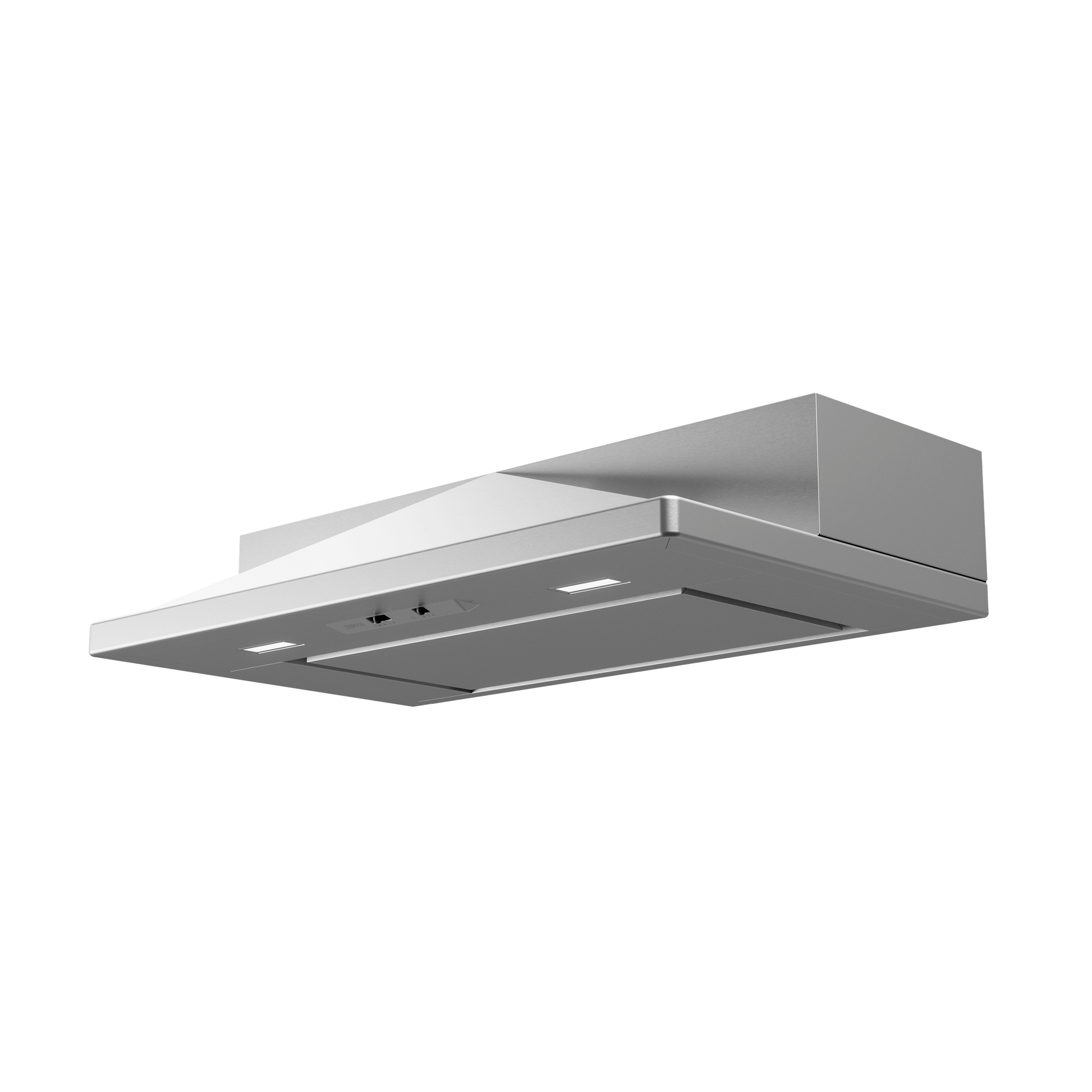

- LumiLight LED Lighting
- Mechanical Slide Controls
- Vertical or horizontal ducting
- Dual-Level Lighting
- Dishwasher Safe Aluminum Mesh Filters

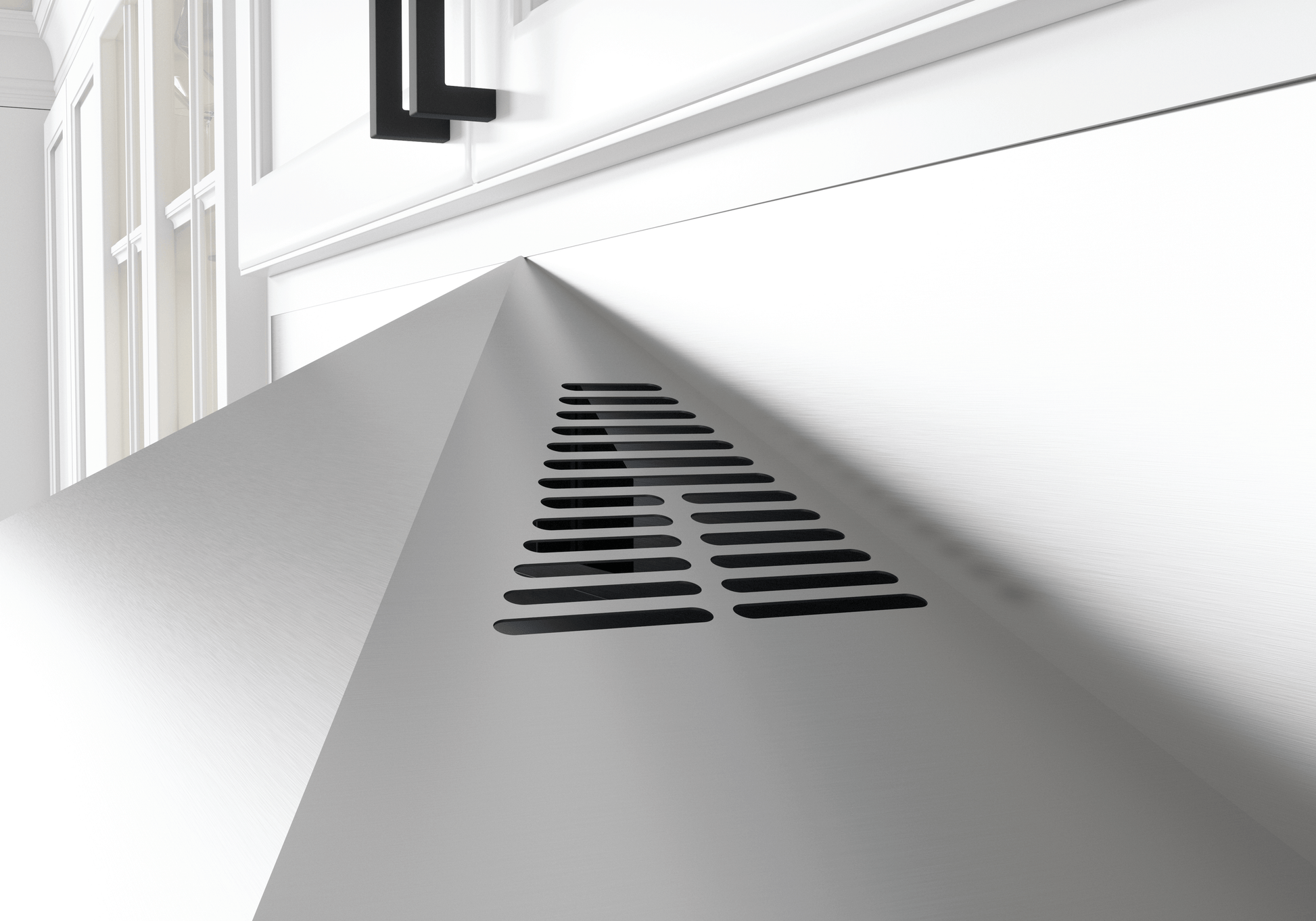

- Perimeter Aspiration System
- Optional Ductless Recirculating Kit
Pyramid, 36in, SS, LED, PAS
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328009969 |
| GTIN | 00646328009969 |
| Country of Origin | Taiwan |
| Model Group | ZPY-B |
| Model Name | Pyramid Under-Cabinet |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 400 |
| Internal Blower 1 Min. Sones | 2 |
| Internal Blower 1 Max Sones | 5 |
| Minimum CFM | 210 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200068 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00PY, Z0F-C009, AK1716 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.9375 |
| Net Depth; IN | 21 |
| Net Height; IN | 7.375 |
| Weight; LBS | 35.8 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 39.7 |
| Shipping Width; IN | 12.2 |
| Shipping Height; IN | 25.5 |
| Shipping Weight; LBS | 39.8 |
| Shipping Method | Small Parcel |
| Freight Class | 175 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
