ZEPHYR ZRVM90BGG
Authorized Reseller

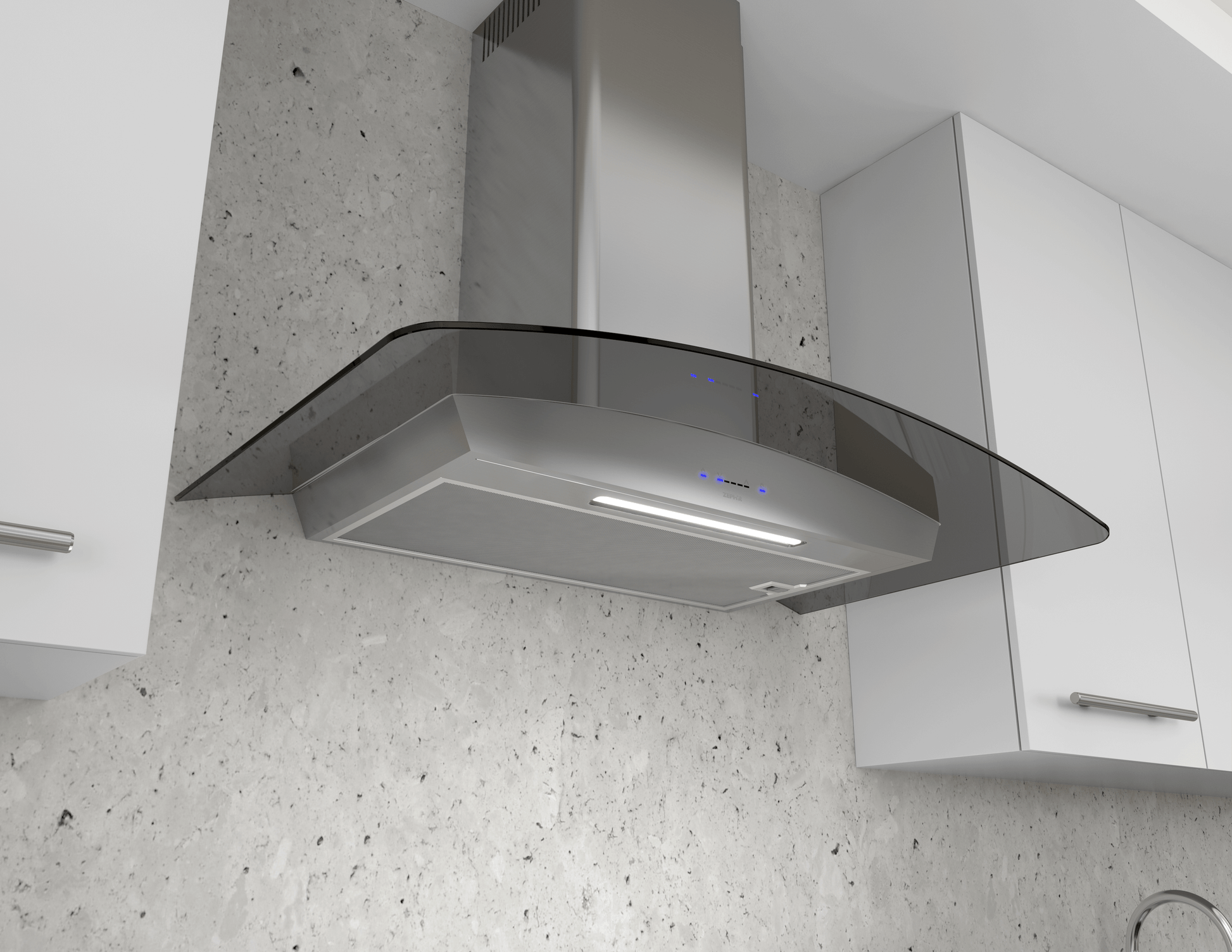

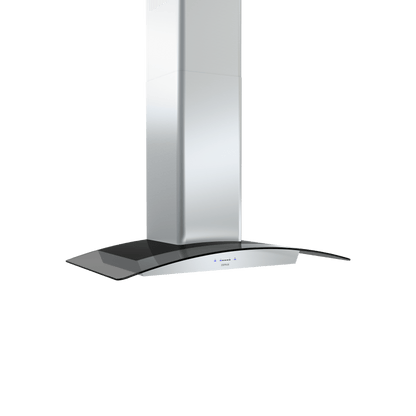

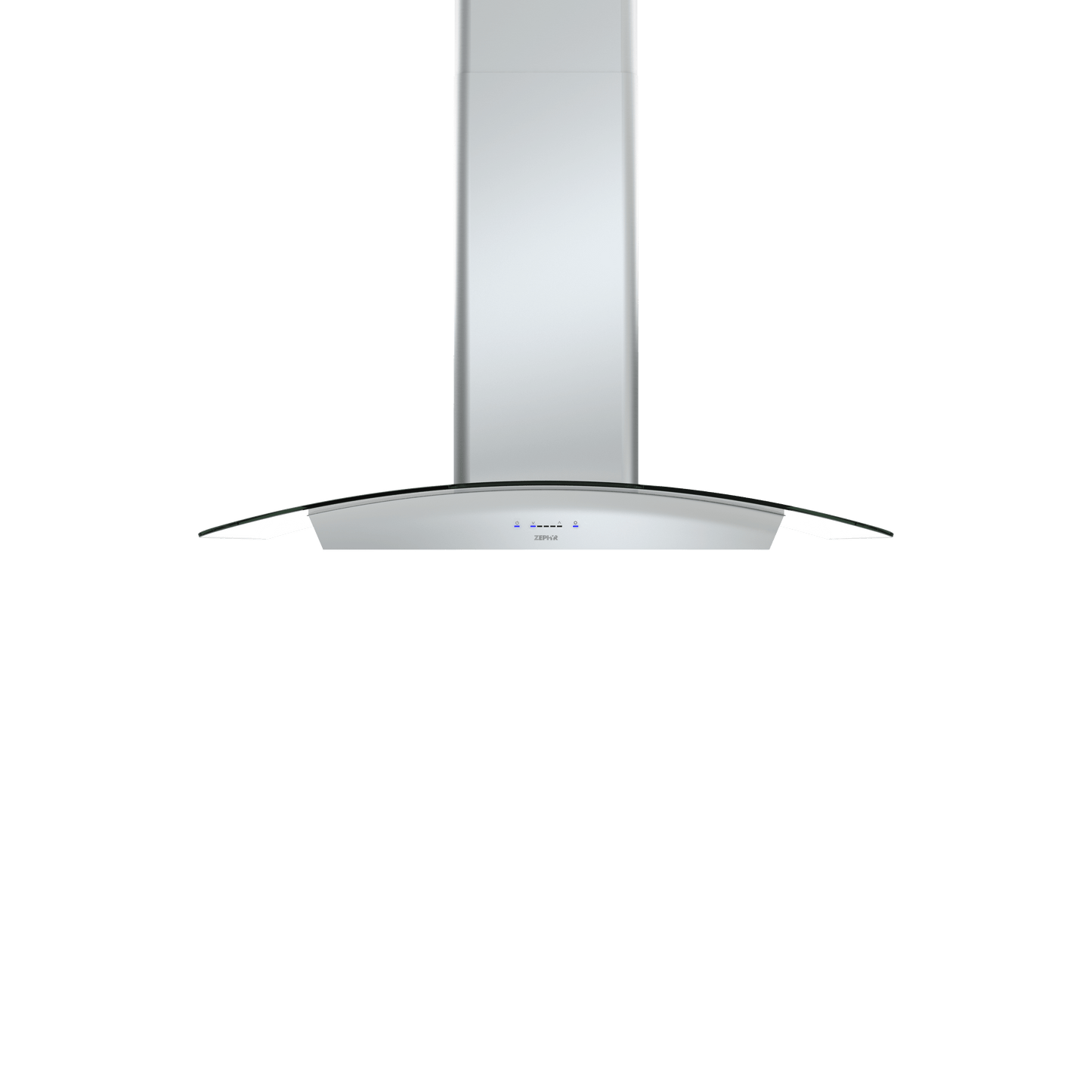

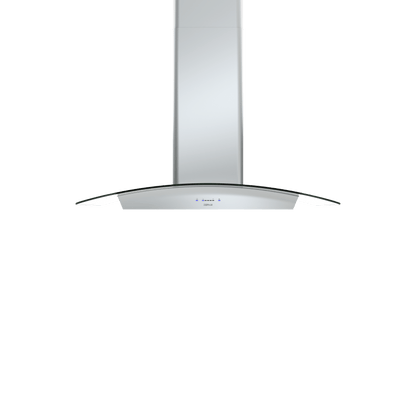

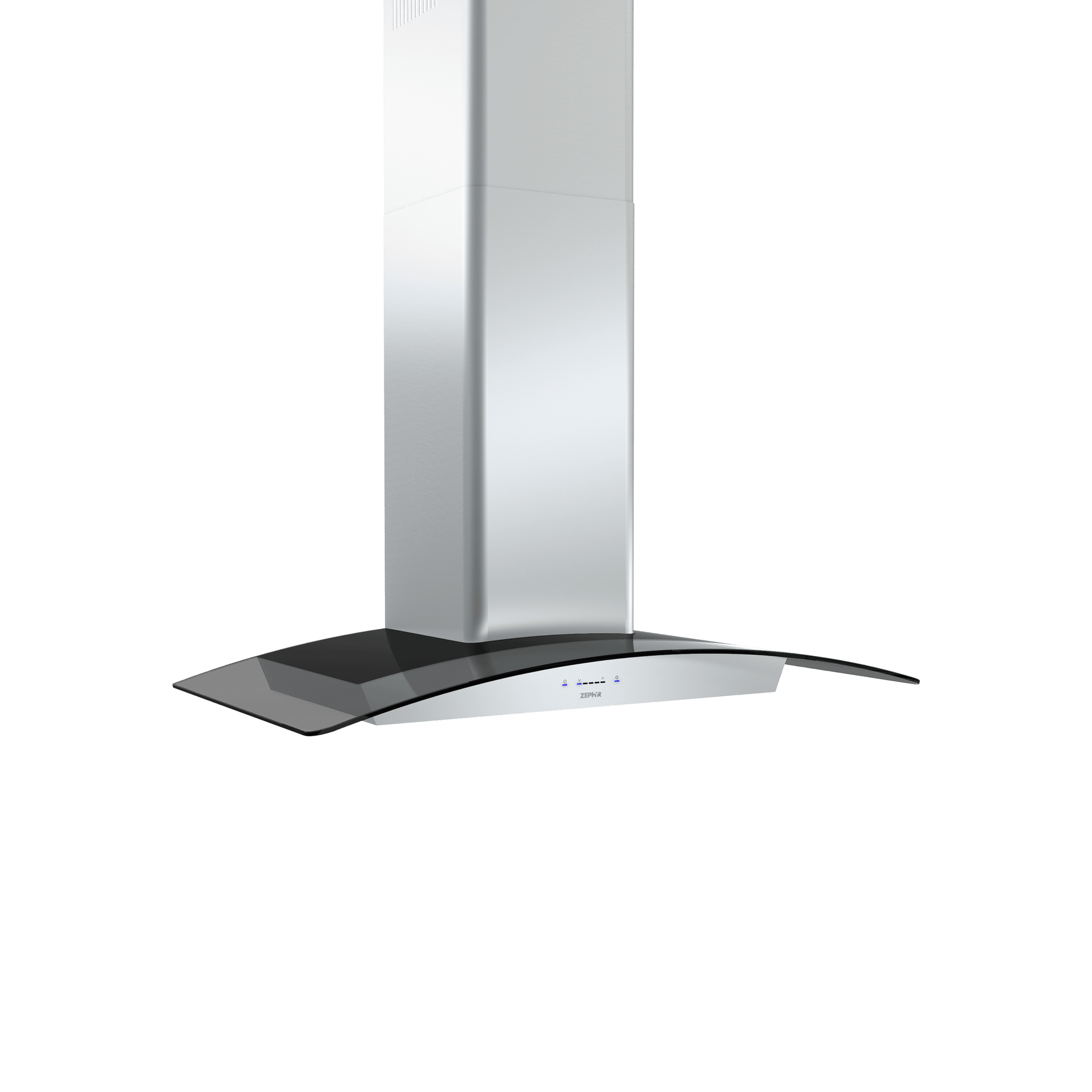

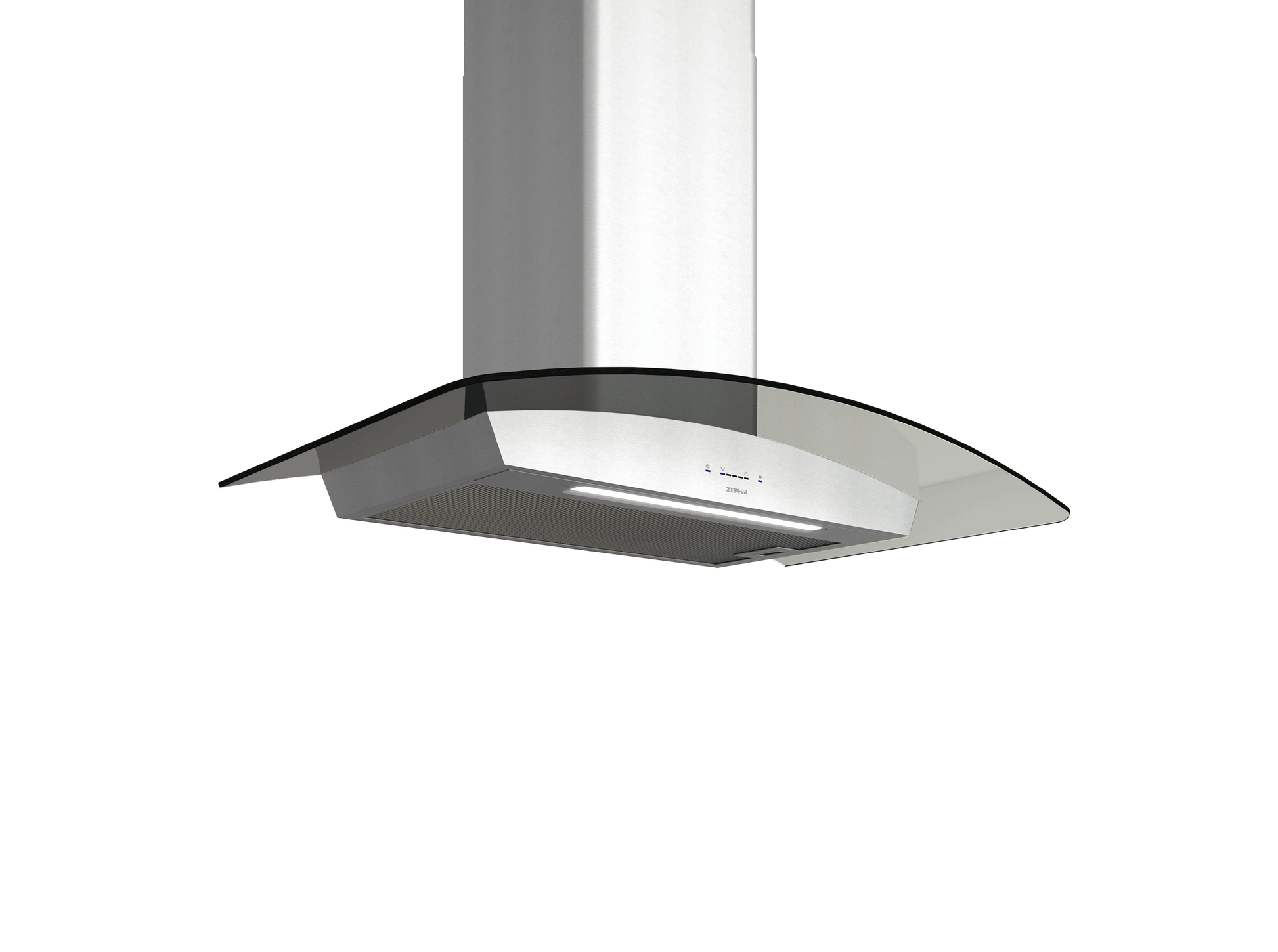

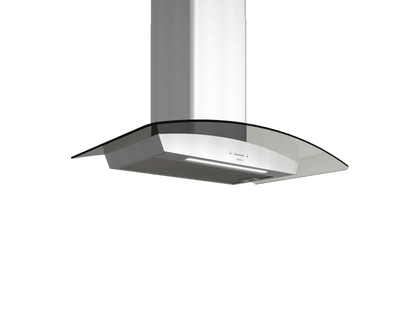

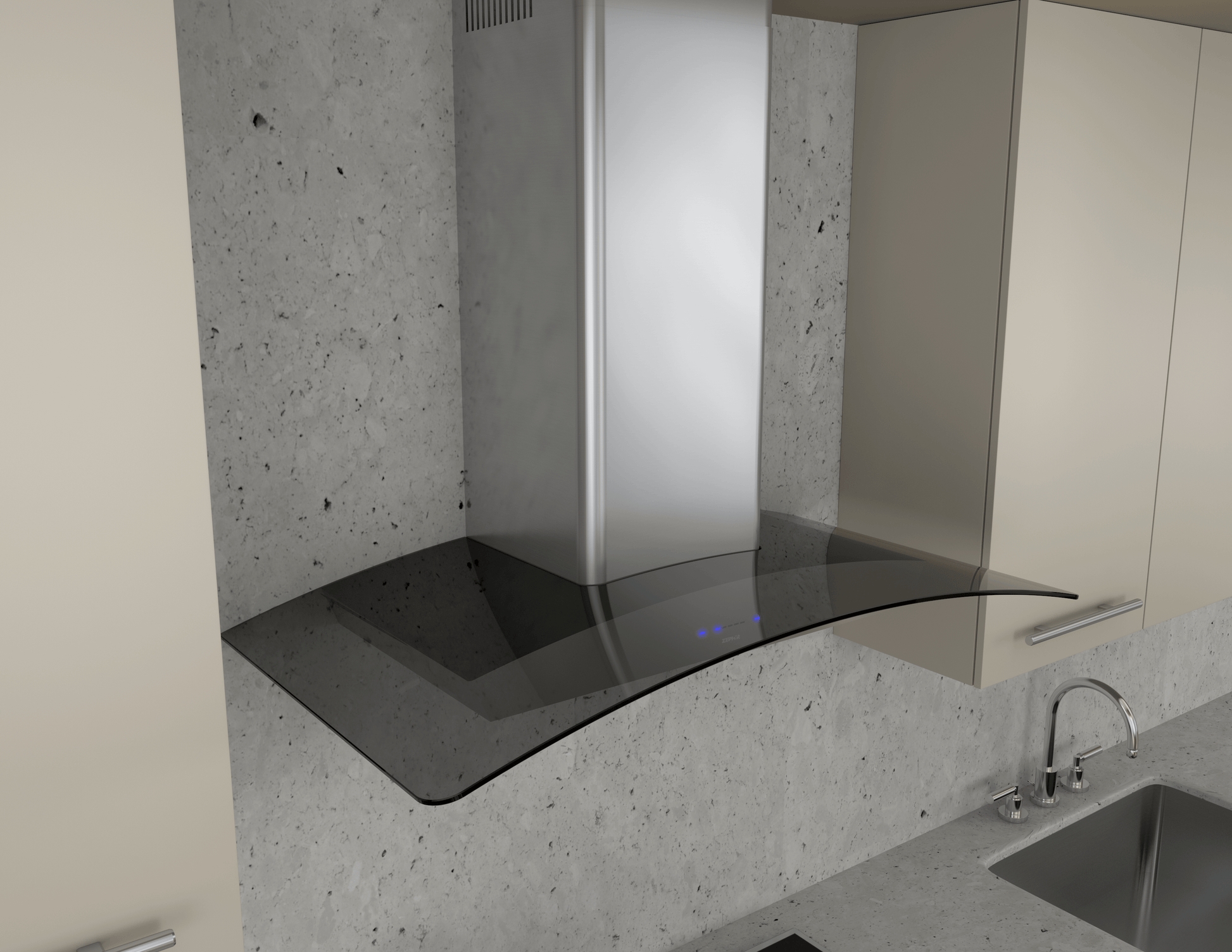

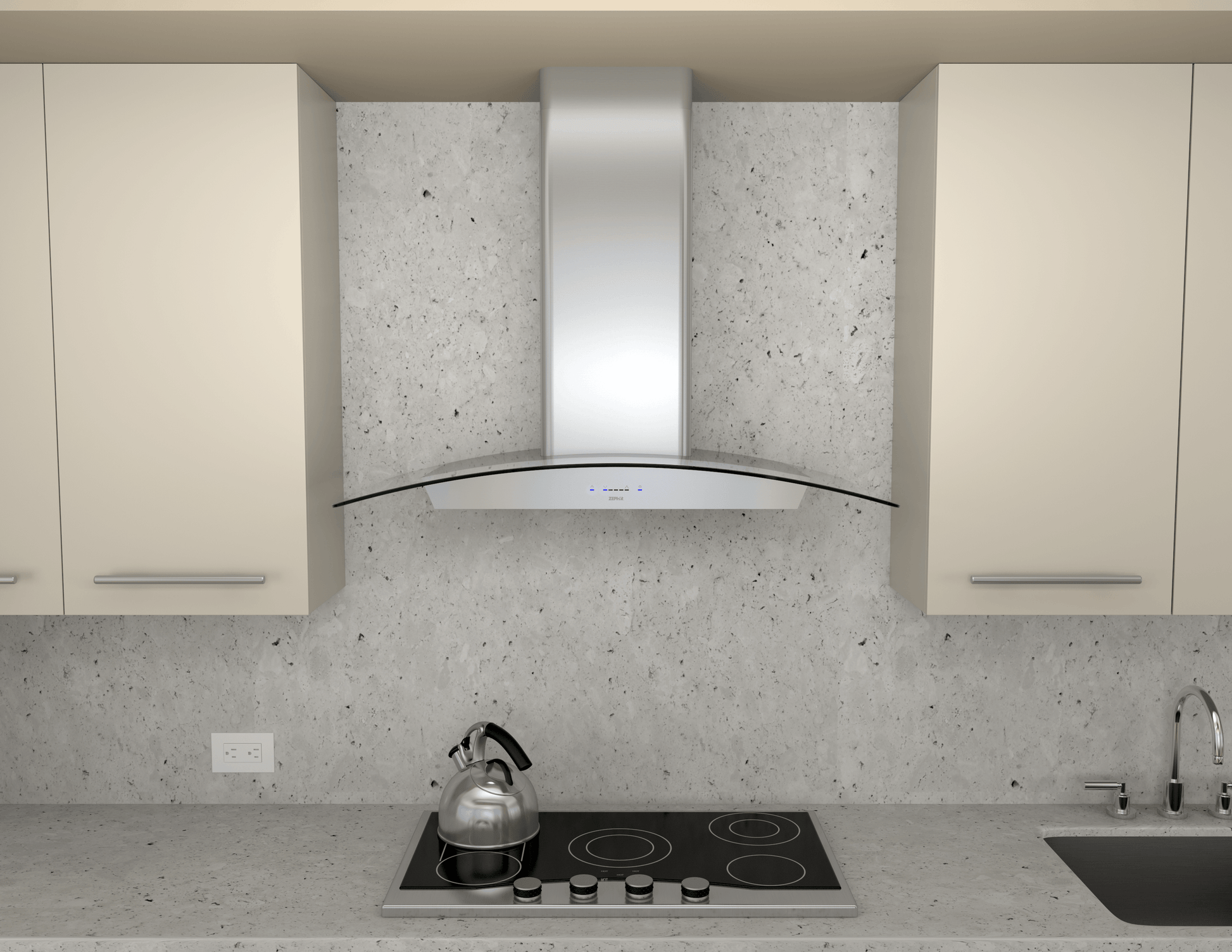

Zephyr ZRVM90BGG Ravenna, Wall, 90cm, SS+Gray Glass, ACT, LED
Zephyr ZRVM90BGG Ravenna, Wall, 90cm, SS+Gray Glass, ACT, LED
Regular price
$1,011.40
Regular price
Sale price
$1,011.40
Unit price
per
Couldn't load pickup availability
When Will I Get My Order?
- Airflow Control Technology™ (ACT™)
- ICON Touch® Controls
- BriteStrip™ LED Lighting
- Dual-Level Lighting
- Curved Glass Canopy
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Ravenna, Wall, 90cm, SS+Gray Glass, ACT, LED
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328005602 |
| GTIN | 00646328005602 |
| Country of Origin | Taiwan |
| Model Group | ZRV-B |
| Model Name | Ravenna Wall |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 9 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200044 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00RV, Z1C-00RV, MUA006A, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.1875 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 23 - 42.5 |
| Weight; LBS | 43.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 19 |
| Chimney Width in. | 10.37 |
| Chimney Depth in. | 10.56 |
| Shipping Length; IN | 38.58 |
| Shipping Width; IN | 21.65 |
| Shipping Height; IN | 25 |
| Shipping Weight; LBS | 60.1 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
