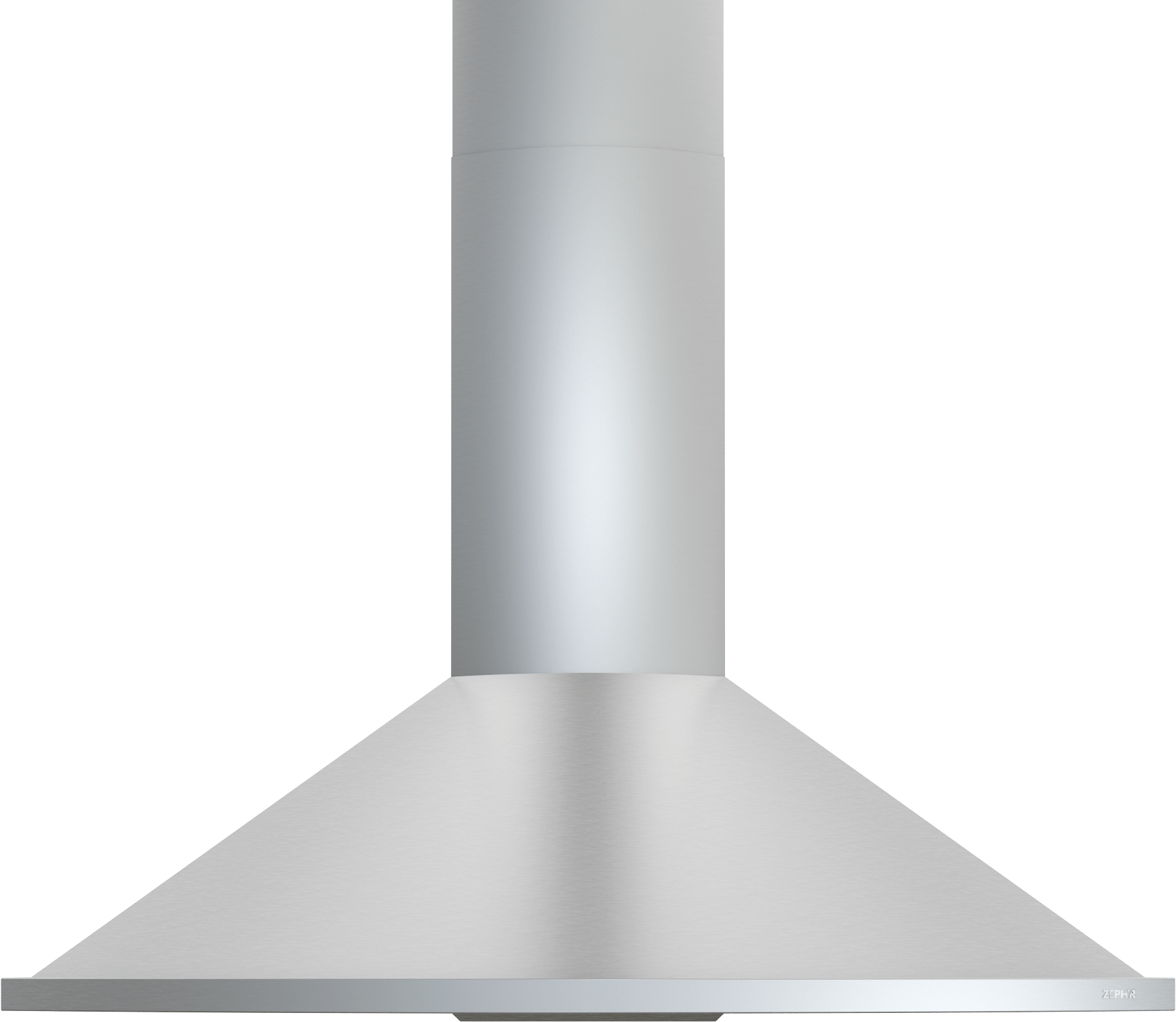

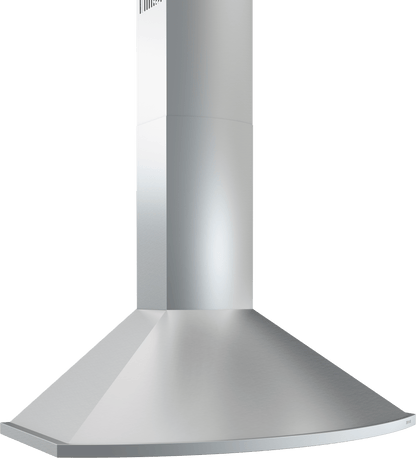

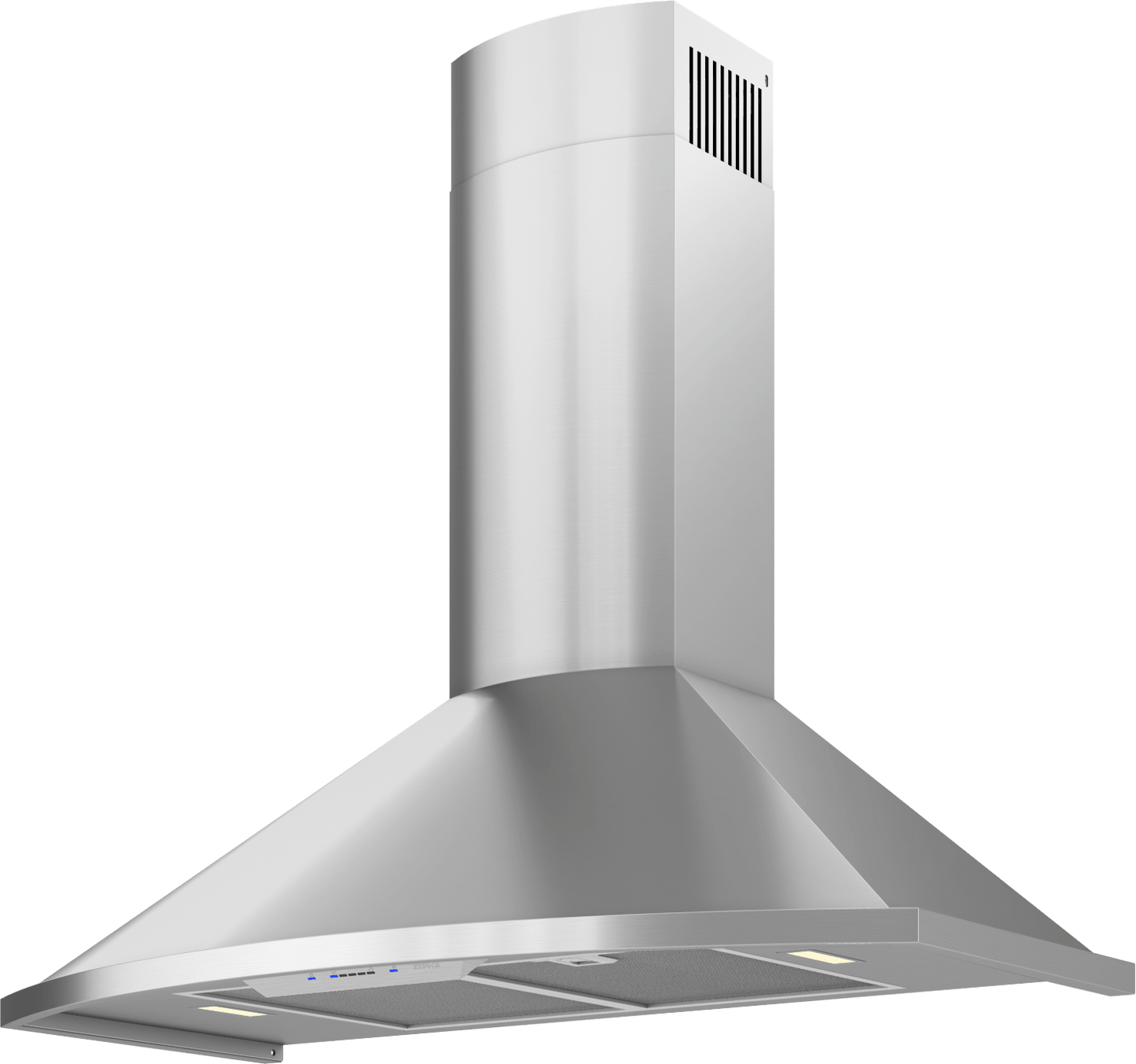

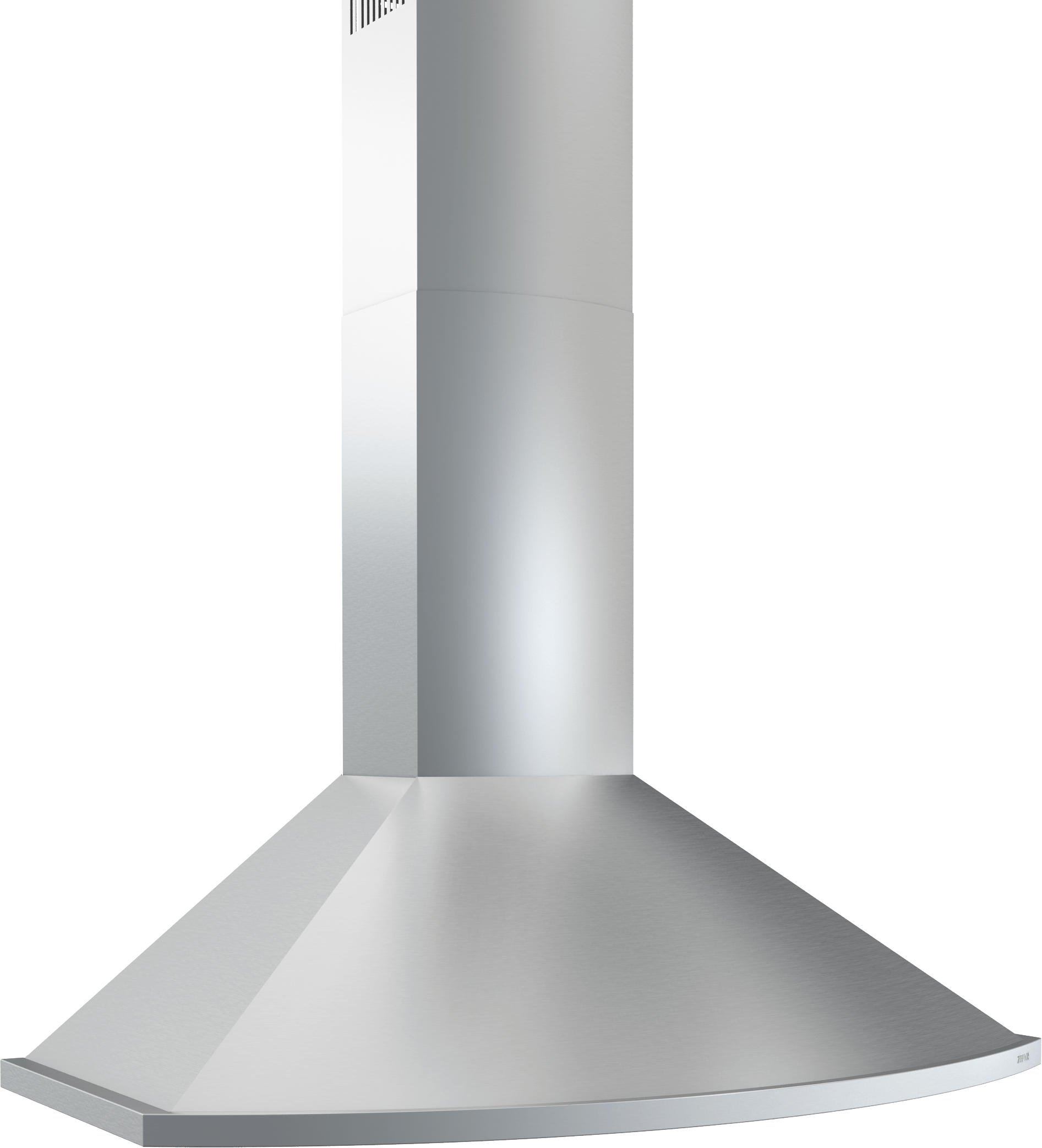

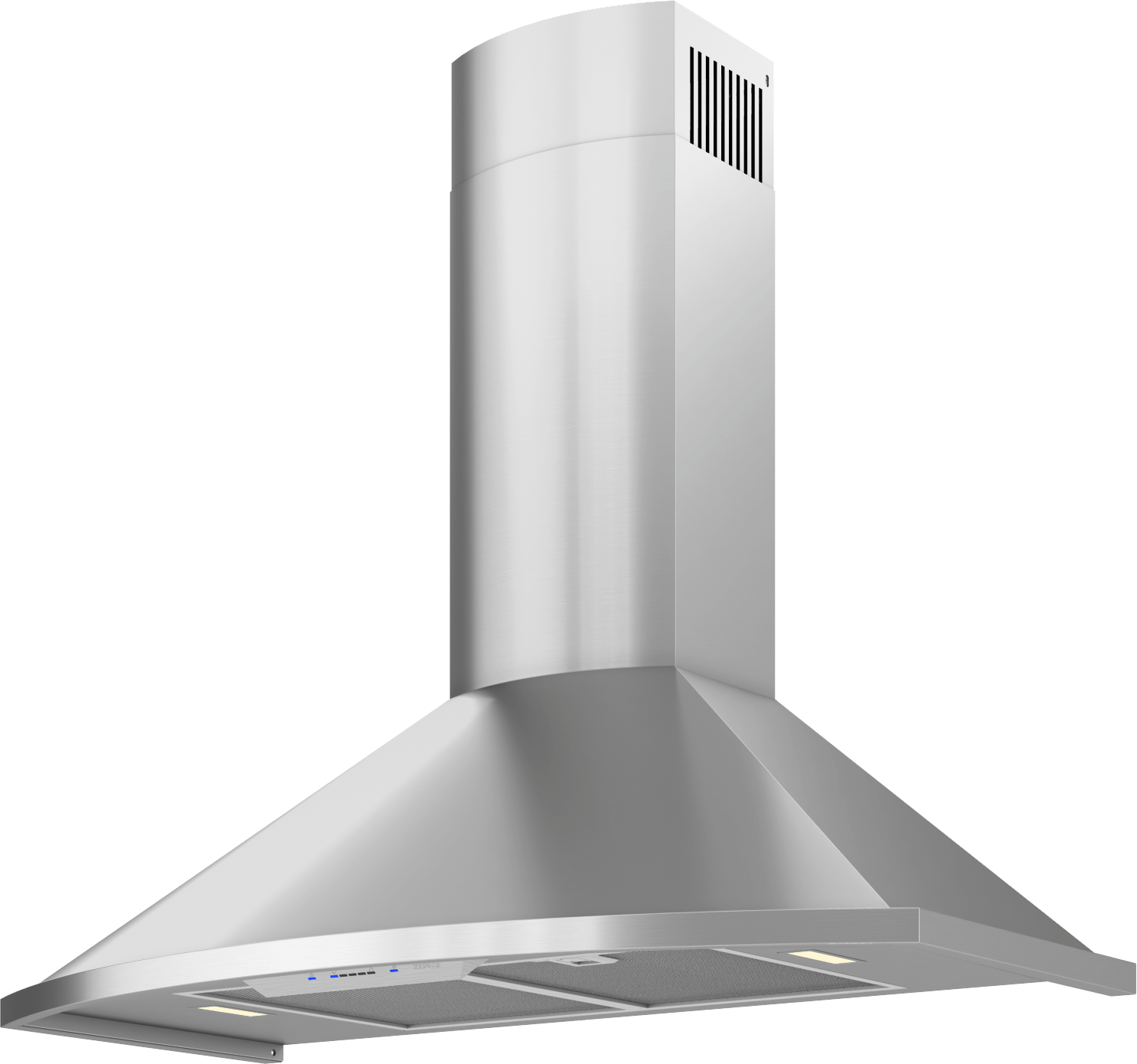

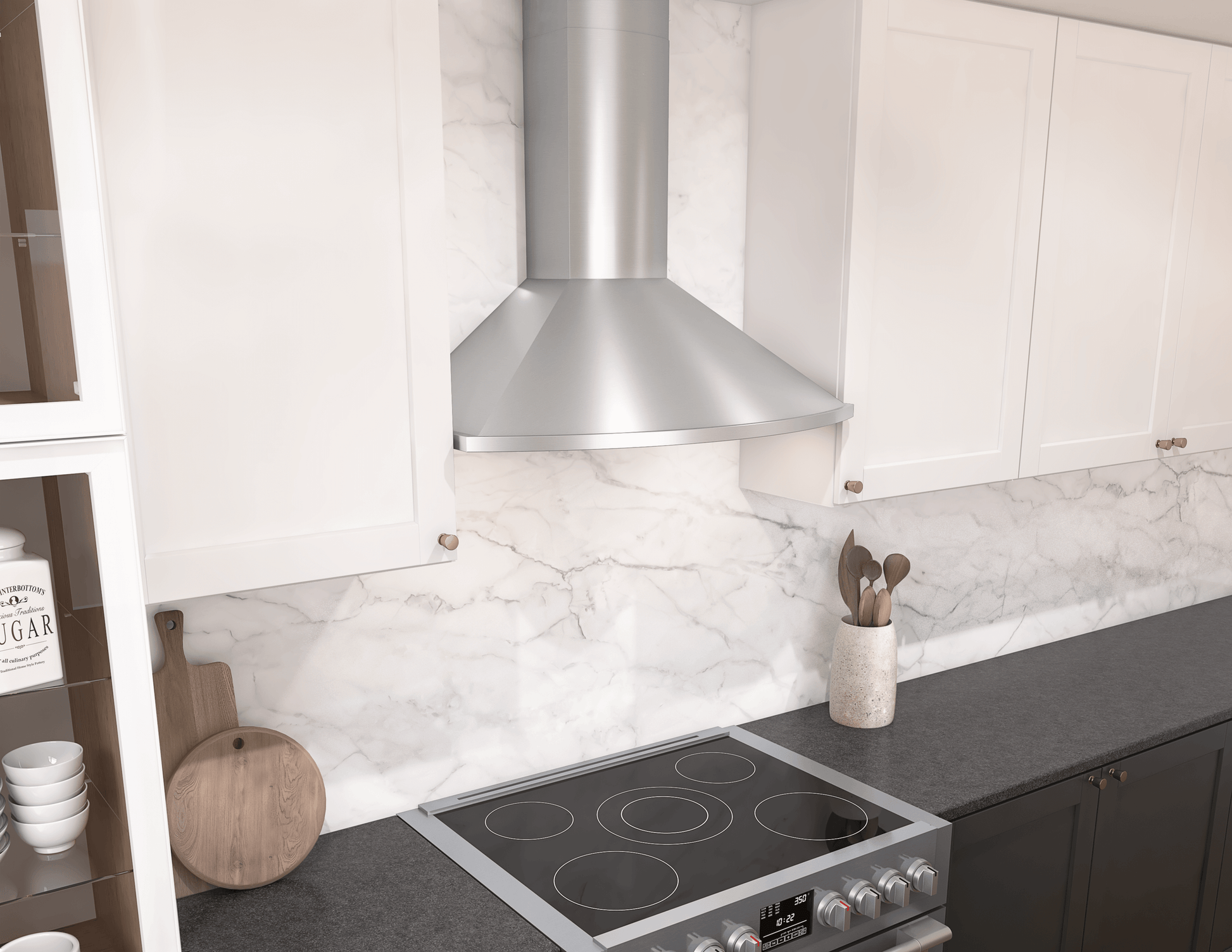

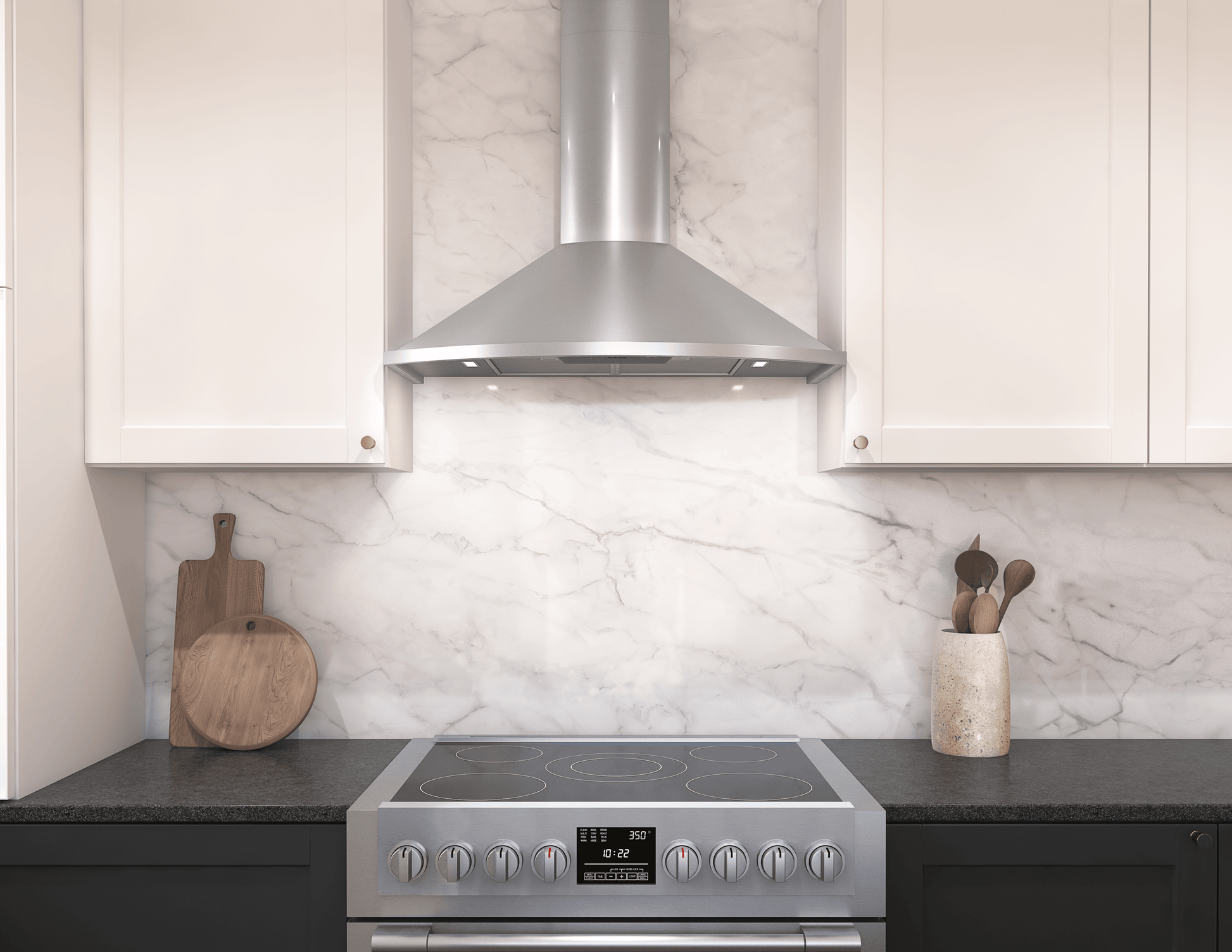

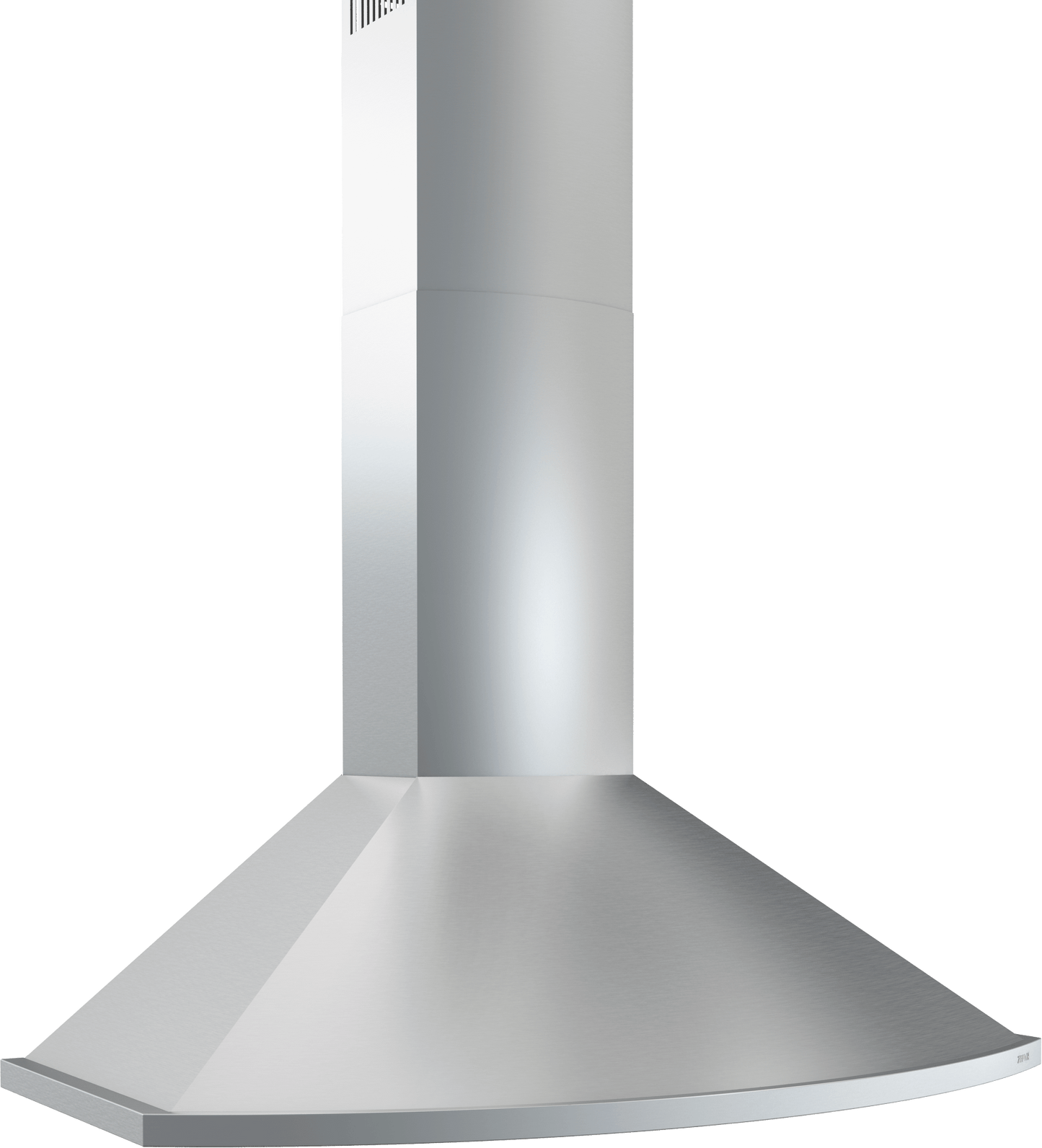

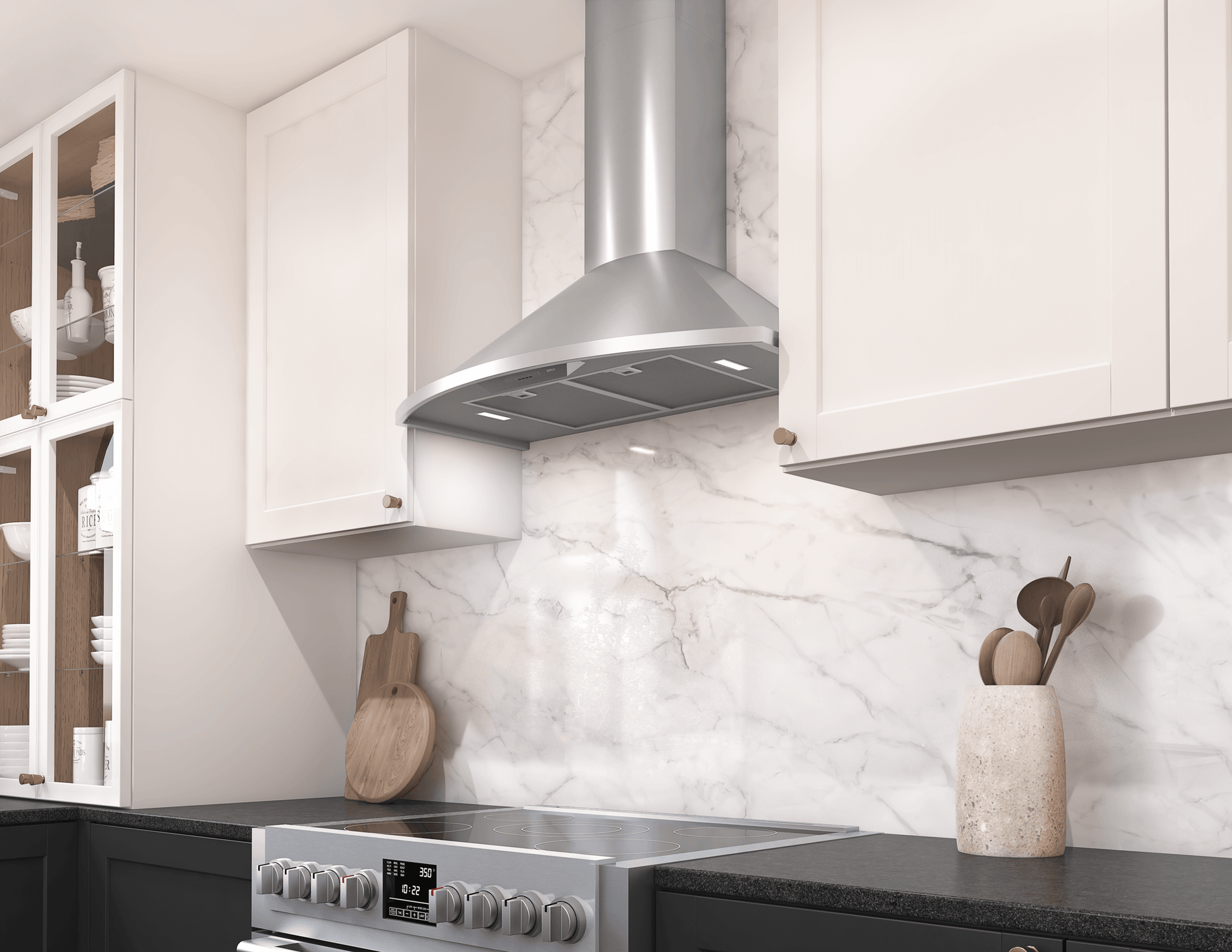

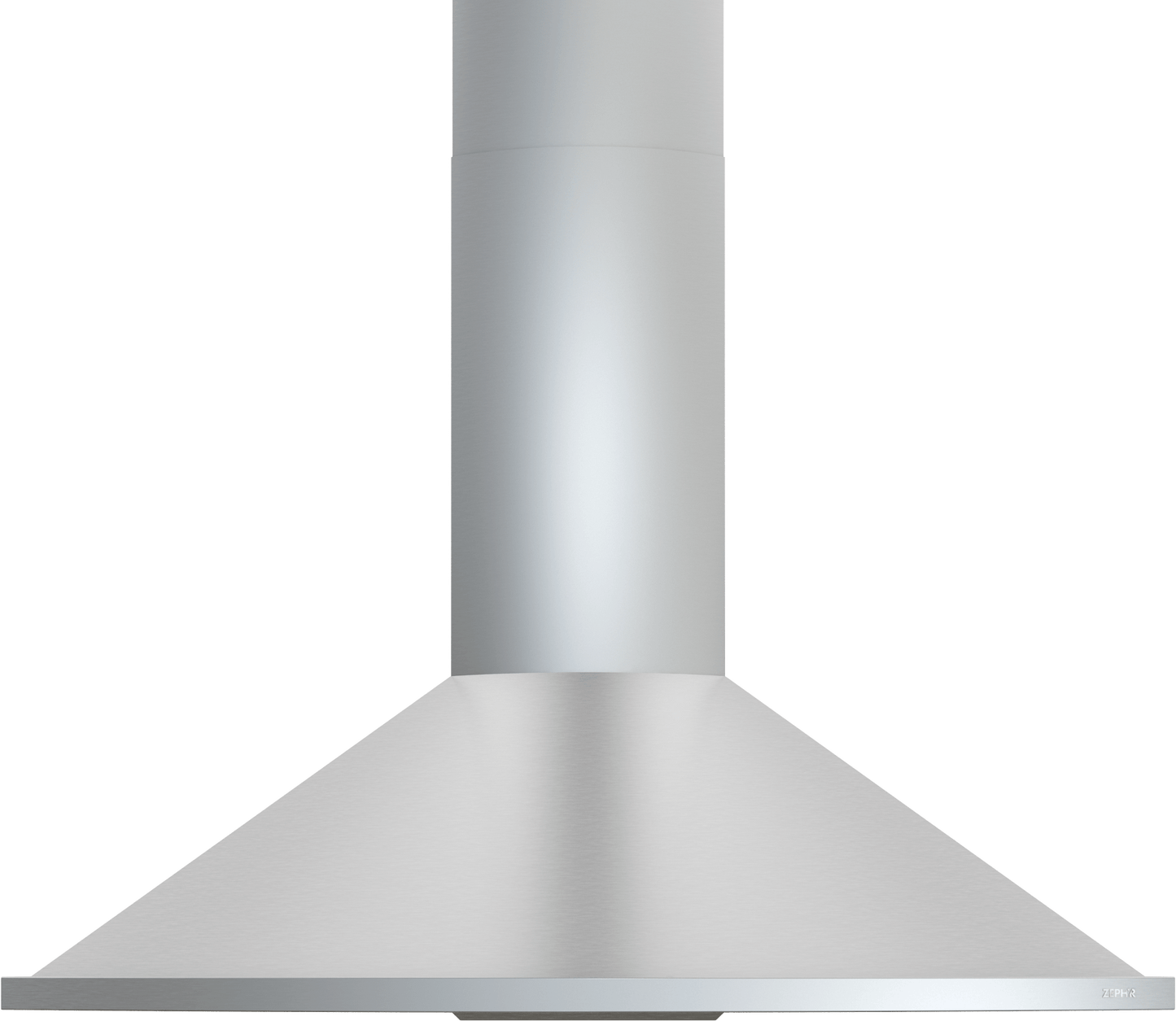

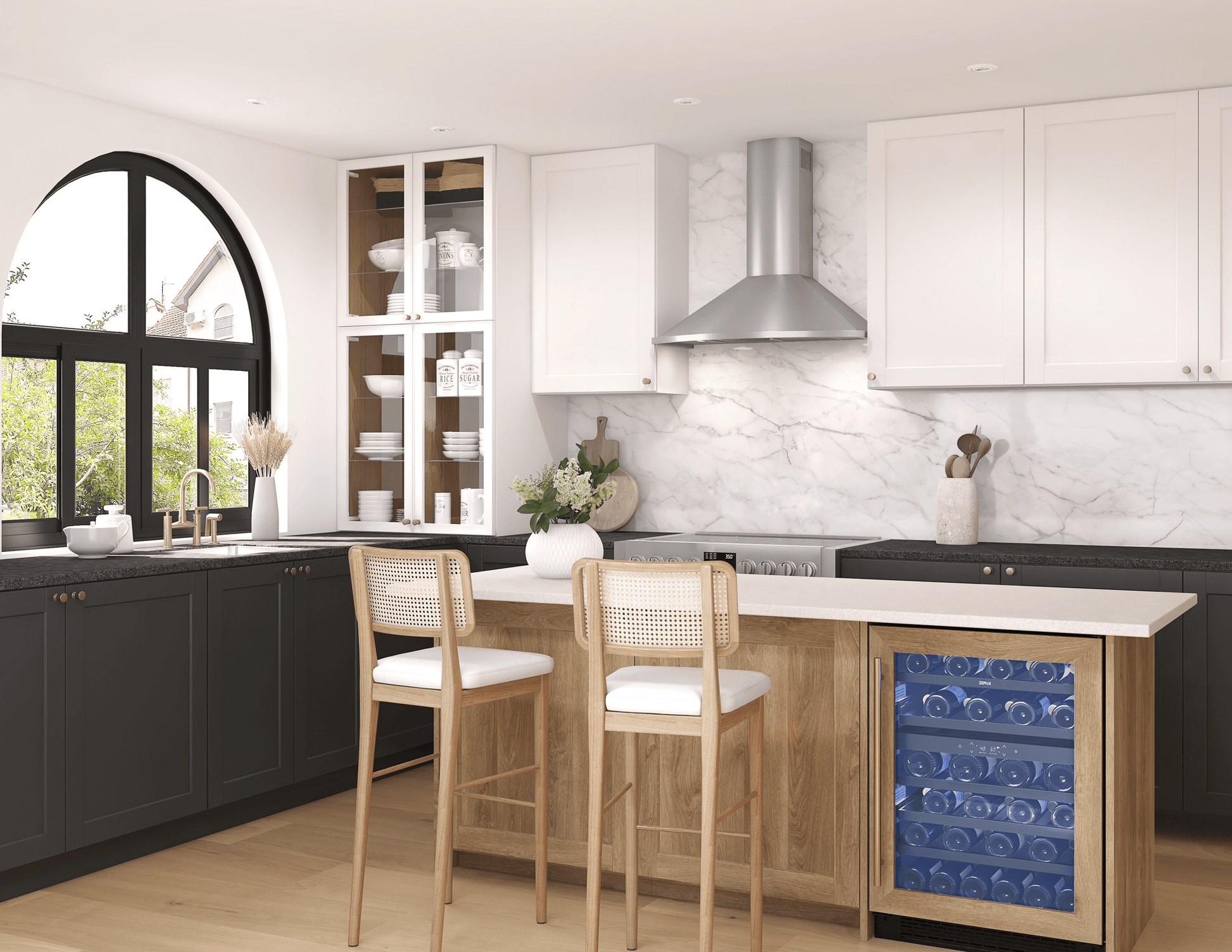

Zephyr ZSAE30FS Savona Wall, 30in, SS, LED, 600 CFM w/ACT ZSAE30FS
Zephyr ZSAE30FS Savona Wall, 30in, SS, LED, 600 CFM w/ACT
- Airflow Control Technology™ (ACT™)
- LumiLight LED Lighting
- Dual-Level Lighting
- ICON Touch® Controls
- Dishwasher Safe Aluminum Mesh Filters
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Savona Wall, 30in, SS, LED, 600 CFM w/ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328010965 |
| GTIN | 00646328010965 |
| Country of Origin | Taiwan |
| Model Group | ZSA-F |
| Model Name | Savona Wall |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200011 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00SV, Z1C-01SA, MUA006A, Z0F-C002, RC-0002, Z0F-B001, AK1710 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9375 |
| Net Depth; IN | 19.5 |
| Net Height; IN | 28 - 45 |
| Weight; LBS | 29.8 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9.5 ft. |
| Chimney Height in. | 18 |
| Chimney Width in. | 9 |
| Chimney Depth in. | 7.5 |
| Shipping Length; IN | 32.9 |
| Shipping Width; IN | 16.9 |
| Shipping Height; IN | 24.9 |
| Shipping Weight; LBS | 40.1 |
| Shipping Method | Small Parcel |
| Freight Class | 200 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
