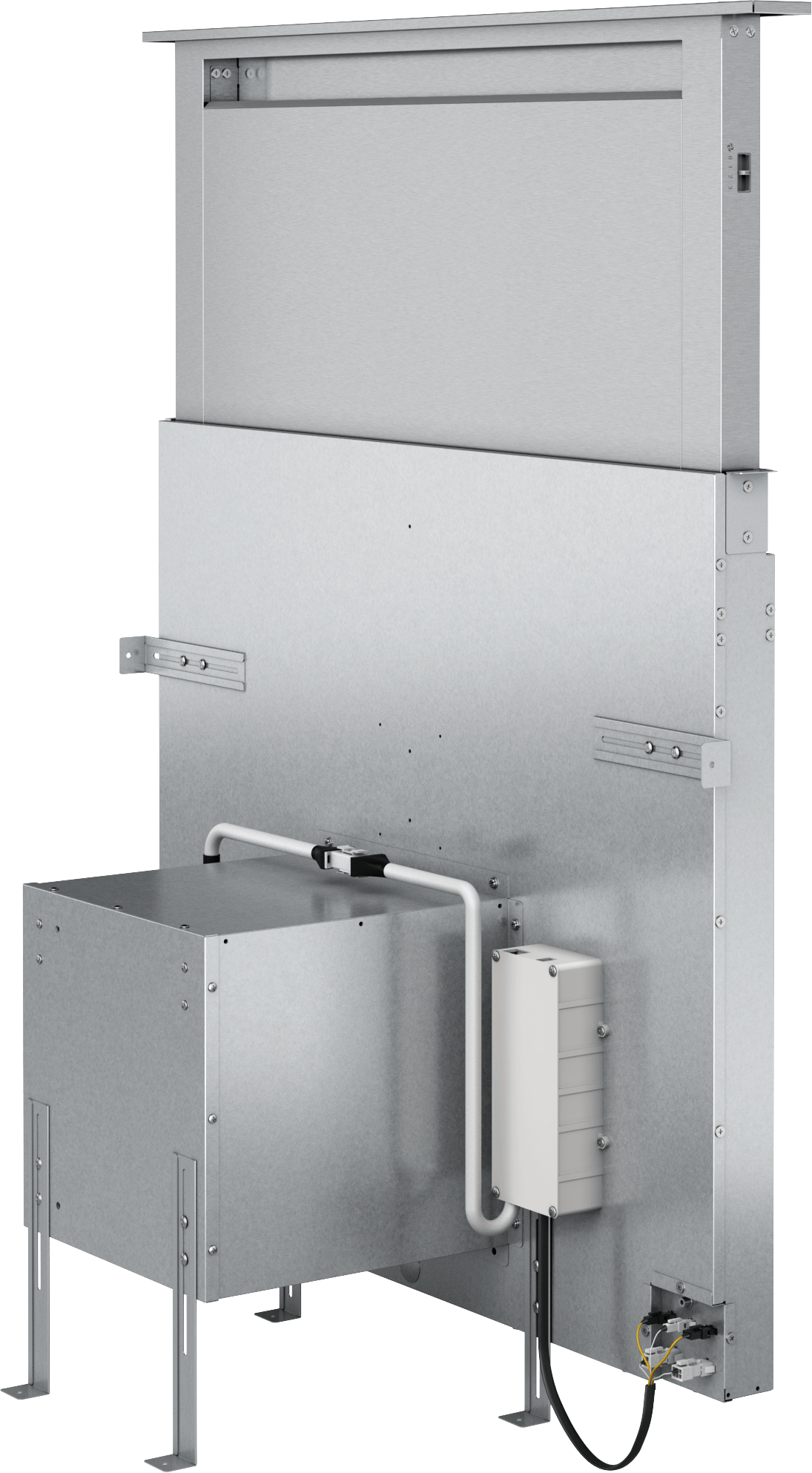

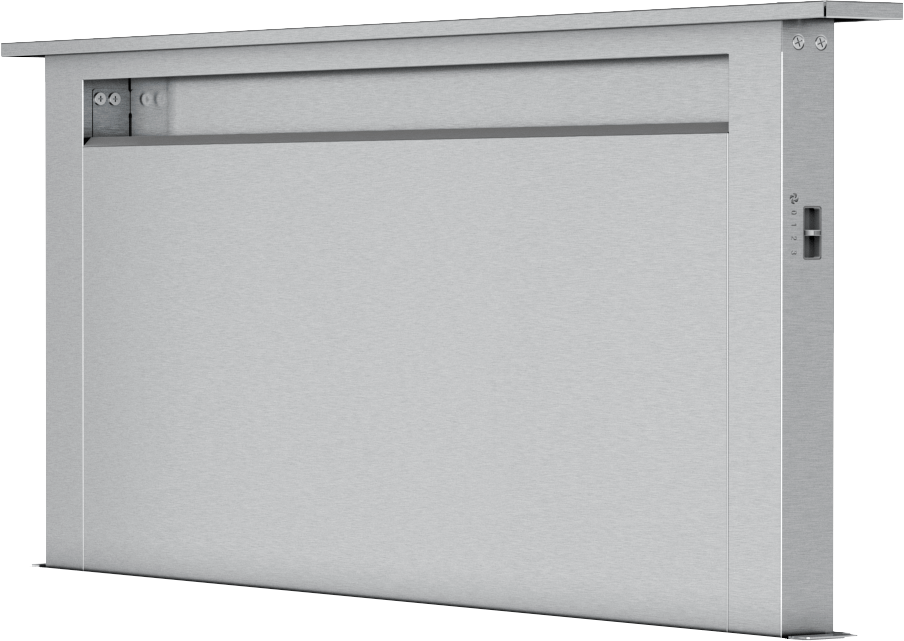

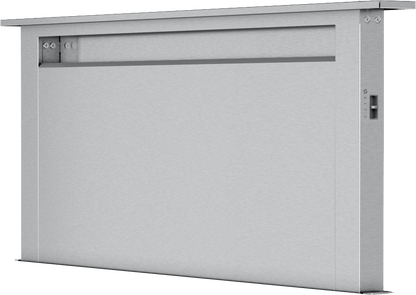

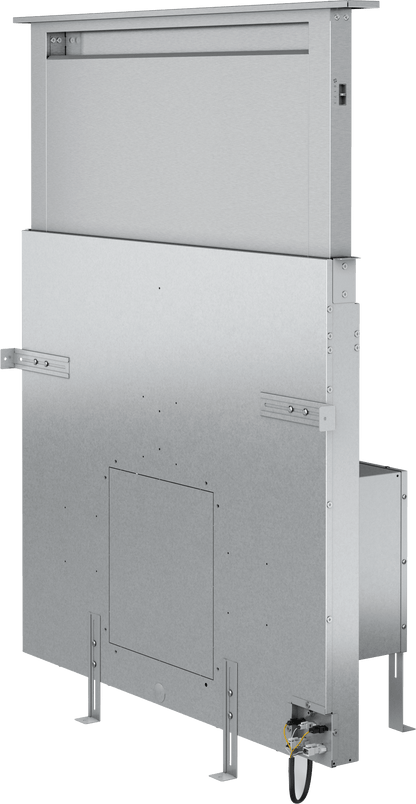

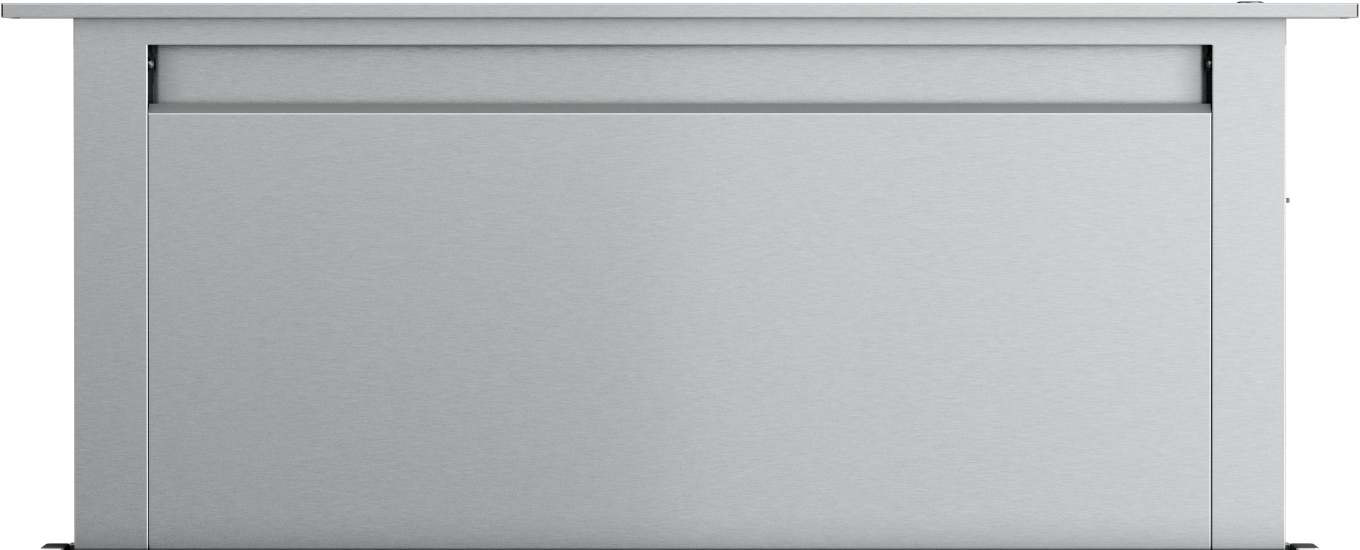

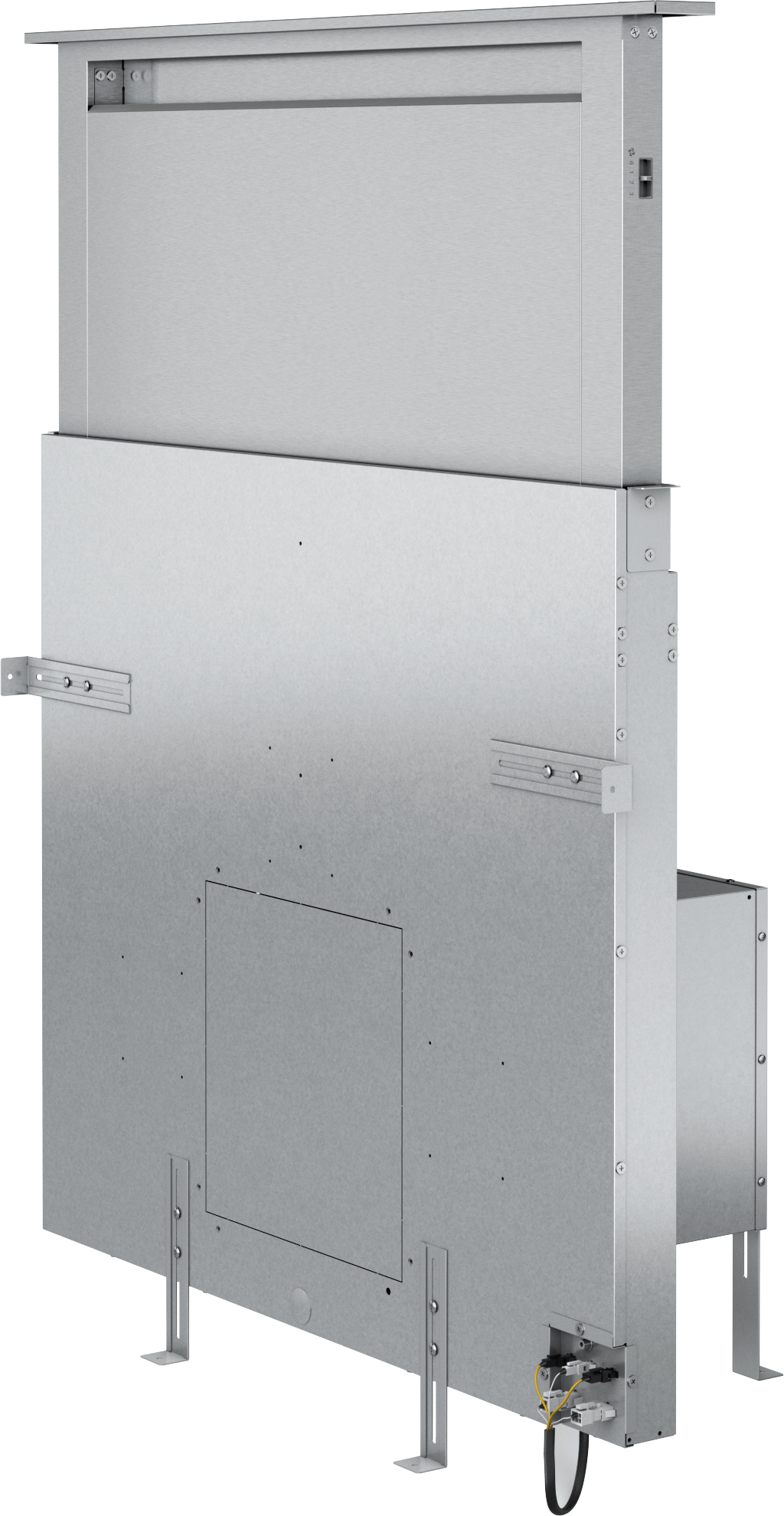

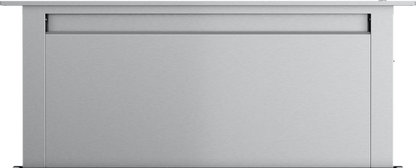

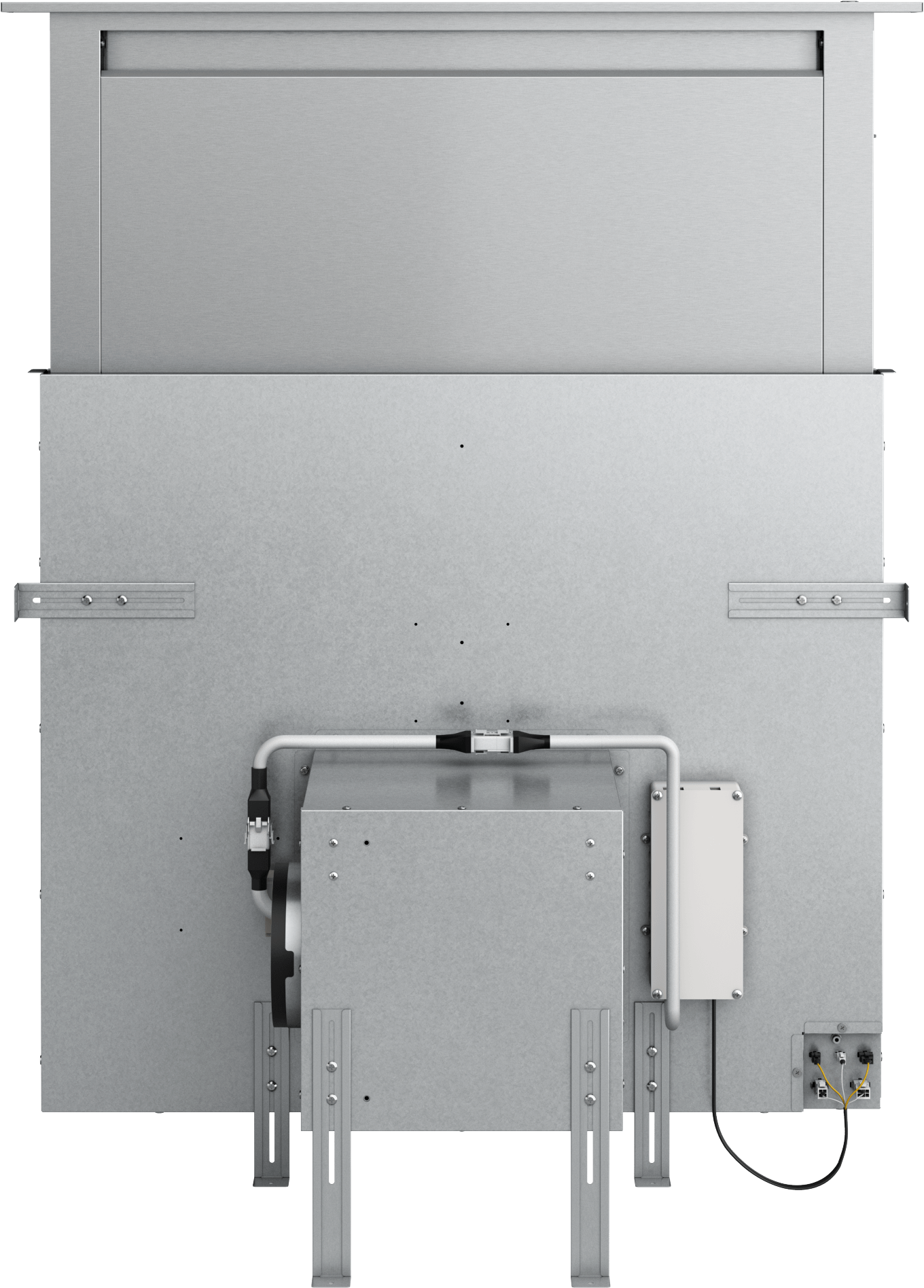

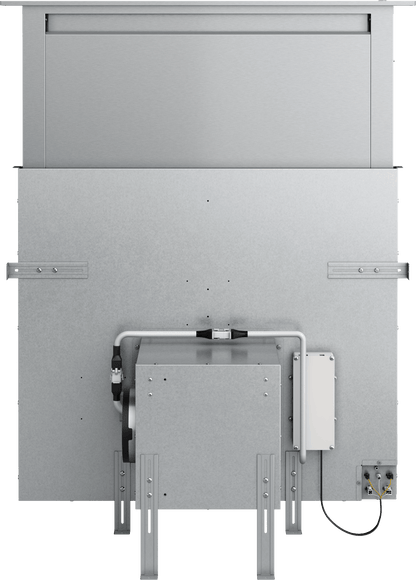

Zephyr ZTVE36AS Treviso Downdraft, 14" rise, 36" Width, SS, 600 CFM
Zephyr ZTVE36AS Treviso Downdraft, 14" rise, 36" Width, SS, 600 CFM
Item Not Available
Couldn't load pickup availability
Check Delivery:
- 14" Chimney Rise
- 3-Way Ducting
- Reversible Blower Housing
- Mechanical Slide Controls
- Auto On/Off Feature
- Airflow Control Technologyâ„¢ (ACTâ„¢)
- Optional Ductless Recirculating Kit
Treviso Downdraft, 14" rise, 36" Width, SS, 600 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Downdraft |
| Vent Type | Convertible |
| UPC | 646328012709 |
| GTIN | 00646328012709 |
| Country of Origin | Taiwan |
| Model Group | ZTV-A |
| Model Name | Treviso Downdraft |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 200, 390 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 2 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Downdraft |
| Installation Type | Downdraft |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | None |
| Lights Quantity | 0 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200080 |
| Duct Discharge | Horizontal |
| Duct Size; Horizontal; IN | 6 |
| Voltage | 120 |
| Maximum Amperage | 3.2 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | DDA-0003, DDT-0136, ZRC-00TV, Z0F-C006, MUA006A |
| Bluetooth Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 384 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 36 |
| Net Depth; IN | 2.5 |
| Net Height; IN | 14 |
| Weight; LBS | 60.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 48 |
| Shipping Width; IN | 45 |
| Shipping Height; IN | 39 |
| Shipping Weight; LBS | 122 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E109171 |
| Clean Filter Alert | No |
| Duct Type | Horizontal |
| Duct Type | Horizontal |
