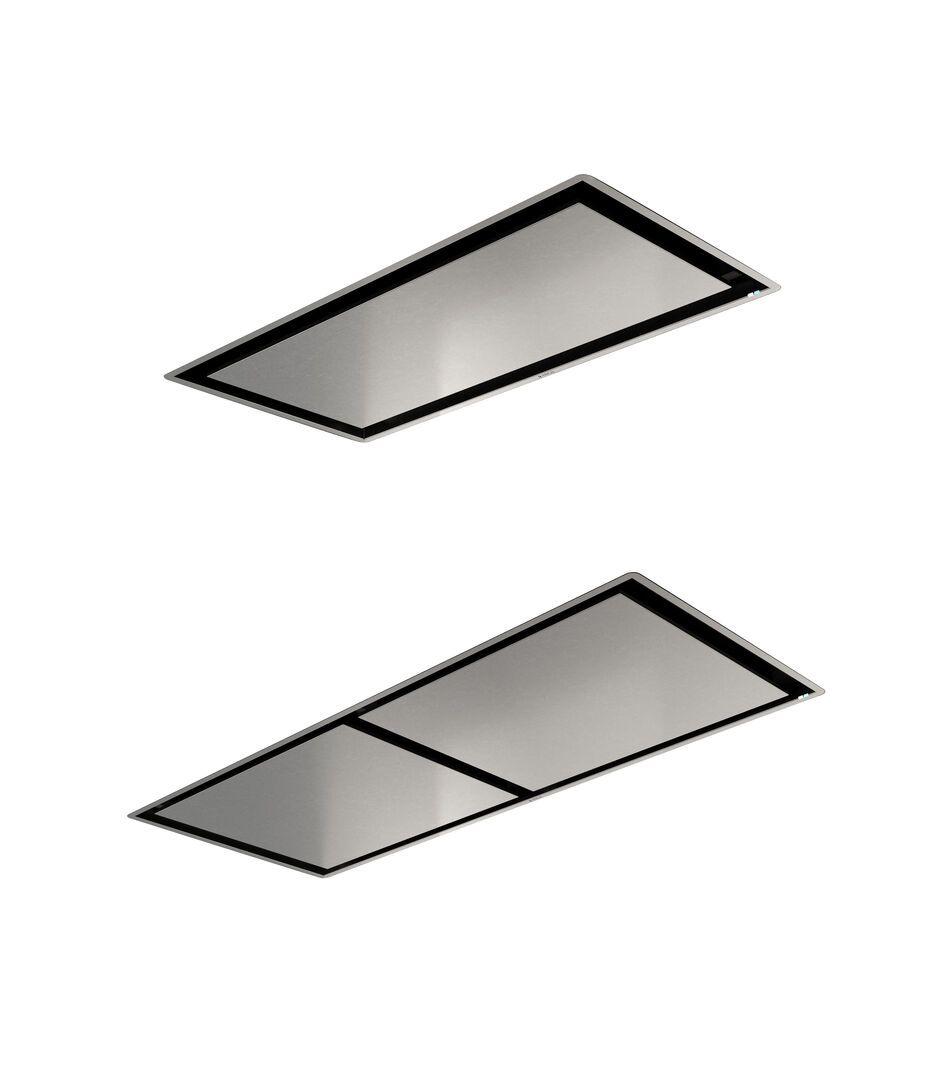

Elica ECEX40SS CIELO Ceiling Range Hood 40" wide - 600/1200CFM

Powerful, efficient and silent, Cielo ceiling hood consistently delivers exceptional performance across all installation modes. Sold separately is either an internal inline or an external blower with 600 or 1200 CFM options. Only 12 of ceiling clearance is required for installation due its multidirectional ducting options. This hood will effectively extract and clean air on ceilings up to 10 ft. With its perimeter aspiration capacity and minimal sound emissions, Cielo enhances the overall kitchen environment, effectively removing vapors and maintaining a peaceful living space. Either with a Stainless-Steel Finish or a Panel-ready Option for matching the ceiling design, Cielo is the perfect complement for any space

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	32.80
NET WEIGHT (kg)	24.20
CARTON LENGHT (mm)	1129.00
CARTON HEIGHT (mm)	385.00
CARTON WIDTH (mm)	661.90
VOLUMEN (M3)	0.29
SHIPPING WEIGHT (lb)	72.31
NET WEIGHT (lb)	53.35
CARTON LENGHT	44.45
CARTON HEIGHT	15.16
CARTON WIDTH	26.06
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + panel ready
Material	Stainless Steel
Color	custom
Type of Ventilation	Convertible
HOODS FEATURES	Tune white, Long life filter, Dim light, Total integration, Super easy installation, Remote control, Perimeter aspiration, Panel ready,
WIDTH (IN)	40"
WIDTH (CM)	101.60
AIRFLOW (M3/H)	1020 / 2040
CFM (MAX)	600/1200
db (min)	38 / 40
db (max)	58 / 61
SONES	2.0-8.0 / 2.3-10.2
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6" Multidirectional
DUCT SHAPE	Round
EXHAUST LOCATION	Multidirectional
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120.00
AMPERAGE	4 A/8.53 A
HERTZ	60.00
WATTS	578.00
LIGHTING	Dimmable Strip LED 2 x 14 W 3500 K
BULB TYPE	Strip LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	14.00
KELVINS	3500.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Sold separately
CONTROL TYPE	White remote control
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	YES
POWER SOURCE	Junction Box
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
PANEL READY	YES
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS (CM)	101.6 W x 50.48 D x 30.64 H
DIMENSIONS (INCH)	40 W x 19 7/8 D x 12 / H
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	12 1/16"
Maximum Overall Height - Top to Bottom	12 1/16"
Overall Height - Top to Bottom	12 1/16"
Overall Width - Side to Side2	40"
Overall Depth - Front to Back	19 7/8"
Hood Height	12 1/16"
Min - Max Compatible Ceiling Height (Cover electronic cooking)	NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)	10'0"
Minimum Height Above Cooktop (ELECTRIC)	24
Minimum Height Above Cooktop (GAS)	30
Maximum Height Above Cooktop	NA
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT0192765
CHIMNEY EXTENTION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0185099/KIT0185752
BACKSPLASS KIT	-
INTERNAL BLOWER	KIT0198146/KIT0198147
INLINE BLOWER	KIT0154387/KIT0198148
EXTERNAL BLOWER	KIT0153054
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	KIT0121469/ KIT0121468
ETL	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	YES
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	YES
HEAT SENSOR	NO
CHAROCAL FILTER	YES
