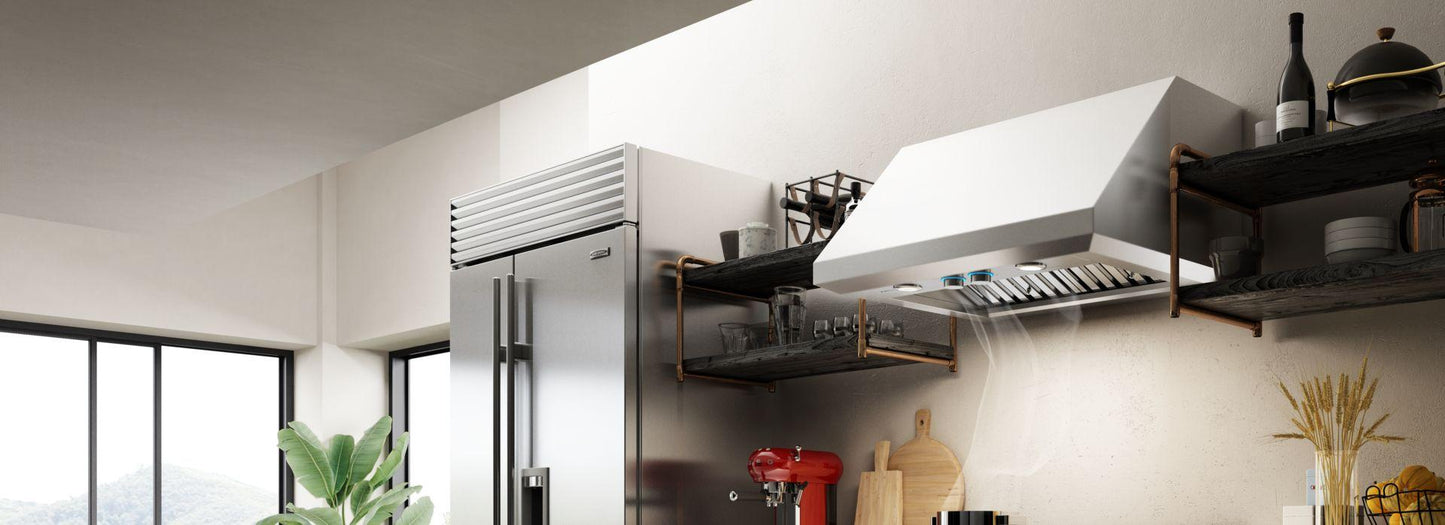

Elica ECL142S4 CALABRIA Undercabinet Range Hood 42" wide - 1200CFM ECL142S4

SKU/Model #: ECL142S4
Elica ECL142S4 CALABRIA Undercabinet Range Hood 42" wide - 1200CFM
Authorized Reseller
SKU/Model #: ECL142S4
Elica ECL142S4 CALABRIA Undercabinet Range Hood 42" wide - 1200CFM
Free Shipping
$1,889.00
List Price:
Instant Savings:
Stainless Steel
Stainless Steel $1,889.00
  • Hush system
  • Heat guard
  • Grease collectors
  • Professional performance
  • Seamless look
For homeowners who are passionate about the culinary arts, the seamless welded corner craftsmanship, traditional styling and gleaming stainless steel of Calabria, provides the look and performance expected from a professional-grade range hood. With the new backlit hidden knob controls and traditional ba_x001F_e filters, Calabria is available in 30 , 36 , 42 and 48 widths and equipped with a 600 CFM (30 and 36 ) or 1200 CFM blower (36 , 42 , 48 ) to support all cooking needs. Designed for standard ducted ventilation or recirculating with a kit.
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 49.00
NET WEIGHT (kg) 43.00
CARTON LENGHT (mm) 1200.00
CARTON HEIGHT (mm) 625.00
CARTON WIDTH (mm) 764.00
VOLUMEN (M3) 0.60
SHIPPING WEIGHT 108.03
NET WEIGHT 94.80
CARTON LENGHT 47.24
CARTON HEIGHT 24.61
CARTON WIDTH 30.08
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Color inox
Type of Ventilation Vented
HOODS FEATURES Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN) 42"
WIDTH (CM) 107.00
AIRFLOW (M3/H) 2040.00
CFM (MAX) 1200.00
db (min) 36.00
db (max) 59.00
SONES 1.7 - 8.5
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 8"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 8"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 7,6 A
HERTZ 60.00
WATTS 913.00
LIGHTING Premium LED 2 x 6.5 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 2.00
BULB WATTS 6.50
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Stainless Steel
BLOWER TYPE Interior Unit
CONTROL TYPE Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL YES
NUMBER OF SPEEDS 4.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED NO
CFM REDUCTION Yes w/kit
DIMENSIONS 107 x 64 x 46
DIMENSIONSinches 42" x 25" x 18"
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom 18"
Maximum Overall Height - Top to Bottom 22 5/16
Overall Height - Top to Bottom 18"
Overall Width - Side to Side2 42"
Overall Depth - Front to Back 25"
Hood Height 18"
Minimum Compatible Ceiling Height NA
Maximum Compatible Ceiling Height NA
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT0192765 + KIT0192763+KIT0205344
CHIMNEY EXTENSION NUMBER KIT02622/KIT02623
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT KIT0185099
BACKSPLASH KIT KIT0142868
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT KIT0179549
EXTERNAL BLOWER SHELL KIT KIT0179547
HEAT LAMPS KIT0155110
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR YES
CHAROCAL FILTER NO
CERTIFICADO NOM NA
