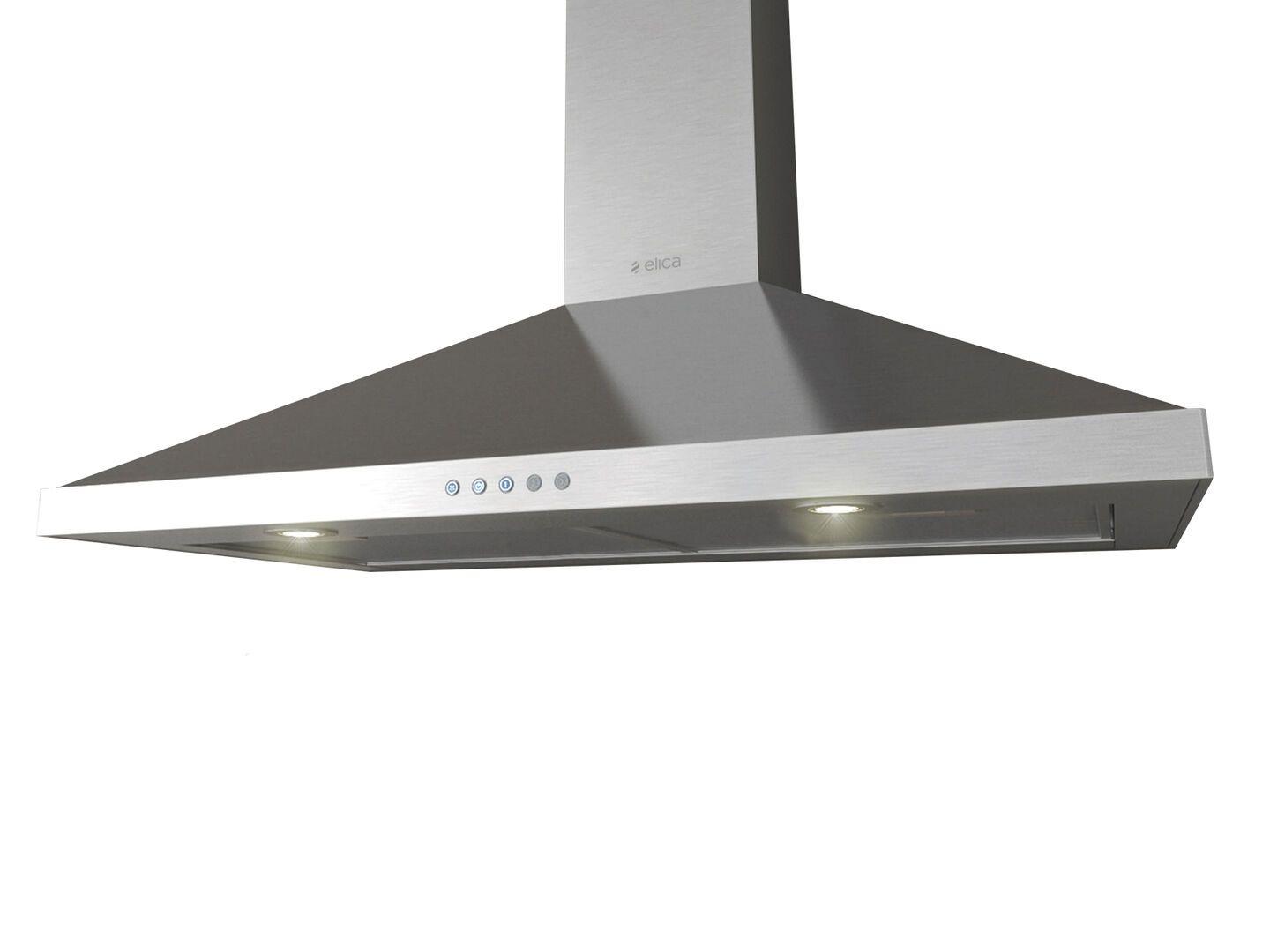

Elica EVL424SS VOLTERRA Wall Mount Range Hood 24" wide - 400CFM

Volterra, with its pyramid shaped angles and stainless-steel finish, makes a striking visual statement to any kitchen. Available in 24 width, Volterra features backlit push button controls, LED lighting and 3-speed blower. It also features a telescopic chimney for up to 9 2 ceilings. Designed for standard ducted installation Volterra can also be installed as a recirculating system using the kit available as an accessory.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	16.90
NET WEIGHT (kg)	11.50
CARTON LENGHT (mm)	877.00
CARTON HEIGHT (mm)	675.00
CARTON WIDTH (mm)	369.00
VOLUMEN (M3)	0.22
SHIPPING WEIGHT (lb)	37.26
NET WEIGHT (lb)	25.35
CARTON LENGHT	34.53
CARTON HEIGHT	26.57
CARTON WIDTH	14.53
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Material	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	3x layer mesh, Led light
WIDTH (IN)	24"
WIDTH (CM)	60.00
AIRFLOW (M3/H)	680.00
CFM (MAX)	400.00
db (min)	14.70
db (max)	51.00
SONES	0.4 - 5.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120.00
AMPERAGE	2.2 A
HERTZ	60.00
WATTS	265.00
LIGHTING	LED 2 x 2.1 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Backlit Electronic Push Button
SPEED CONTROL	YES
NUMBER OF SPEEDS	3.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
PANEL READY	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS (CM)	60 x 50 x 72
DIMENSIONS (INCH)	24" x 19 11/16" x 28 3/8"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	28 3/8"
Maximum Overall Height - Top to Bottom	42 1/8"
Overall Height - Top to Bottom	28 3/8"-42 1/8"
Overall Width - Side to Side2	24"
Overall Depth - Front to Back	19 5/8"
Hood Height	10 1/4"
Min - Max Compatible Ceiling Height (Cover electronic cooking)	7'5"
Min - Max Compatible Ceiling Height ( Cover gas cooking)	9'6"
Minimum Height Above Cooktop (ELECTRIC)	24
Minimum Height Above Cooktop (GAS)	30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	8 3/16"
Chimney Depth - Front to Back	7 3/16"
Chimney Height - Top to Bottom	31 7/
RECIRCULATION KIT NUMBER	KIT02766
CHIMNEY EXTENTION NUMBER	KIT02762
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	GF04YB
CFM REDUCTION KIT	KIT0175561
BACKSPLASS KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
ETL	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
