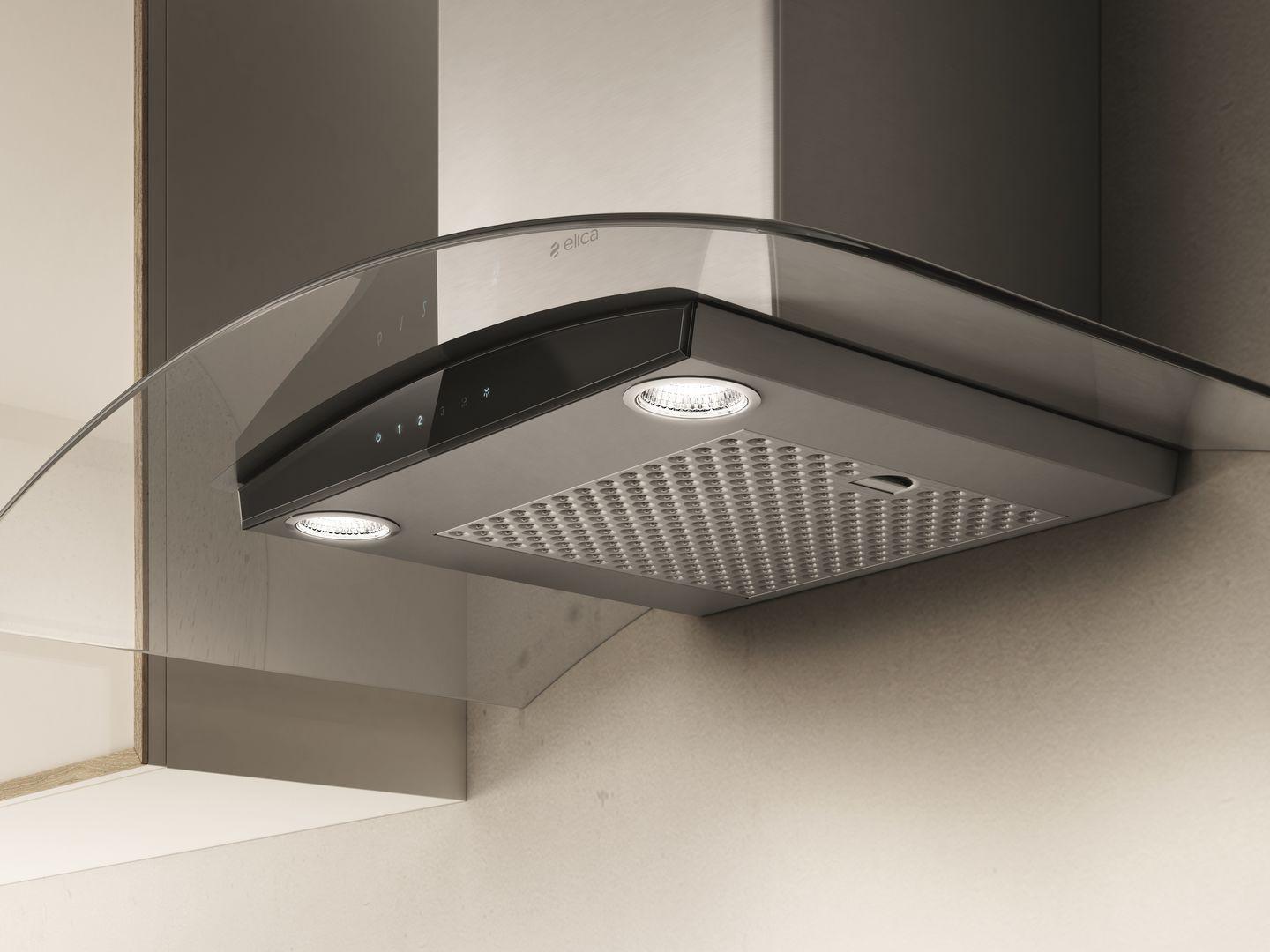

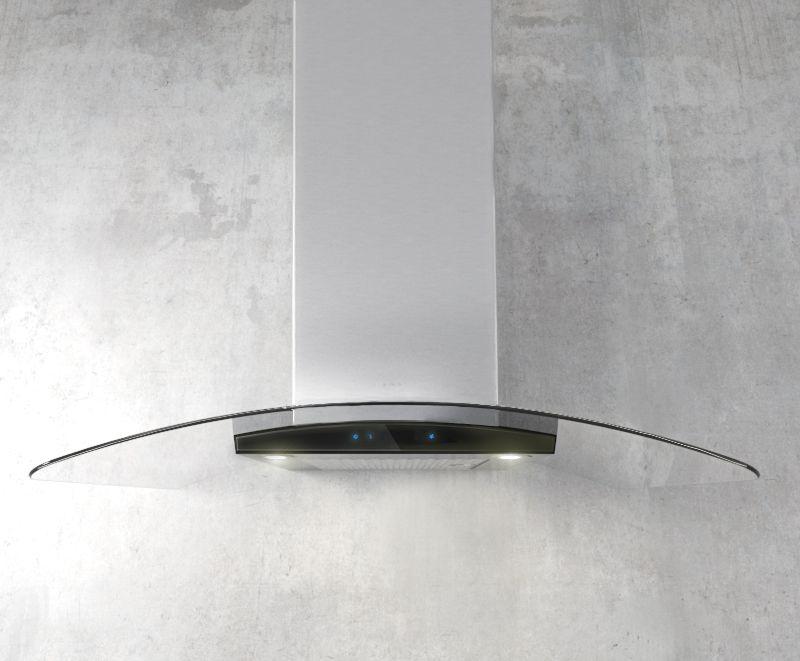

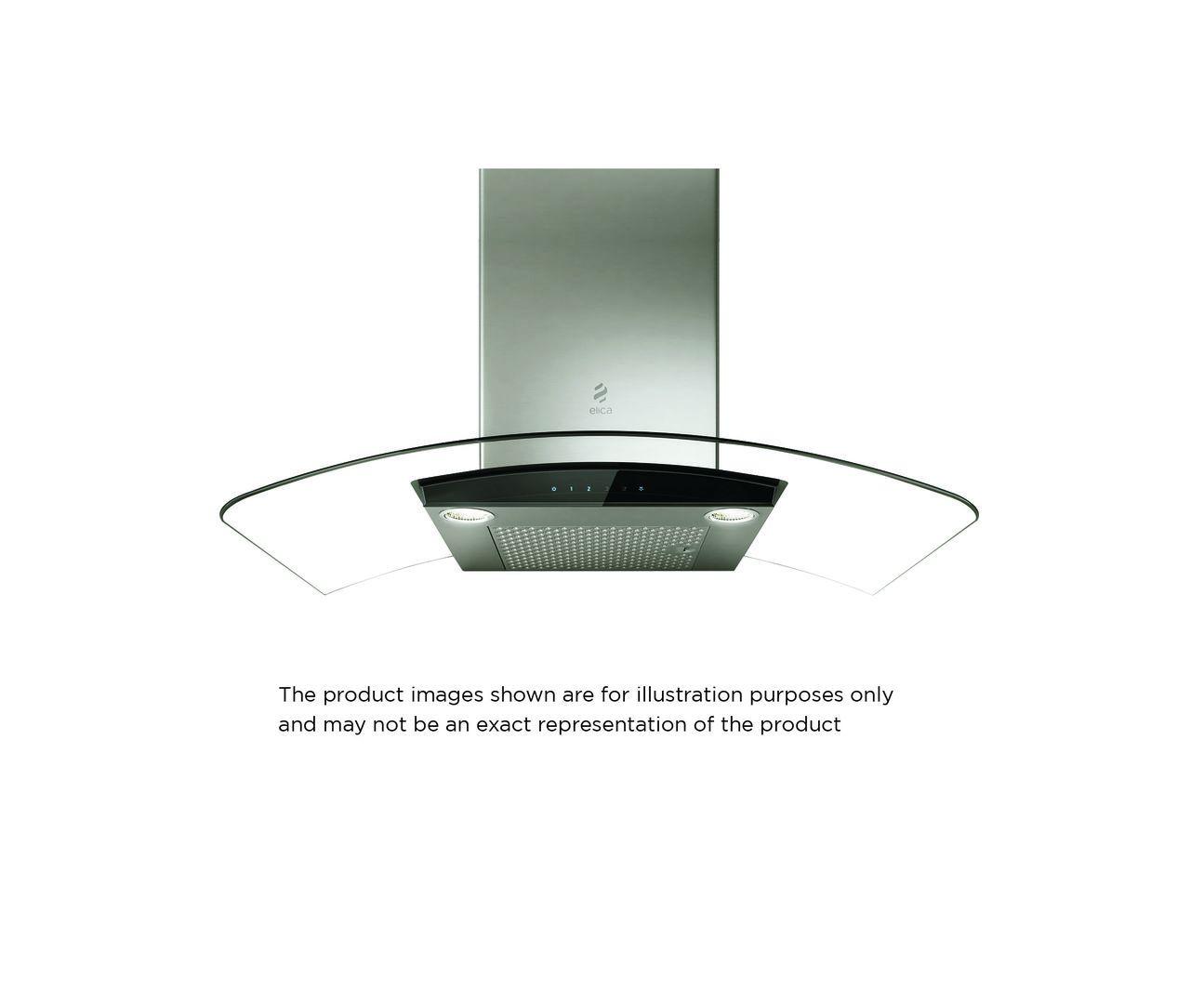

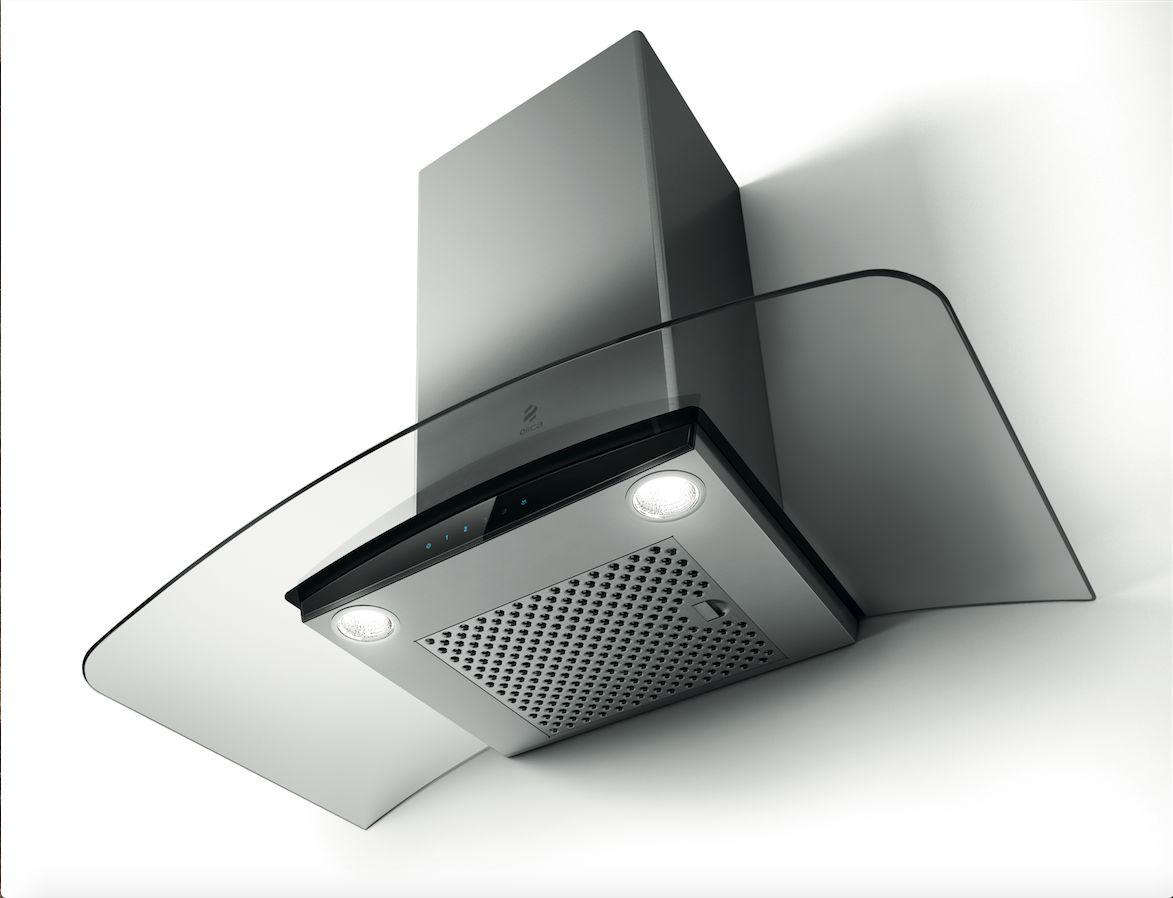

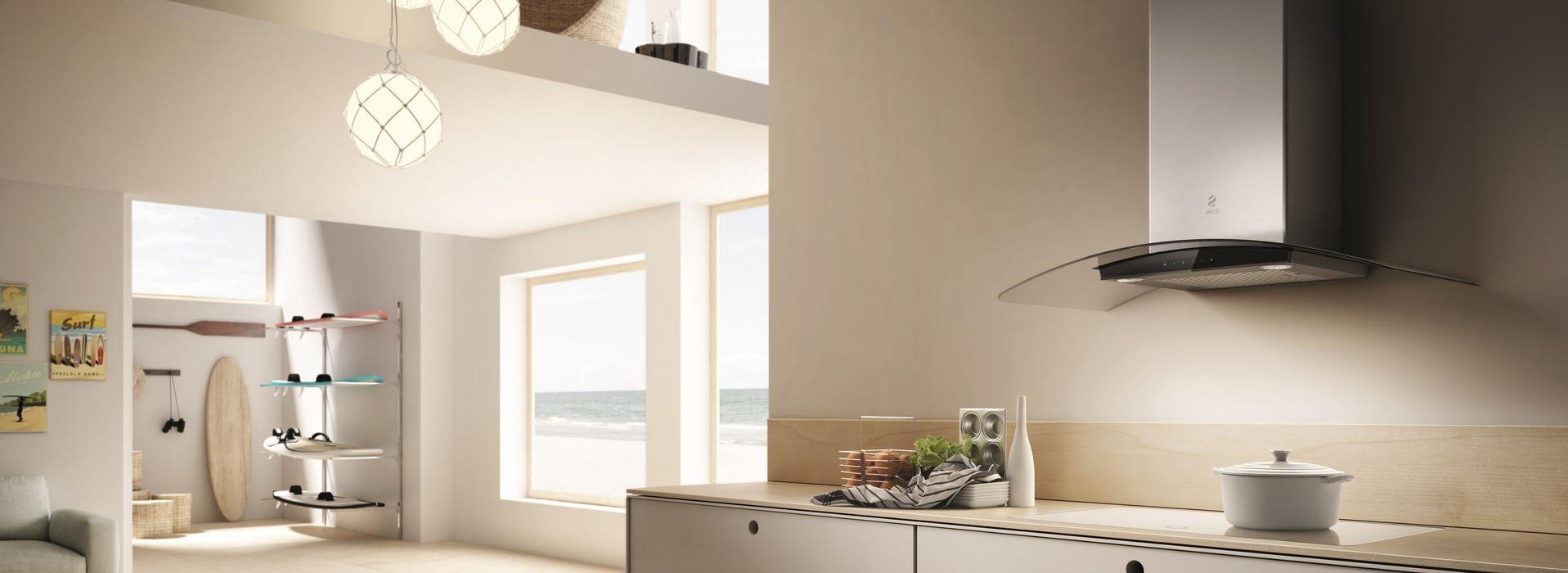

Elica ECM636S3 COMO Wall Mount Range Hood 36" wide - 600CFM ECM636S3

Como combines arched glass wings and stainless steel to create a light and airy environment, making it the perfect centerpiece for any contemporary kitchen. This gently flowing design is powered by a 600 CFM blower that can handle the demands of today s cooktops. Como is equipped with glass touch controls, dimmable LED lighting, and a dishwasher-safe stainless steel microhole filter. Designed for standard ducted installation, Como can also be installed as a recirculating system using the optional recirculating kit.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	27.00
NET WEIGHT (kg)	20.90
CARTON LENGHT (mm)	1020.00
CARTON HEIGHT (mm)	673.00
CARTON WIDTH (mm)	458.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	59.52
NET WEIGHT	46.08
CARTON LENGHT	40.16
CARTON HEIGHT	26.50
CARTON WIDTH	18.03
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + Black Glass
Color	inox + glass
Type of Ventilation	Convertible
HOODS FEATURES	Led light,Dim light,Top performance,CFM reduction system,Touch controls,Hush system
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	36.00
db (max)	55.00
SONES	1.7 - 6.8
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3.8 A
HERTZ	60.00
WATTS	395.00
LIGHTING	Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit
CONTROL TYPE	Multi-function Electronic with black glass touch display
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes
DIMENSIONS	91 x 51 x 75
DIMENSIONSinches	36" x 19 11/16 x 29 11/16"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	29 11/16"
Maximum Overall Height - Top to Bottom	54 1/6"
Overall Height - Top to Bottom	29 11/16 -54 1/6
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	19 11/16
Hood Height	3 7/16
Minimum Compatible Ceiling Height	7'10"
Maximum Compatible Ceiling Height	10'5"
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	13
Chimney Depth - Front to Back	10 3/4"
Chimney Height - Top to Bottom	50 47/64 "
RECIRCULATION KIT NUMBER	KIT02721
CHIMNEY EXTENSION NUMBER	KIT0100315
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA
