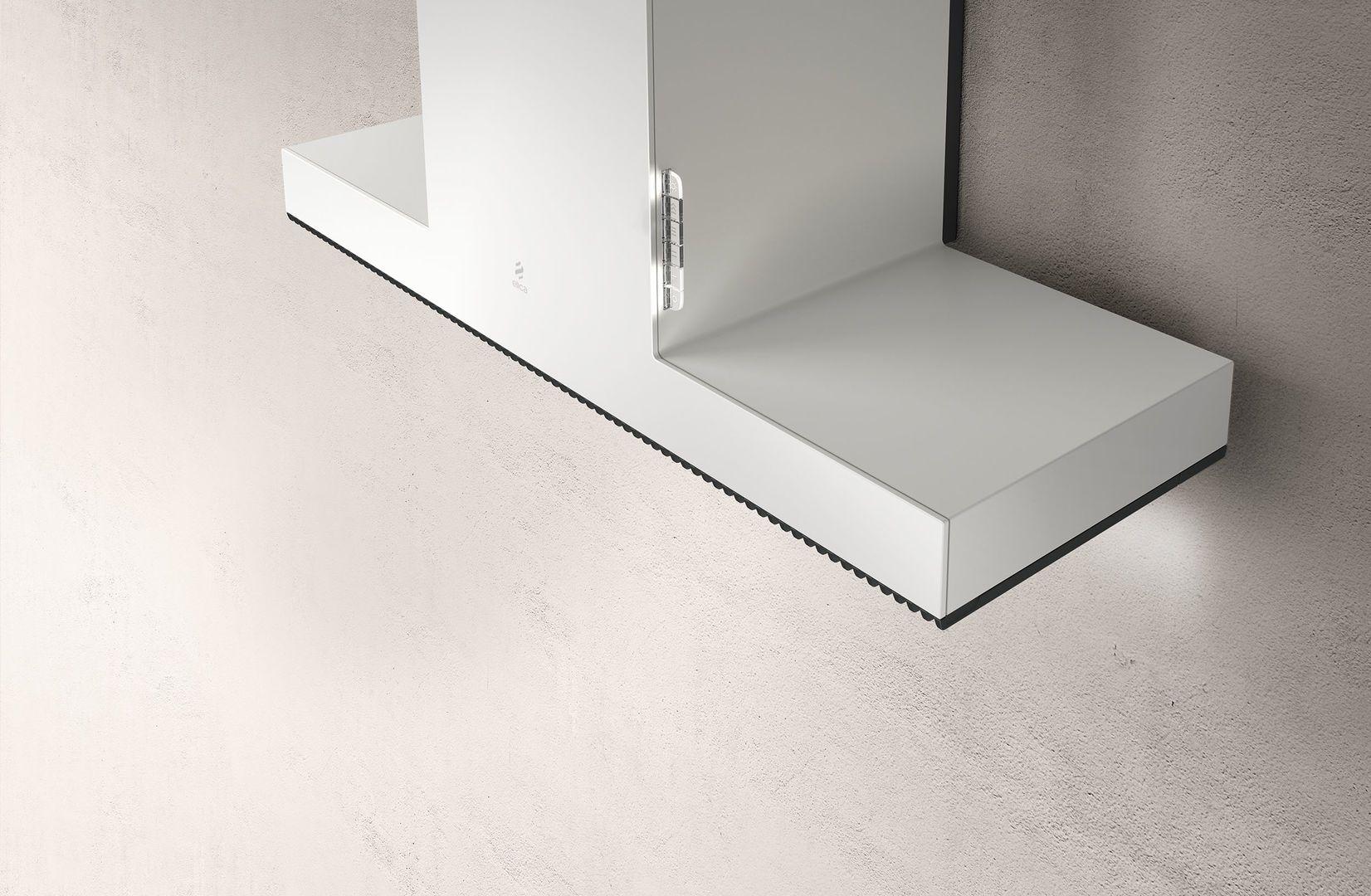

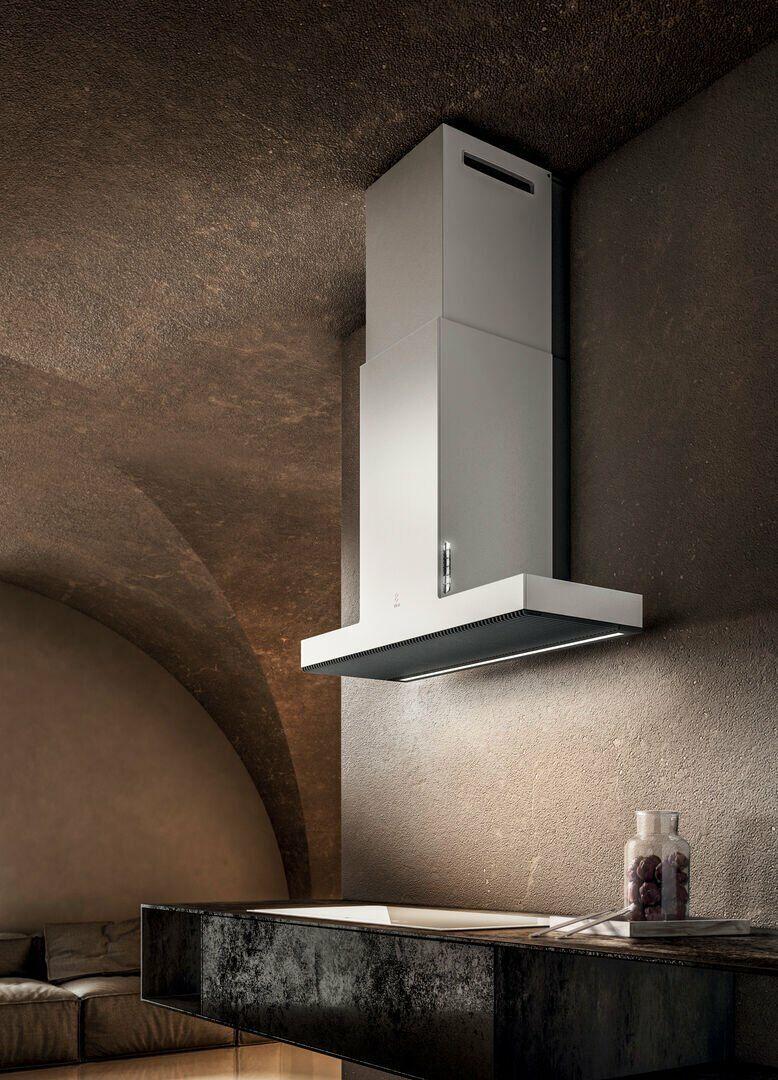

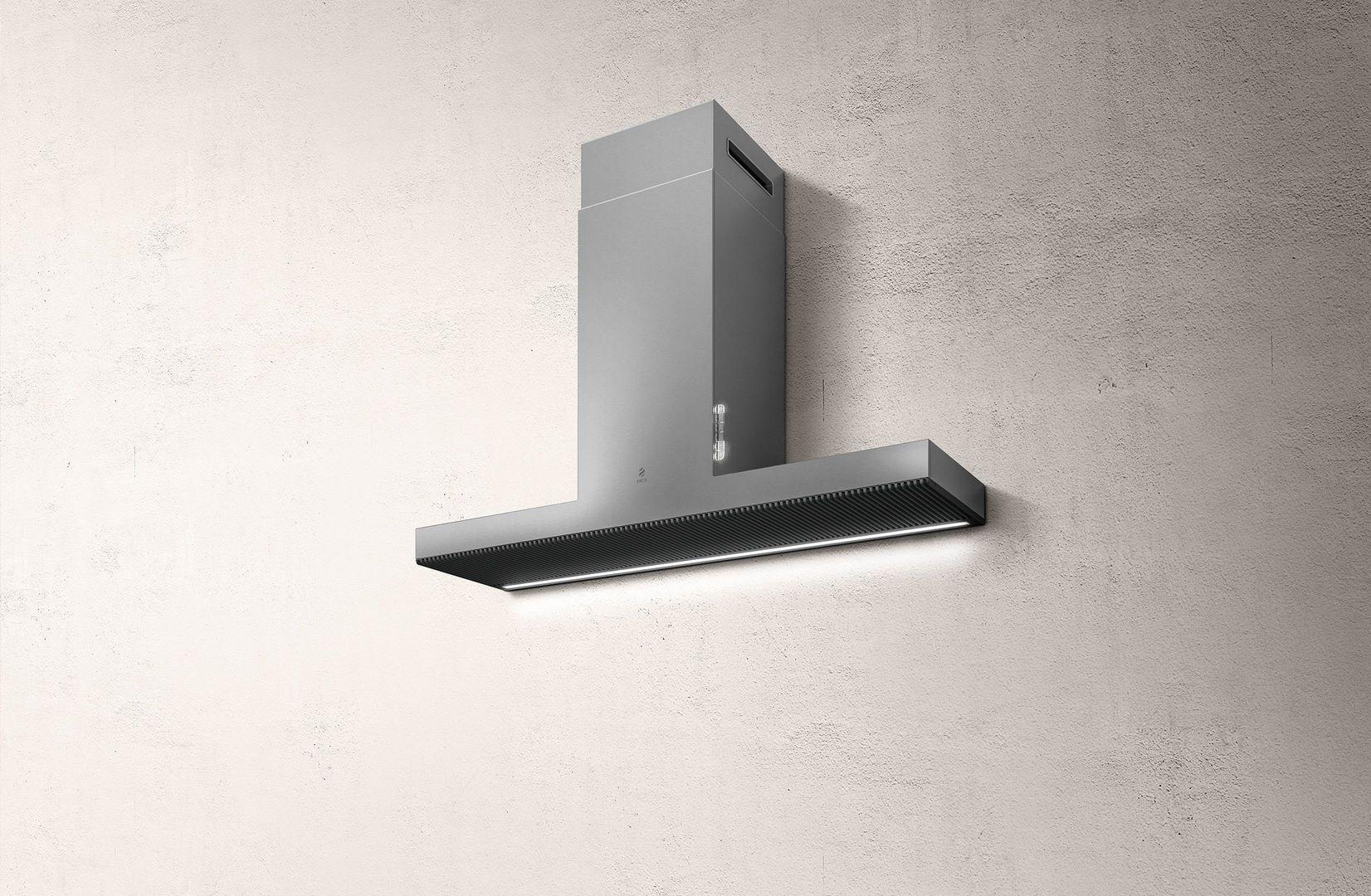

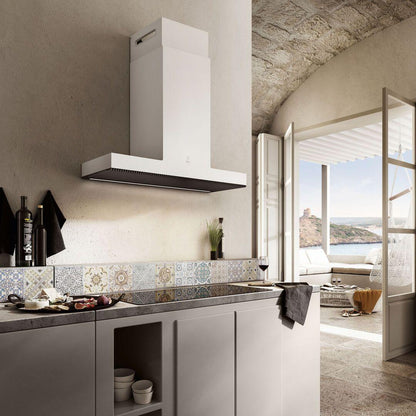

Elica EHK648SS HAIKU Wall Mount Range Hood 48" wide - 600CFM EHK648SS

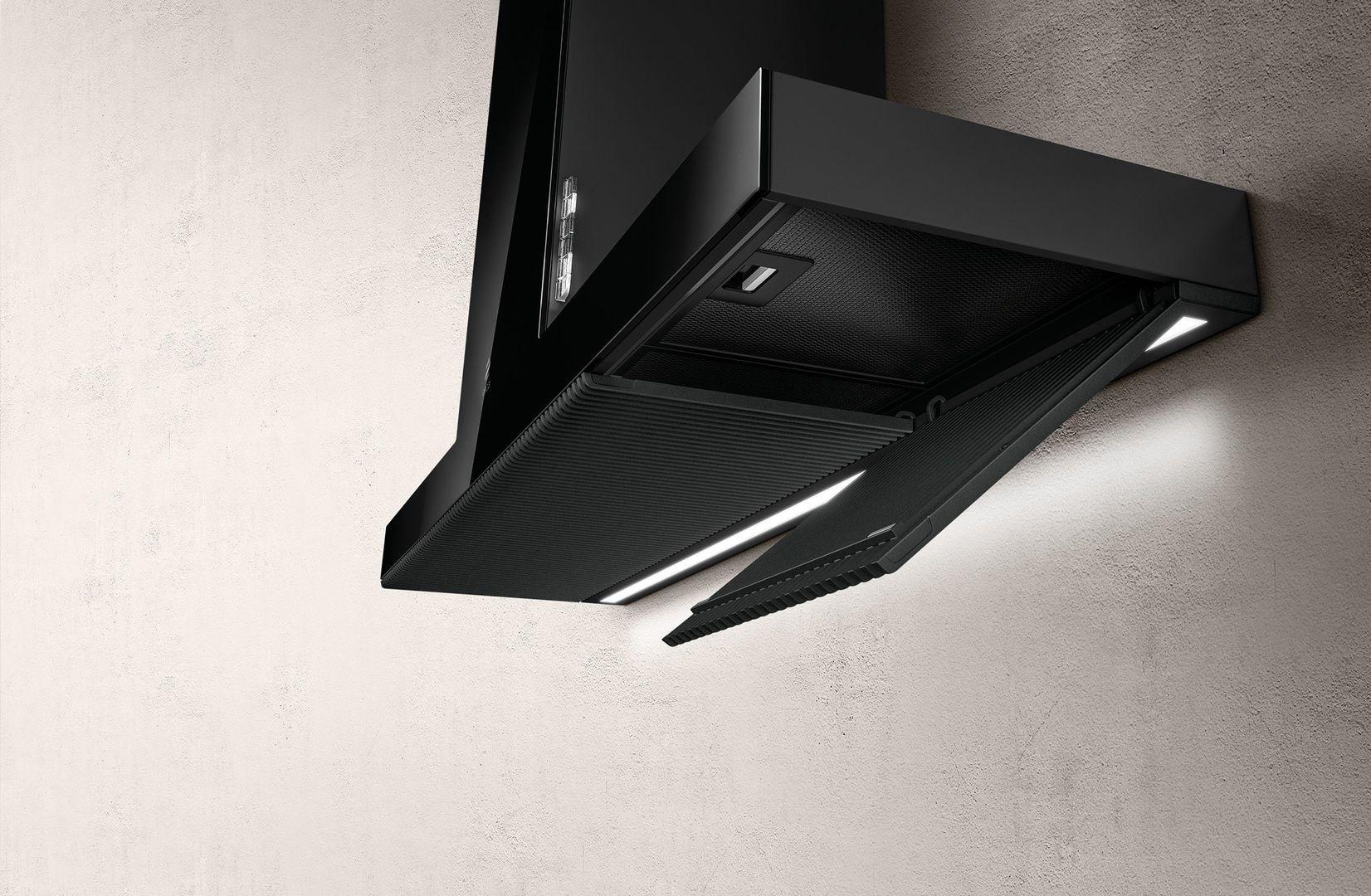

Harmony and simplicity. With its reduced depth, Haiku is a particularly ergonomic product without compromising its suction capacity. The aesthetic linearity can be seen in the cast iron eff ect aluminum grilles, which strongly characterize the product. They are easy to remove and equipped with a blocking system designed to avoid accidental falls. Haiku has the only system with adjustable depth.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	43.60
NET WEIGHT (kg)	34.30
CARTON LENGHT (mm)	781.00
CARTON HEIGHT (mm)	413.00
CARTON WIDTH (mm)	1284.00
VOLUMEN (M3)	0.40
SHIPPING WEIGHT	96.12
NET WEIGHT	75.62
CARTON LENGHT	30.75
CARTON HEIGHT	16.26
CARTON WIDTH	50.55
COUNTRY OF MANUFACTURE	PL
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	Long life filter, Special Materials, Led Light, Maintenance alarm, Total Integration, Comfort silence
WIDTH (IN)	48"
WIDTH (CM)	120.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	36.00
db (max)	55.00
SONES	1.8 - 6.8
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3.8 A
HERTZ	60.00
WATTS	460.00
LIGHTING	Strip LED 1 x 7 ww 3500 KK
BULB TYPE	Strip LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	1.00
BULB WATTS	7.00
KELVINS	3500.00
GREASE FILTER TYPE	Sophisticated Black Iron Grates + 6 Layer Mesh Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Iron
BLOWER TYPE	Interior Unit
CONTROL TYPE	Sensitive Touch Control with Backlight
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Power Cord
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	No
DIMENSIONS	120 x 32 x 83
DIMENSIONSinches	48" x 12 3/5-15 x 32"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	32"
Maximum Overall Height - Top to Bottom	49"
Overall Height - Top to Bottom	32 -49
Overall Width - Side to Side2	48"
Overall Depth - Front to Back	15
Hood Height	32"
Minimum Compatible Ceiling Height	7'3"
Maximum Compatible Ceiling Height	10'1"
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	12"
Chimney Depth - Front to Back	12"
Chimney Height - Top to Bottom	49
RECIRCULATION KIT NUMBER	CFC0141725AUL
CHIMNEY EXTENSION NUMBER	-
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	NA
UL listed	NA
AHAM verified	NA
TITLE 24	NA
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	YES
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	Activo
