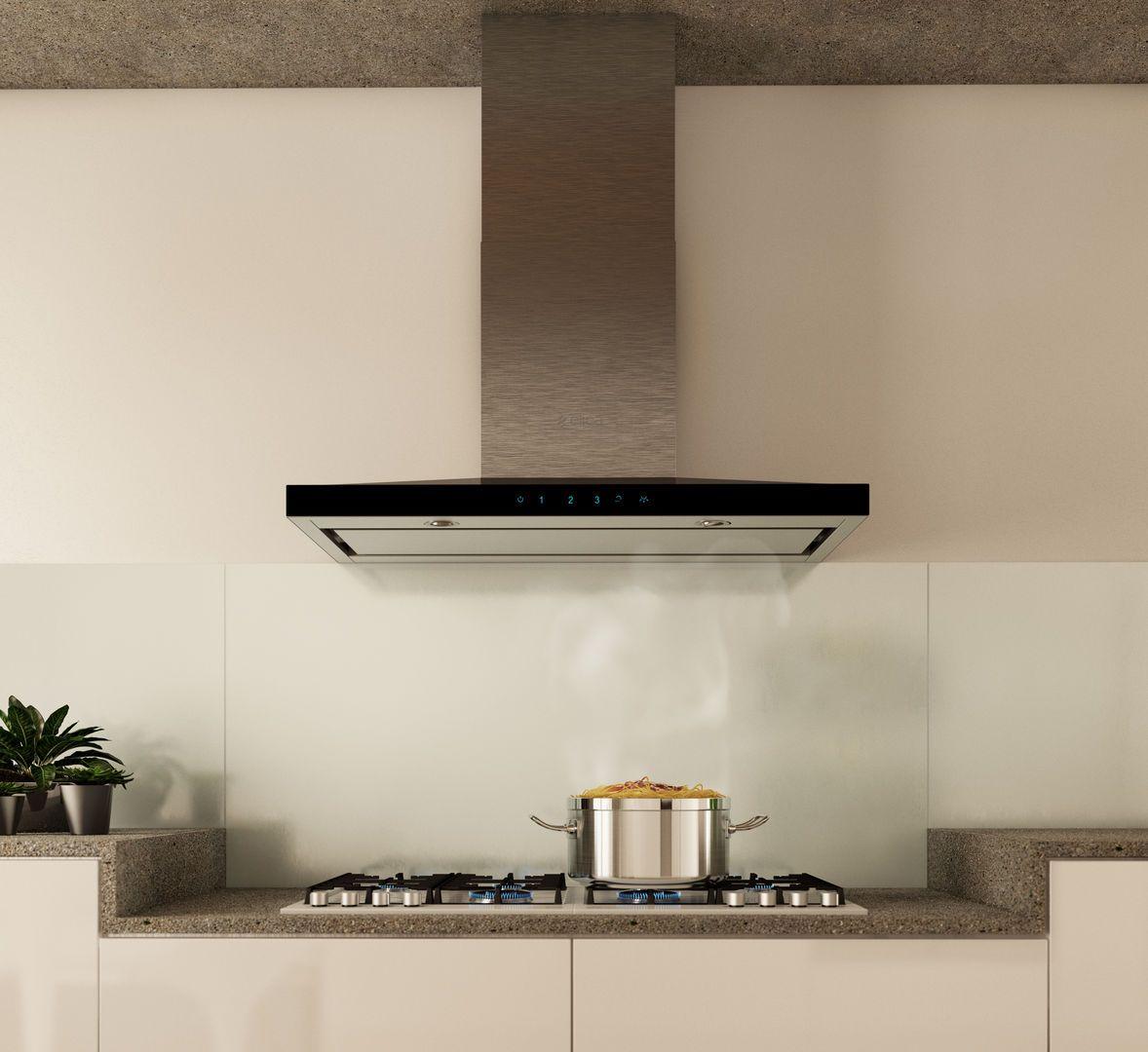

Elica ELG630S3 LUGANO Wall Mount Range Hood 30" wide - 600CFM ELG630S3

The pairing of glass and brilliant stainless steel makes Lugano ideal for any kitchen, blending perfectly with other appliances. Perimeter Aspiration technology helps achieve top performance by delivering more powerful and efficient fume extraction while reducing noise. Available in 30 and 36 widths, Lugano includes a powerful 600 CFM blower, dimmable LED lighting, and glass capacitive touch controls.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	27.00
NET WEIGHT (kg)	20.90
CARTON LENGHT (mm)	870.00
CARTON HEIGHT (mm)	673.00
CARTON WIDTH (mm)	458.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	59.52
NET WEIGHT	46.08
CARTON LENGHT	34.25
CARTON HEIGHT	26.50
CARTON WIDTH	18.03
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + Black Glass
Color	inox + glass
Type of Ventilation	Convertible
HOODS FEATURES	Led light,Dim light,Top performance,CFM reduction system,Touch controls,Hush system, Perimeter aspiration
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	32.00
db (max)	55.00
SONES	1.3 - 6.8
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3.75 A
HERTZ	60.00
WATTS	450.00
LIGHTING	Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Multi-function Electronic with black glass touch display
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	YES
DIMENSIONS	76 x50 x 63
DIMENSIONSinches	30" x 19 7/8 x 24 5/8"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	24 5/8"
Maximum Overall Height - Top to Bottom	42 1/4"
Overall Height - Top to Bottom	24 5/8" -42 1/4
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	19 7/8
Hood Height	4 9/16"
Minimum Compatible Ceiling Height	7'0"
Maximum Compatible Ceiling Height	9'2"
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	13"
Chimney Depth - Front to Back	10 3/4"
Chimney Height - Top to Bottom	39 7/8
RECIRCULATION KIT NUMBER	KIT0141925
CHIMNEY EXTENSION NUMBER	KIT01935/KIT02785
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA
