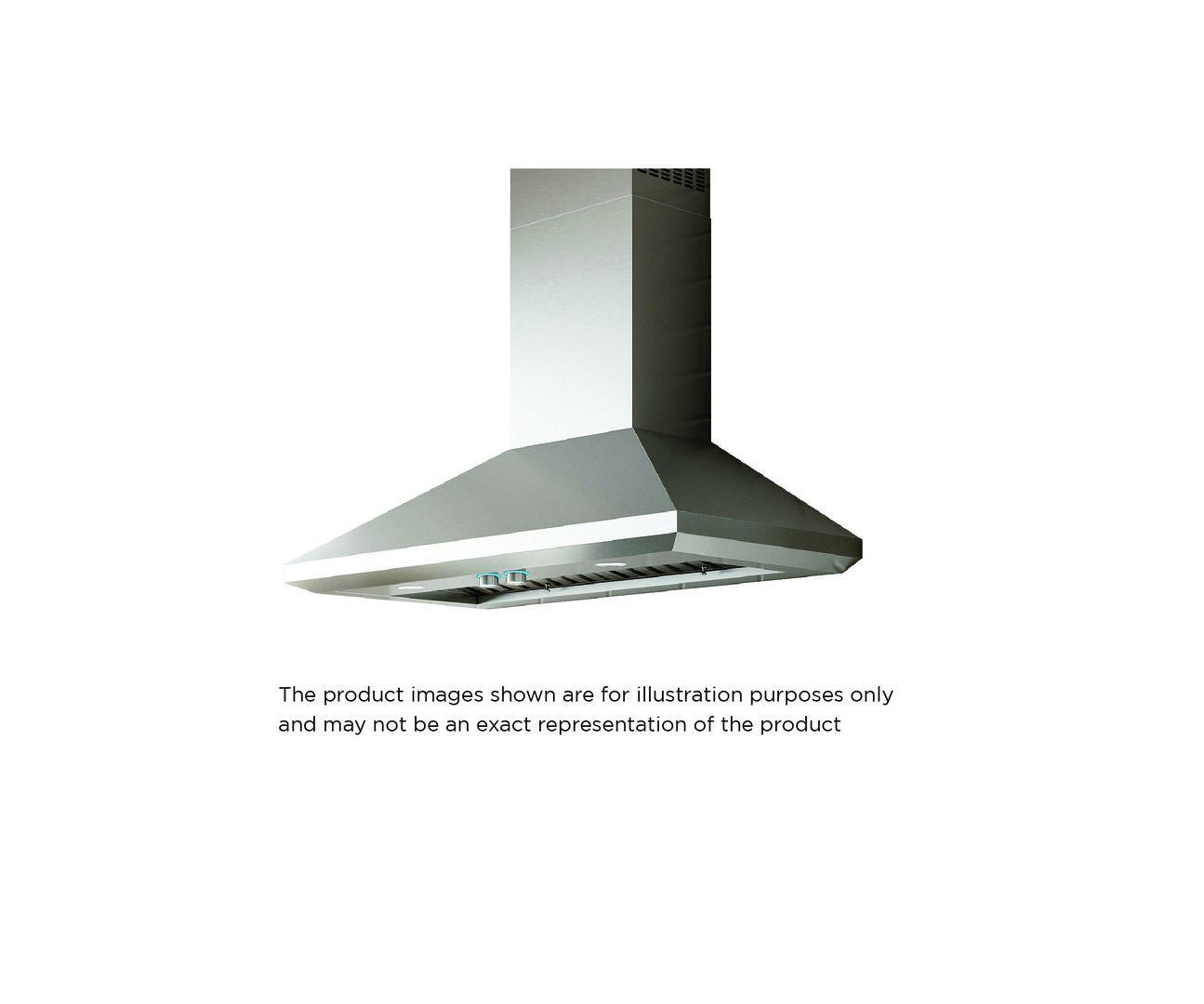

Elica ELN136S2 LEONE Wall Mount Range Hood 36" wide - 1200CFM ELN136S2

Give a splash of Italian design to your professional kitchen with Leone s crisp lines, seamless welded corner craftsmanship, beveled rim and gleaming stainless steel. Leone has the extra depth (24 ) and power (1200 CFM on 36 ,42 & 48 W) & 36 in 600 CFM needed to support professional ranges and cooktops. No ear plugs required with Leone s HUSH sound suppression system, which enables you to comfortably talk and entertain, even when cooking up a storm. Available in 30 , 36 and 42 widths, Leone features backlit hidden knob controls which operate the 4-speed blower and LED lighting.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	38.80
NET WEIGHT (kg)	32.30
CARTON LENGHT (mm)	1020.00
CARTON HEIGHT (mm)	806.00
CARTON WIDTH (mm)	456.00
VOLUMEN (M3)	0.37
SHIPPING WEIGHT	85.54
NET WEIGHT	71.21
CARTON LENGHT	40.16
CARTON HEIGHT	31.73
CARTON WIDTH	17.95
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Vented
HOODS FEATURES	Hush system, Heat guard, Grease collectors, Professional performance, Seamless look
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	2040.00
CFM (MAX)	1200.00
db (min)	35.65
db (max)	59.00
SONES	1.7 - 8.5
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 8"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	8"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	7,6 A
HERTZ	60.00
WATTS	913.00
LIGHTING	Premium LED 2 x 7.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	6.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit

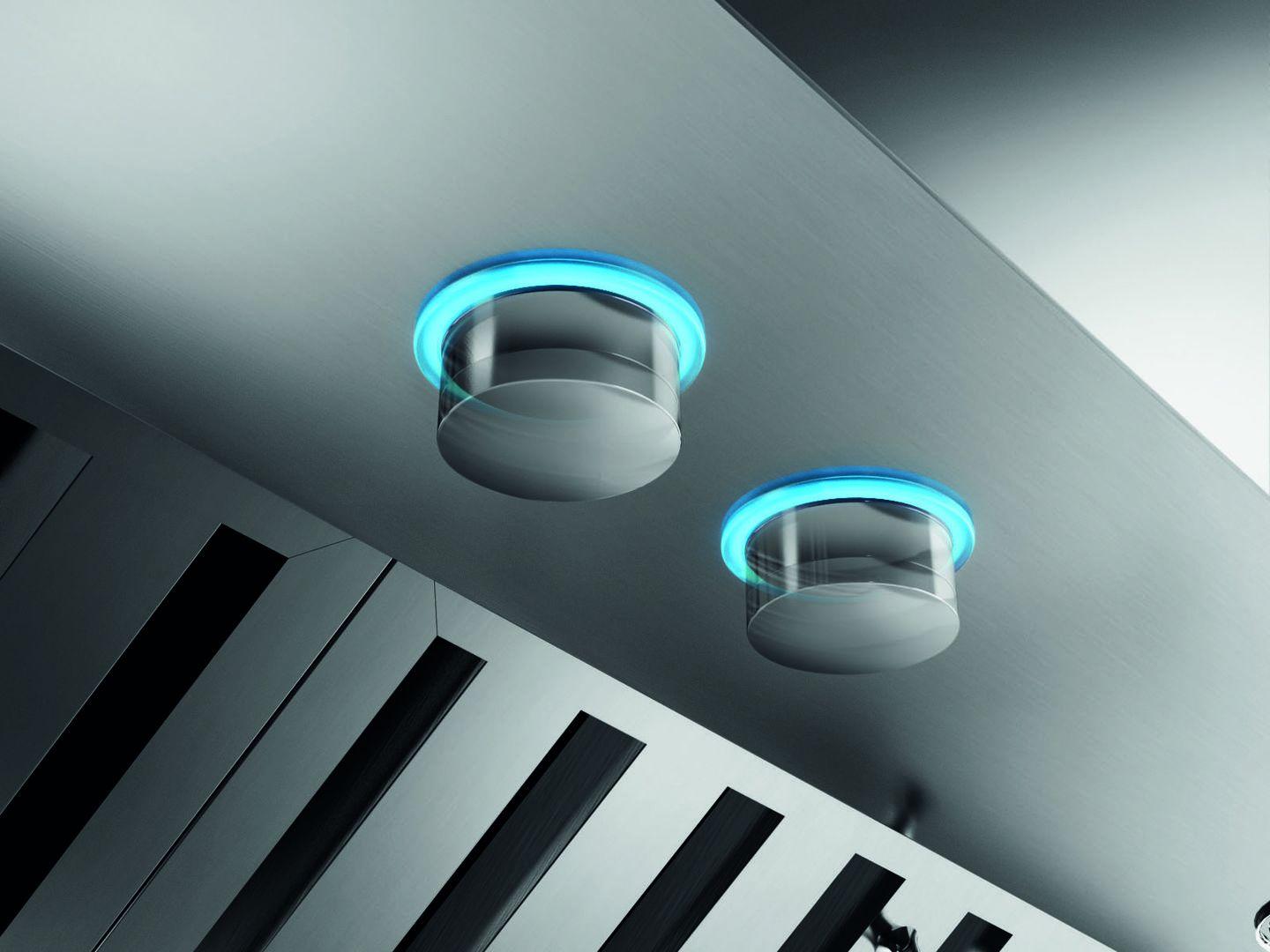

CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	NO
CFM REDUCTION	Yes w/kit
DIMENSIONS	90 x 60 x 76
DIMENSIONS inches	36" x 24 x 30"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	30"
Maximum Overall Height - Top to Bottom	47 5/8"
Overall Height - Top to Bottom	30 -47 5/8
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	24
Hood Height	12 1/8"
Minimum Compatible Ceiling Height	7'6"
Maximum Compatible Ceiling Height	10'0"
Minimum Height Above Cooktop	30"
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	13 1/8"
Chimney Depth - Front to Back	10 3/4"
Chimney Height - Top to Bottom	23 15/16"
STYLE	Modern
RECIRCULATION KIT NUMBER	KIT0192765 + KIT0192759 + KIT0204752
CHIMNEY EXTENSION NUMBER	KIT02785/KIT01935
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0185099
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	KIT0179549
EXTERNAL BLOWER SHELL KIT	KIT0179547
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65 Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	NO
CERTIFICADO NOM	No
