ELICA ELN148SS
Authorized Reseller
Elica ELN148SS LEONE Wall Mount Range Hood 48" wide - 1200CFM
Elica ELN148SS LEONE Wall Mount Range Hood 48" wide - 1200CFM
Regular price
$1,999.00
Regular price
Sale price
$1,999.00
Unit price
per
Couldn't load pickup availability
When Will I Get My Order?
- Hush system
- Heat guard
- Grease collectors
- Professional performance
- Seamless look

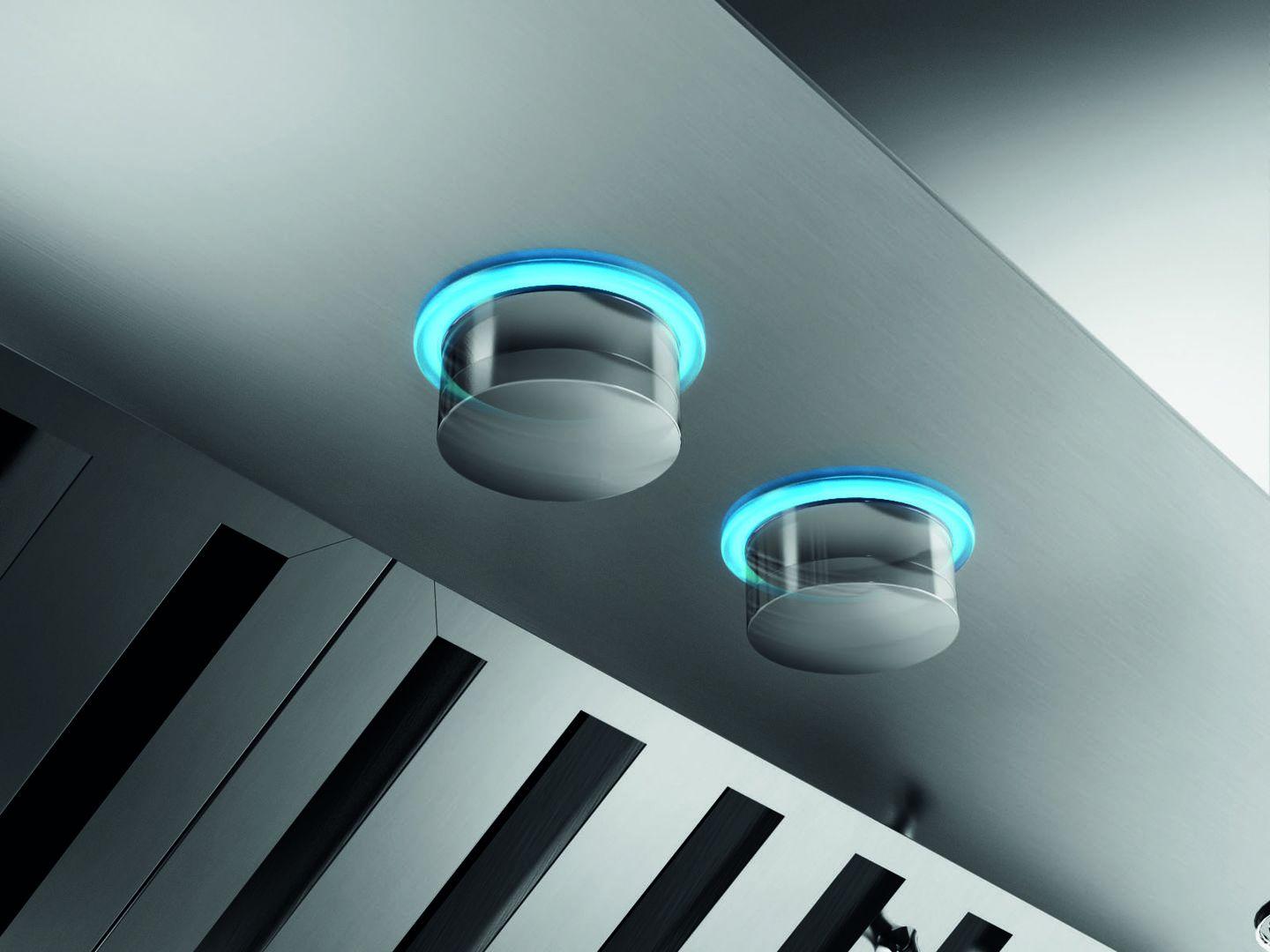

Give a splash of Italian design to your professional kitchen with Leone s crisp lines, seamless welded corner craftsmanship, beveled rim and gleaming stainless steel. Leone has the extra depth (24 ) and power (1200 CFM on 36 ,42 & 48 W) & 36 in 600 CFM needed to support professional ranges and cooktops. No ear plugs required with Leone s HUSH sound suppression system, which enables you to comfortably talk and entertain, even when cooking up a storm. Available in 30 , 36 and 42 widths, Leone features backlit hidden knob controls which operate the 4-speed blower and LED lighting.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 46.50 |
| NET WEIGHT (kg) | 37.91 |
| CARTON LENGHT (mm) | 1329.00 |
| CARTON HEIGHT (mm) | 818.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.50 |
| SHIPPING WEIGHT (lb) | 102.51 |
| NET WEIGHT (lb) | 83.56 |
| CARTON LENGHT | 52.32 |
| CARTON HEIGHT | 32.20 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Vented |
| HOODS FEATURES | Hush system, Heat guard, Grease collectors, Professional performance, Seamless look |
| WIDTH (IN) | 48" |
| WIDTH (CM) | 120.00 |
| AIRFLOW (M3/H) | 2040.00 |
| CFM (MAX) | 1200.00 |
| db (min) | 35.65 |
| db (max) | 59.00 |
| SONES | 1.7 - 8.5 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 8" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 8" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 7,6 A |
| HERTZ | 60.00 |
| WATTS | 913.00 |
| LIGHTING | Premium LED 2 x 7.5 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Fully Retractable Rotating Knobs w/ Blue Backlighting |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | NO |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS (CM) | 120 x 60 x 76 |
| DIMENSIONS (INCH) | 48" x 24 x 30" |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 30" |
| Maximum Overall Height - Top to Bottom | 47 5/8" |
| Overall Height - Top to Bottom | 30 -47 5/8 |
| Overall Width - Side to Side2 | 48" |
| Overall Depth - Front to Back | 24 |
| Hood Height | 12 1/8" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | 7'6" |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 10'0" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13 1/8" |
| Chimney Depth - Front to Back | 10 3/4" |
| Chimney Height - Top to Bottom | 35 7/16 |
| RECIRCULATION KIT NUMBER | KIT0192765 + KIT0192759 + KIT01936 |
| CHIMNEY EXTENTION NUMBER | KIT02785/KIT01935 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | KIT0185099 |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | KIT0179549 |
| EXTERNAL BLOWER SHELL KIT | KIT0179547 |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | YES |
| CHAROCAL FILTER | NO |
