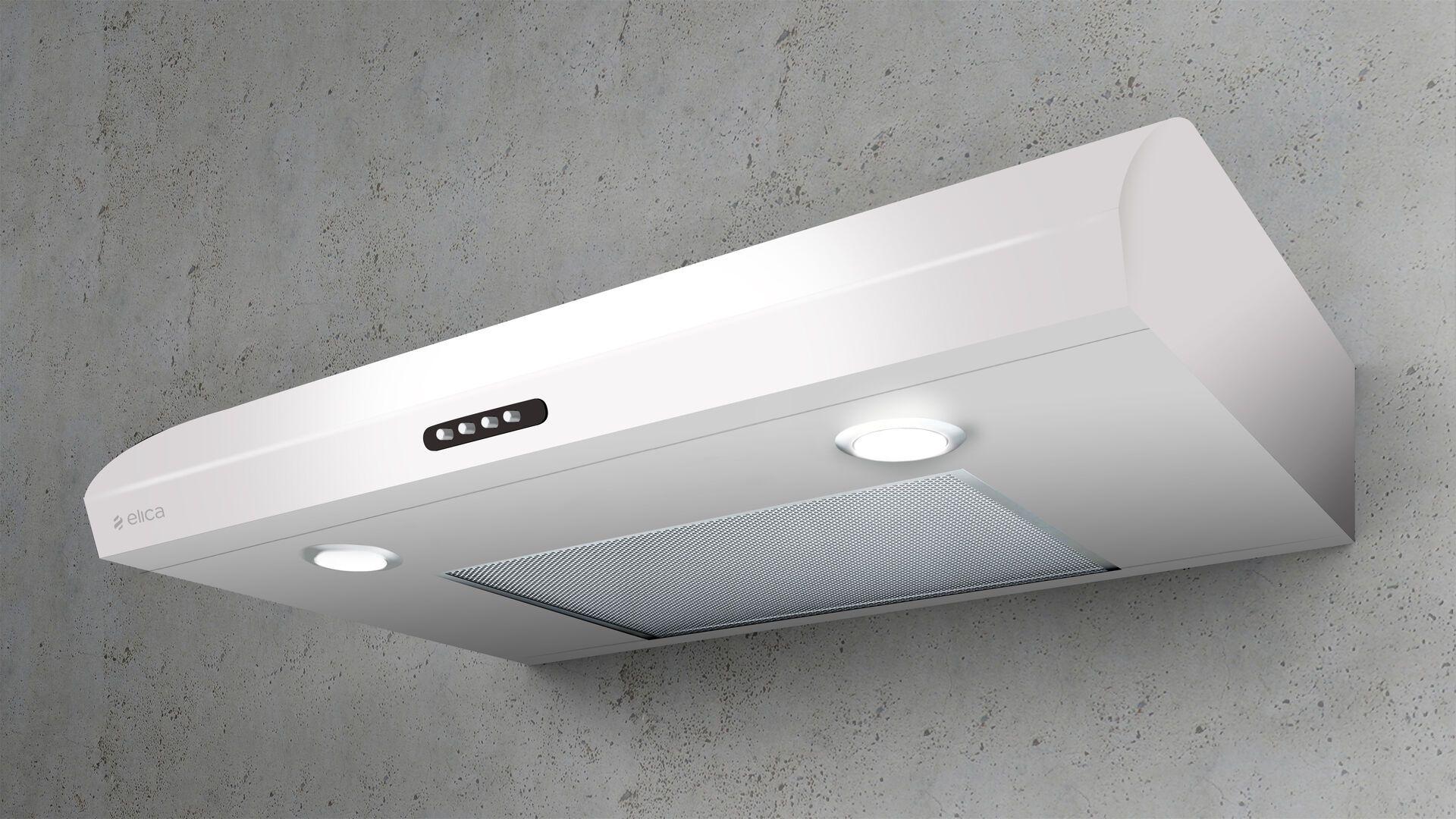

Elica ENM230W1 NEMI WHITE Undercabinet Range Hood 30" wide - 280CFM ENM230W1
Elica ENM230W1 NEMI WHITE Undercabinet Range Hood 30" wide - 280CFM
- 3x layer mesh
- Led light
Nemi colors sports a slender 5" height and soft curves, designed to modernize and perfectly fit kitchens where space is premium. It features a 3-speed, 280 CFM internal blower, which provides sufficient ventilating power for most kitchens. The stainless-steel push-button controls allow for easy adjustment of blower speeds and dual LED lamps. A single dishwasher-safe anodized aluminum mesh filter is easy to clean. Available in Black and White, Nemi colors is designed for standard ducted installation and can be installed as a recirculating system, using the Recirculating Kit, available as an accessory.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 8.80 |
| NET WEIGHT (kg) | 7.80 |
| CARTON LENGHT (mm) | 173.00 |
| CARTON HEIGHT (mm) | 536.00 |
| CARTON WIDTH (mm) | 803.00 |
| VOLUMEN (M3) | 0.10 |
| SHIPPING WEIGHT | 19.40 |
| NET WEIGHT | 17.20 |
| CARTON LENGHT | 6.81 |
| CARTON HEIGHT | 21.10 |
| CARTON WIDTH | 31.61 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | White |
| Color | white matte |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh,Led light |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 475.00 |
| CFM (MAX) | 280.00 |
| db (min) | 32.00 |
| db (max) | 51.00 |
| SONES | 1.3 - 4.9 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 7" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 1.1 A |
| HERTZ | 60.00 |
| WATTS | 210.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Backlit Electronic Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | NA |
| DIMENSIONS | 76 x 47 x 12.5 |
| DIMENSIONSinches | 30" x 18 5/8" x 5" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 5" |
| Maximum Overall Height - Top to Bottom | 4 5/16 |
| Overall Height - Top to Bottom | 4 5/16 |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 18 5/8" |
| Hood Height | 5" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02179 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | KIT02722 |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | KIT02723 |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
