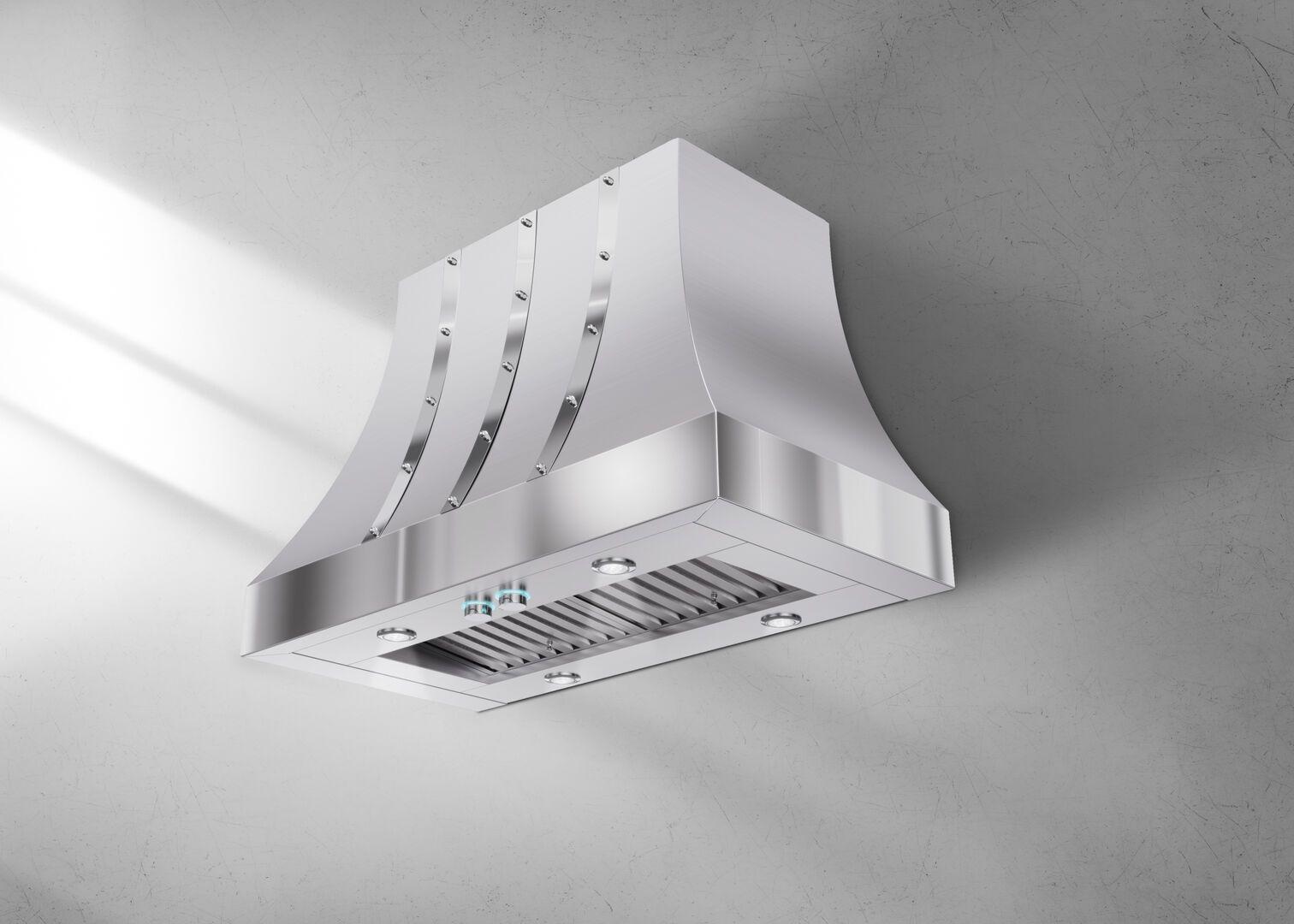

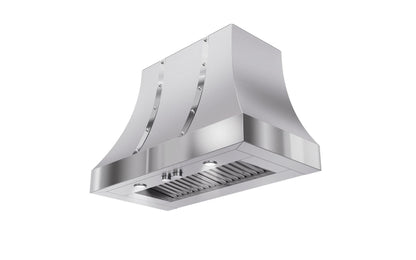

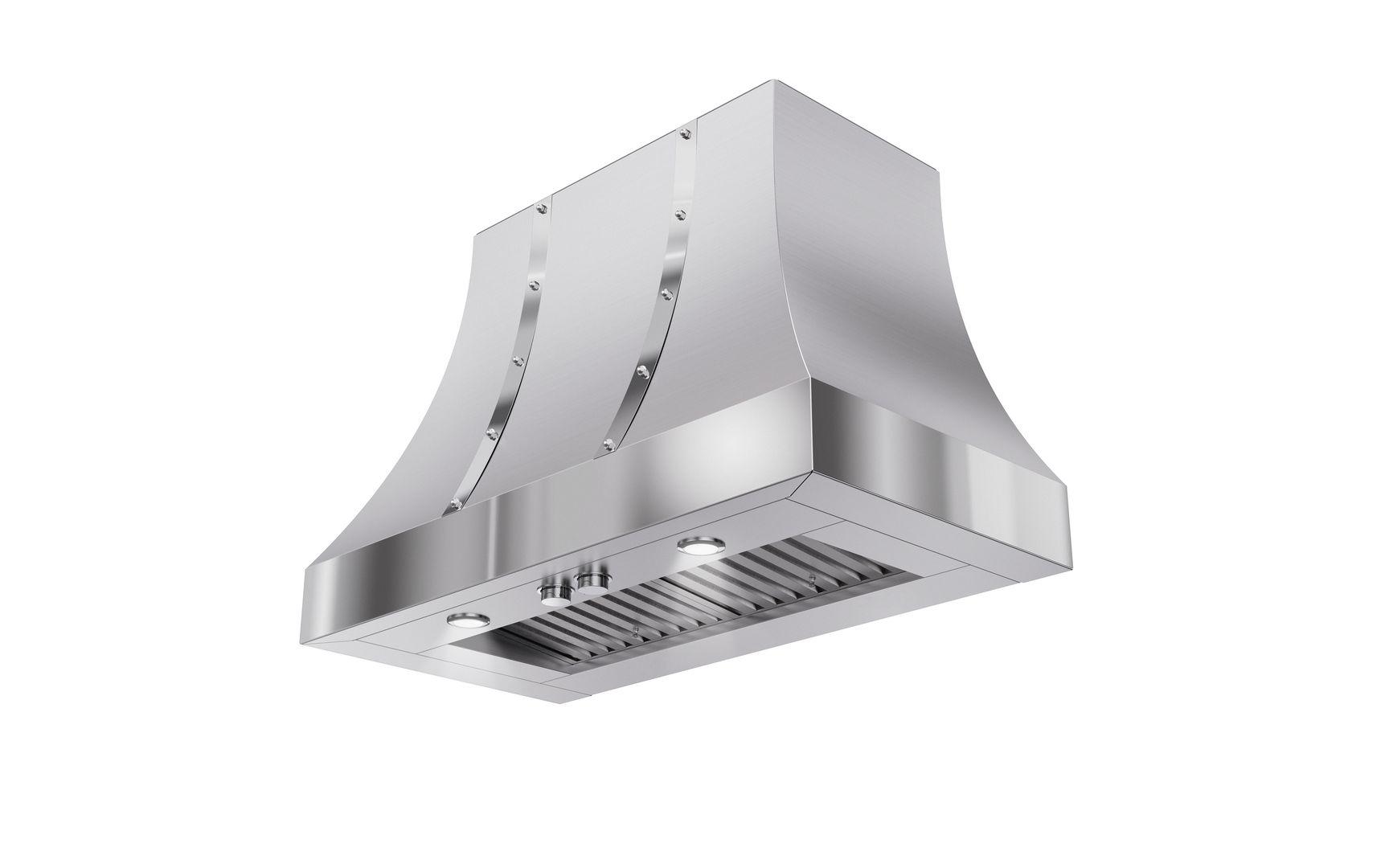

Elica EORX48SS ORISTANO Wall Mount Range Hood 48" wide - NACFM EORX48SS

Inspired by the traditional architecture, glistening warm waters, and the relaxed pace of Oristano, the capital city of Sardinia Italy, Oristano has a tapered shape, seamless flow, mirrored stainless front rim, and decorative banding & rivets that deliver a statement and complement even the most exquisite kitchens. Designed to support those with a passion for food & gourmet cooking, Oristano can be equipped with 600 or 1200 CFM blowers, soft LED lighting, plus Elica s patented HUSH sound suppression system will keep the conversation going. Available in 36 and 48 widths, and built with Italian craftsmanship and precision equipment that delivers seamless welding that is flawless, and a superior fit & finish that is noticeable. The patented Easy Mounting system enables the hood to be installed in just 6 easy steps, and ducting out the rear wall is now possible.

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	45.40
NET WEIGHT (kg)	36.90
CARTON LENGHT (mm)	1359.50
CARTON HEIGHT (mm)	1013.50
CARTON WIDTH (mm)	745.50
VOLUMEN (M3)	1.00
SHIPPING WEIGHT	100.09
NET WEIGHT	81.35
CARTON LENGHT	53.52
CARTON HEIGHT	39.90
CARTON WIDTH	29.35
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Vented
HOODS FEATURES	Hush system,Heat guard,Grease collectors,Seamless look Professional performance,Elica easy mounting,Rear outlet installation
WIDTH (IN)	48"
WIDTH (CM)	120.00
AIRFLOW (M3/H)	1020/2040
CFM (MAX)	600/1200
db (min)	36.00
db (max)	56 / 59
SONES	1.7-7.0 / 1.7-8.5
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6" / Round 8"
DUCT SHAPE	NA
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"/8"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	NA
HERTZ	NA
WATTS	NA
LIGHTING	NA
BULB TYPE	NA
BULB INCLUDED	NA
NUMBER OF LIGHTS	NA
BULB WATTS	NA
GREASE FILTER TYPE	NA
DISHWASHERSAFE FILTER	NA
FILTER MATERIAL	NA
BLOWER TYPE	Needs Pairing with Arezzo Insert
CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	NA
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	NO
CFM REDUCTION	NA
DIMENSIONS	120 x 61 x 79
DIMENSIONSinches	48" x 24 x 30"
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	30"
Maximum Overall Height - Top to Bottom	30"
Overall Height - Top to Bottom	30"
Overall Width - Side to Side2	48"
Overall Depth - Front to Back	24
Hood Height	30"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	30 4/5"
Chimney Depth - Front to Back	17 7/32"
Chimney Height - Top to Bottom	24 1/4
RECIRCULATION KIT NUMBER	NA
CHIMNEY EXTENSION NUMBER	KIT0182783/KIT0182784
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	NO
CERTIFICADO NOM	NA
