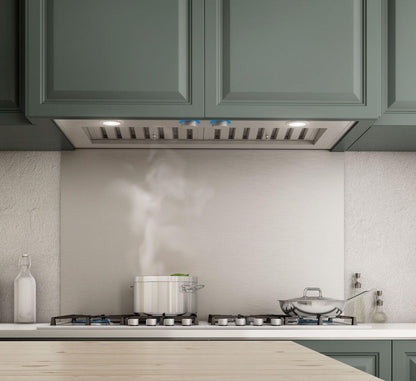

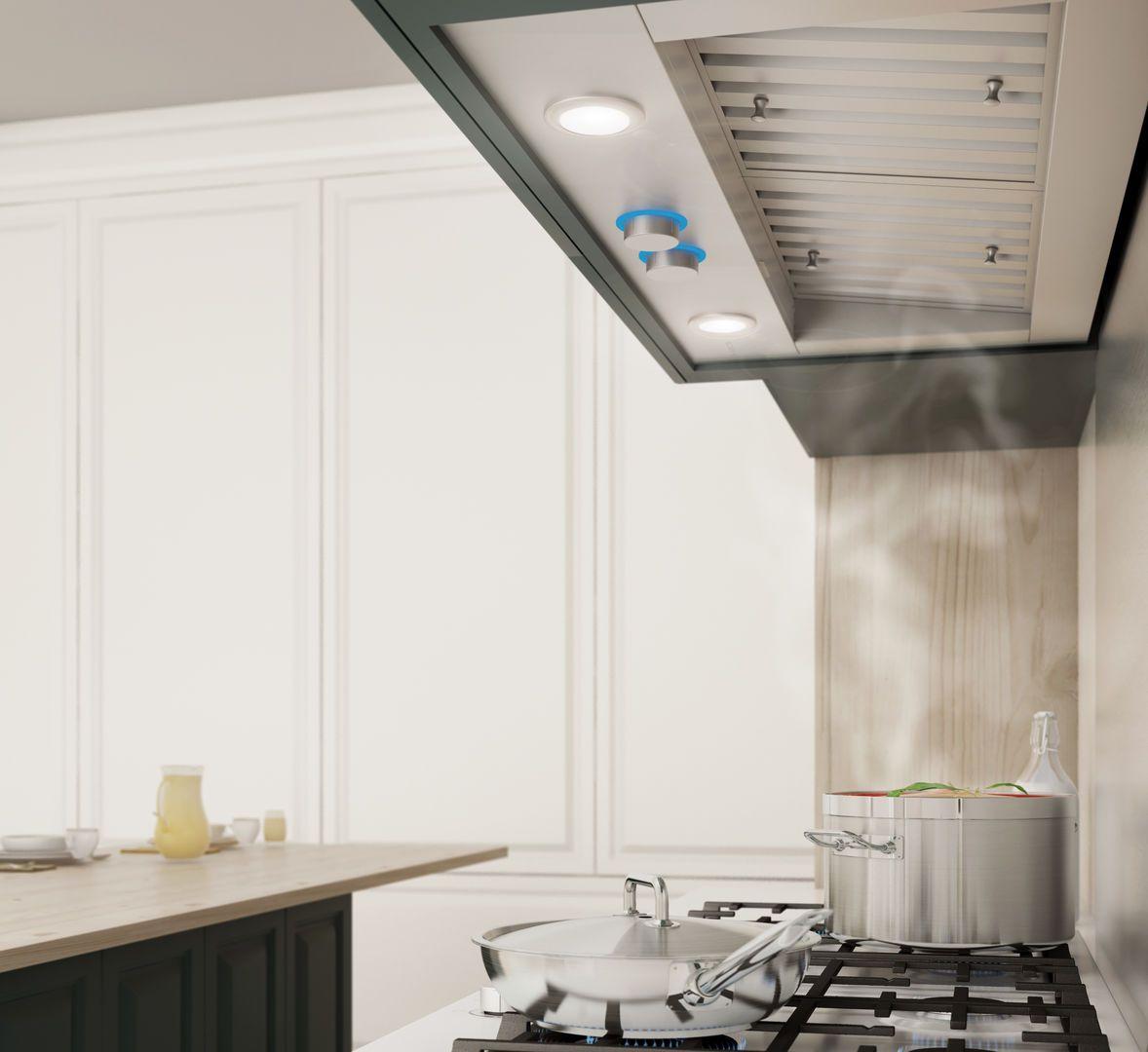

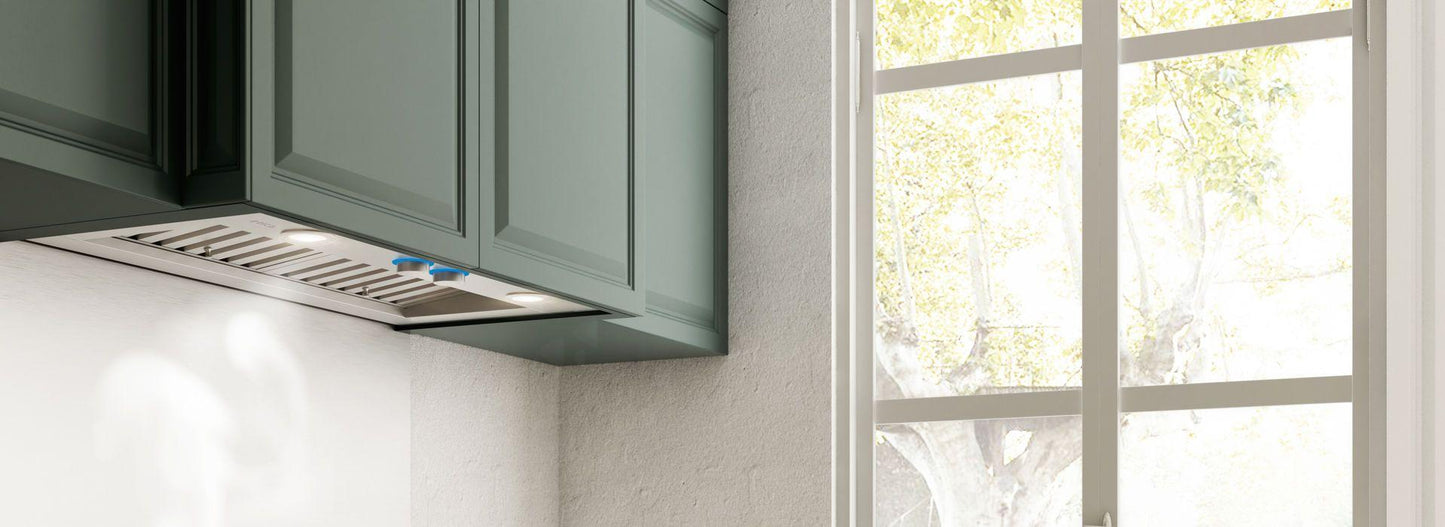

Elica ETR134S1 TRENTO Insert Range Hood 34 1/2 wide - 1200CFM ETR134S1

Trento provides professional grade performance, while being discreetly mounted inside the cabinetry. It is available with a 600 CFM or 1200 CFM blower for extraordinary ventilating power. Plus, the All-In-One design avoids the need to purchase a stainless liner. Hidden metallic in/out knob controls operate the 4-speed blower and LED lighting. A cleaner kitchen is ensured by Elica's patented angled baffle filters, which capture a higher percentage of contaminants and hold larger volumes of grease than traditional baffle filters. *Damp-location approved

Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	31.70
NET WEIGHT (kg)	22.70
CARTON LENGHT (mm)	1050.00
CARTON HEIGHT (mm)	421.00
CARTON WIDTH (mm)	699.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	69.89
NET WEIGHT	50.04
CARTON LENGHT	41.34
CARTON HEIGHT	16.57
CARTON WIDTH	27.52
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Color	inox
Type of Ventilation	Vented
HOODS FEATURES	Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN)	34
WIDTH (CM)	86.00
AIRFLOW (M3/H)	2040.00
CFM (MAX)	1200.00
db (min)	36.00
db (max)	59.00
SONES	1.7 - 8.5
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 8"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	10"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	7.6 A
HERTZ	60.00
WATTS	913.00
LIGHTING	LED 4 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	6.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Stainless Steel
BLOWER TYPE	Interior Unit

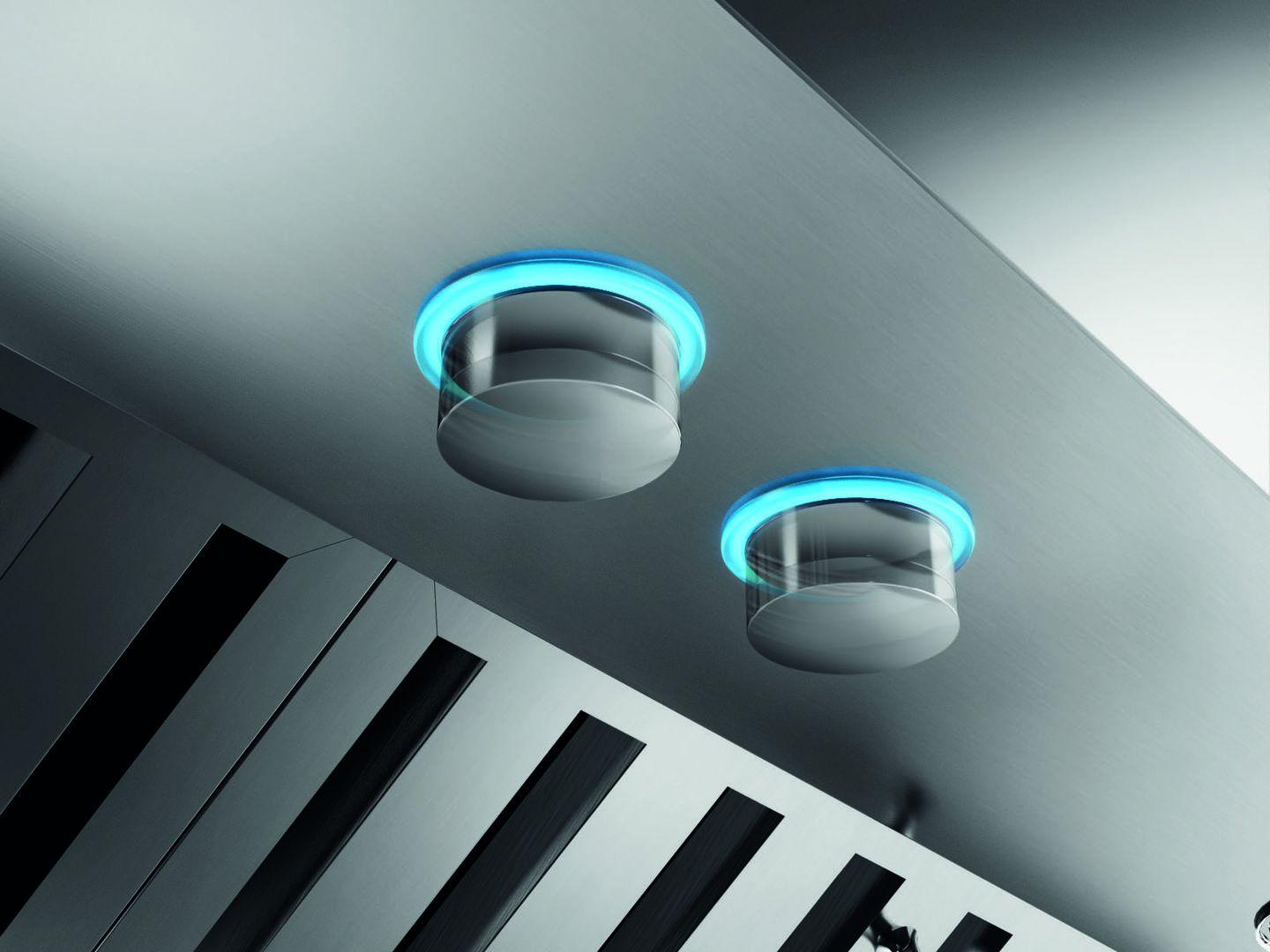

CONTROL TYPE	Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL	YES
NUMBER OF SPEEDS	4.00
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	NO
CFM REDUCTION	Yes w/kit
DIMENSIONS	88 x 46 x 28
DIMENSIONSinches	34 1/2 x 18" x 11 7/8
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	11 7/8"
Maximum Overall Height - Top to Bottom	17 /16
Overall Height - Top to Bottom	11 7/8"
Overall Width - Side to Side2	11 7/8"
Overall Depth - Front to Back	18"
Hood Height	11 7/8"
Minimum Compatible Ceiling Height	NA
Maximum Compatible Ceiling Height	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT0192765+KIT0192763
CHIMNEY EXTENSION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0185099
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	KIT0179549
EXTERNAL BLOWER SHELL KIT	KIT0179547
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	NO
TITLE 24	NO
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	YES
CHAROCAL FILTER	NO
CERTIFICADO NOM	NA
