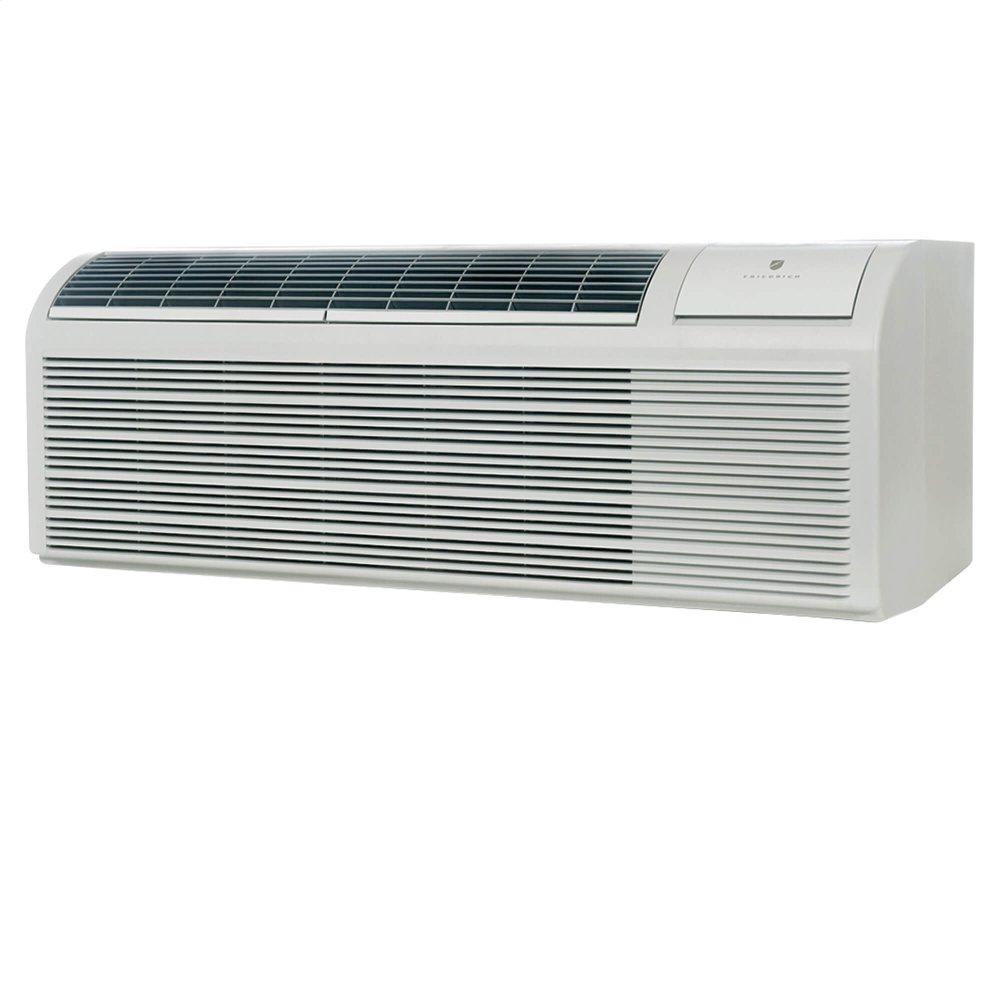

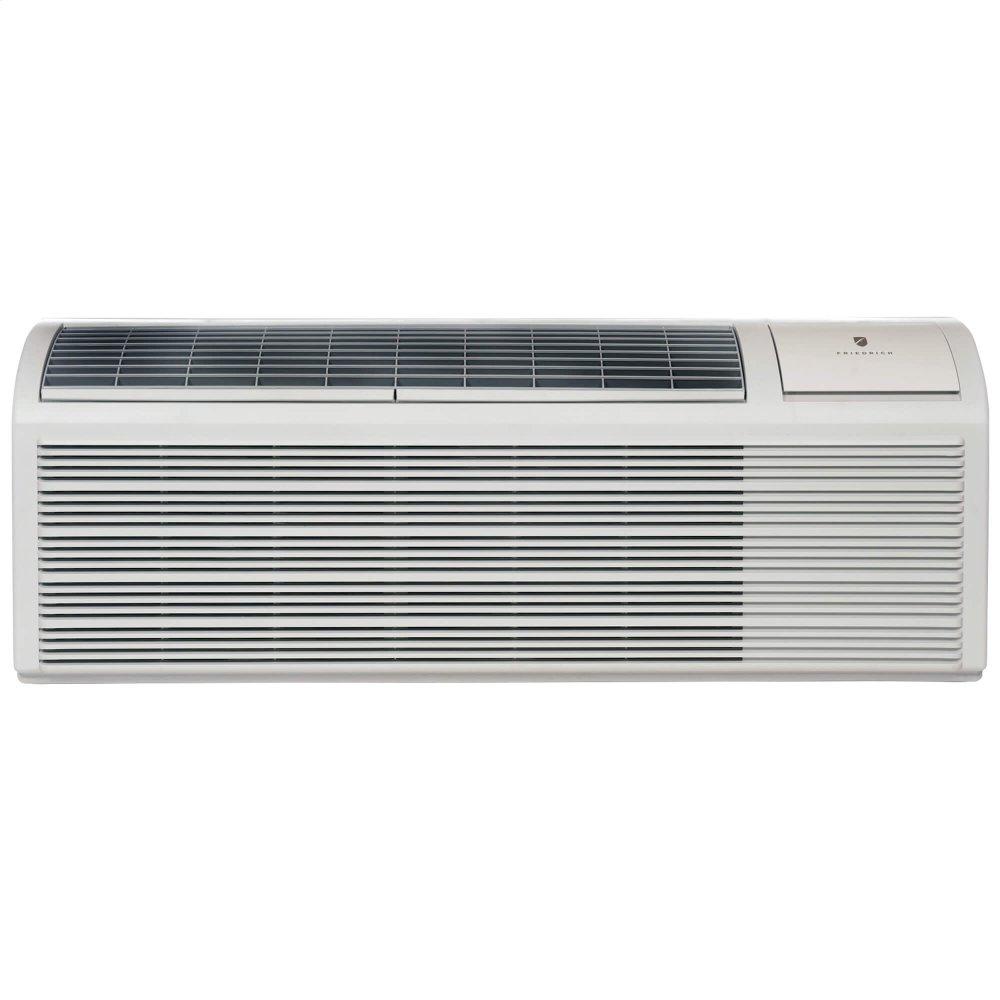

Friedrich PDH12K3SG ZoneAire Premier PDH12K3SG PDH12K3SG
Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire ® Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu. Breathe easy with the all-new line-up of FreshAire ® IAQ accessories to deliver healthy indoor air.
Durable Construction
Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and are oven-cured at high temperature for exceptional durability. Stainless Steel endplates reduce corrosion of the outdoor coil.
Energy Efficiency
Friedrich PTACs feature a super-efficient refrigeration design with EERs up to 13.0 and COP up to 3.6. Energy efficient heat pump models are also available in our complete line.
Comfort & Convenience

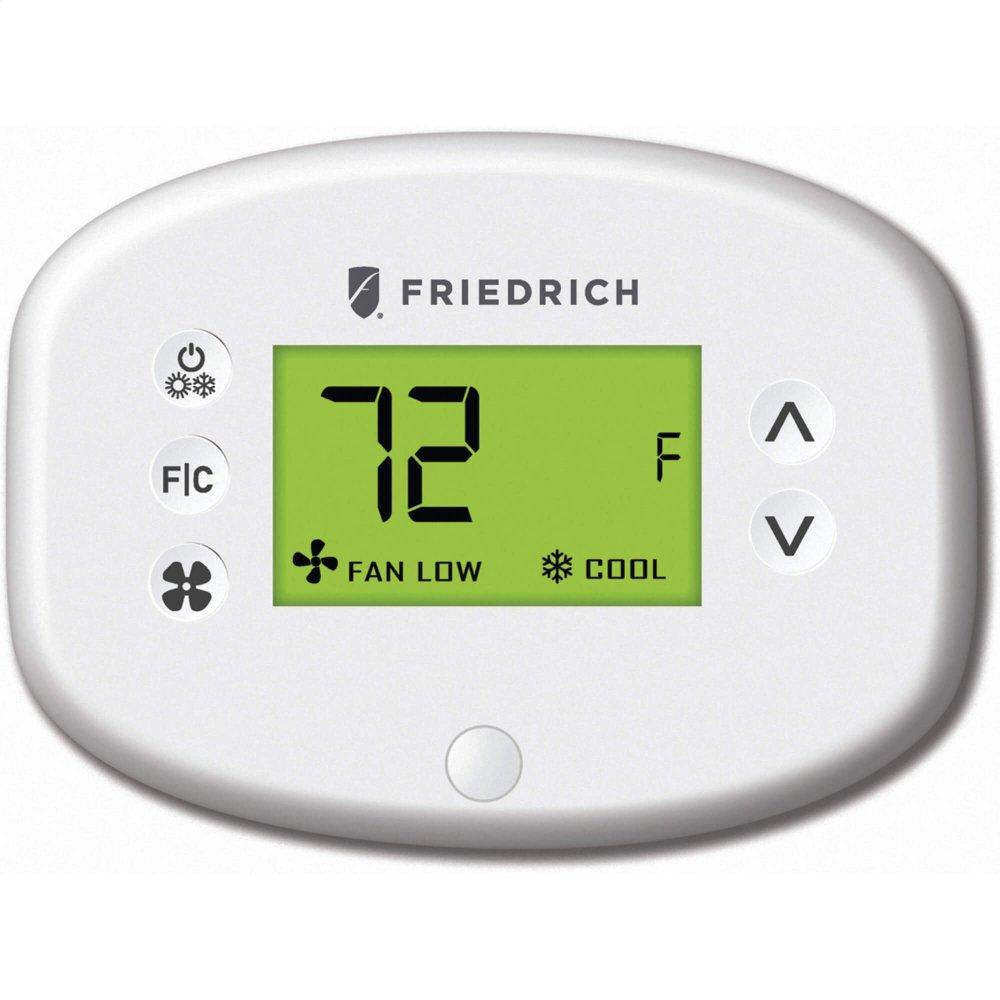

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Quietmaster ® Technology
Building the quietest air conditioners begins with the design process and continues through the selection of superior components and materials. It is shaped by skilled manufacturing and refined through on- going product testing in our engineering lab.
The result is a noticeably quieter cooling and heating experience.
FreshAire ® IAQ Ready
FreshAire ® IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product is compatible with FreshAire ® UV, and FreshAire ® Purifier by iWave. Click here for more information on our FreshAire solutions.
Sound Reduction Technology
Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.
Warranty & Support
Friedrich's industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
Model | PDH12K3SG |
Operation | Cool/Heat Pump |
Cooling BTU | 11800/11600 |
Reverse Heating BTU | 10600/10400 |
Voltage | 230/208 |
EER | 11.6/11.6 |
COP @ 47°F | 3.4/3.4 |
REFRIGERANT | R-410A |
