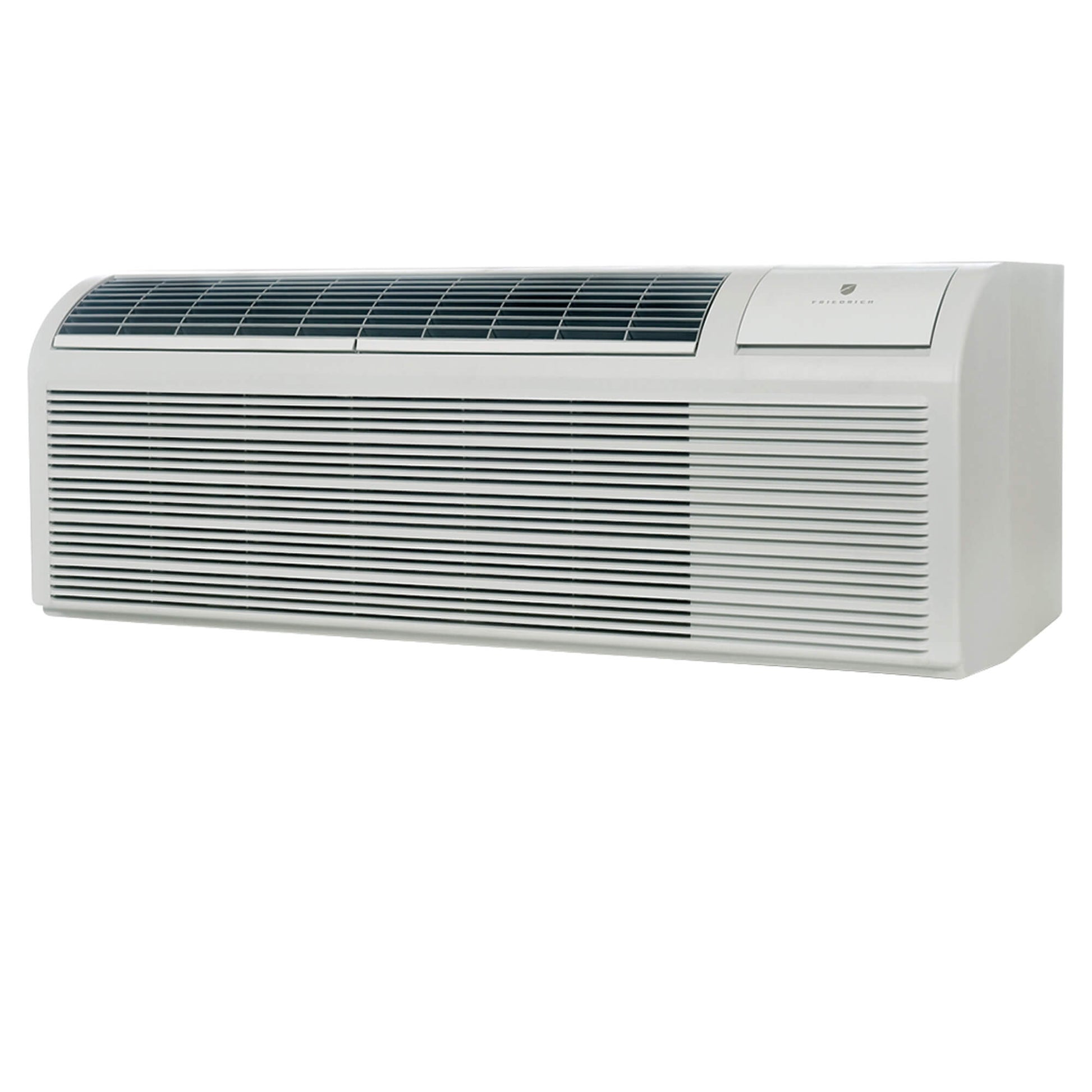

PVH12K3FC Friedrich FreshAire 12,000 BTU 230V Packaged Terminal Air Conditioner with Heat Pump
PVH12K3FC Friedrich FreshAire 12,000 BTU 230V Packaged Terminal Air Conditioner with Heat Pump
Couldn't load pickup availability
When Will I Get My Order?
The most advanced PTAC ever.
Inverter compressor, award-winning and patented FreshAire ® make-up air system to help achieve ASHRAE 62.1 standards, ultra-quiet operation with the highest STC ratings in the industry*, and optional FreshAire ® IAQ accessories for healthy indoor air quality. FreshAire ® PTAC is not just best in class, it's in a class of its own.
*amongst PTACs with make-up air
Conditioned Fresh Air
Friedrich's FreshAire ® PTAC system helps achieve ASHRAE 62.1-2013 requirements, and brings up to 52 CFM of conditioned, MERV 8 filtered, outside air into the space. Patents-pending technology uses the inverter compressor and main cooling system to optimize temperature and humidity level of incoming air.
Precision Inverter ® Technology
Precision Inverter ® variable speed compressors deliver efficiencies up to 13 EER and a 15 SEER equivalent. Compressors operate down to 20% of rated capacity, or up to 120%, matching the unit output to the actual demand of the space for increased comfort and lower energy consumption.
Widest Cooling & Heating Range in the Industry

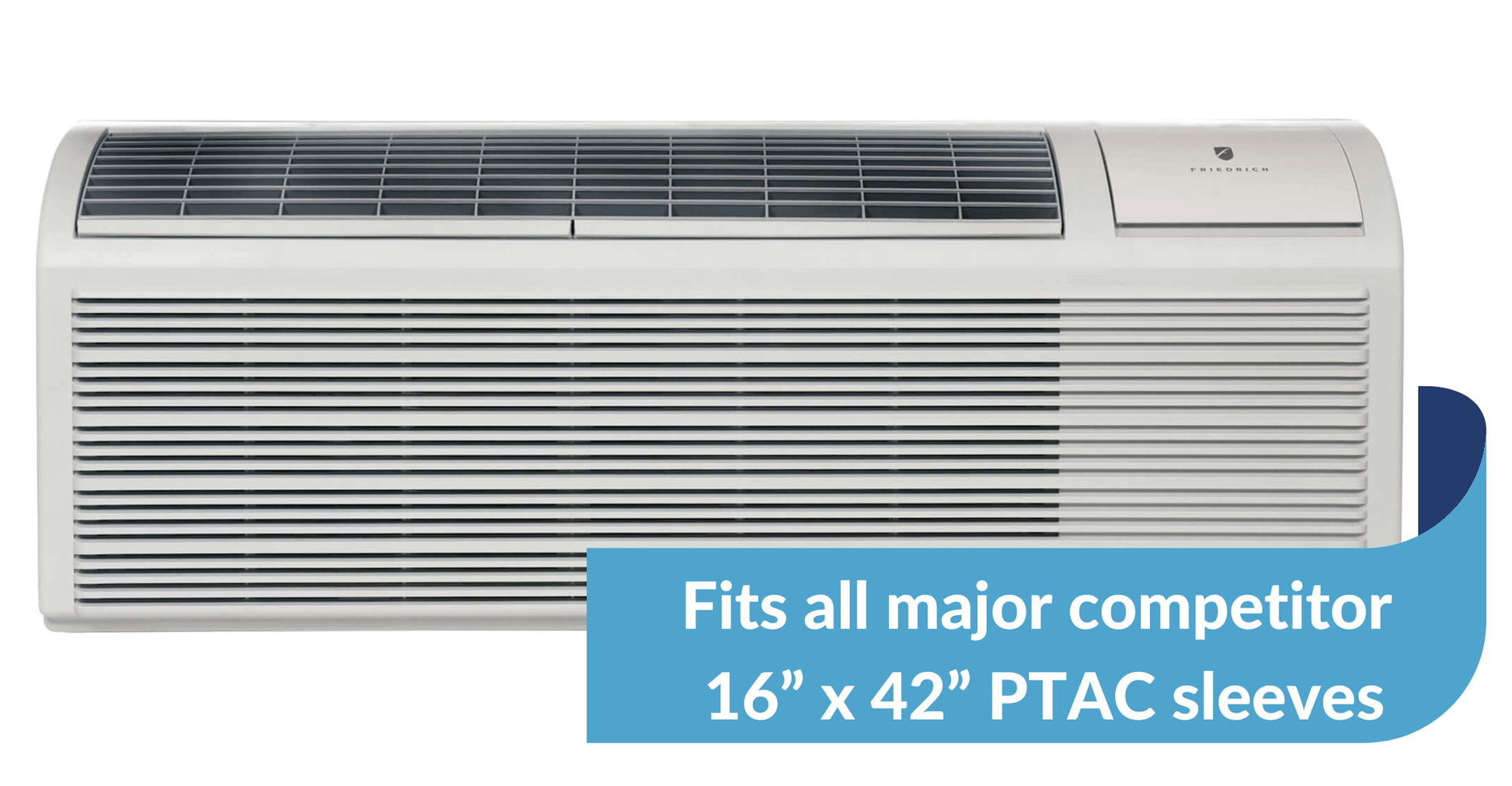

Variable speed technology gives you the flexibility of a full line of PTACs with only two models, and offers the highest available capacity of any 42x16 PTAC on the market at over 17000 Btus.
FreshAire ® IAQ Ready
FreshAire ® IAQ is a suite of indoor air quality (IAQ) accessories for use with Friedrich Air Conditioners, all with one dedicated purpose - healthy indoor air. This product includes our patented FreshAire ® make-up system and is compatible with FreshAire ® Purifier by iWave. Click here for more information on our FreshAire solutions.
The Smoothest PTAC Sound Available
The variable-speed operation of the FreshAire PTAC allows the unit to work at the optimal speed to match the true load of the room. This not only provides the best energy consumption curve but it also adds to guest comfort by eliminating the harsh start-ups associated with single speed compressors.
Comfort & Convenience
Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
Maintenance and Installation
Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System securely attaches the front each time. Unit may be installed low to the floor.
| Category | Packaged Terminal Air Conditioner |
| Product Marketing Name | Friedrich FreshAire PTAC |
| Energy Star Qualified | - |
| Operation | Cool / Heat Pump |
| Cooling Capacity (BTUh) | 12,000/11,800 |
| Heat Pump Capacity (BTUh) | 11,700/11,700 |
| Electric Heat Capacity (BTUh) | - |
| Voltage | 230V/208V |
| EER(2) | 11.5 |
| CEER | - |
| Cooling Area (Sq Ft.) | Up to 550 |
| SEER(2) | - |
| Unit W inches 1/8ths | 42" |
| Unit H inches 1/8ths | 16" |
| Unit D inches 1/8ths | 21 1/2" |
| Refrigerant | R-32 |
