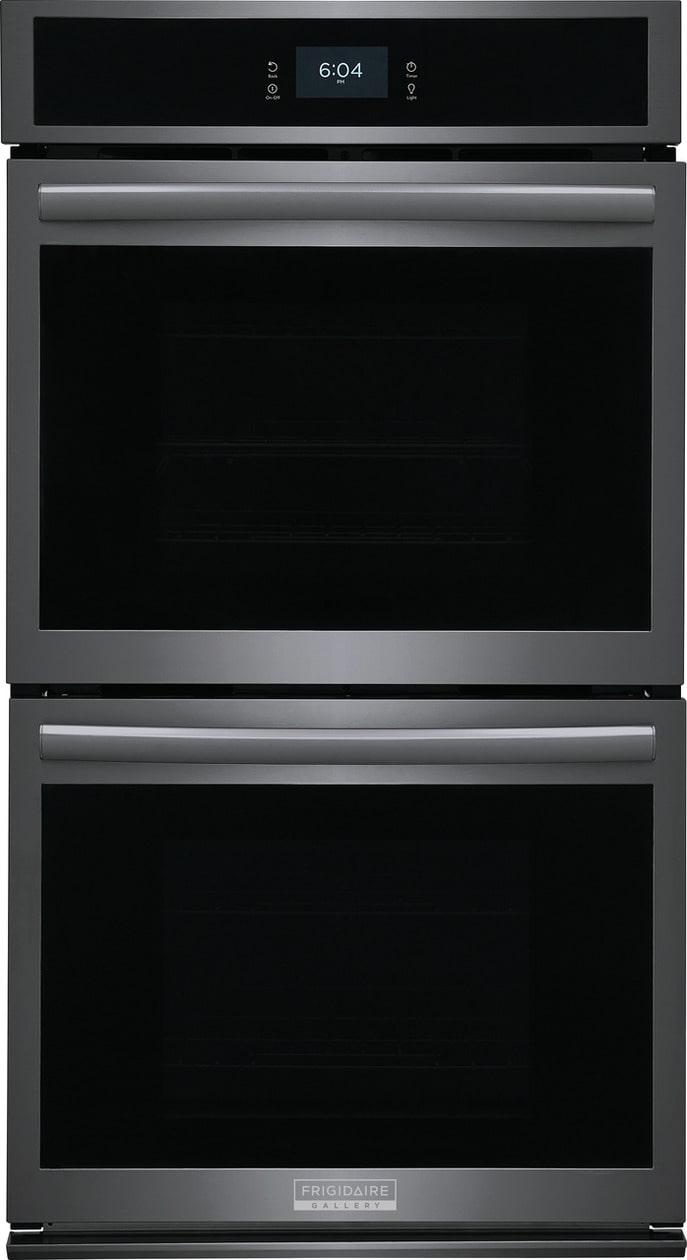

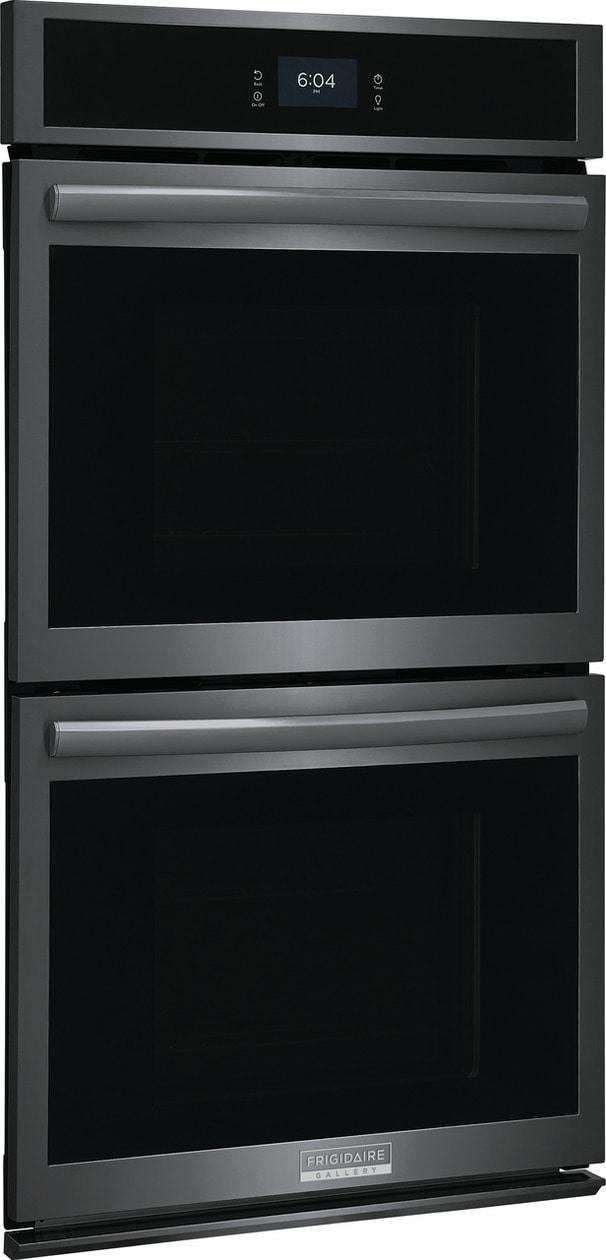

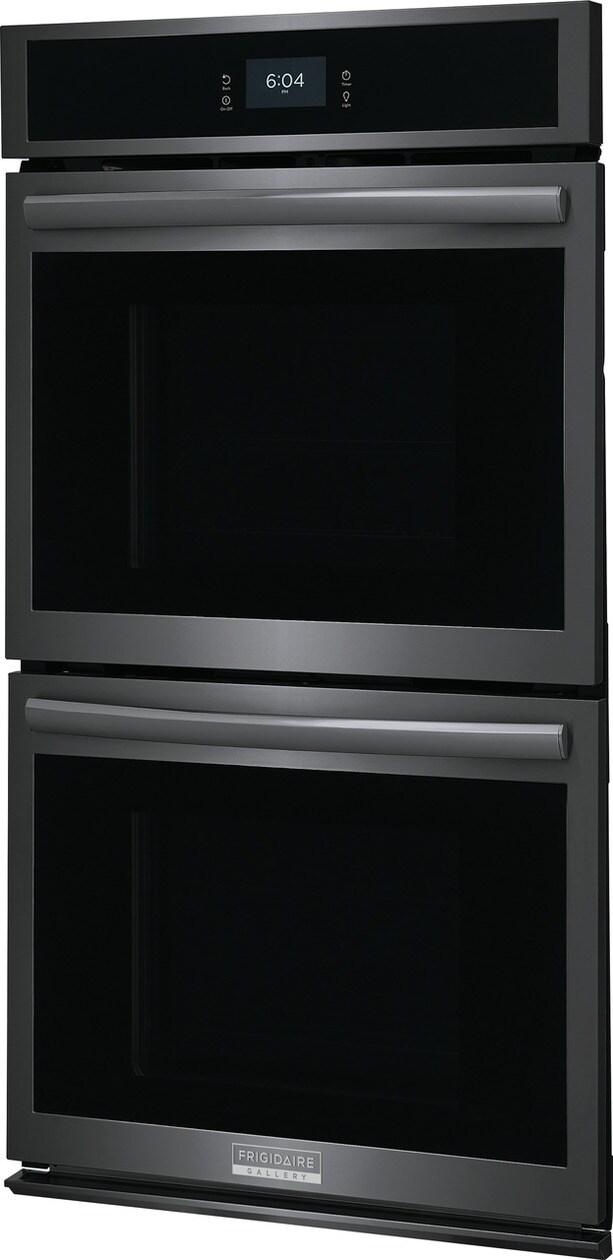

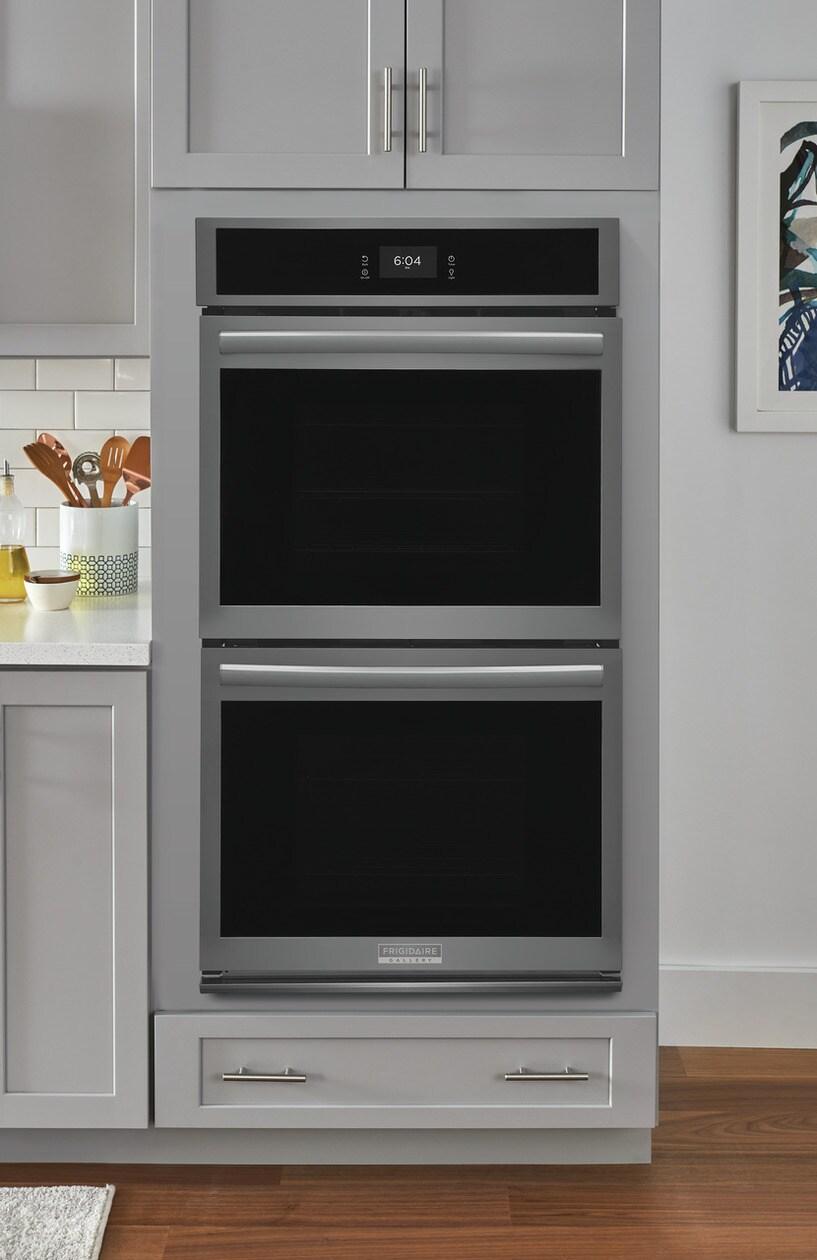

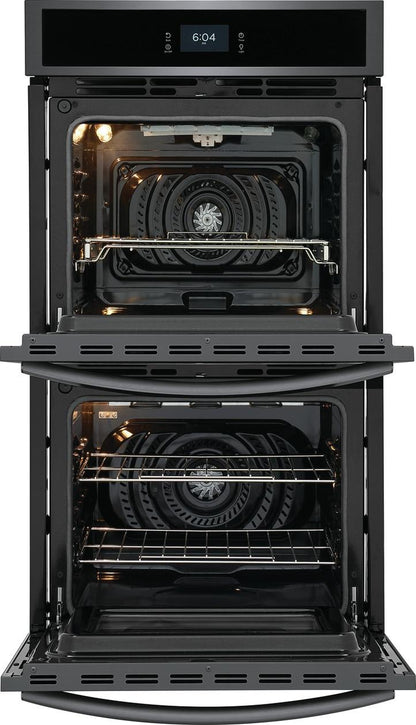

Frigidaire Gallery 27" Double Electric Wall Oven with Total Convection GCWD2767AD
- Total Convection System
- No Preheat
- Air Fry
- Slow Cook
- Steam Bake
- Temperature Probe
- Frigidaire® Fit Promise
- Self and Steam Clean Cycles
- Steam Roast

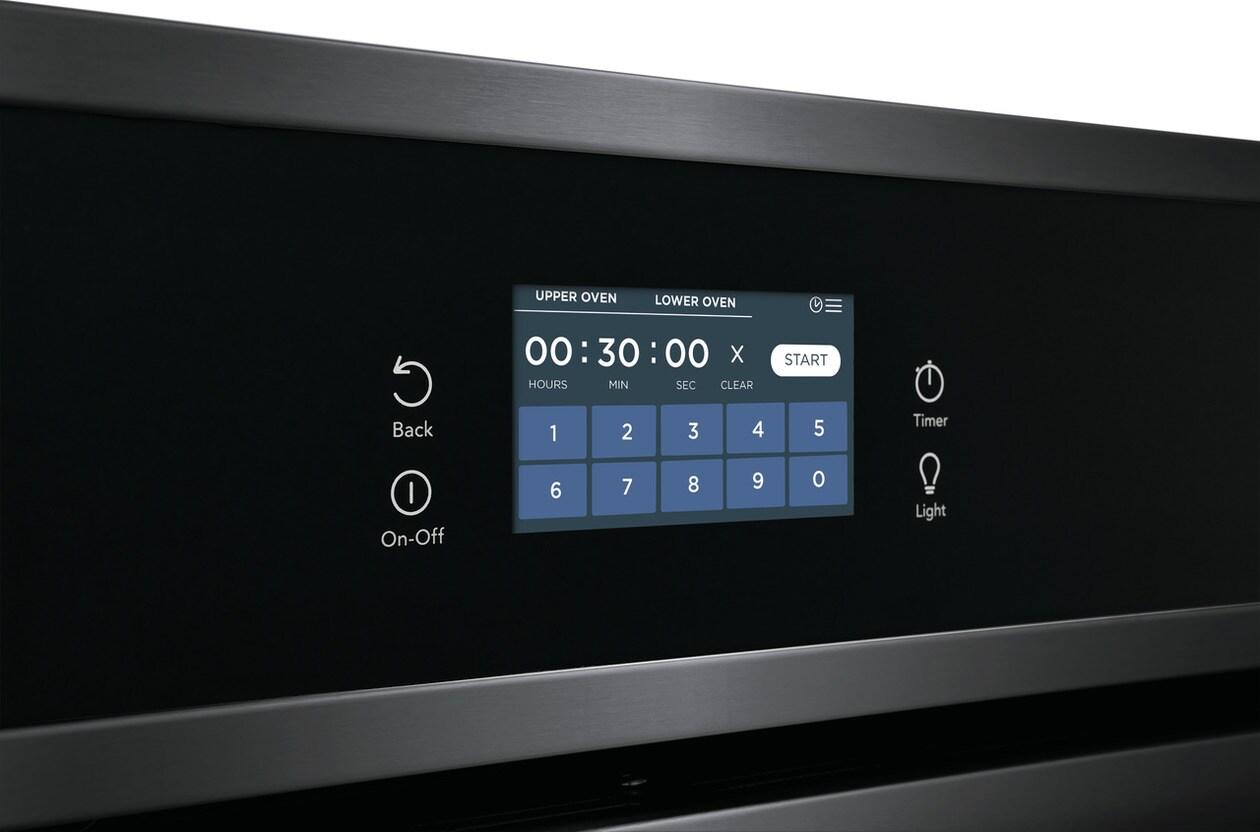

- Premium Touch Screen Control Panel
- Air Sous Vide
- Smudge-Proof® Black Stainless Steel
- ReadyCook™ Air Fry Tray-Sold separately
Product Line | Double Wall Oven |
Power Type | Electric 240v |
Size | 27" |
Installation Type | Built-In |
Factory | Springfield |
Color | Black Stainless Steel |
Cooking Controls | |
Air Fry | Yes |
Air Sous Vide | Yes |
Bake | Yes |
Broil | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Fast Preheat | Yes |
My Favorite | Yes |
No Preheat | Yes |
Oven Light | Yes |
Preheat | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Start | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Warm and Hold | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 2500 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |

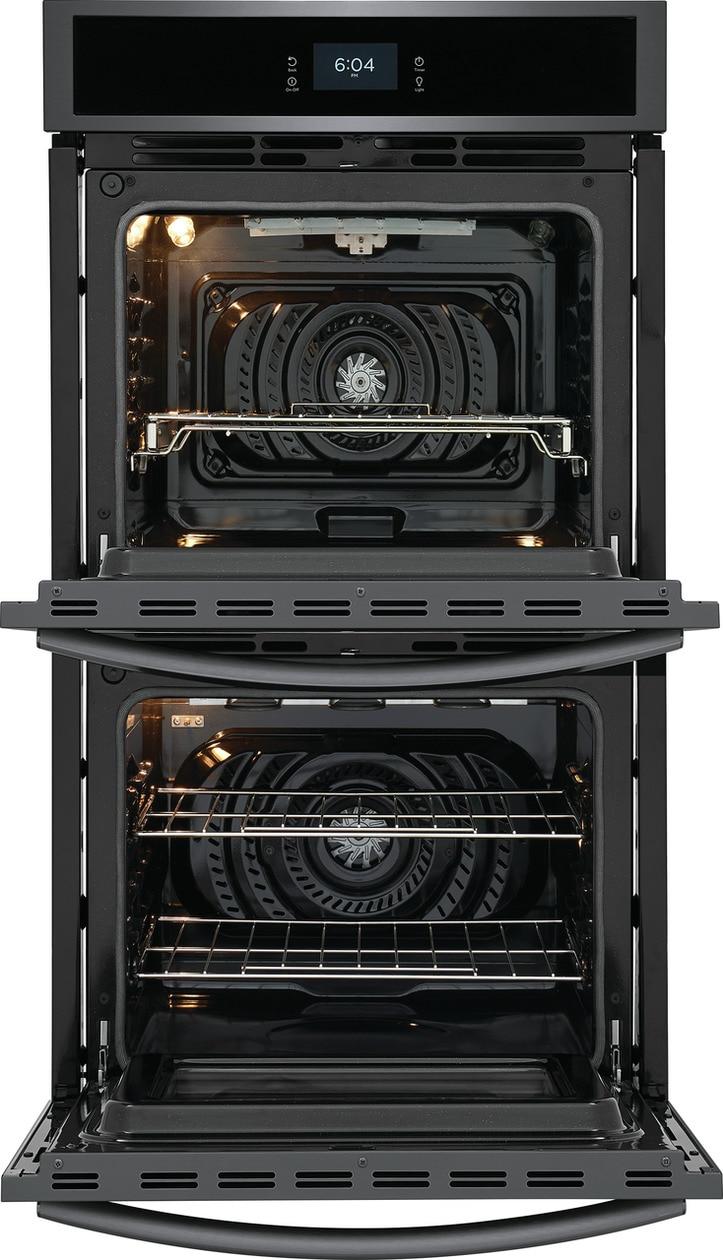

Number of Rack Positions | 5 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 5 |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
Exterior | |
Exterior Finish | Smudge-Proof® Black Stainless Steel |
Handle Color | Black Stainless Steel |
Dimensions and Volume | |
Height | 50 7/8" |
Width | 27" |
Depth | 24 3/4" |
Depth With Door 90° Open | 45 3/4" |
Depth With Handle | 27 7/16" |
Lower Oven Interior Height | 17" |
Lower Oven Interior Width | 20 1/2" |
Lower Oven Interior Depth | 18 3/4" |
Upper Oven Interior Height | 17" |
Upper Oven Interior Width | 20 1/2" |
Upper Oven Interior Depth | 18 3/4" |
Minimum Cutout Height | 48 7/8" |
Minimum Cutout Width | 24 7/8" |
Maximum Cutout Height | 50 1/4" |
Maximum Cutout Width | 25 1/4" |
Oven Lower Capacity | 3.8 Cu. Ft. |
Oven Upper Capacity | 3.8 Cu. Ft. |
Total Capacity | 7.6 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 9 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 215 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Power Supply Connection Location | Top Right |
Safety Certifications and Approvals | |
CSA Listed | Yes |
RoHS | Yes |
Star-K Certification | Yes |
UL Listed | Yes |
Accessories | |
Included Steam Tray | Yes |
