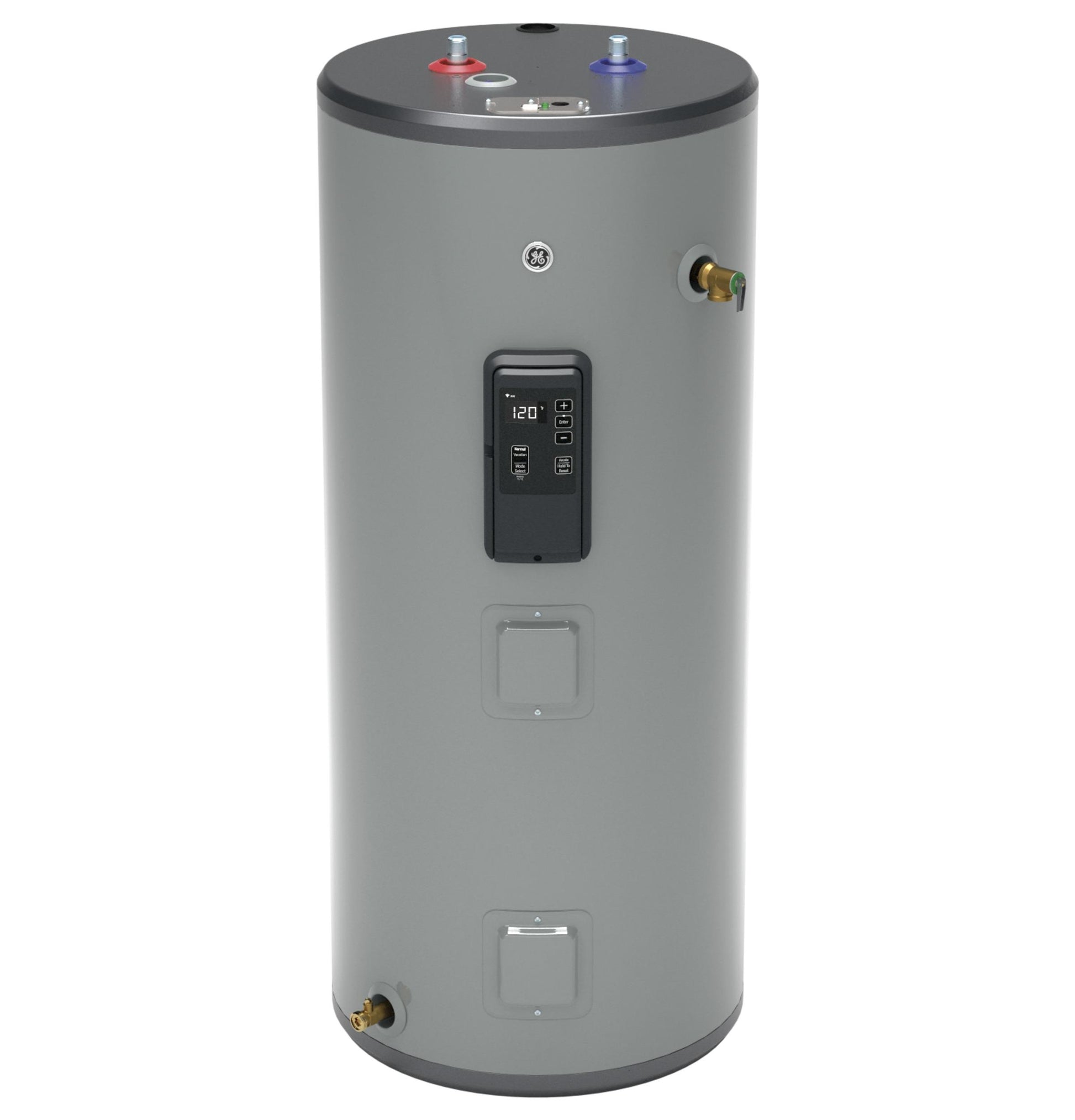

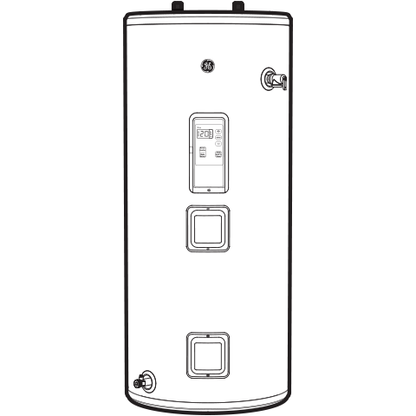

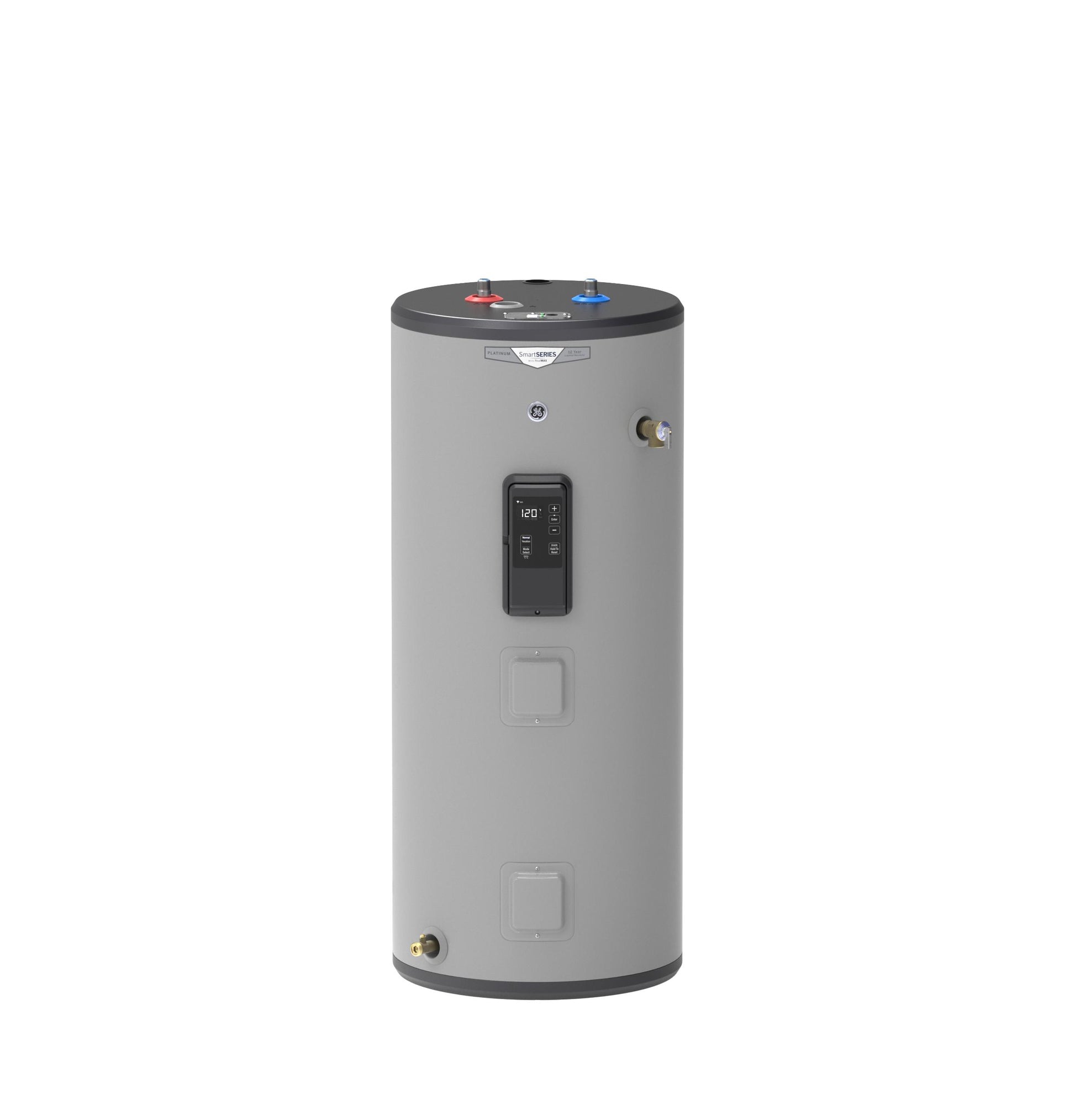

GE40S12BLM GE® Smart 40 Gallon Short Electric Water Heater

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)

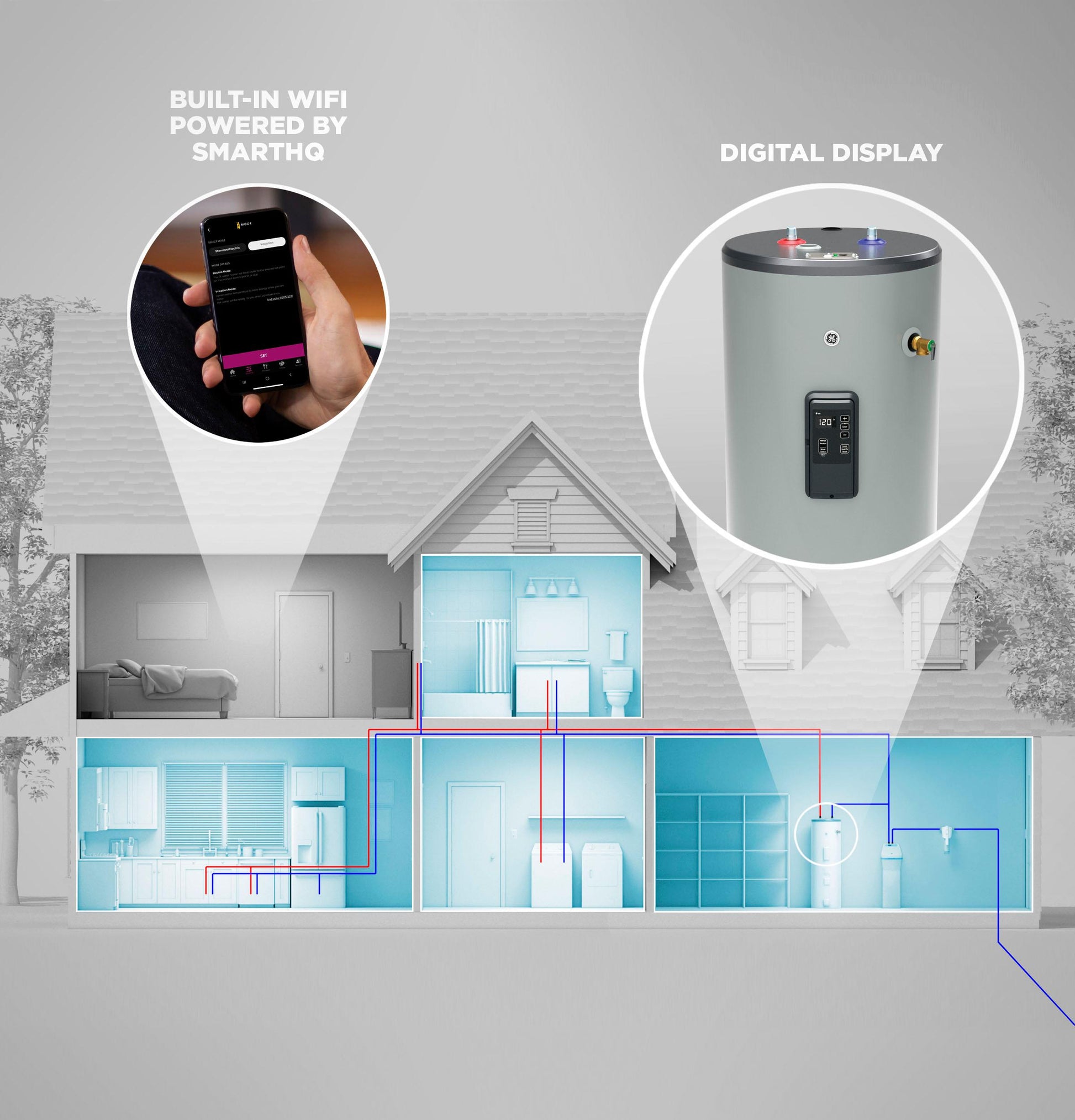

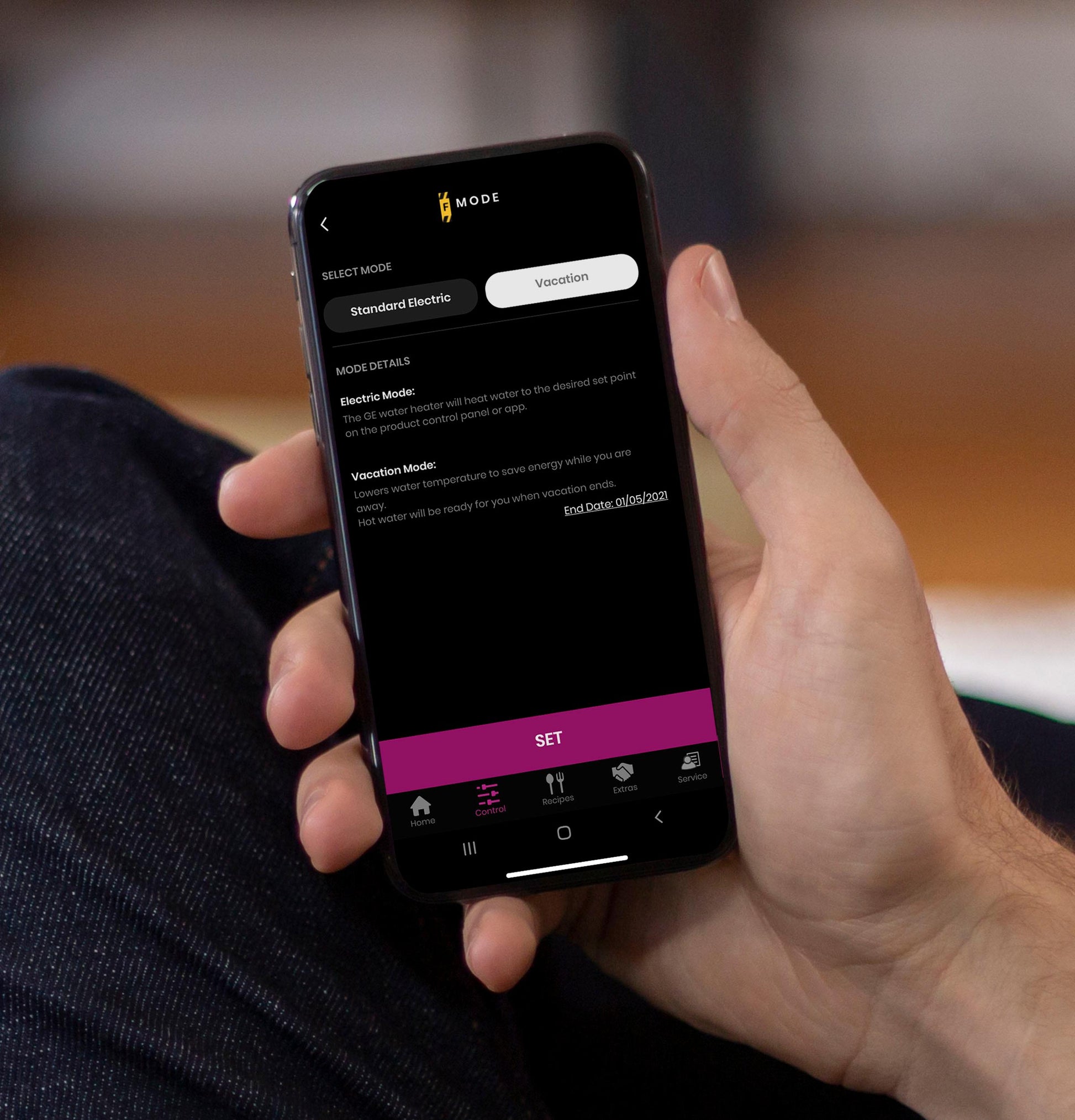

Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ

Leading Performance
Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

Household Size
Provide hot water for the whole family of 2 to 4 persons

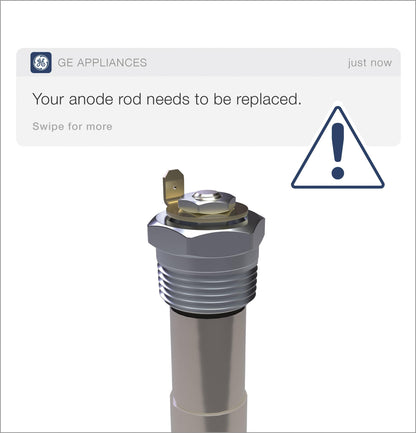

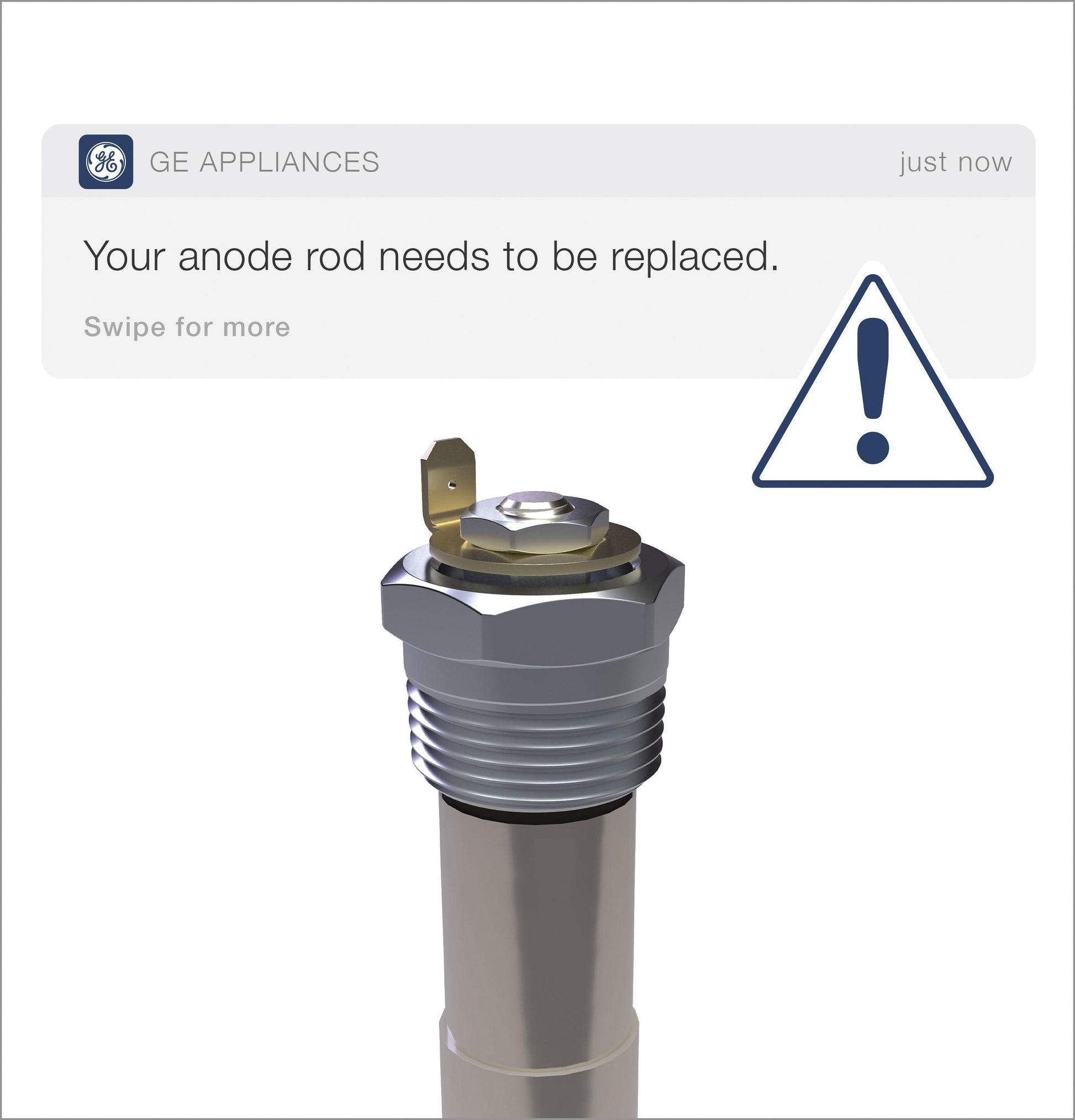

Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank

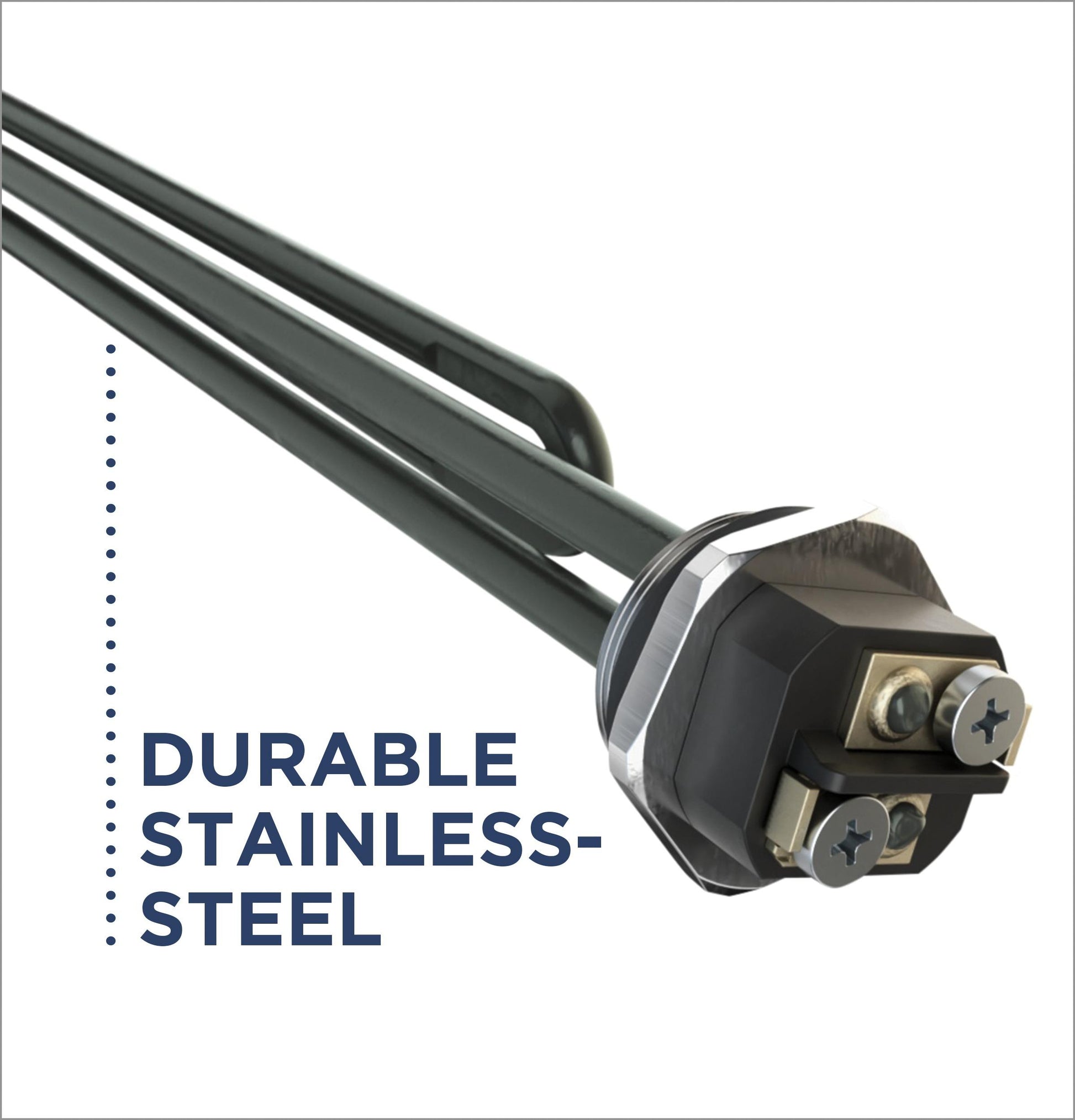

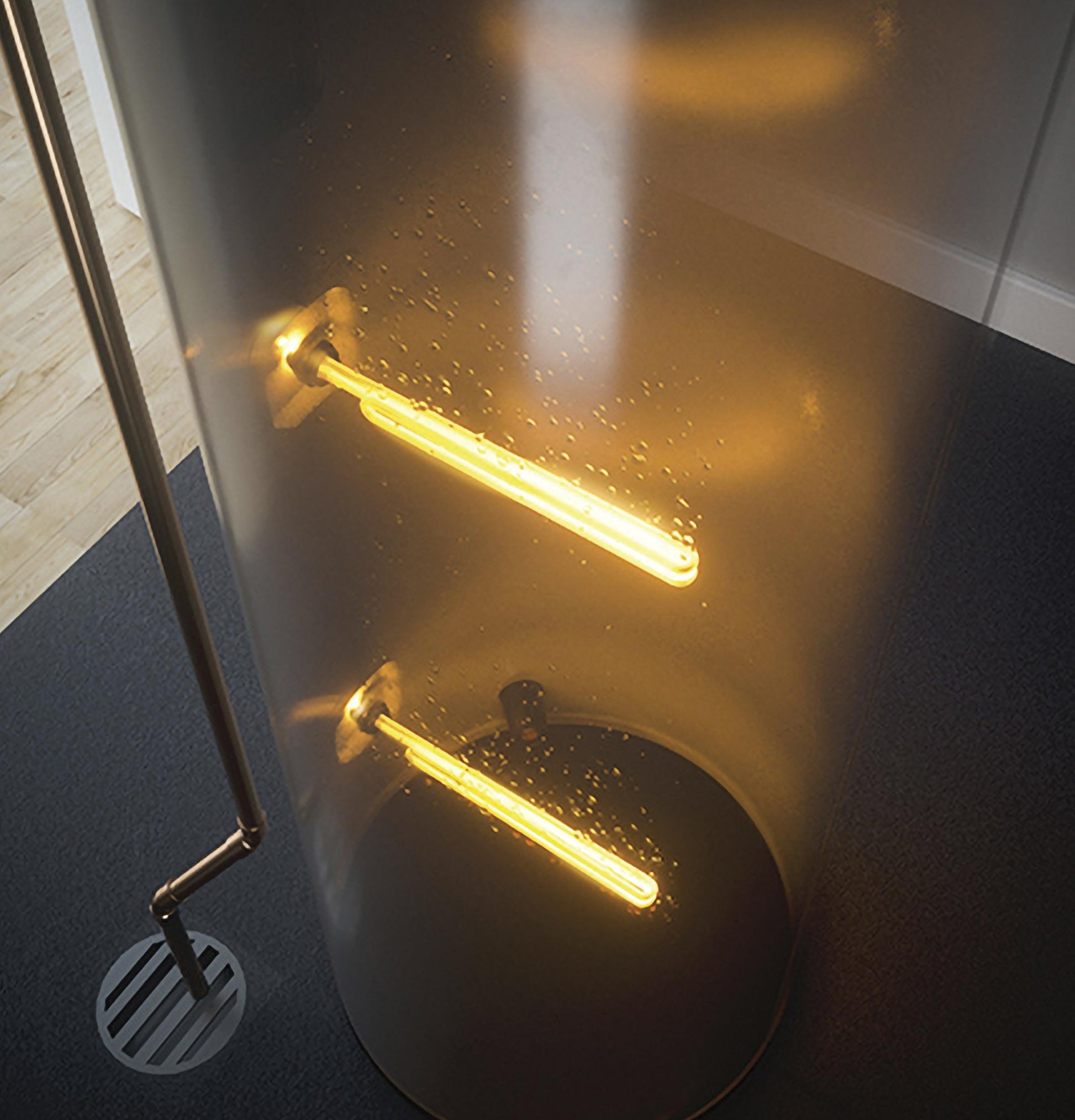

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

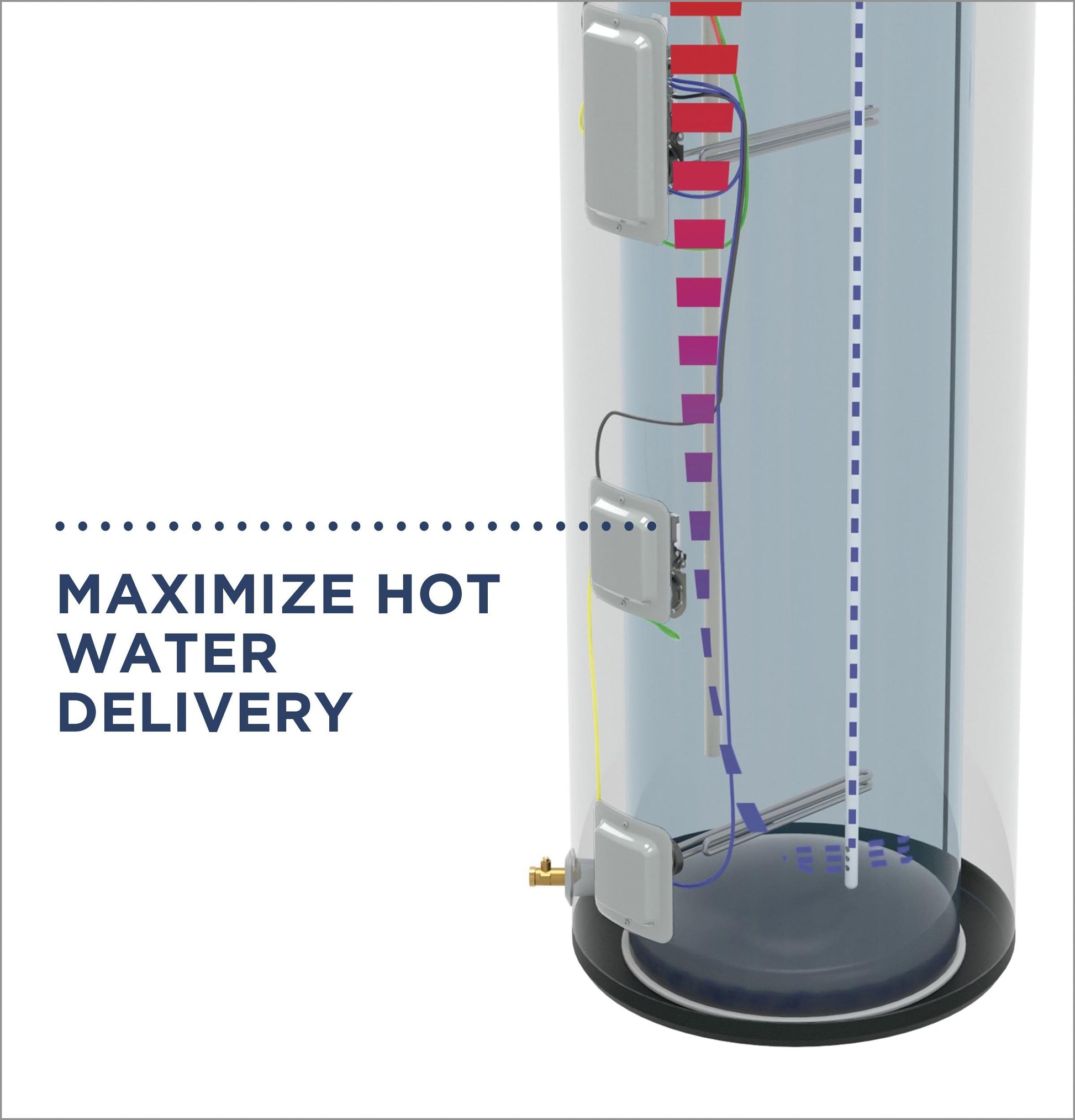

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

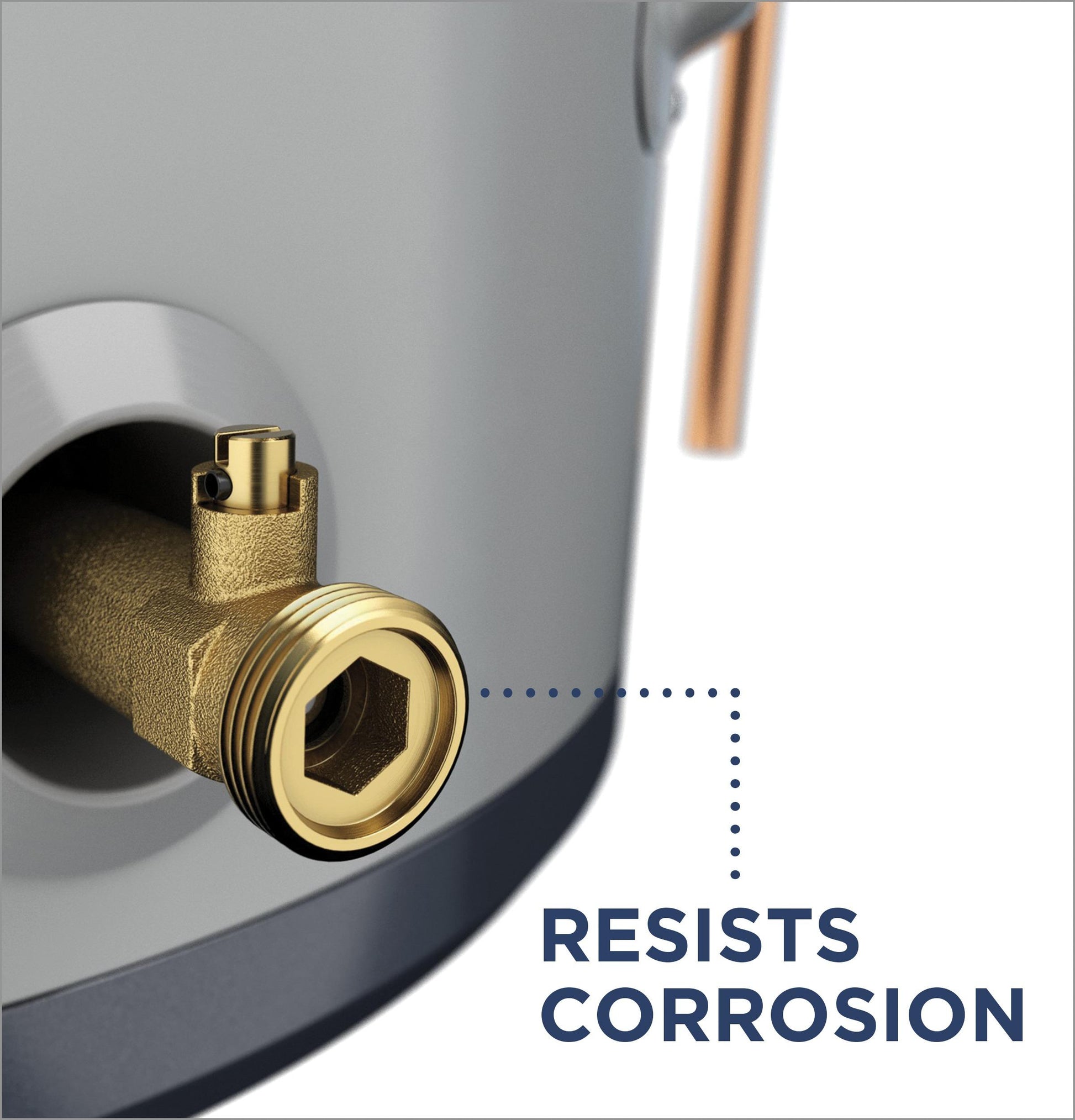

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

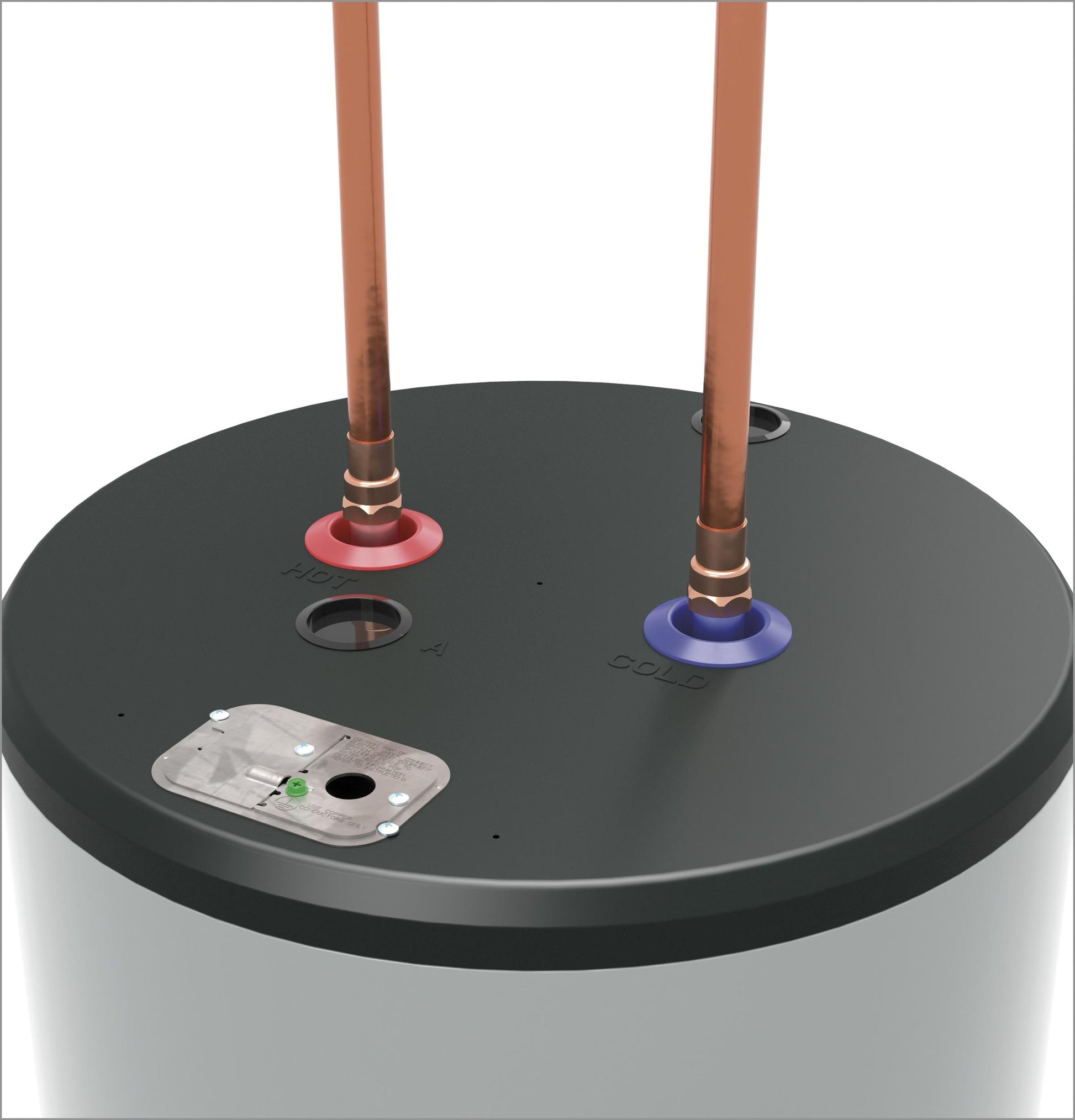

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

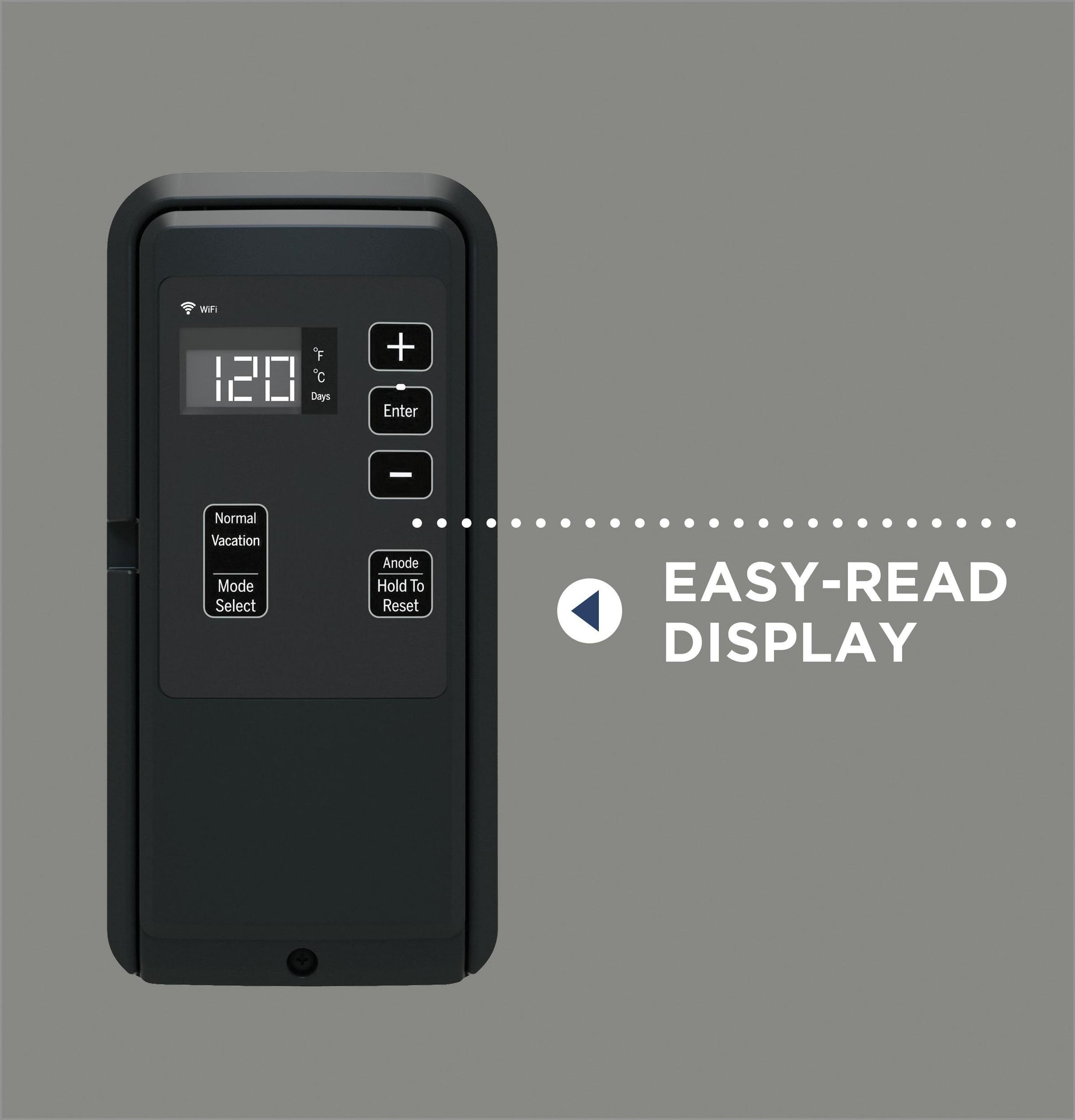

Digital Display
Make easy, accurate adjustments at the touch of a button

CAPACITY
Unit Capacity	40 Gallons
FILTER
App Filter - WiFi Connect	Built-In
App Filter - Product Type	Water Heaters Electric Standard
App Filter - Tank Diameter	18 1/4 in.-21 3/4 in.
App Filter - Vacation Mode	Yes
App Filter - Capacity	Water Heater 40-49 gallons
APPEARANCE
Color Appearance	Gray
POWER / RATINGS
Integrated Energy Factor	0.92
Heating - Electric - Heater Watts	5500/5500
Electrical Connection	Direct-Wire
Operating Water Pressure	20-125 PSI
Volts/Hertz	240V; 60Hz
First Hour Rate (FHR)	65 Gallons
Voltage (MAX)	240 V
Energy Consumption (kWh/year)	3531
Electrical Circuit Required	Dedicated 30 Amp Min.
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 12-year tank and parts
Labor Warranty	Limited 1-year entire appliance

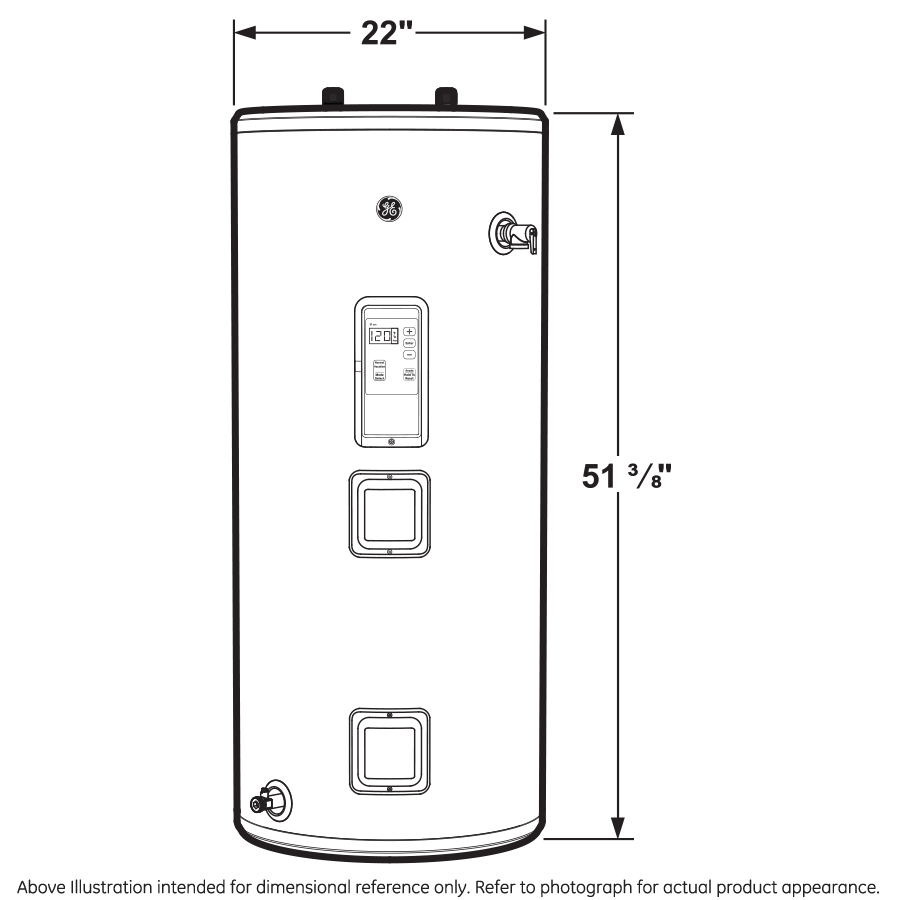

WEIGHTS & DIMENSIONS
Product Height (to top of water inlet/outlet connections)	52.875 in
Approximate Shipping Weight	133 lb
Overall Width	22 in
Overall Height	52.875 in
Product Height (to top of unit)	51.375 in
Net Weight	121 lb
Product Diameter	22 in
Overall Depth	22 in
Connection Sizes - Water Inlet (MNPT)	3/4"
Connection Sizes - Hot Water Outlet (MNPT)	3/4"
FEATURES
Control Type	Electronic with Digital Display
Height Description	Short
Fuel Type	Electric
Configuration	Short
Operating Modes	Normal Vacation
Drain Valve Type	Brass
Sensing Anode	Yes
Product Type	Electric Electronic
WiFi Connect	Built-In
Family Size	2-4 People
Water Connection Location	Top
Overheat Protection	Yes
Vacation Setting	Yes
Diagnostic Feedback	Yes
Temperature Setting	100-140° F Range Factory Default 120° F
Connected Capabilities	Amazon Alexa Google Home
