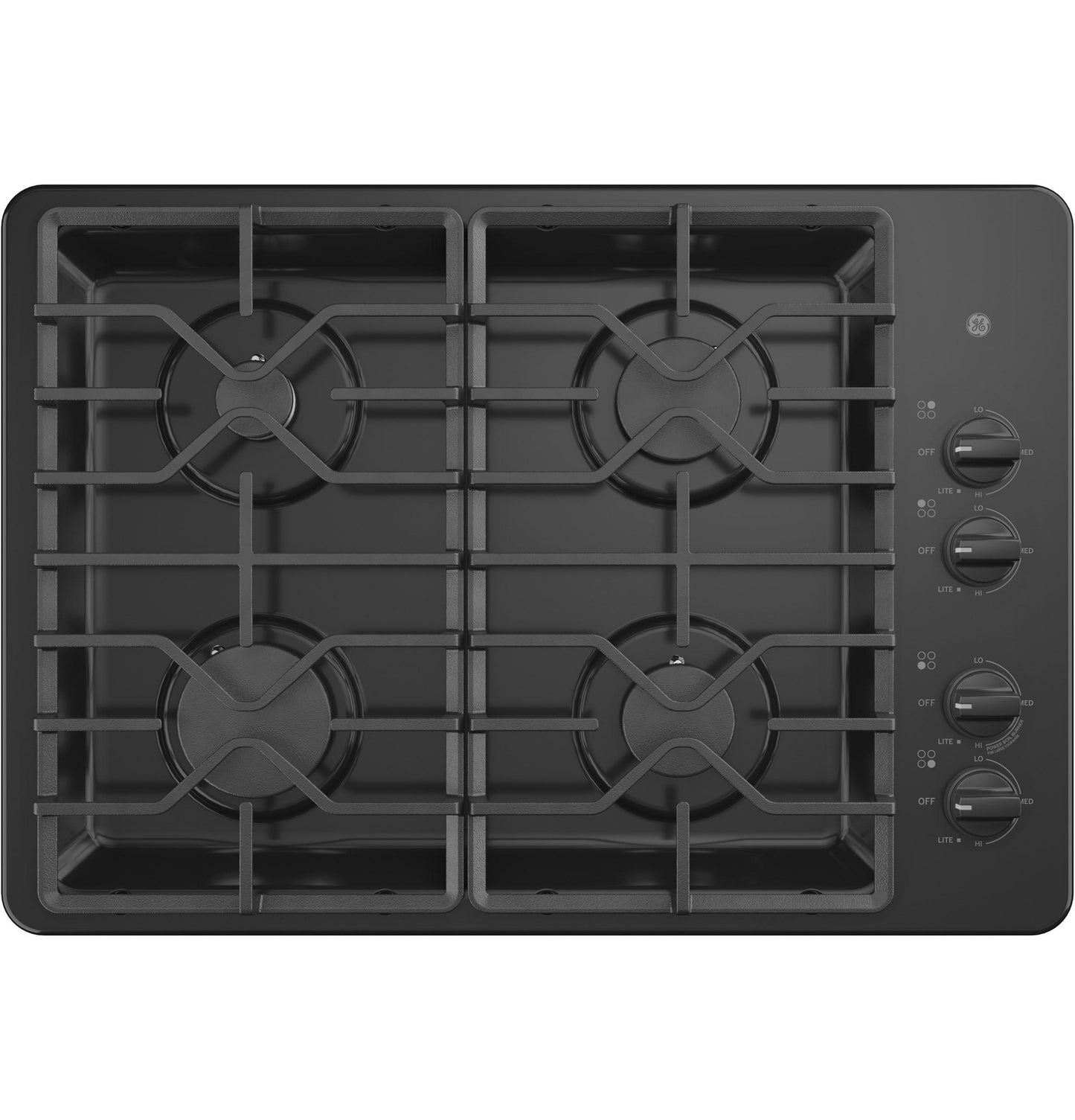

JGP3030DLBB GE® 30" Built-In Gas Cooktop with Dishwasher-Safe Grates JGP3030DLBB

Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

Spend Less Time Cleaning Up

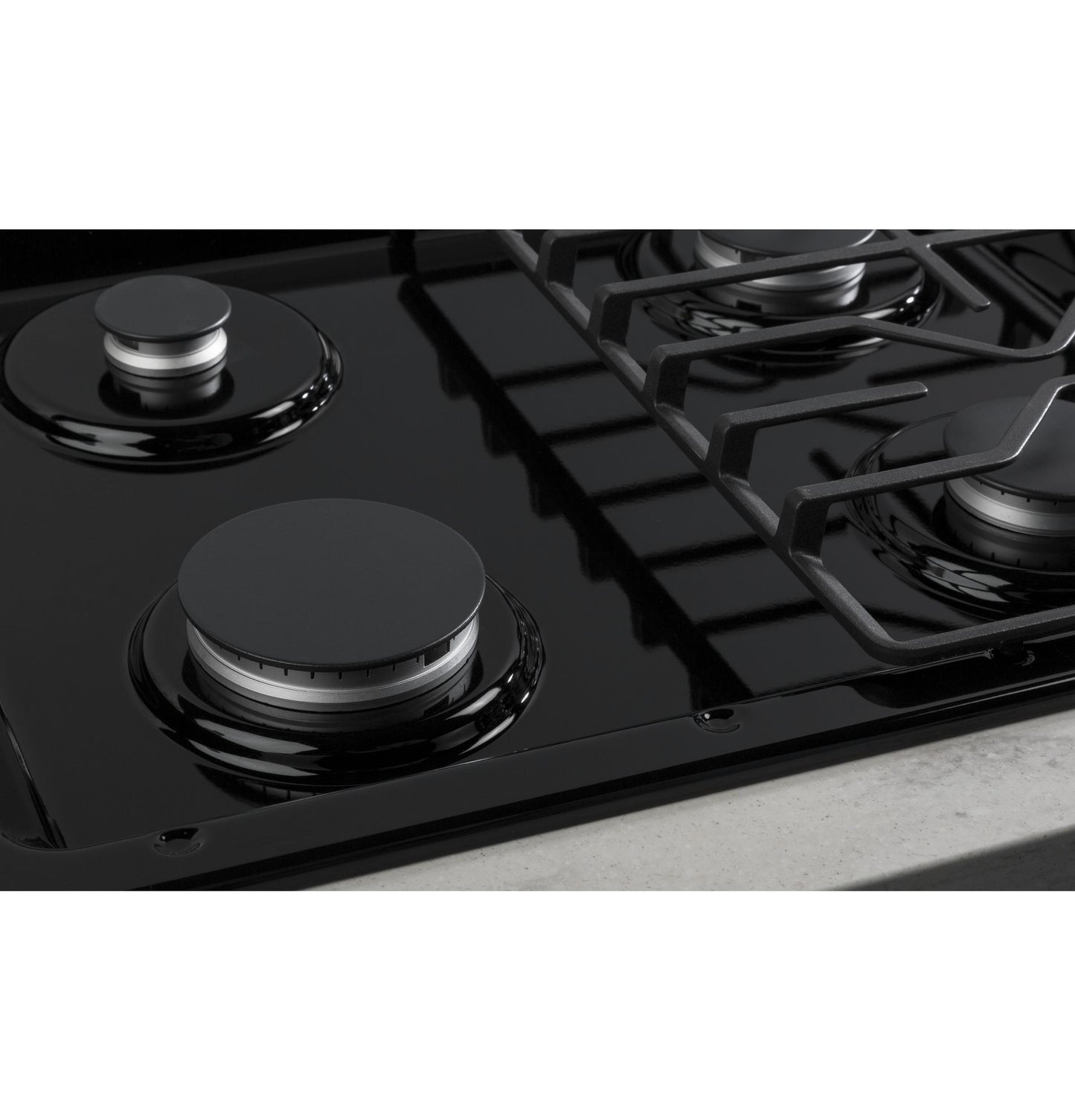

Sealed cooktop burners contain spills and make cleaning quick and easy

Designed for Easy Cleaning
Recessed surface helps contain spills and make cleaning easy

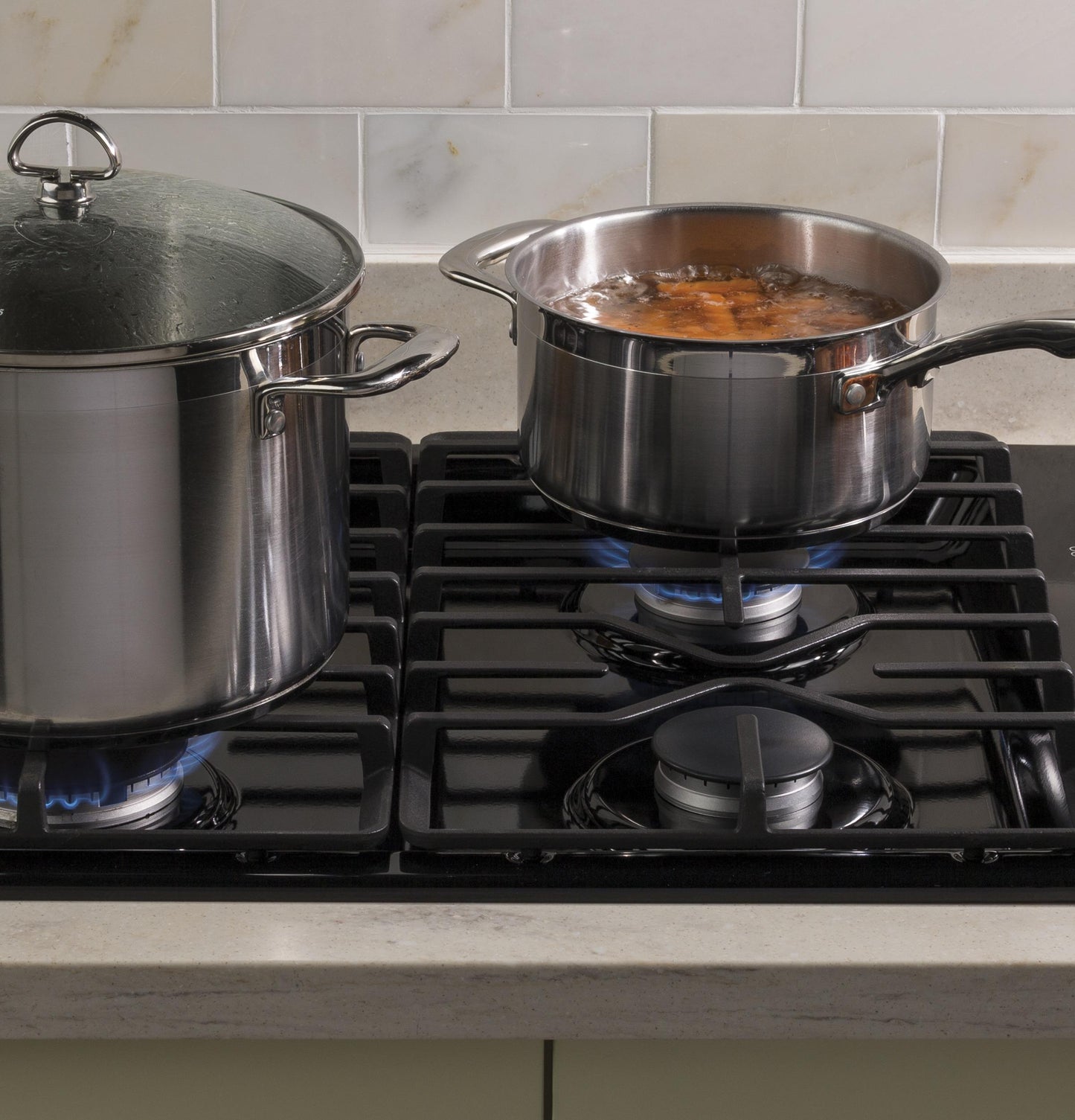

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

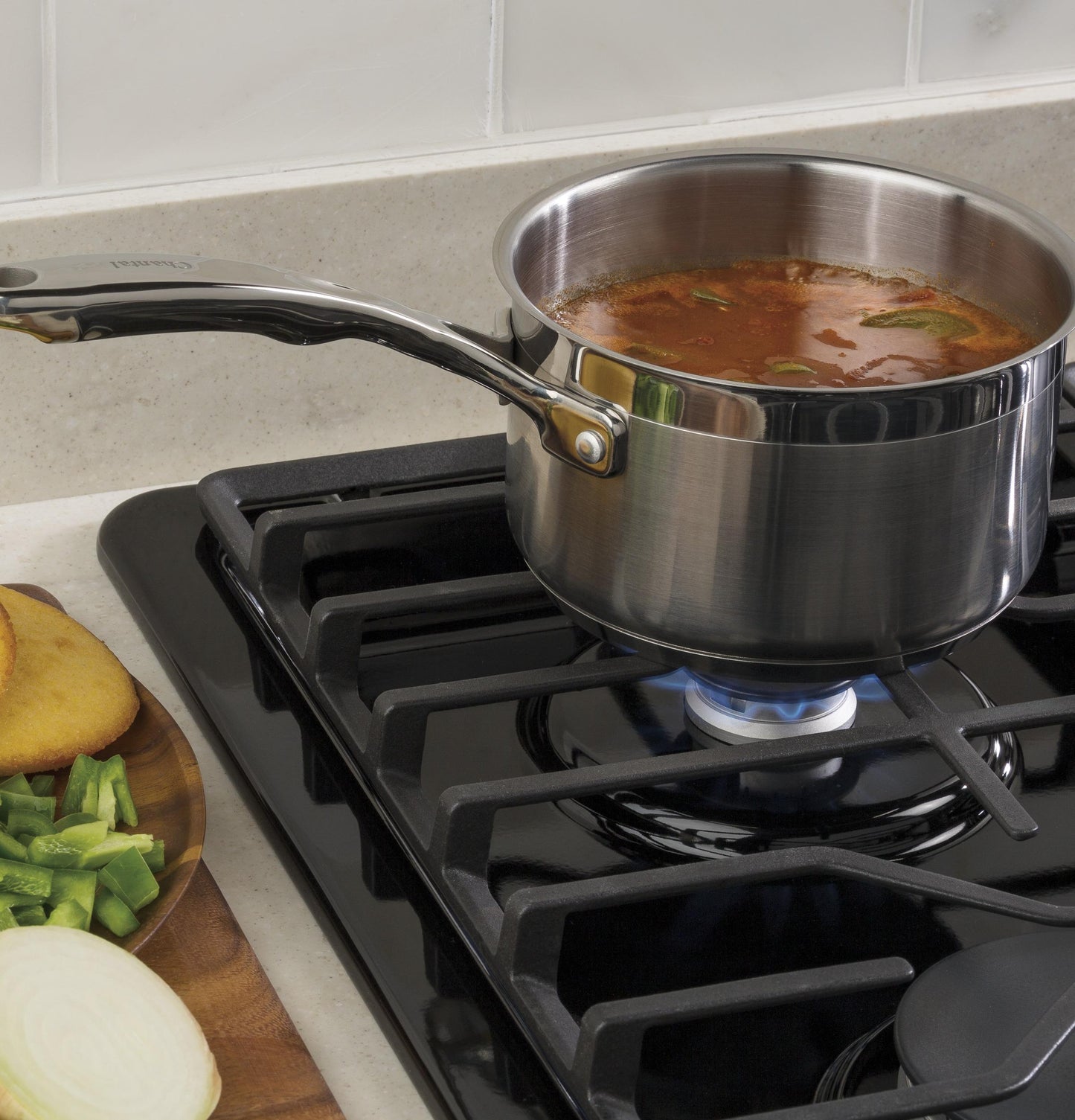

Precise Simmer Burner
Protect delicate foods with low, even heating

MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

FILTER
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Cooktop Type	Continuous Grates
App Filter - Fuel Type	Gas
App Filter - Control Type	Rotary knobs
APPEARANCE
Color Appearance	Black
Cooktop Burner Grate Color	Matte Black
Control Knobs	Dishwasher Safe Gloss Black
POWER / RATINGS
Burner BTU Ratings (000's/BTU) - LP Gas	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps	120V; 60Hz; 5A
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Overall Height	4.75 in
Cutout Depth (in)	19-5/8
Cabinet Width	30 in
Approximate Shipping Weight	40 lb
Overall Width	30 in
Net Weight	34 lb
Cutout Width (in)	28-1/2
Overall Depth	21 in
FEATURES
Cooktop Burner Type	4 Sealed
Valves (Degree of Turn)	270
Burner - Right Rear	12,000 BTU
Burner - Right Front	9,500 BTU
Fuel Type	Natural Gas (factory set)
Control Location	Right Side
Cooktop Type	Continuous Grates
Ignition System	Electronic
Cooktop Surface	Black Deep Porcelain-Enamel
Burner - Left Rear	5,000 BTU

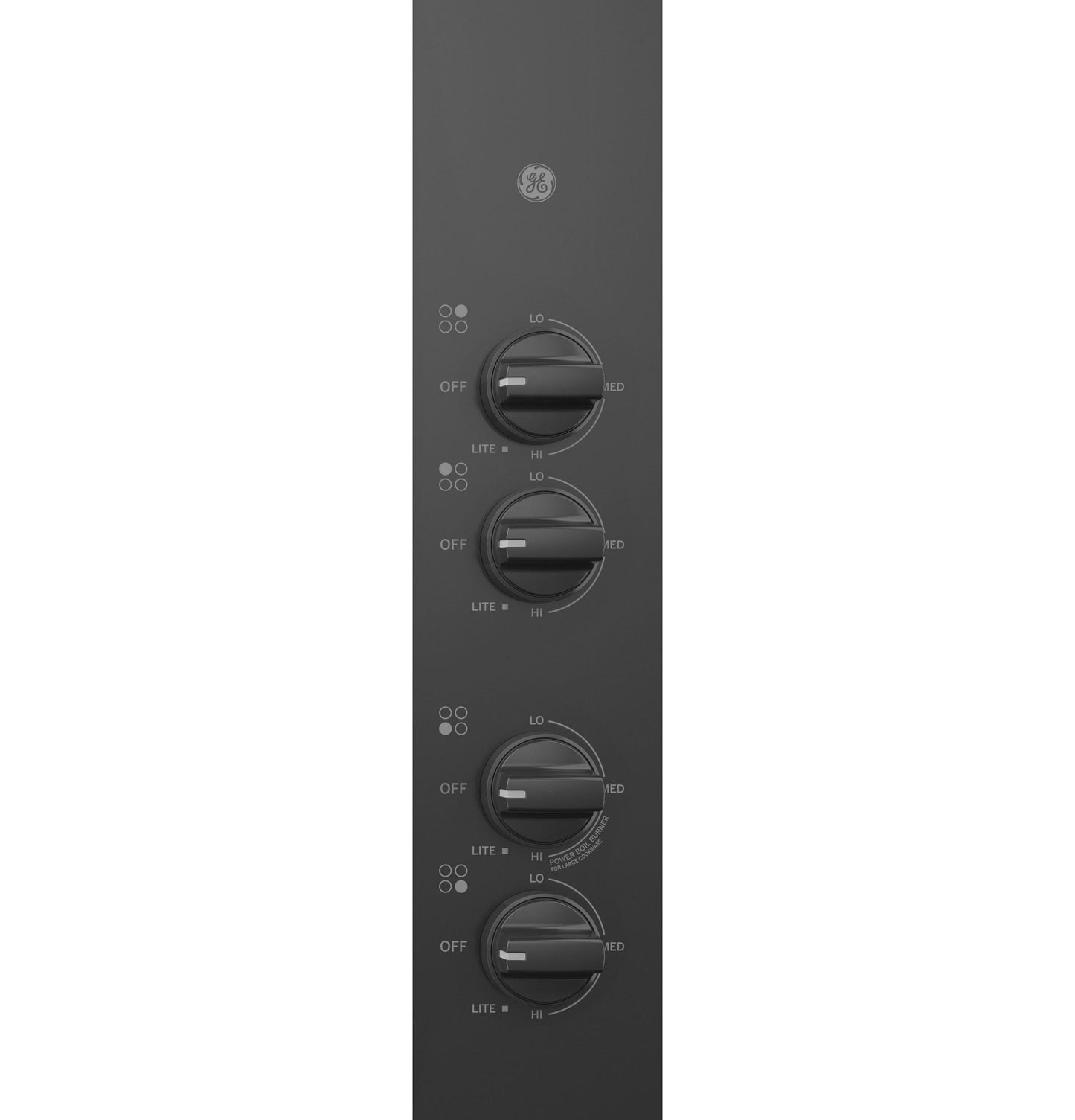

Control Type	Knob
Cooktop Burner Grate Material	Standard Cast
Cooktop Burner Grate Features	Continuous Grates Dishwasher Safe
Burner - Left Front	15,000 BTU Power Boil
