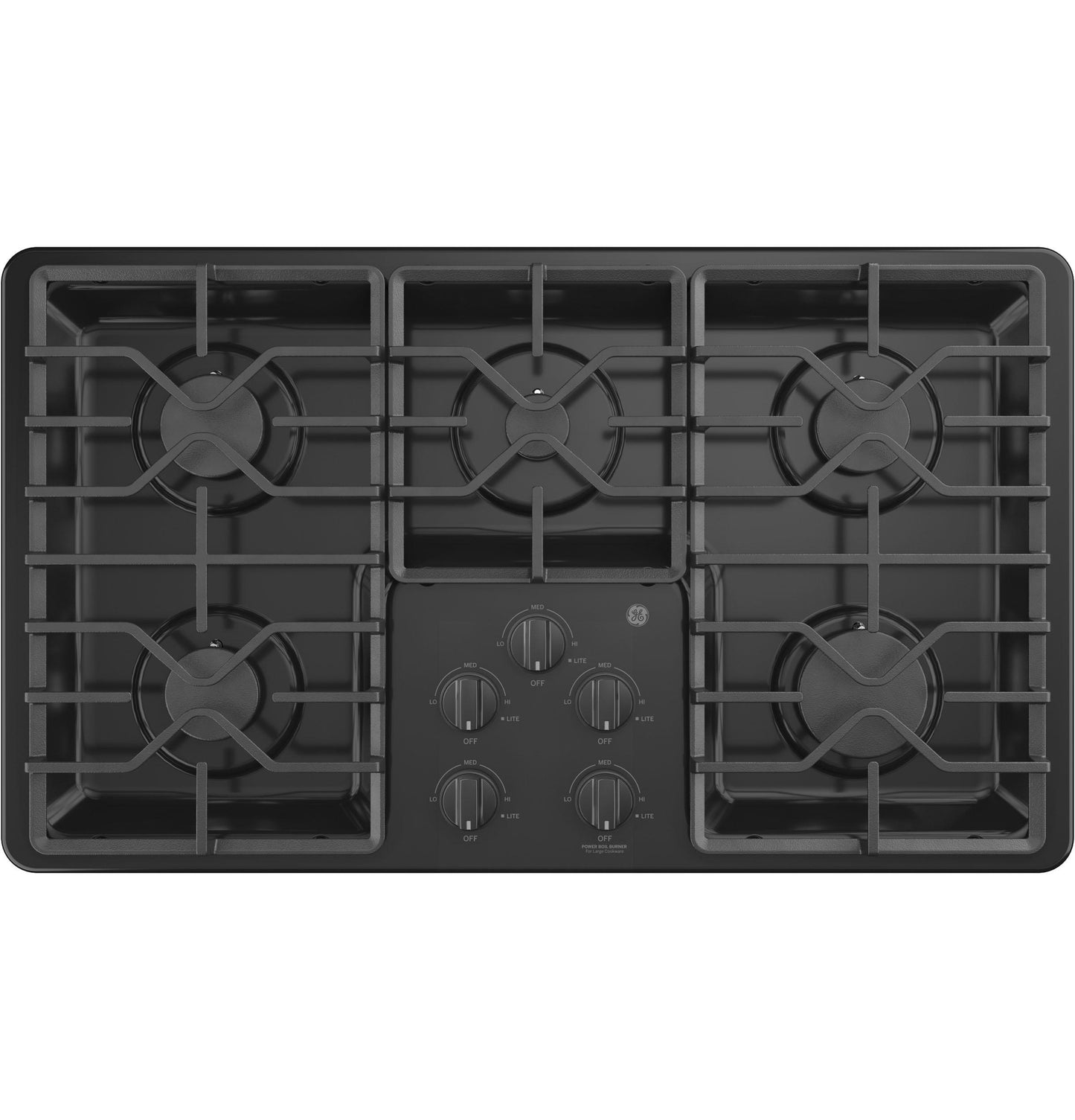

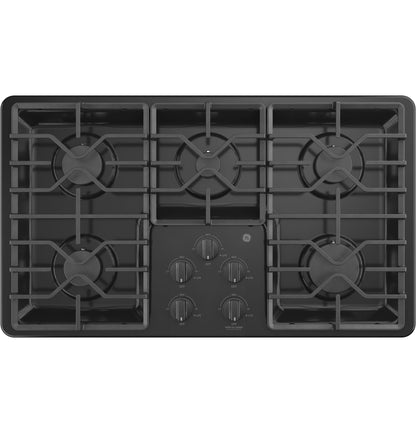

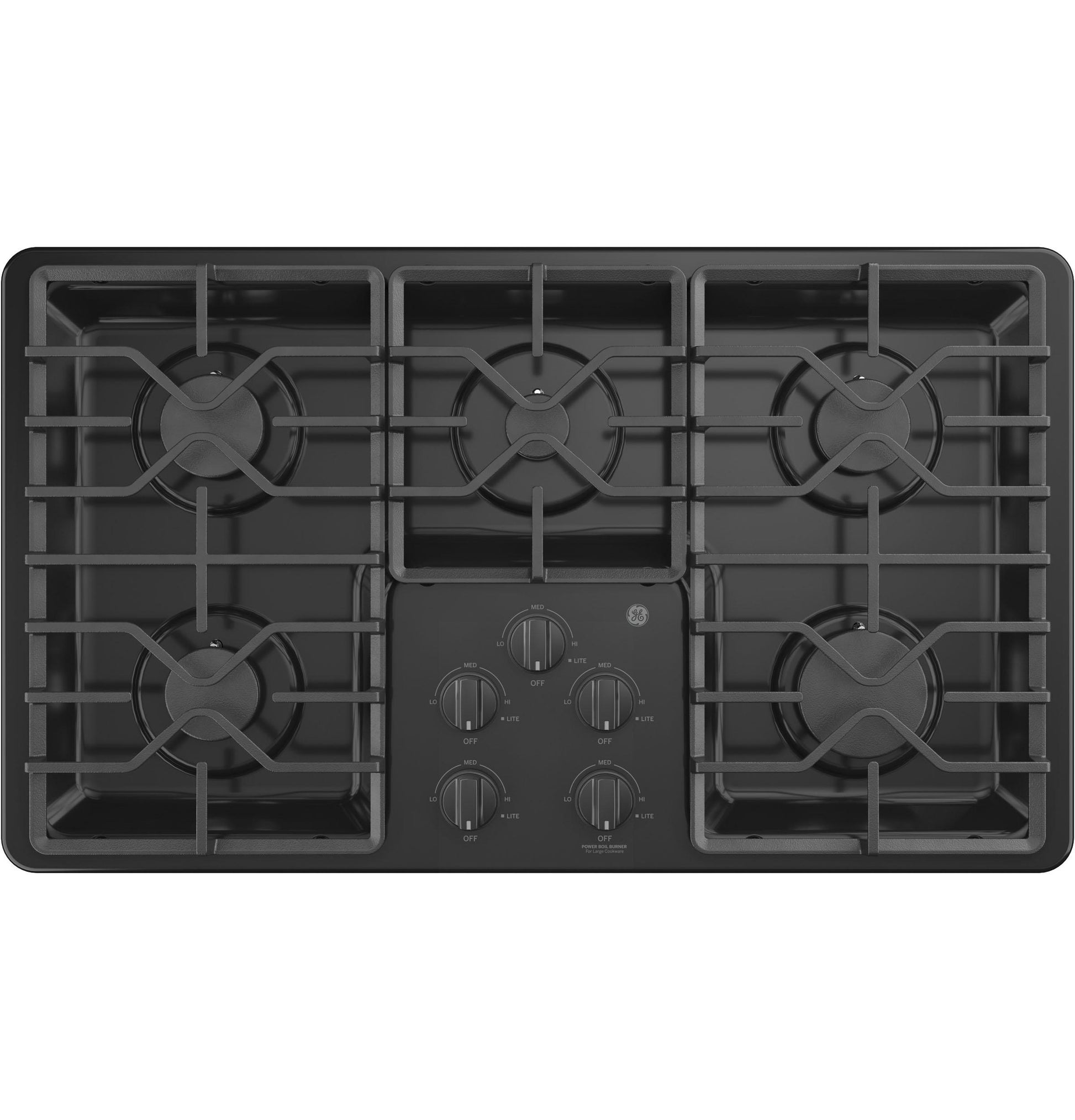

JGP3036DLBB GE® 36" Built-In Gas Cooktop with Dishwasher-Safe Grates JGP3036DLBB
When Will I Get My Order?
- Dishwasher-Safe Grates
- Spend Less Time Cleaning Up
- Designed for Easy Cleaning
- 15,000 BTU Power Boil Burner
- Precise Simmer Burner
- MAX Burner System
- Fit Guarantee
Heavy-duty grates are easy to clean in the dishwasher

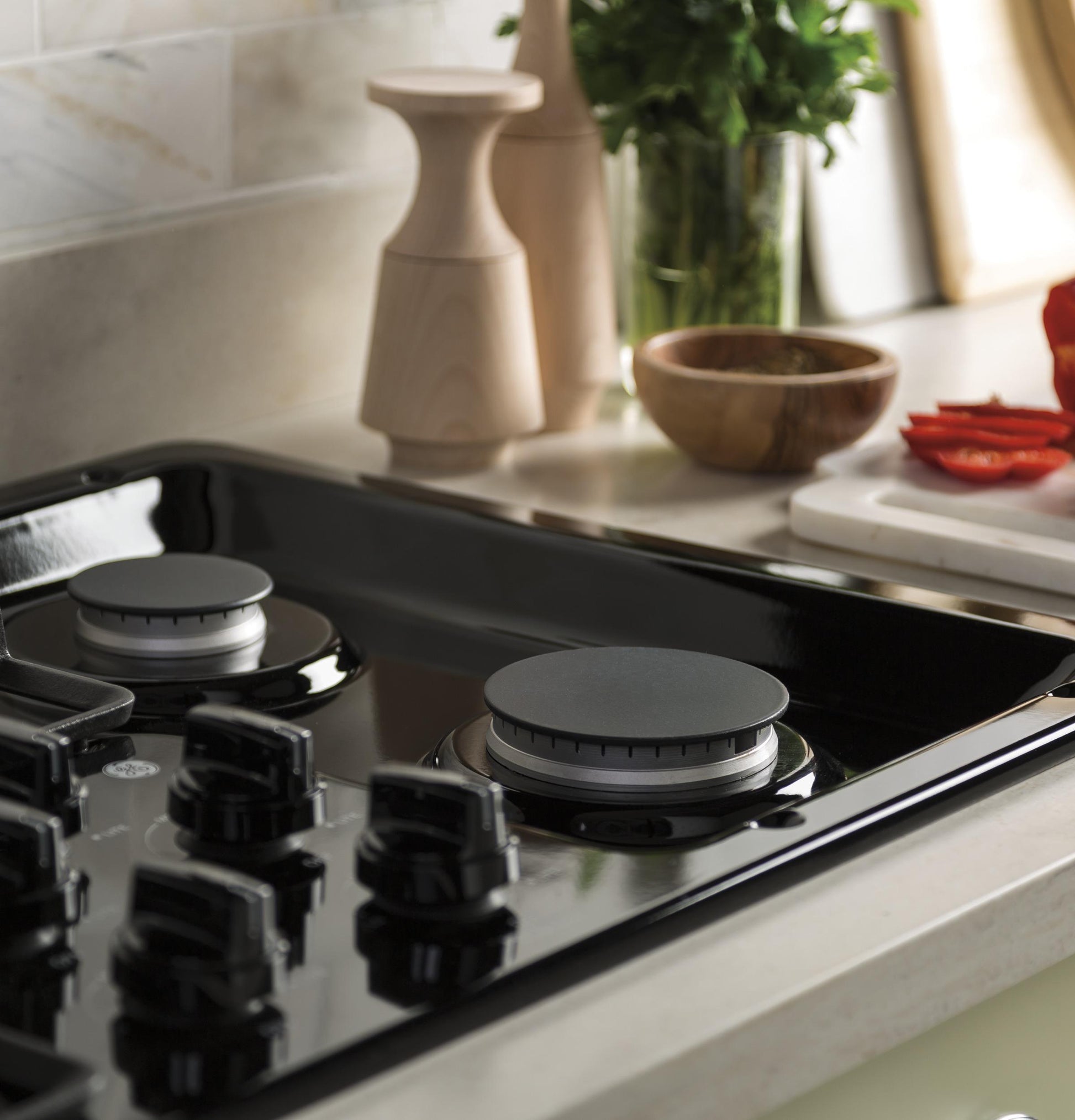

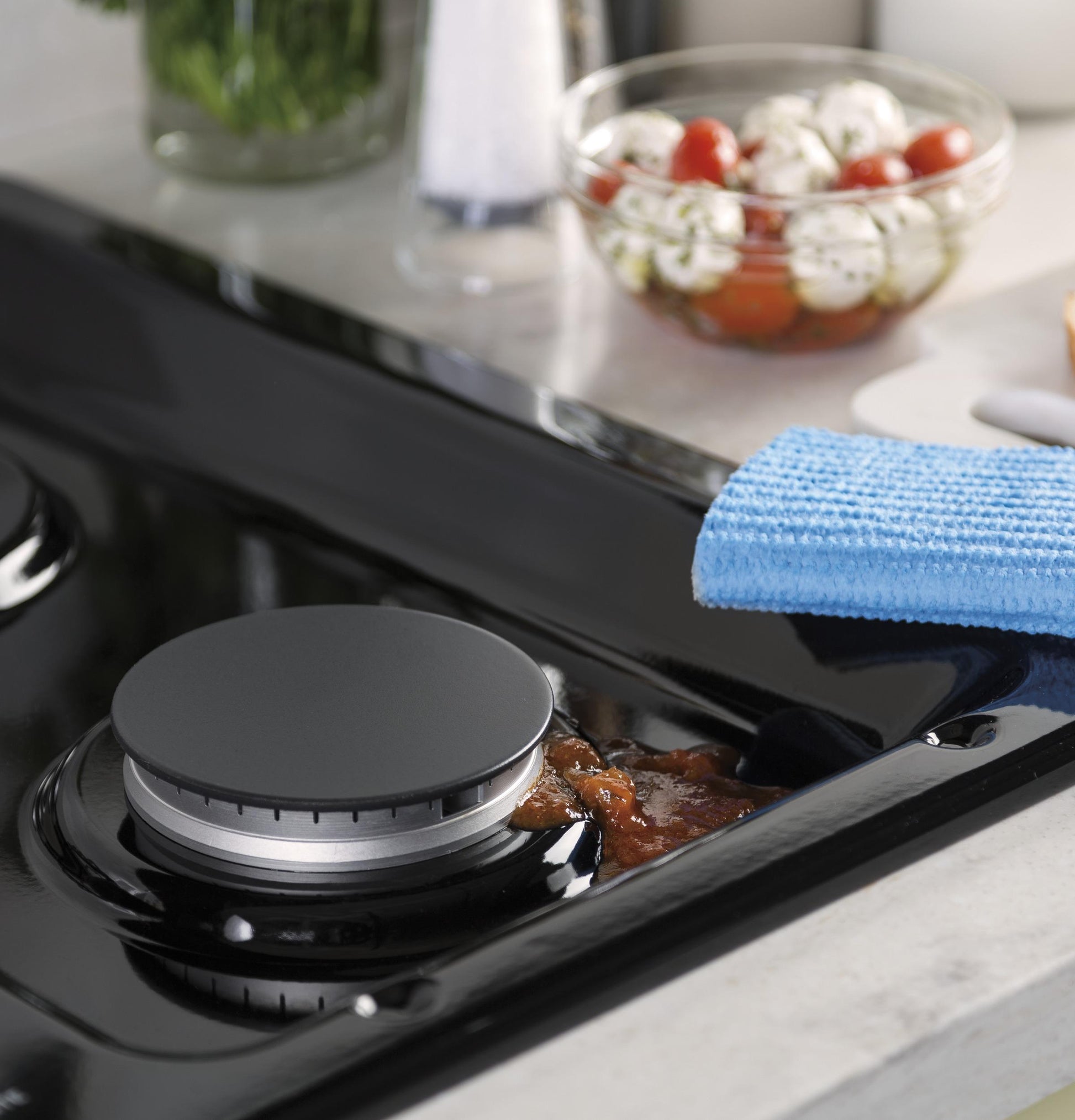

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
Designed for Easy Cleaning
Recessed surface helps contain spills and make cleaning easy

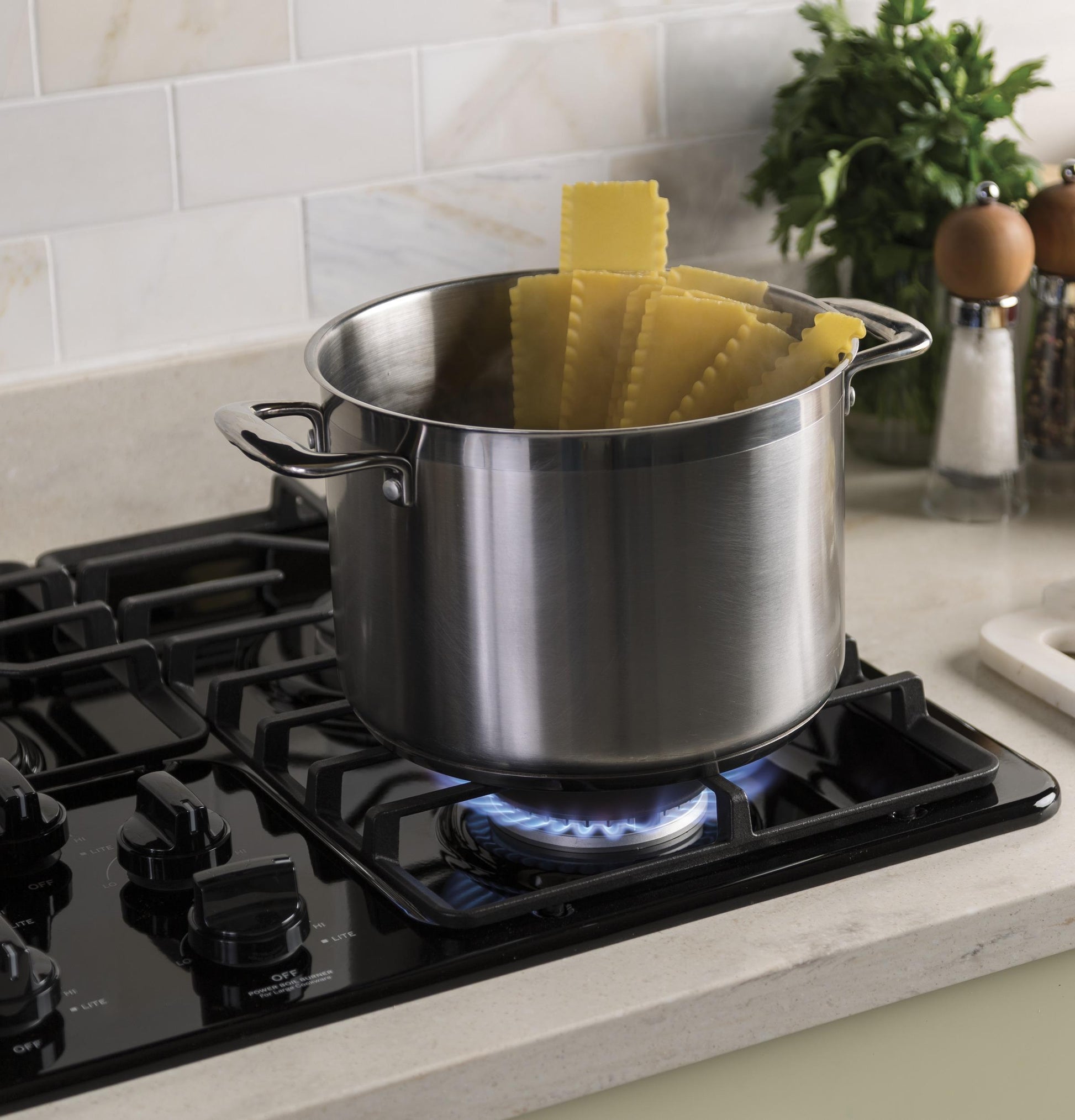

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

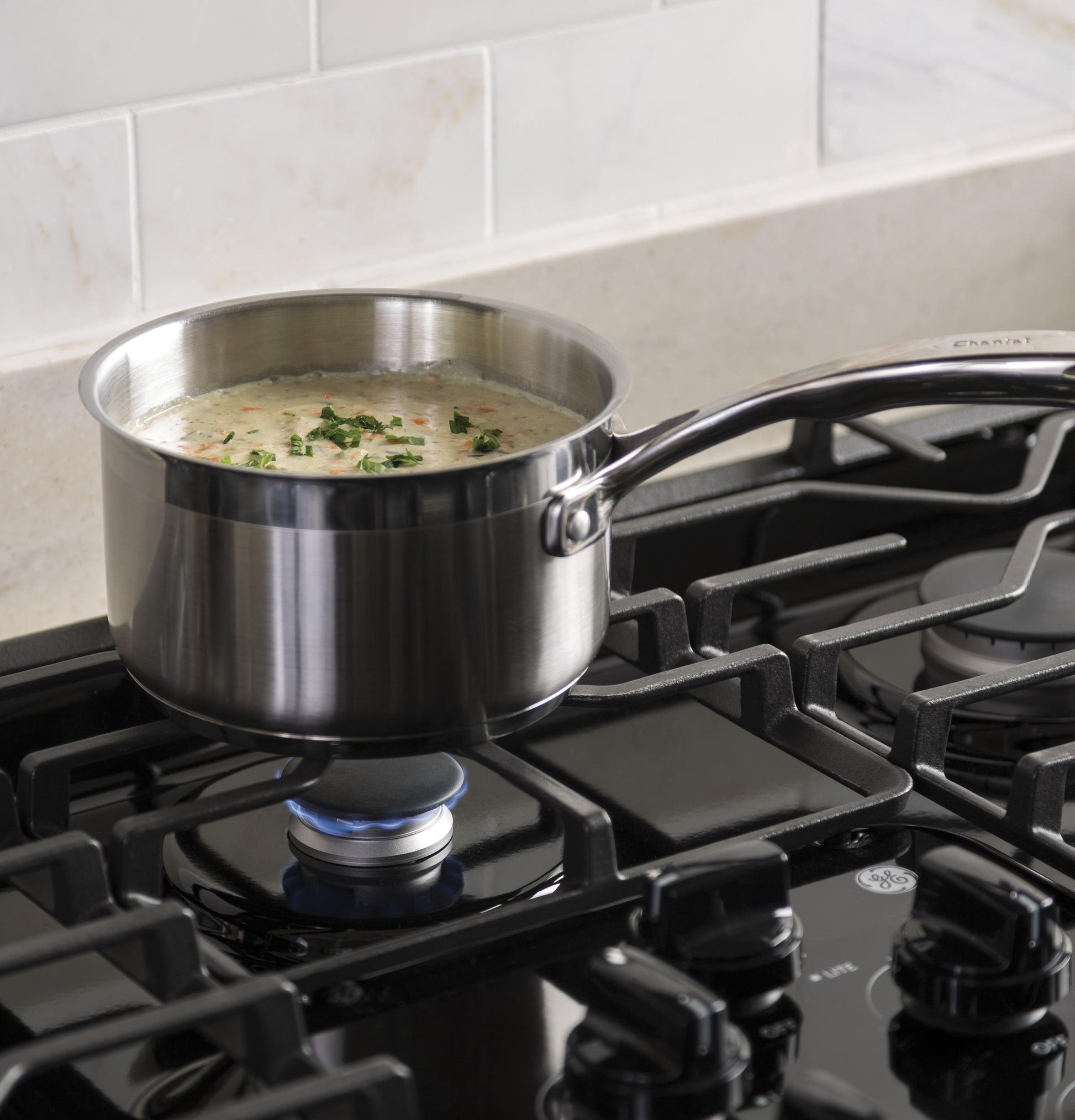

Precise Simmer Burner
Protect delicate foods with low, even heating
MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

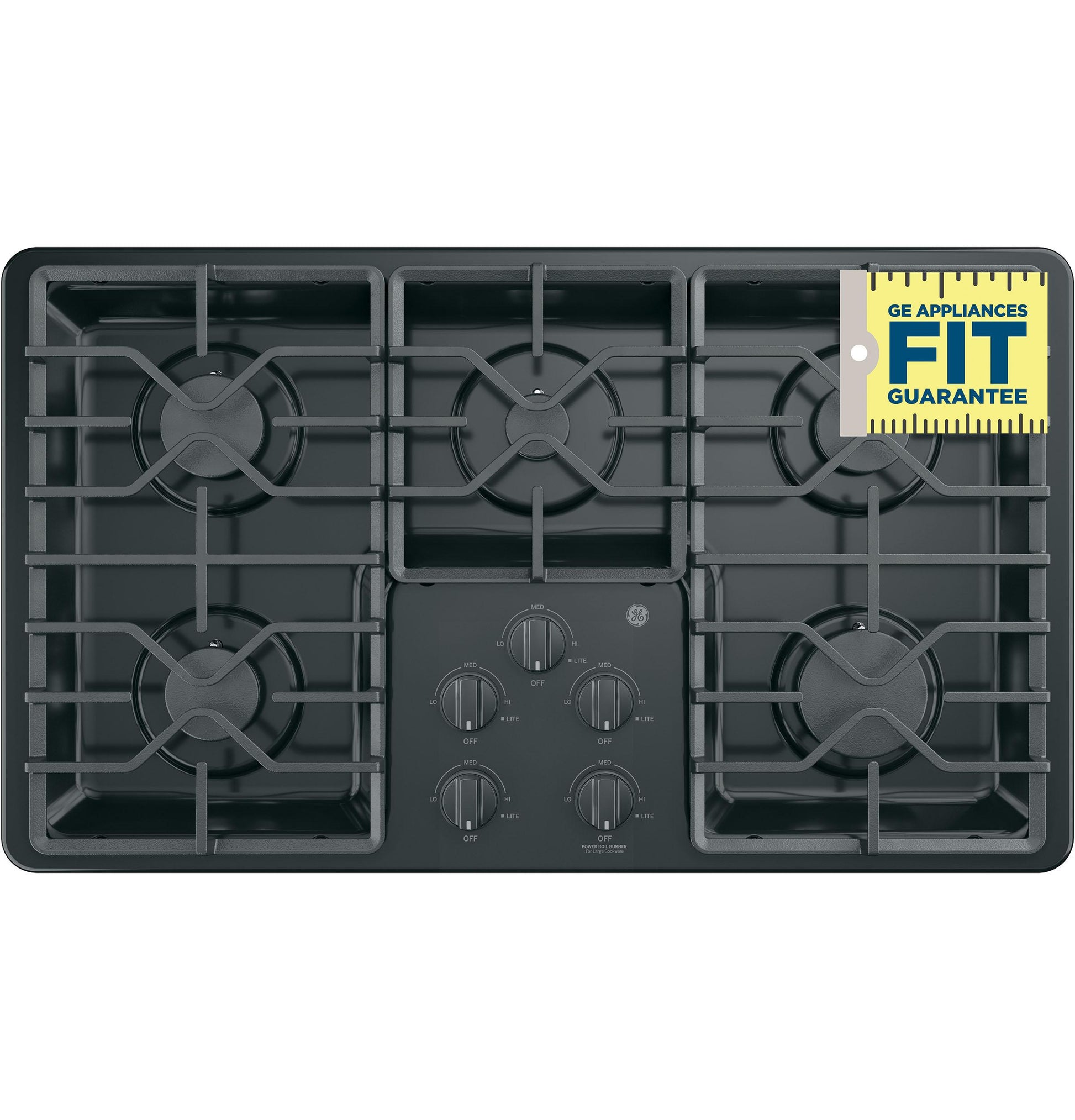

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
FILTER | |
App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Cooktop Type | Continuous Grates |
App Filter - Fuel Type | Gas |

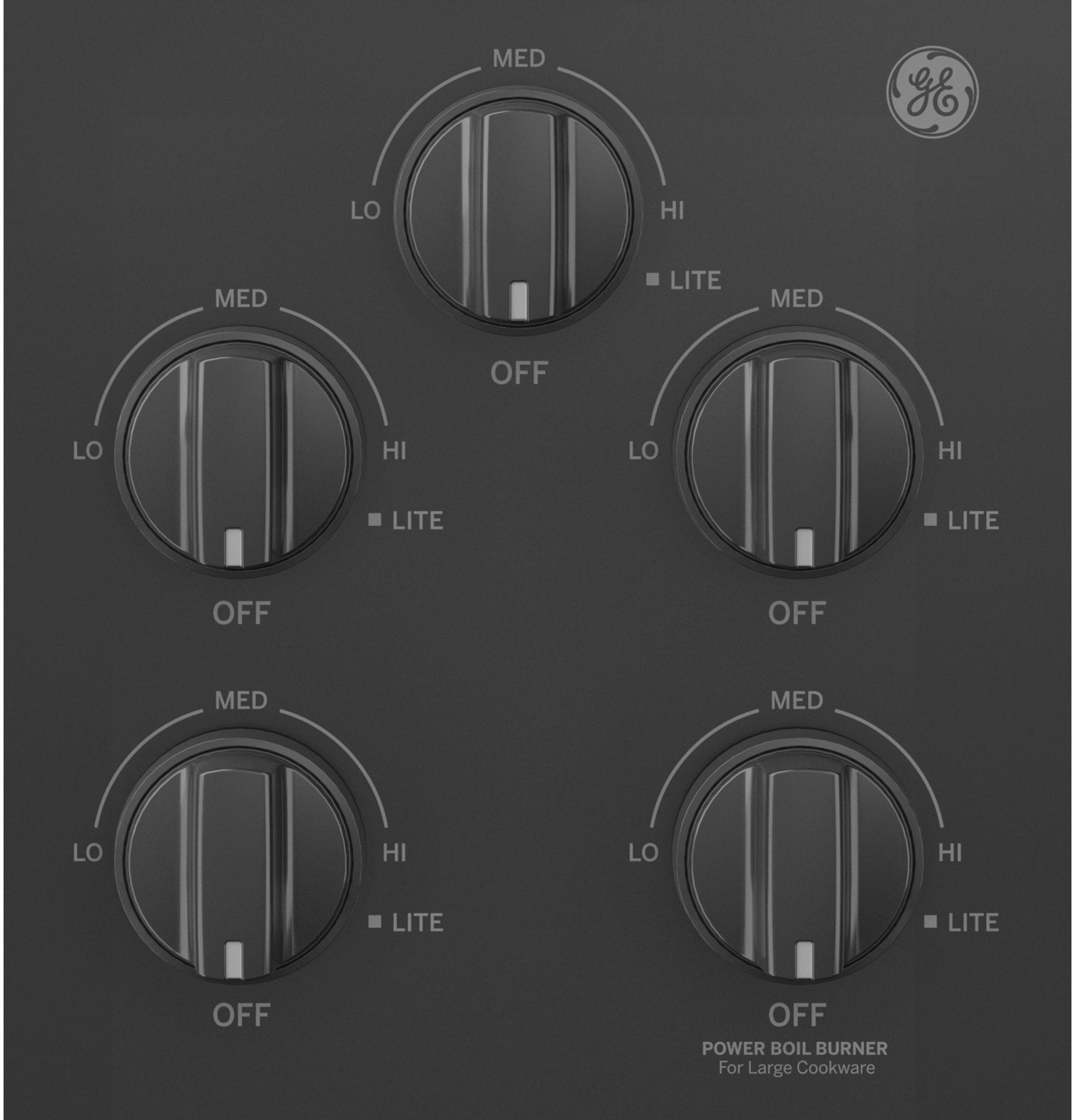

App Filter - Control Type | Rotary knobs |
APPEARANCE | |
Color Appearance | Black |
Cooktop Burner Grate Color | Matte Black |
Control Knobs | Dishwasher Safe Gloss Black |
POWER / RATINGS | |
Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Overall Height | 4.75 in |
Cutout Depth (in) | 19 1/8 in |
Cabinet Width | 36 in |
Approximate Shipping Weight | 44 lb |
Overall Width | 36 in |
Net Weight | 38 lb |
Cutout Width (in) | 33-7/8 |
Overall Depth | 21 in |
FEATURES | |
Cooktop Burner Type | 5 Sealed |
Valves (Degree of Turn) | 270 |
Burner - Right Rear | 9,500 BTU |
Burner - Right Front | 15,000 BTU Power Boil |
Fuel Type | Natural Gas (factory set) |
Power Boil Burner | Yes |
Control Location | Front Center |
Cooktop Type | Continuous Grates |
Ignition System | Electronic |
Burner - Center | 5,000 BTU |
Cooktop Surface | Black Deep Porcelain-Enamel |
Burner - Left Rear | 12,000 BTU |

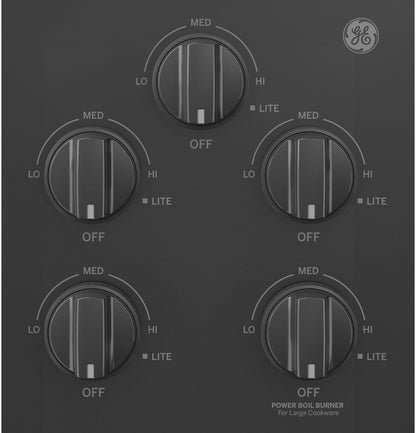

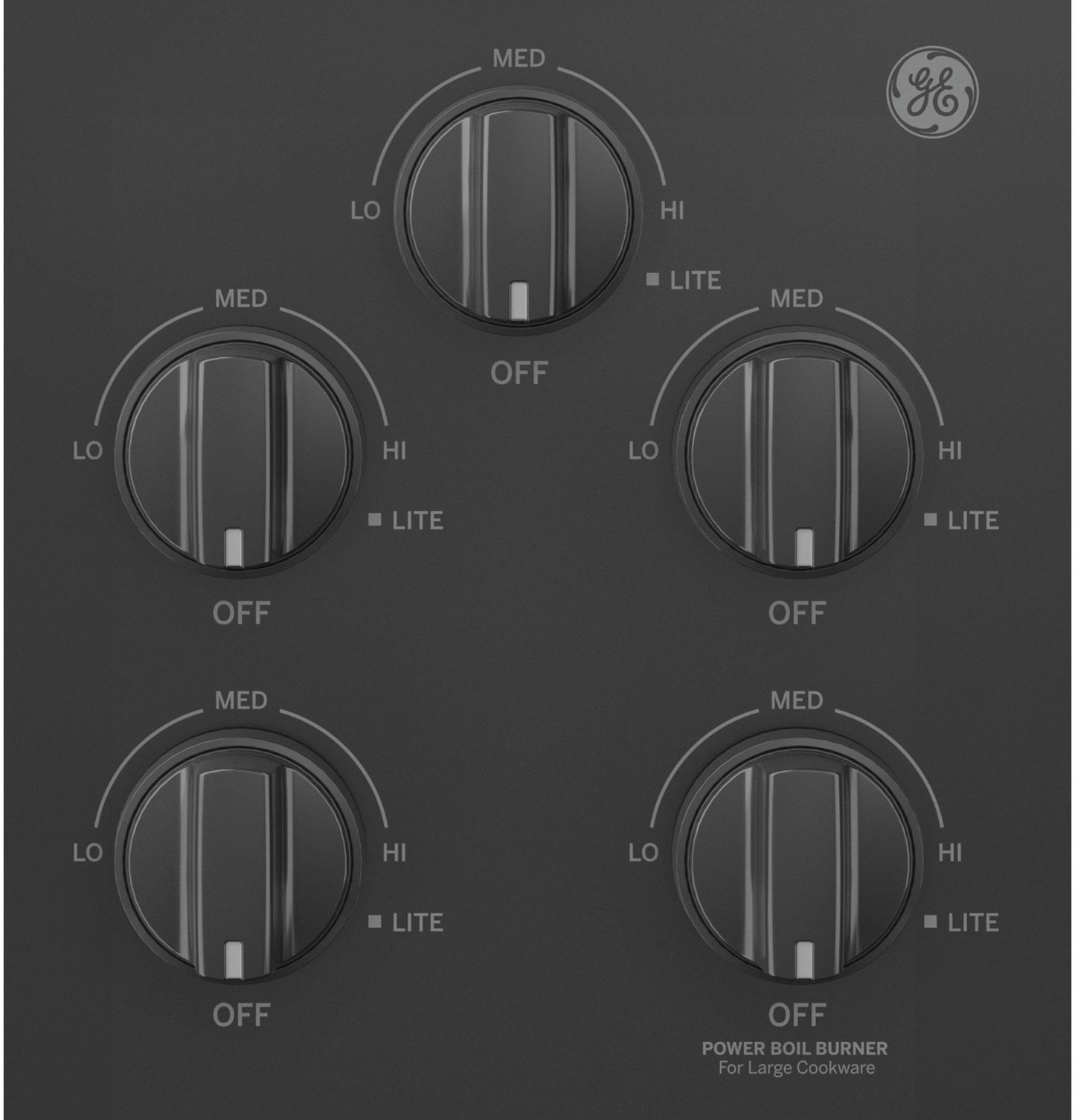

Control Type | Knob |
Cooktop Burner Grate Material | Standard Cast |
Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
Burner - Left Front | 9,500 BTU |
