JNM3163DJBB GE® 1.6 Cu. Ft. Over-the-Range Microwave Oven with Recirculating Venting

Practical Capacity. Dependable Performance.
With a 1.6 cu. ft. capacity and 950 Watts of power, this microwave provides consistent, even cooking for everyday meals and quick reheats

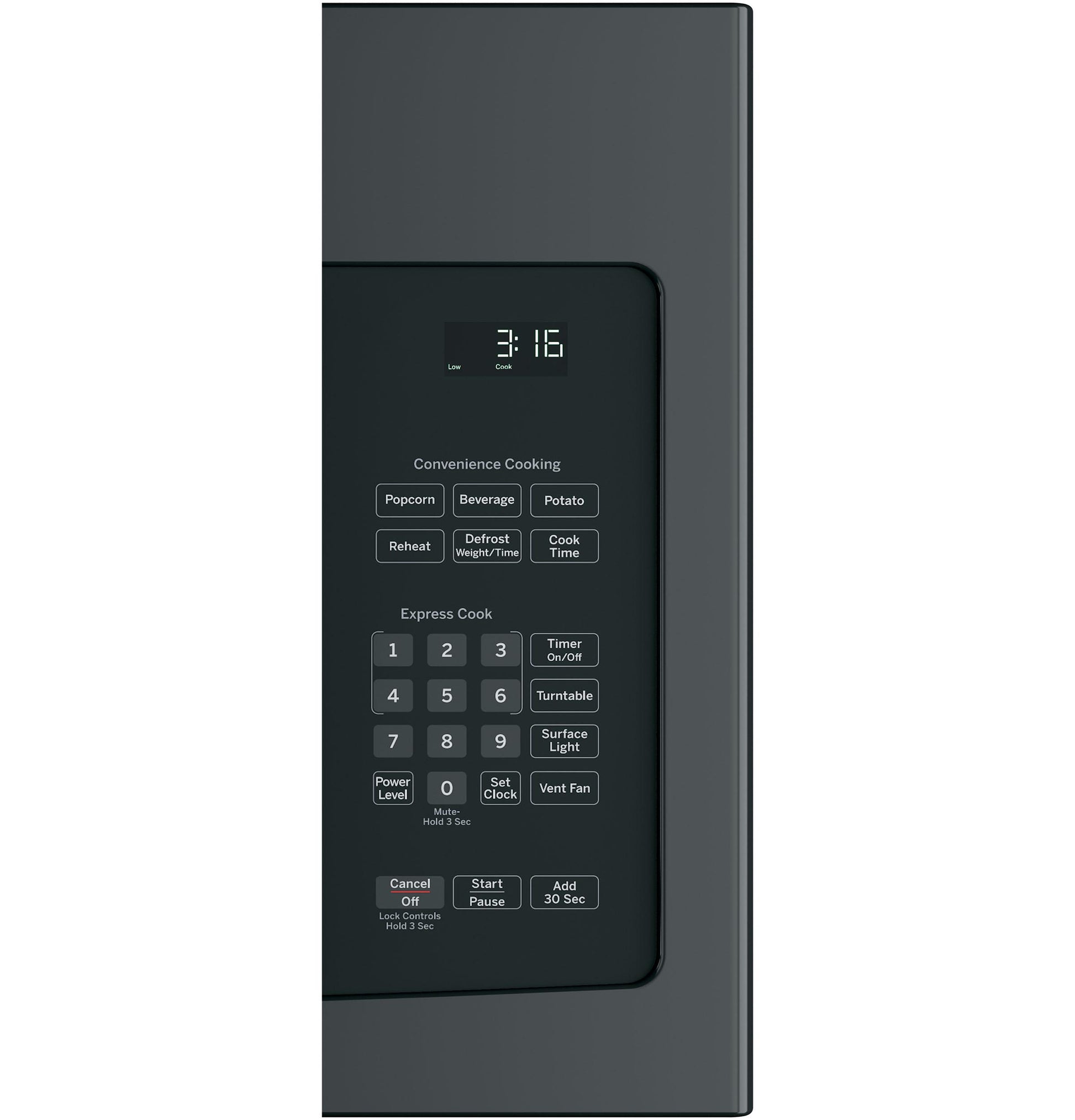

Convenience cooking controls
One-touch controls let you quickly cook or reheat popular foods, making everyday meals faster and easier.

Weight and time defrost
Enter food weight for automatic settings, or choose your own defrost time

Turntable On/Off
Choose when the turntable rotates to fit larger dishes or prevent spills while heating

Two-speed, 300-CFM venting system
Removes smoke, steam and odors

"Add 30 seconds" button
Instantly start the microwave and add 30 seconds with each press, up to 99 minutes and 99 seconds

Versatile microwave power levels for perfect cooking
Experience customized cooking with adjustable power levels, from quick high-heat for veggies and beverages to gentle low-heat for defrosting and delicate sauces

Express Cook Simplicity
Just press a number, 1-6, for equal minutes of cooking time. Enjoy the ease of efficient meal prep, perfect for family dinners or quick snacks

CAPACITY
Total Capacity (cubic feet)	1.6 cu ft
Vent CFM	300
FILTER
App Filter - Control Type	Electronic touchpad
App Filter - Wattage	Under 1000
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Product Type	Microwave Over-the-Range
App Filter - Capacity	Microwave Medium (1.5 - 1.8 cu. ft.)
App Filter - Voltage	120V
App Filter - Convection	No
App Filter - Venting Type	Recirculating
App Filter - Cooking Technology	Microwave Only
APPEARANCE
Door Swing	Hinges on Left
Handle Color	Black
Oven Door Features	Oven Window
Installation	Easy Mount
Door Color	Black
Case Color	Black
Color Appearance	Black
POWER / RATINGS
Input Volts/Hertz	120/60
Electrical Input - 120V Amperage	14.0
Electrical Input - 120V Watts	1600
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
ECONOMICAL / QUIET
Non-Vented	Recirculating (Factory Set - Filter Included)
Venting Type	Convertible to External Venting
ACCESSORIES
Optional Side Filler Panel Kit	JX36BBB
Optional Kits	15" Bump Out Kit - JX15BUMPBB
Recirculating Charcoal Filter Kit	JX81C or WB02X33061 (Included)
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	63 lb
Cabinet Width	30 in
Net Weight	56 lb
Depth with Door Open	39.3125 in
Overall Width	29.875 in
Cutout Width (in)	30
Cutout Depth (in)	13
Cutout Height (in)	16.5
Overall Depth	15.875 in
Overall Height	16.4375 in
Cavity (W x H x D)	19-1/2 x 10-15/16 x 14-3/16
FEATURES
Display Type	LED
Electronic Digital Display with Clock	Yes
Display Screen Size (Diagonal Length)	2.01
Cooking Modes	Microwave
Express Cook	1-6 Minutes
Control Location	Side Controls
Style	Over-The-Range
Microwave Watts (IEC-705)	950 W
Turntable On / Off	Yes
Power Levels	10
Control Type	Electronic Touch
Cooktop Lighting	Bright/Night/Off
Control Features	Add 30 Seconds Cancel/Off Clock Display Defrost: Auto/Time Power Level Reminder Scroll Speed Set Clock Start/Pause Surface Light Timer On/Off Turntable On/Off Vent Fan
Product Type	Over-the-range Microwave
Microwave Convenience Cooking Controls	Beverage Cook Time Defrost: Weight/Time Popcorn Potato Reheat
Turntable	Glass
Cooking Technology	Microwave
Exhaust Fan	2-Speed 300-CFM
Vent	Back Front Top
Turntable Size	12.5 in
Interior Oven Light	Incandescent
