JP3036DLBB GE® 36" Built-In Knob Control Electric Cooktop JP3036DLBB











When Will I Get My Order?
- Five radiant cooking elements
- Power Boil Dual-Ring Element
- Keep Warm Setting
- Warming Zone
- Melt Setting
- Hot surface indicator lights
- Cooktop "On" indicator light
- Fit Guarantee
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Dual-Ring Element
Use different pan sizes on this flexible 2,700-watt element
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Warming Zone
Provides low-heat capability for keeping food warm
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active

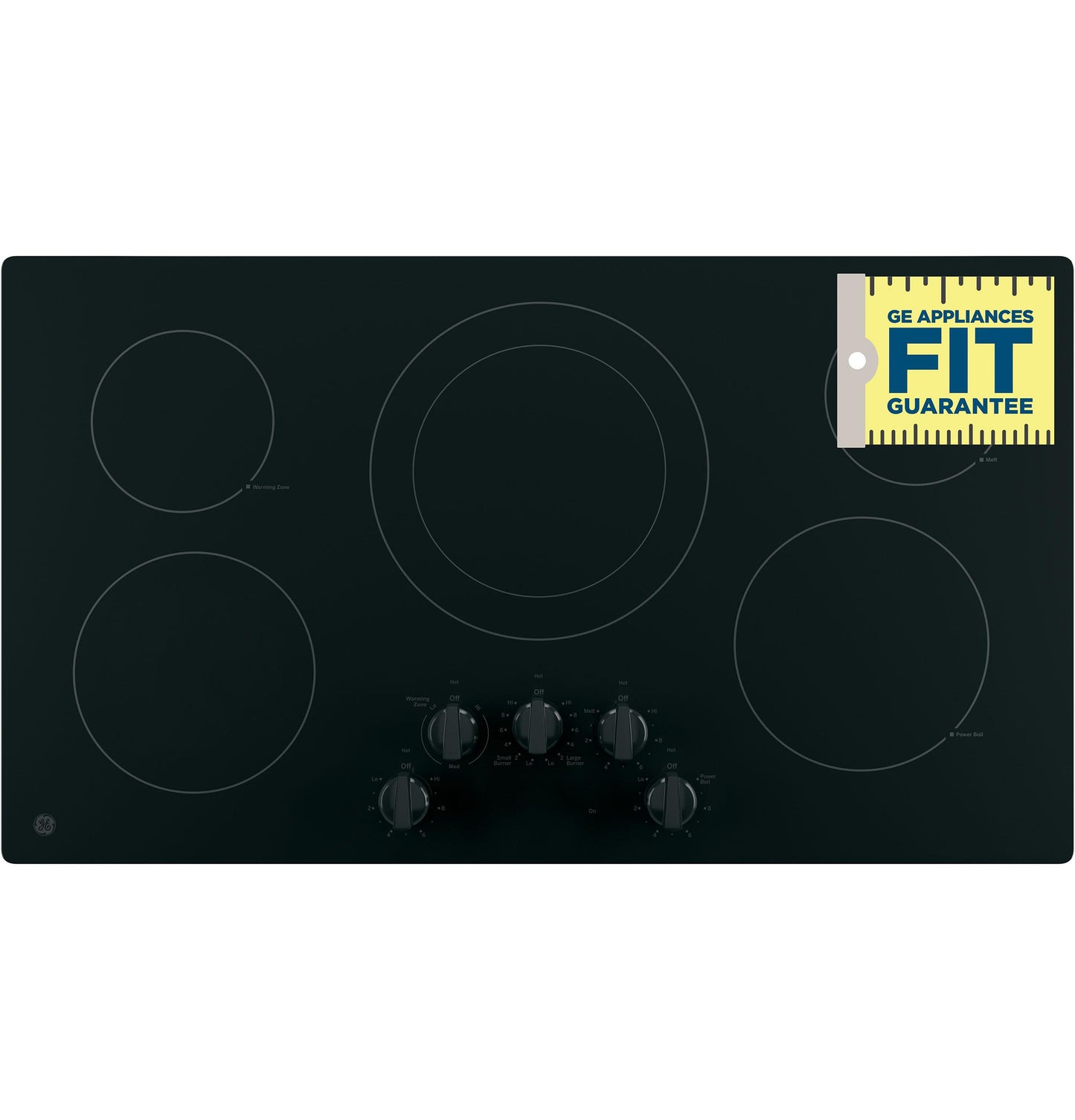

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
FILTER | |
App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Cooktop Type | Radiant Smoothtop |
App Filter - Fuel Type | Electric |
App Filter - Control Type | Rotary knobs |
APPEARANCE | |
Color Appearance | Black |
Frameless | Yes |
Control Knobs | Gloss Black |
POWER / RATINGS | |
Recommended Circuit Breaker (Amps) at 240V | 40 |
Max. Connected Load (kW) at 240V | 9.0 |
Max. Current Draw (Amps) at 240V | 37.5 |
Max. Connected Load (kW) at 208V | 7.1 |
Electrical Requirements | 208/240V ; 60Hz ; 40A |
Recommended Circuit Breaker (Amps) at 208V | 40 |
Max. Current Draw (Amps) at 208V | 34.3 |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Cooktop Size | 36 in |
Overall Height | 3.375 in |
Cutout Depth (in) | 19 1/8 in |
Cabinet Width | 36 in |
Approximate Shipping Weight | 53 lb |
Overall Width | 36 in |
Net Weight | 46 lb |
Cutout Width (in) | 33-7/8 |
Overall Depth | 20.375 in |
FEATURES | |
Dishwasher Safe Knobs | Yes |
Cooktop Burner Type | 5 Ribbon Smoothtop |
Melt Setting | Yes |
Fuel Type | Electric |
Power Boil Burner | Yes |
Element - Left Front | 7" 1500W |
Indicator Lights | 5 Hot Surface Red Surface Element "ON" |
Dual Ring Burners | Yes |
Element - Right Front | 8" 2500W Power Boil |
Control Location | Front Center |
Cooktop Type | Radiant Smoothtop |
Cooktop Surface | Black Ceramic Glass |
Cooktop Control Features | Fifth Element Warming Zone |
Element - Left Rear | 6" 120W Warming Zone |
Control Type | Knob (Infinite switch) |
Element - Center | 12"/9" 2700W dual |
Element - Right Rear | 6" 1200W (Melt) |
Product Type | Cooktop |
