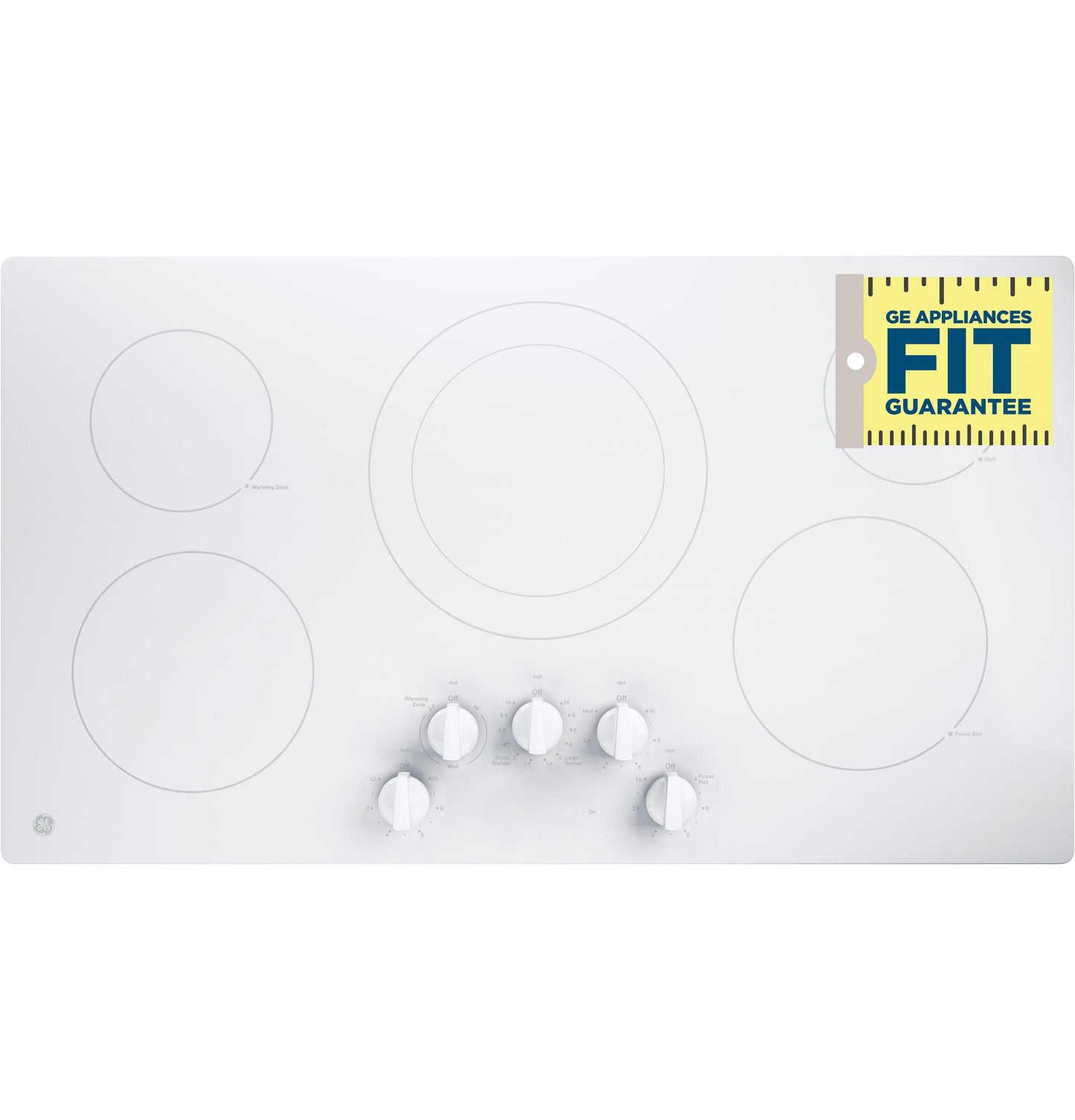

JP3036TLWW GE® 36" Built-In Knob Control Electric Cooktop JP3036TLWW

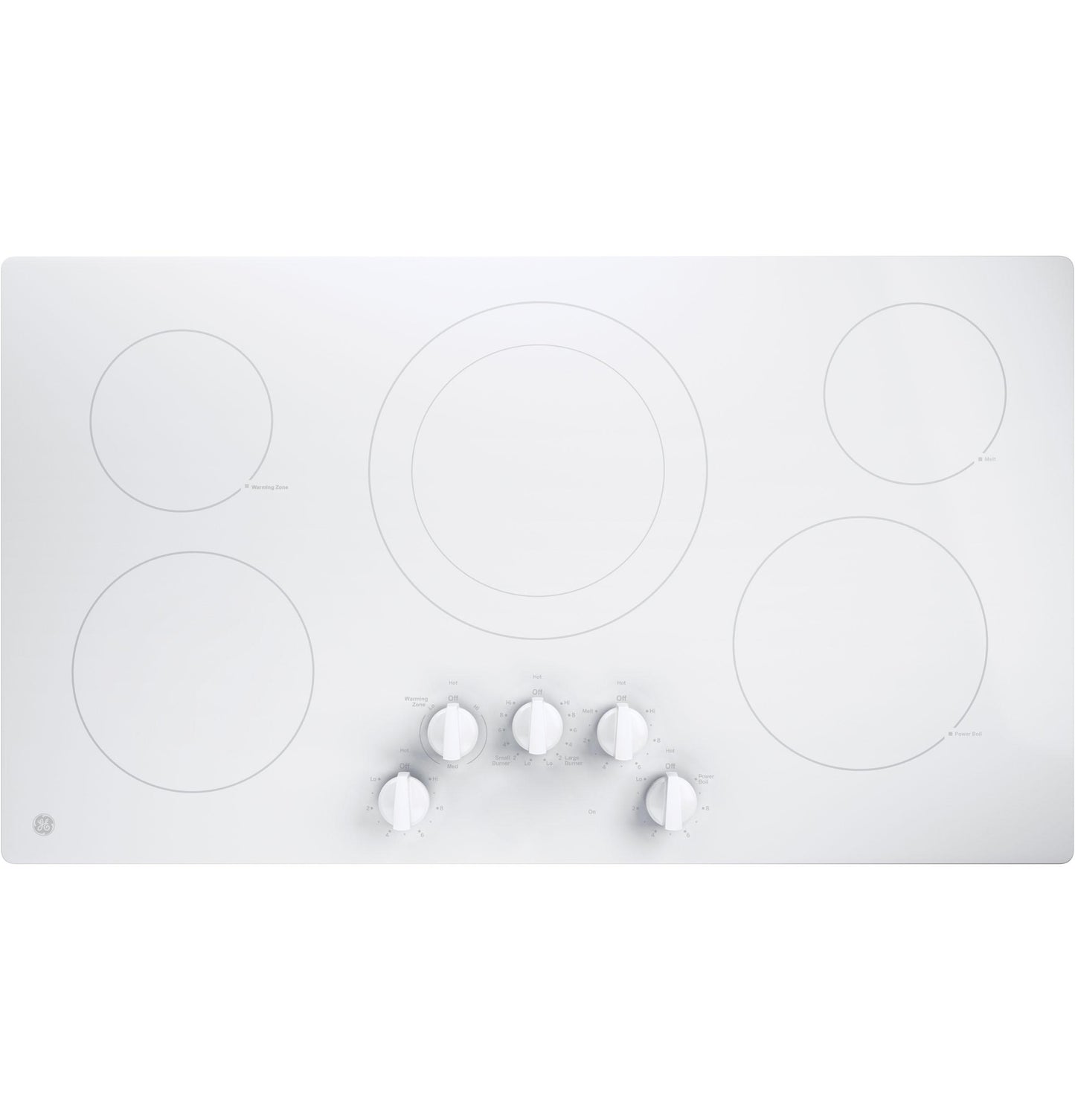

Five radiant cooking elements

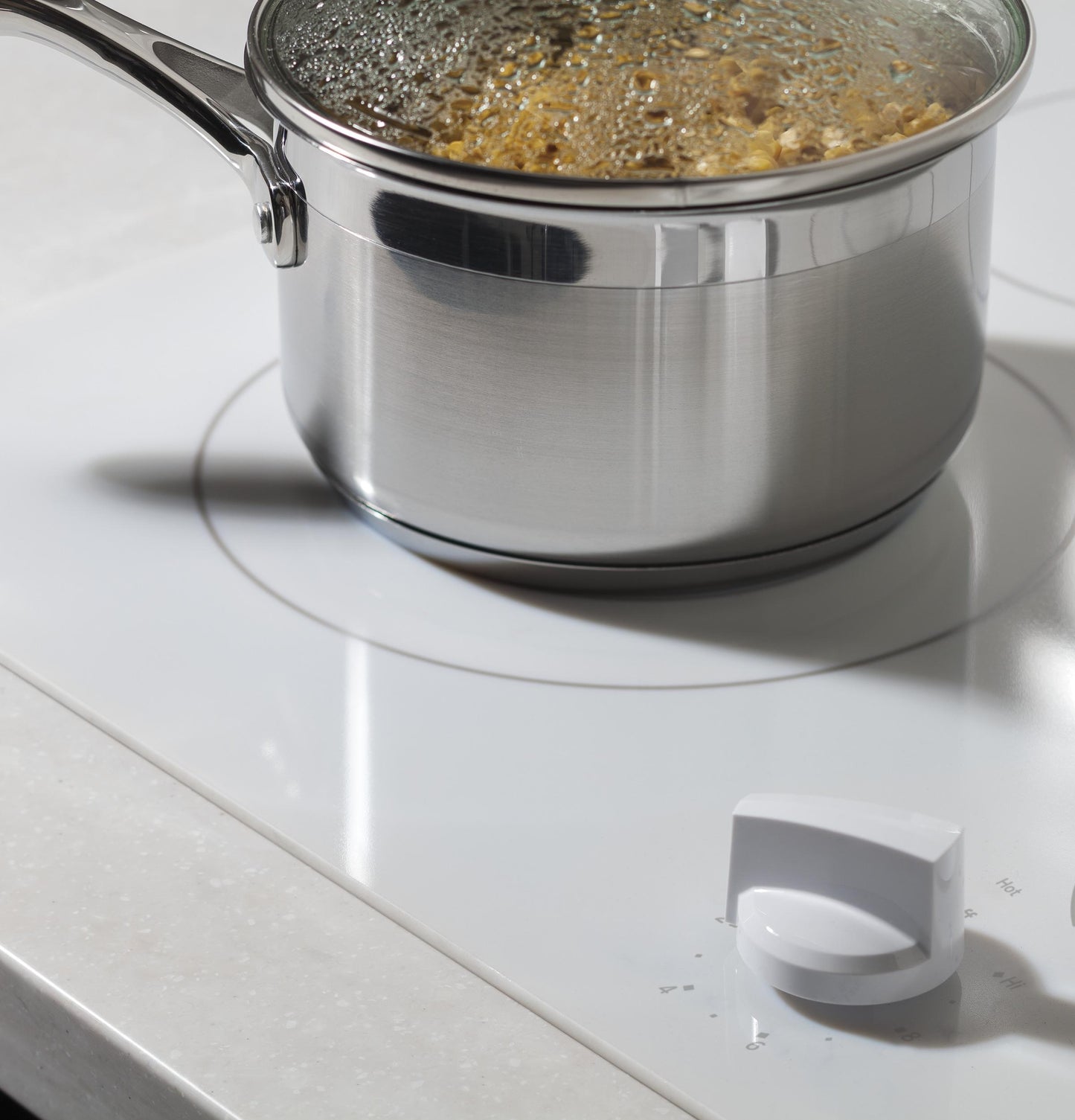

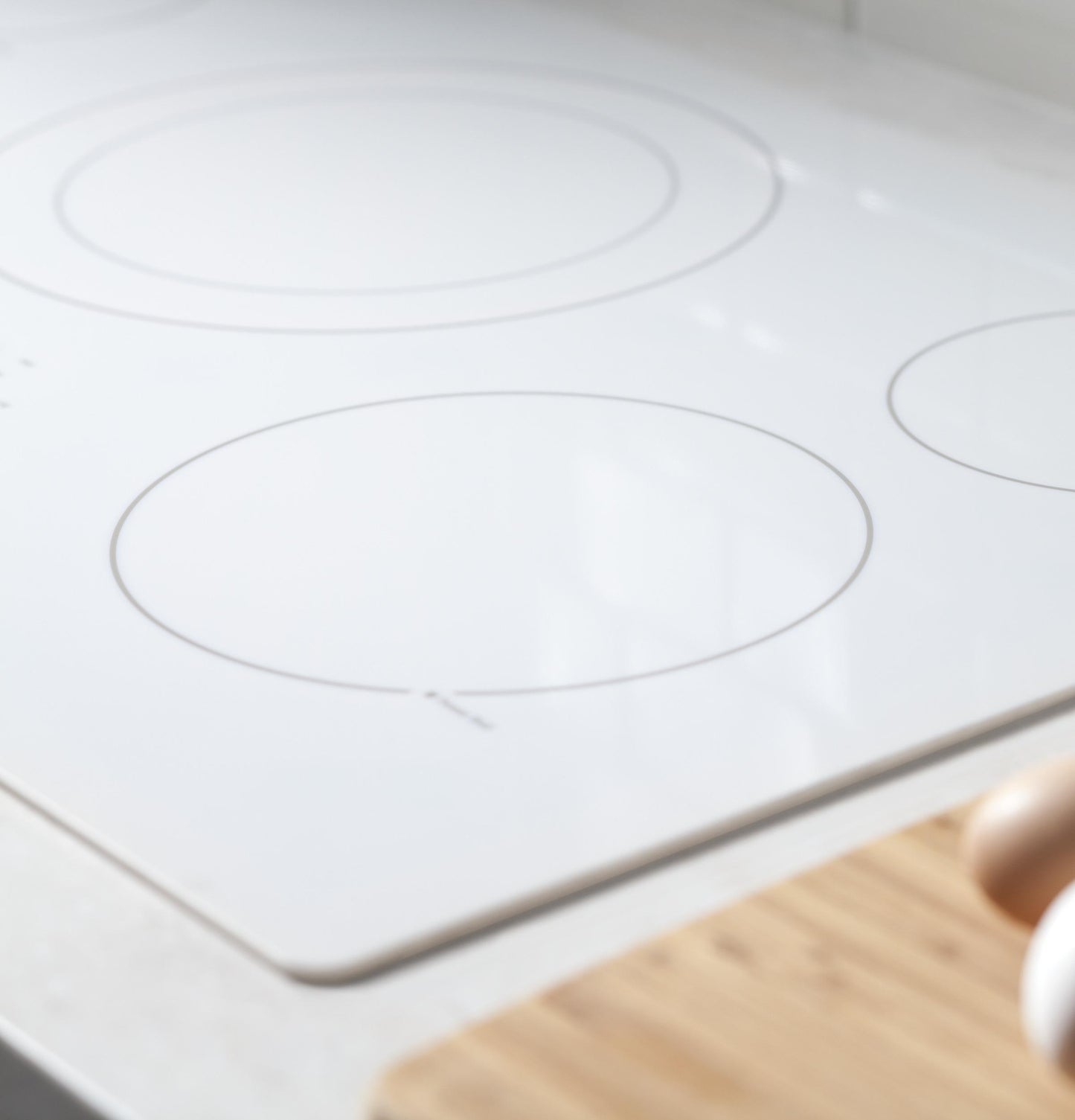

Cook foods quickly and evenly on this sleek, glass surface

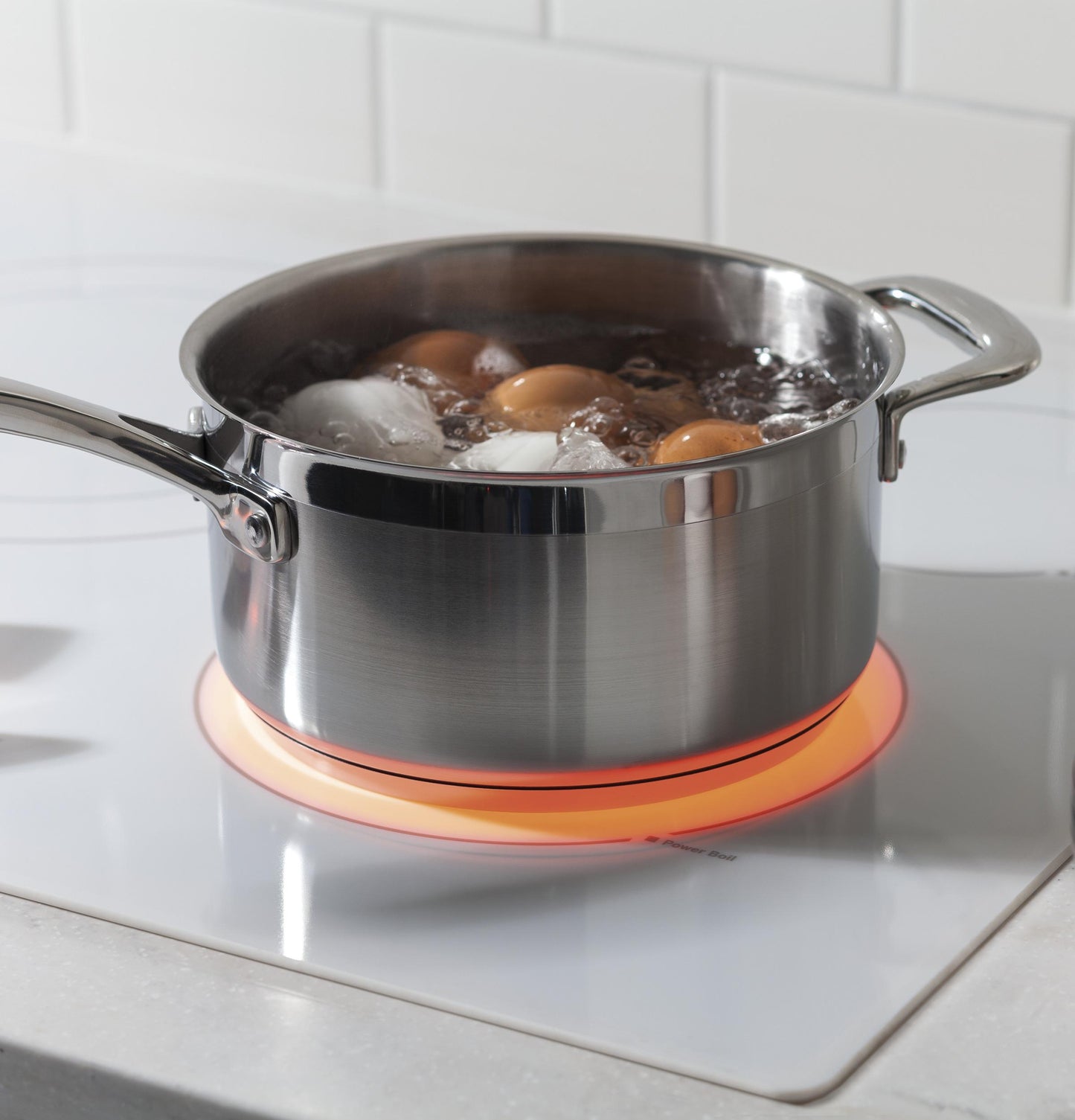

Power Boil Dual-Ring Element
Use different pan sizes on this flexible 2,700-watt element

Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

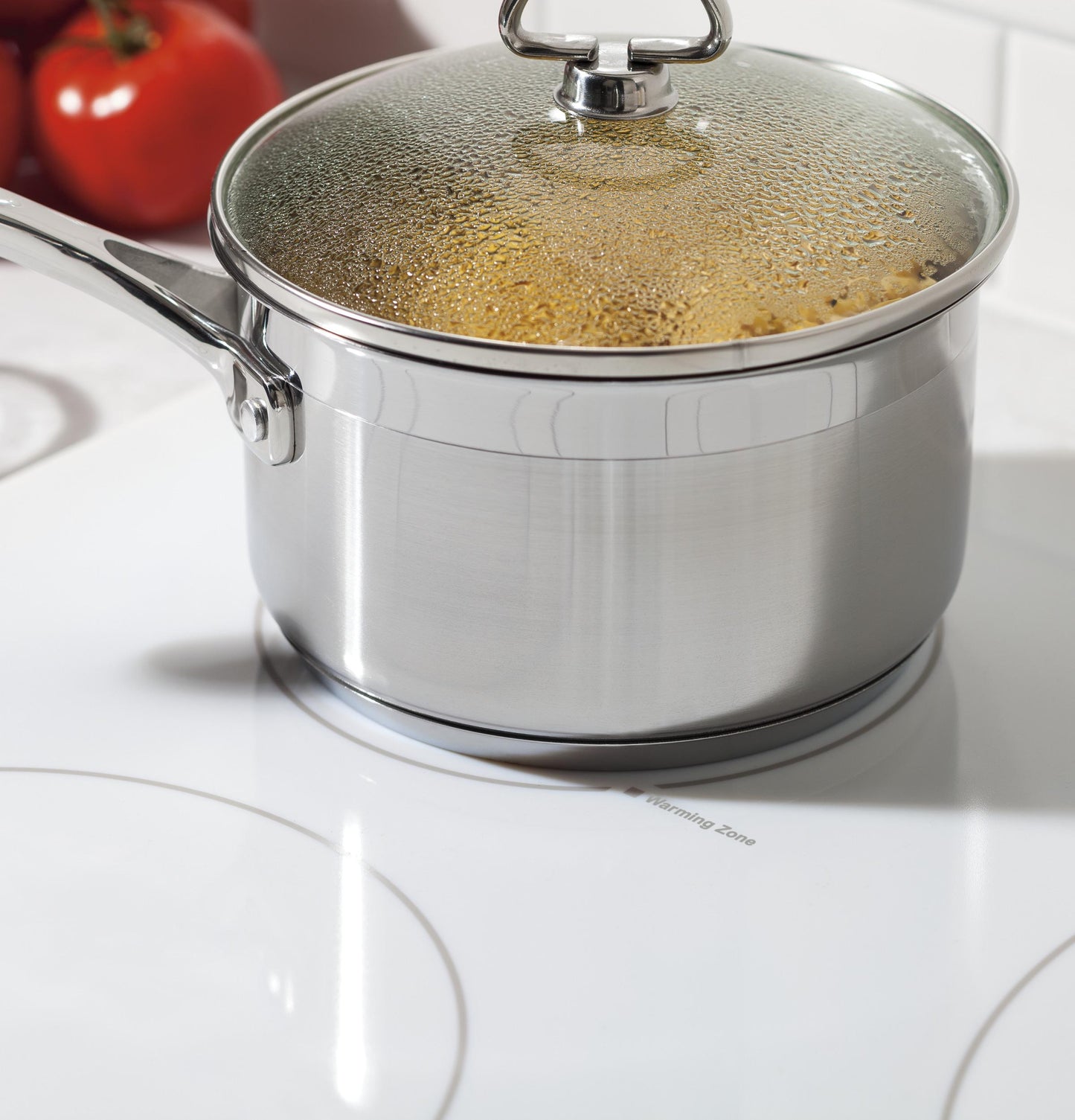

Warming Zone
Provides low-heat capability for keeping food warm

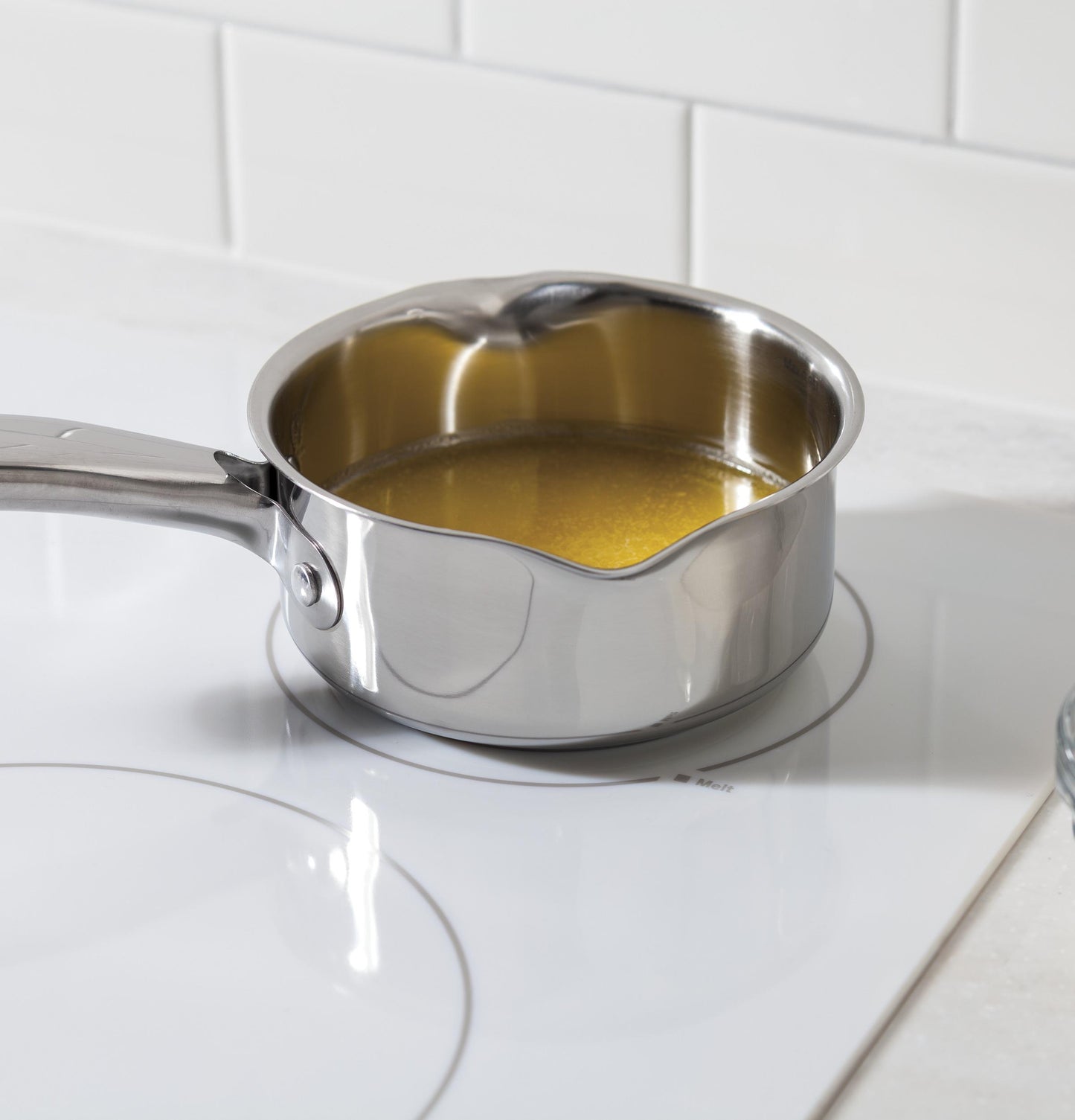

Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting

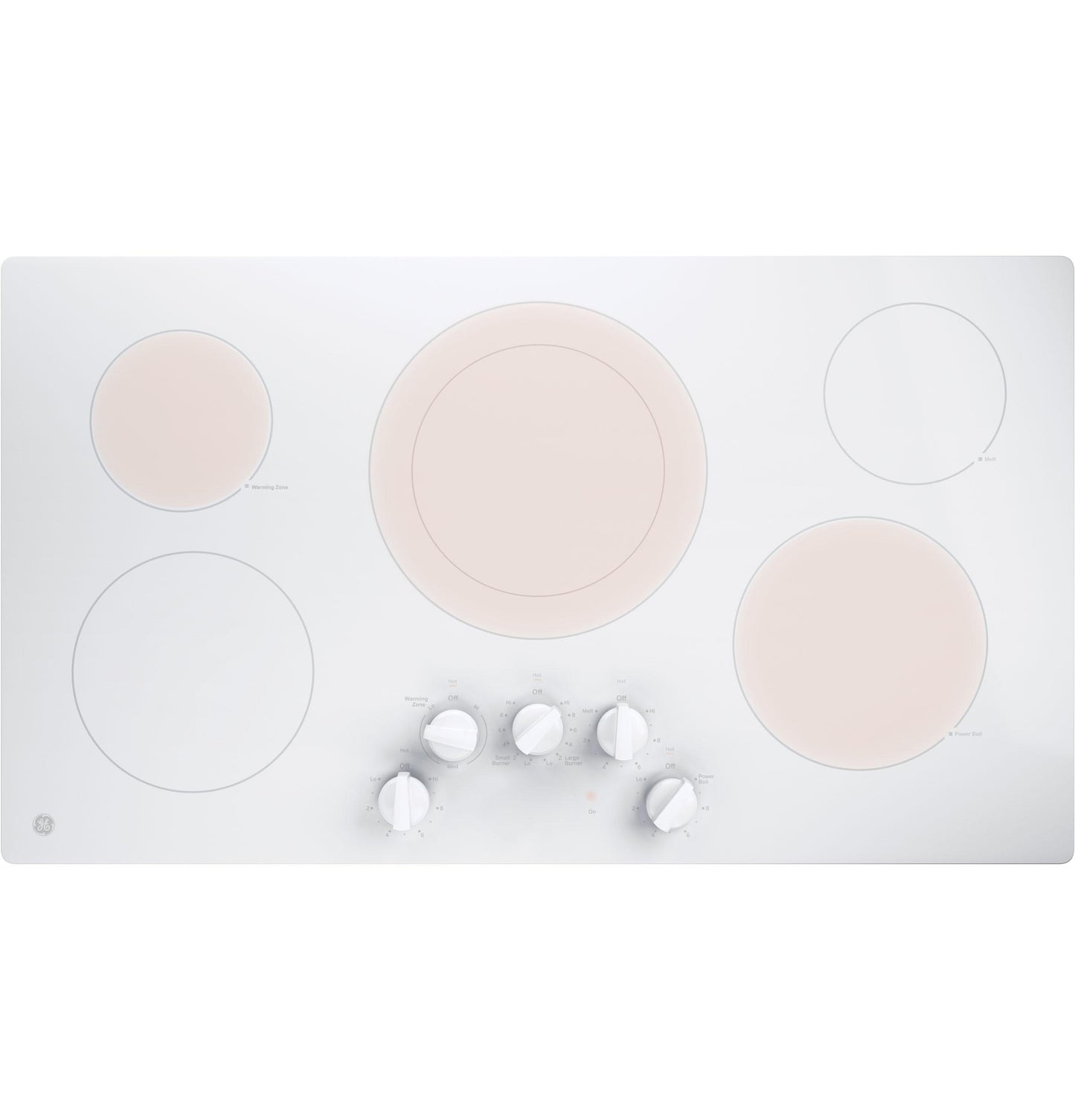

Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

Cooktop "On" indicator light
A light lets you know when an element is active

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

FILTER
App Filter - Cabinet Width	Cooking 36 in.
App Filter - Cooktop Type	Radiant Smoothtop
App Filter - Fuel Type	Electric
App Filter - Control Type	Rotary knobs
APPEARANCE
Color Appearance	White
Frameless	Yes
Control Knobs	Gloss White
POWER / RATINGS
Recommended Circuit Breaker (Amps) at 240V	40
Max. Connected Load (kW) at 240V	9.0
Max. Current Draw (Amps) at 240V	37.5
Max. Connected Load (kW) at 208V	7.1
Recommended Circuit Breaker (Amps) at 208V	40
Max. Current Draw (Amps) at 208V	34.3
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Cooktop Size	36 in
Overall Height	3.375 in
Cutout Depth (in)	19-1/8
Cabinet Width	36 in
Approximate Shipping Weight	53 lb
Overall Width	36 in
Net Weight	46 lb
Cutout Width (in)	33-7/8
Overall Depth	20.375 in
FEATURES
Dishwasher Safe Knobs	Yes
Cooktop Burner Type	5 Ribbon Smoothtop
Melt Setting	Yes
Fuel Type	Electric
Element - Left Front	7" 1500W
Indicator Lights	5 Hot Surface Red Surface Element "ON"
Element - Right Front	8" 2500W Power Boil
Control Location	Front Center
Cooktop Type	Radiant Smoothtop
Cooktop Surface	True White Ceramic Glass
Cooktop Control Features	Fifth Element Warming Zone
Element - Left Rear	6" 120W Warming Zone
Control Type	Knob (Infinite switch)
Element - Center	12"/9" 2700W dual
Element - Right Rear	6" 1200W (Melt)
