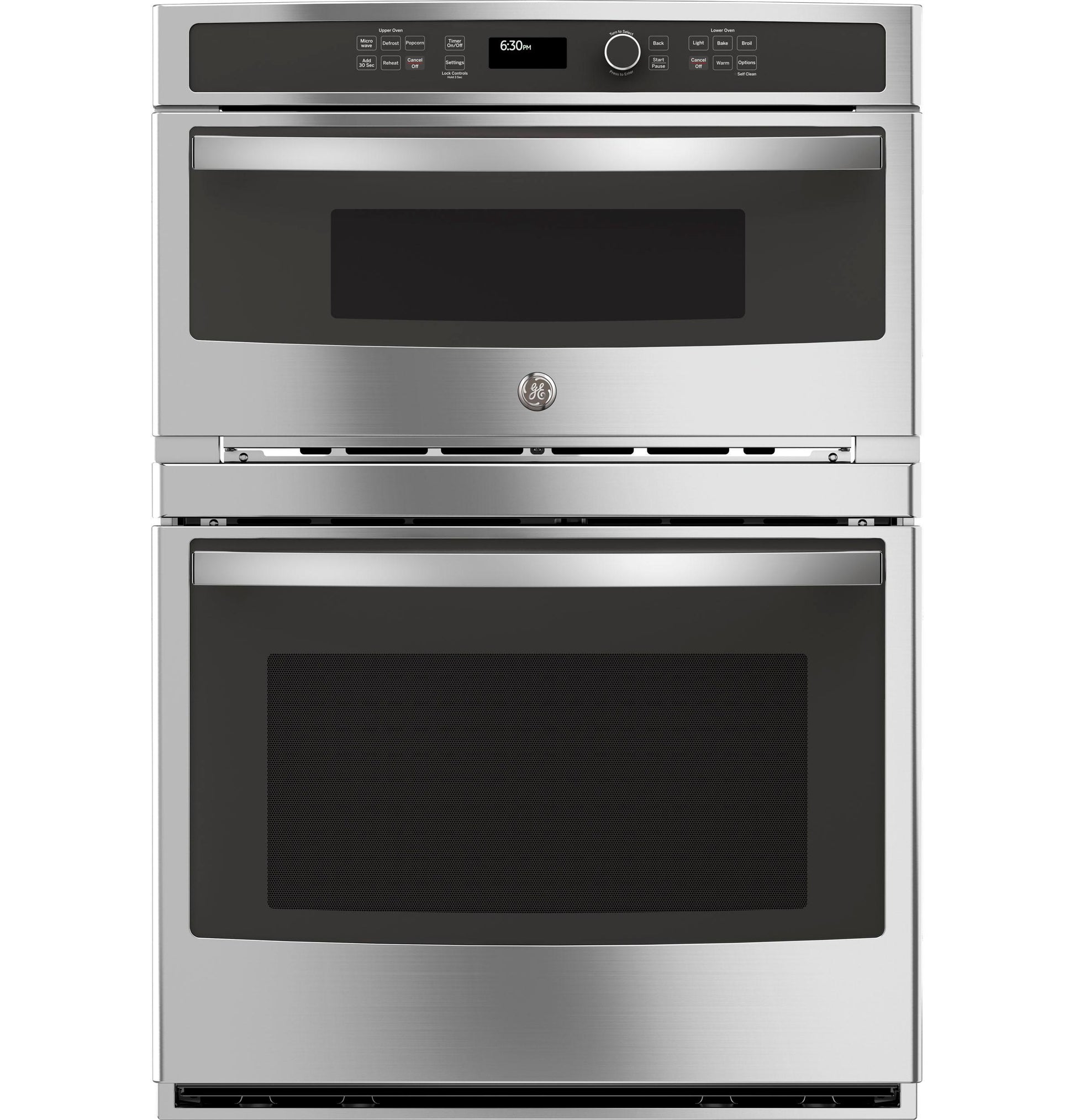

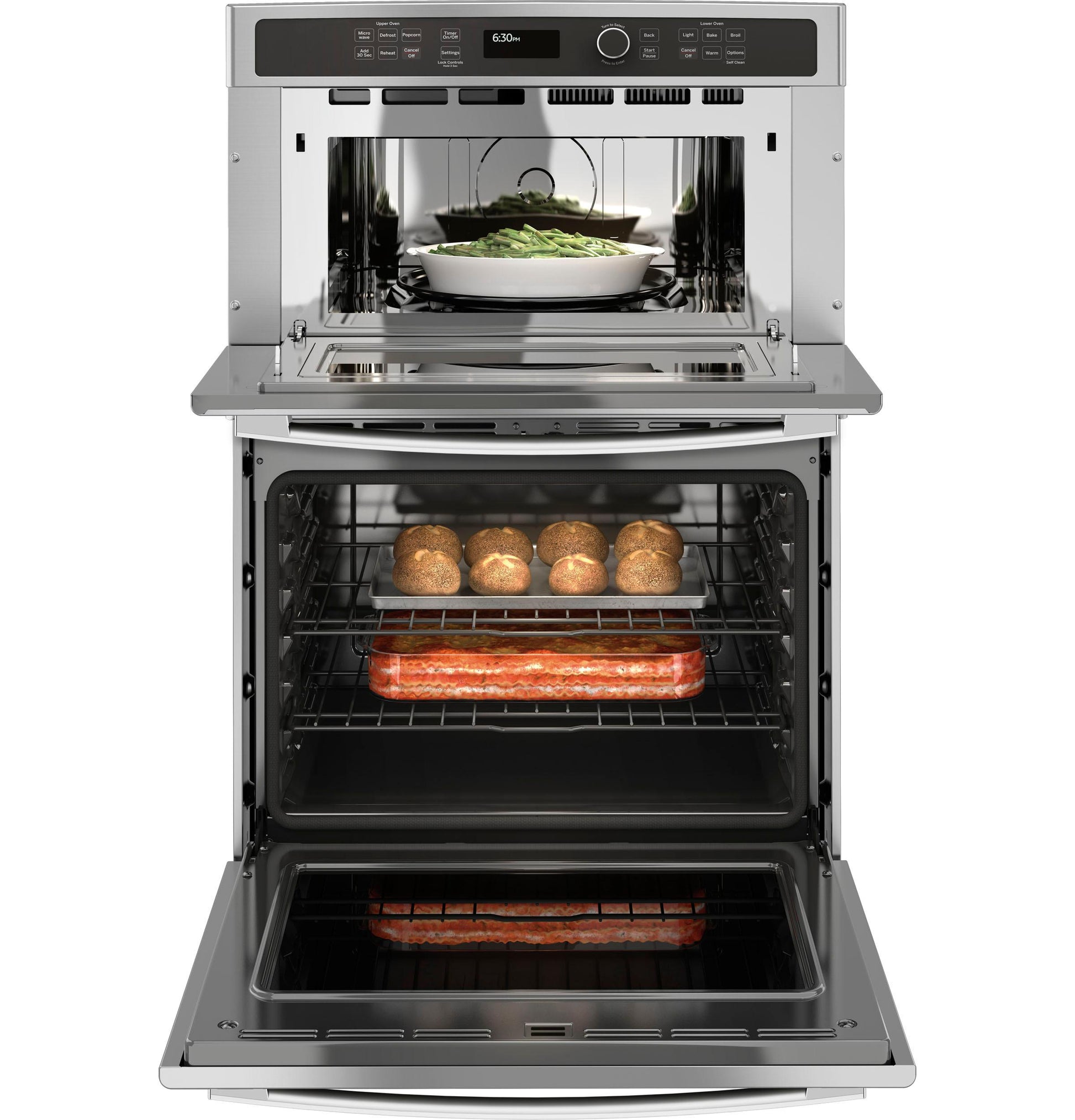

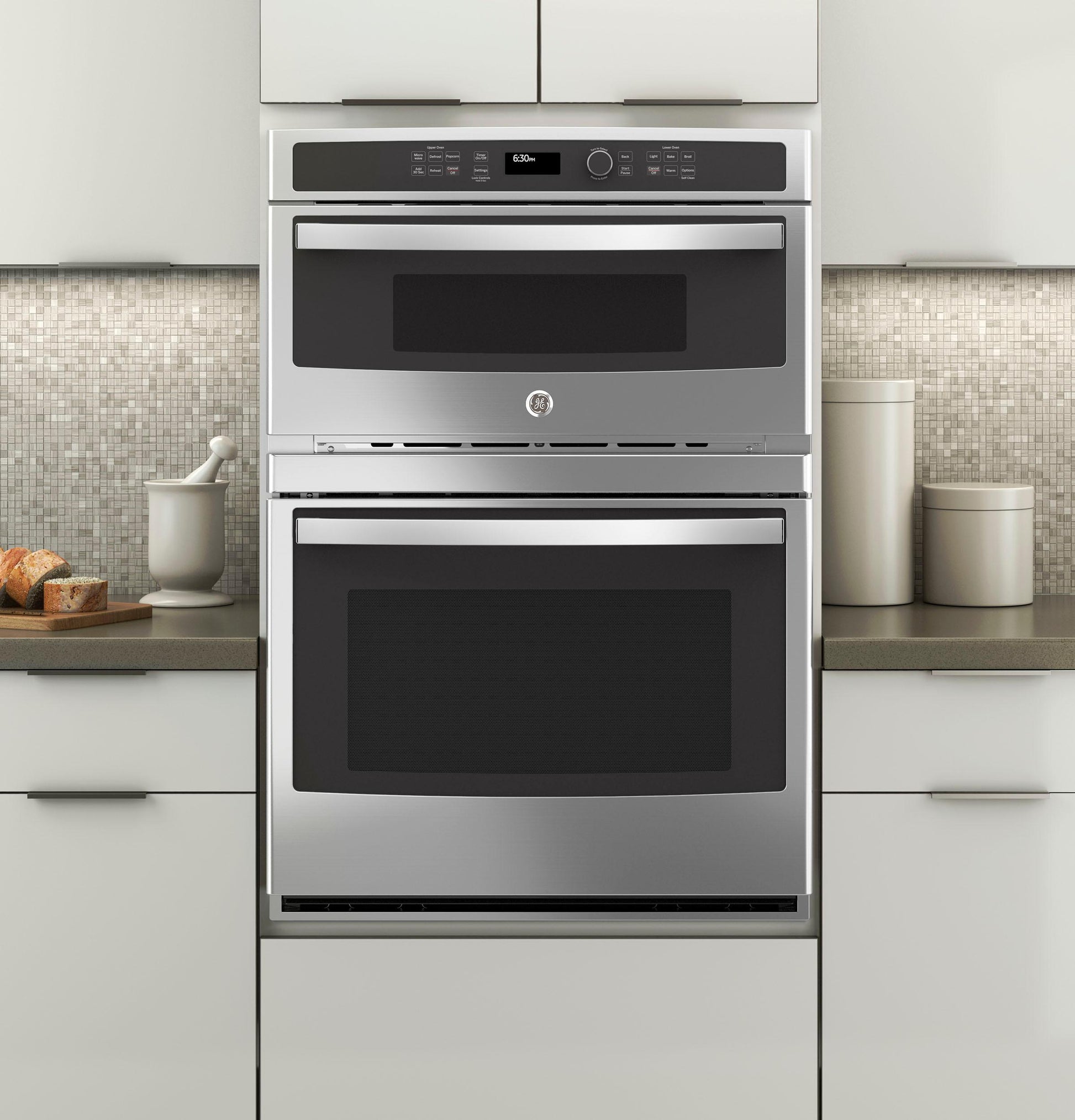

JT3800SHSS GE® 30" Combination Double Wall Oven

High Capacity Microwave
1.7 cu. ft. microwave capacity

Sensor cooking microwave (upper oven)
Provide a built-in sensor in the upper microwave that automatically calculates and adjusts cooking times and power levels for favorite foods

16" turntable (upper oven)
Rotates food throughout the cooking cycle for even cooking results

Self-clean with Steam Clean option (lower oven)
Clean your oven the way you want

Never-scrub, heavy-duty oven racks (lower oven)
Conveniently clean your oven and racks together

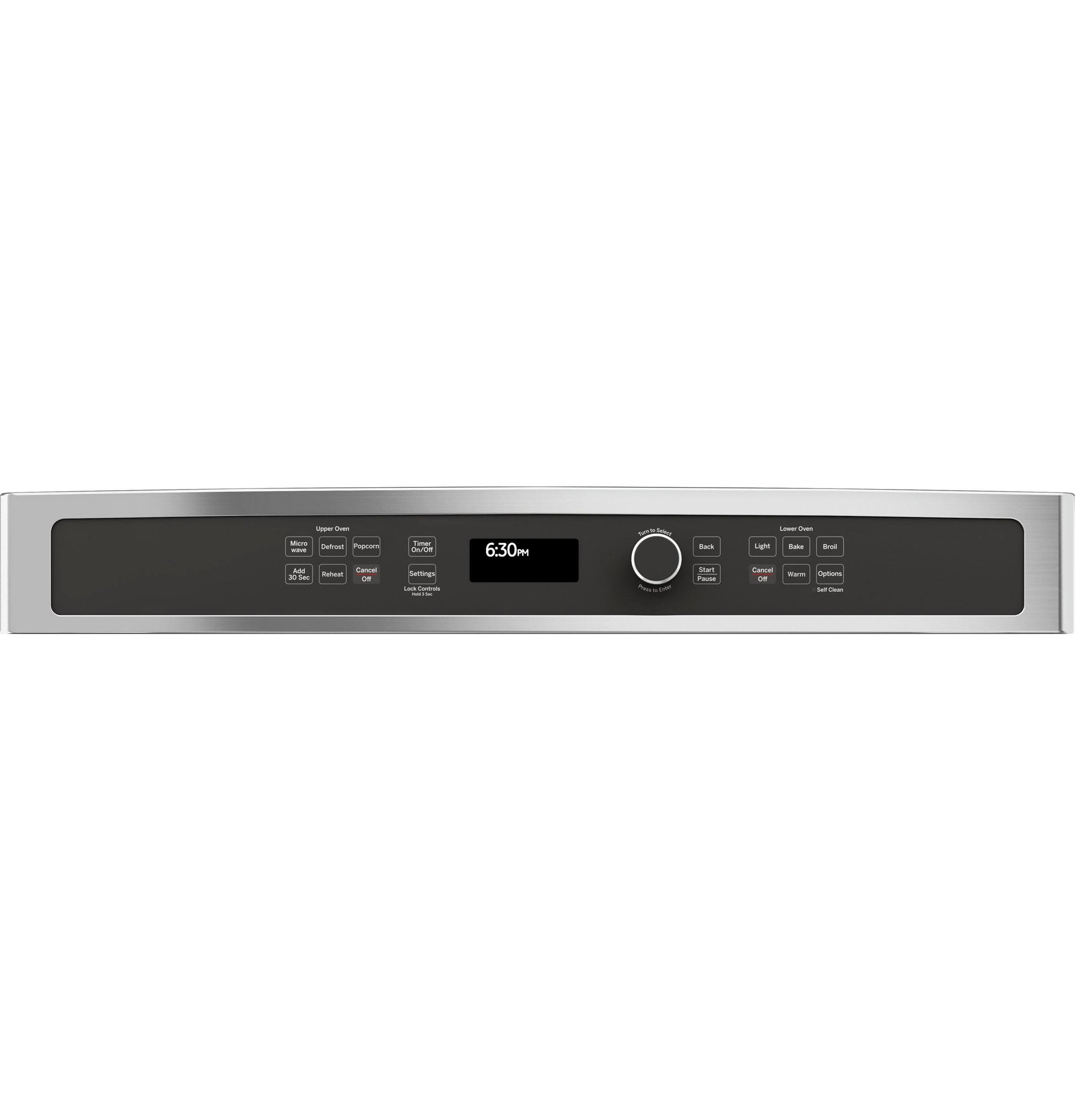

Glass touch controls
Set temperatures quickly and clean with little effort

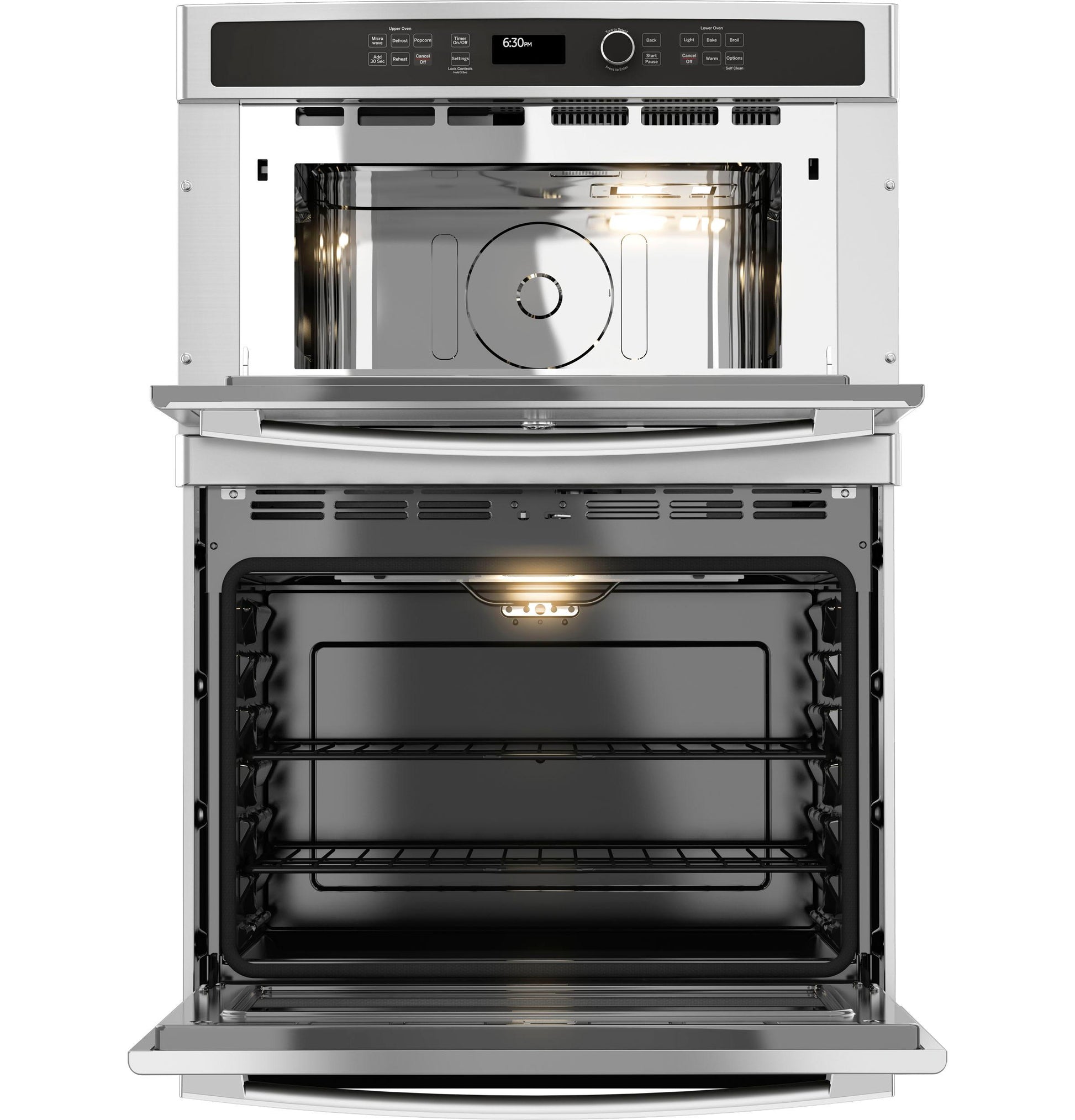

Halogen interior oven lighting (lower oven)
Easily see how your food is baking

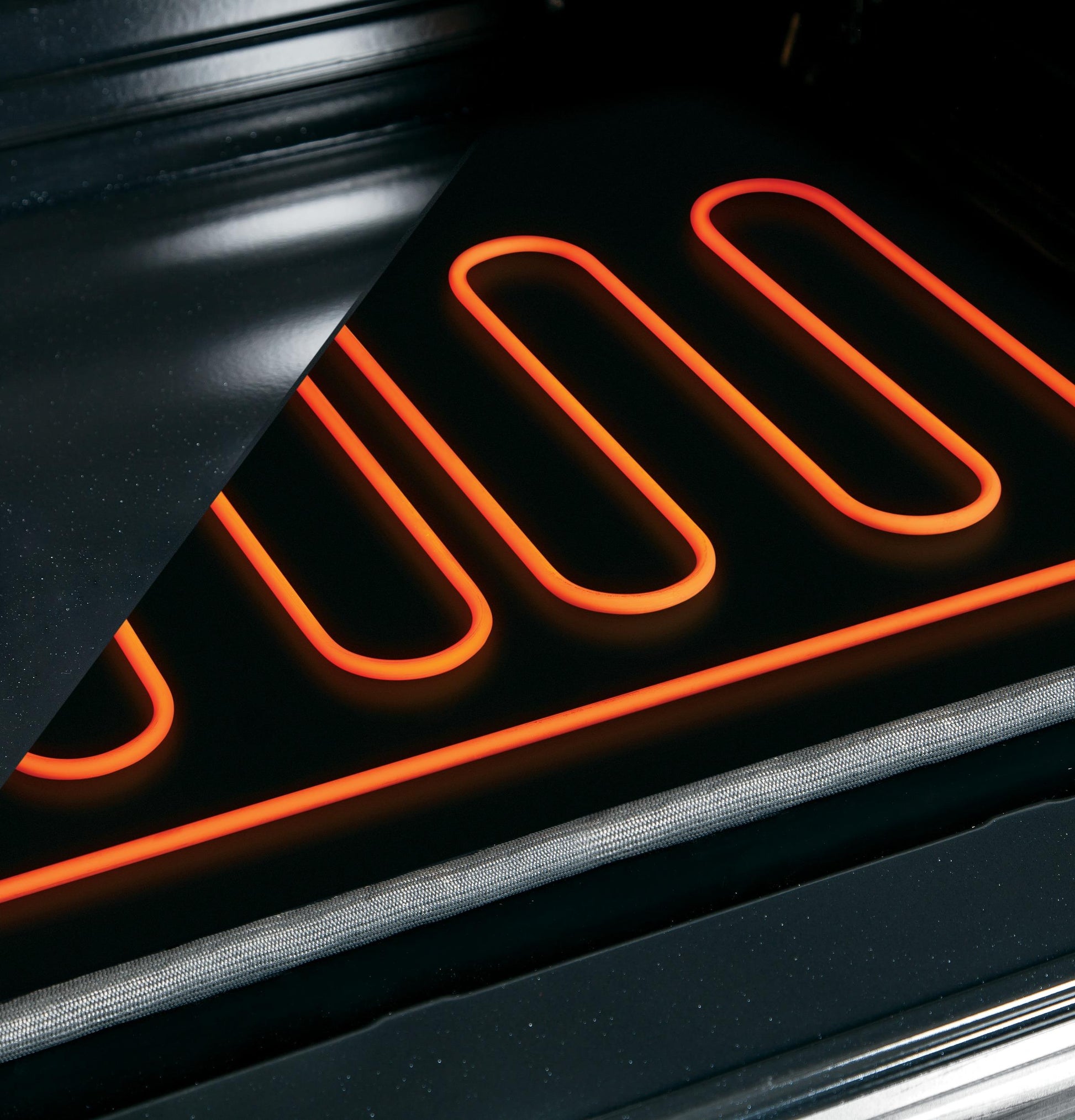

10-pass bake element (lower oven)
Even baking is assured with heat that covers more surface area

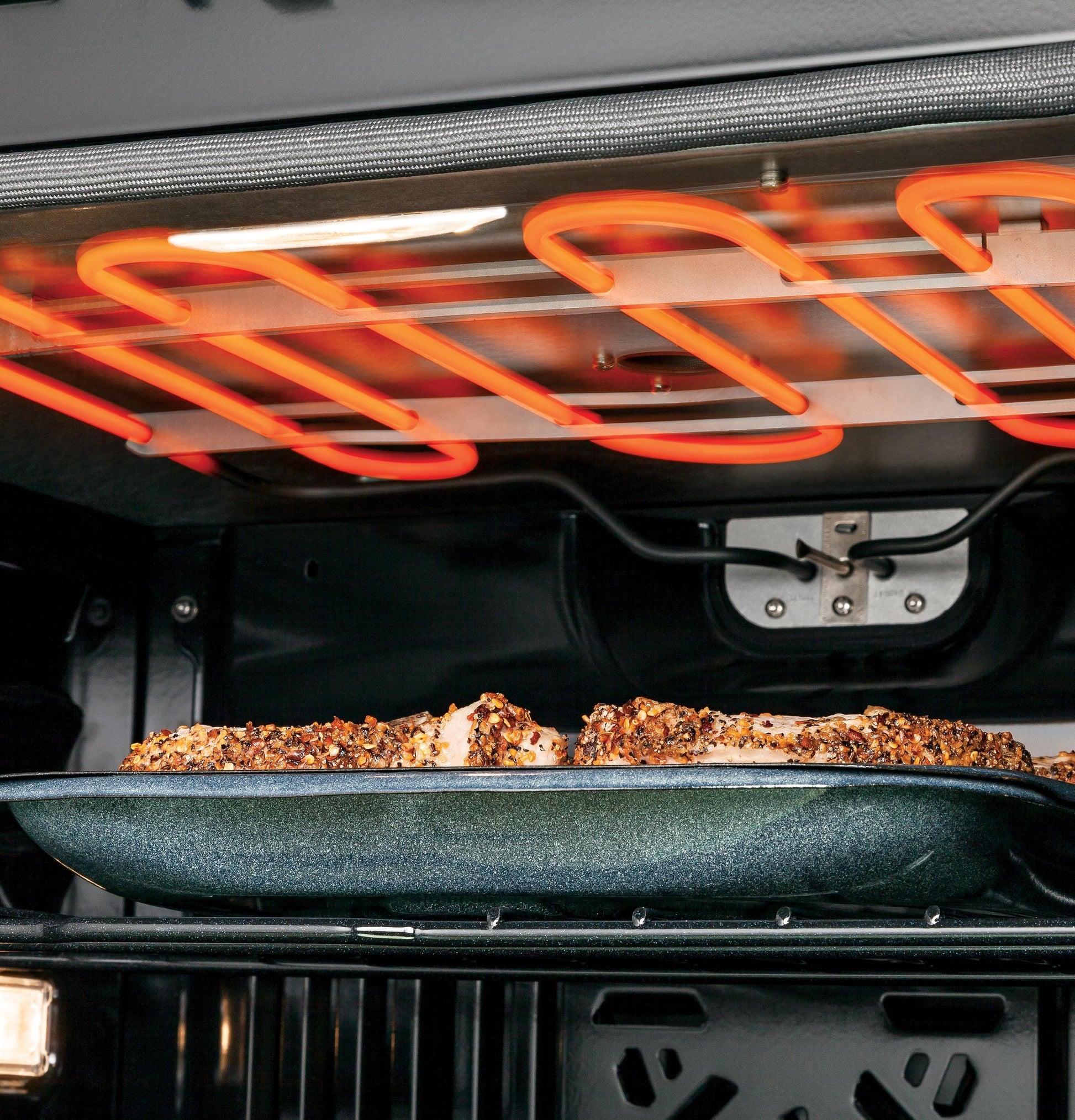

8-pass broil element (lower oven)
Get full broil coverage and even browning from edge to edge

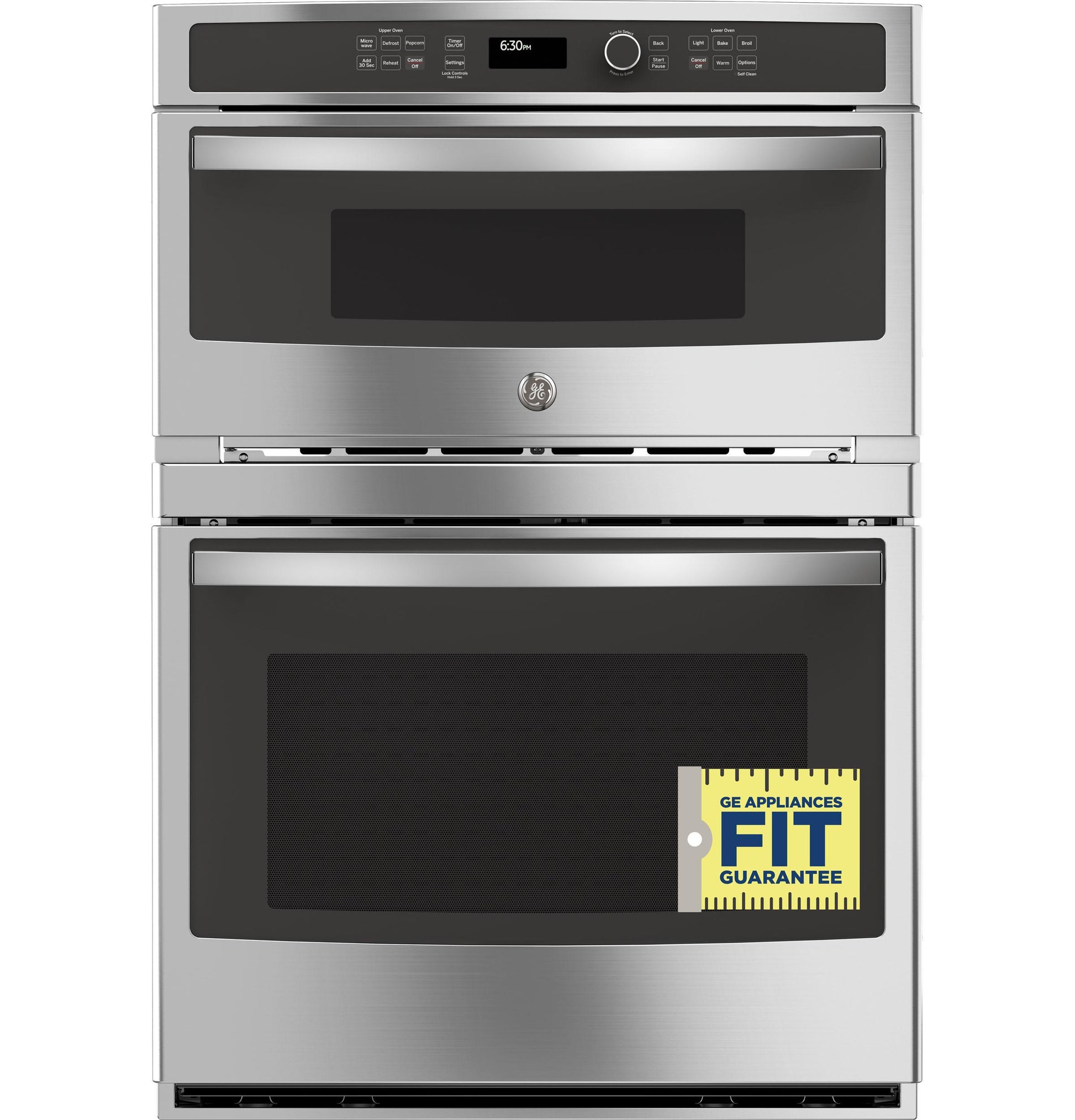

Fit Guarantee
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

CAPACITY
Total Capacity (cubic feet)	6.7 cu ft
Capacity (Cu. Ft.)	1.7 Upper / 5.0 Lower
FILTER
App Filter - Product Type	Wall Oven Microwave Oven Combination
App Filter - Control Type	Electronic touchpad
App Filter - Cooking Technology	Microwave Only Traditional
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Brillion Enabled	No
App Filter - Fuel Type	Electric
App Filter - Convection	No
App Filter - Cleaning Type	Steam and Self-Clean
APPEARANCE
Handle Color	Stainless Steel
Installation	Above Warming Drawer
Oven Door Features	Big Clear View Oven Window (Lower)
Color Appearance	Stainless Steel
Handle Design	Designer Style
POWER / RATINGS
Bake Wattage	2850W
Electrical Requirements	208/240V ; 60Hz ; 30A
Amp Rating at 208V	30
Hertz	60
Broiler Wattage	3400W
KW Rating at 240V	7.2
Amp Rating at 240V	30
KW Rating at 208V	5.4
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Overall Depth	26.75 in
Cabinet Width	30 in
Oven Interior Dimensions (lower)	25 x 17-3/8 x 20-1/4
Overall Width	29.75 in
Oven Interior Dimensions (upper)	20-1/16 x 8-1/2 x 17
Cutout Height (in)	42.25 in
Net Weight	205 lb
Approximate Shipping Weight	225 lb
Cutout Depth (in)	23.5
Depth with Door Open	49.75 in
Overall Height	43.375 in
Cutout Width (in)	28.625 in
Cutout Dimensions (w x h x d) (in.)	28-5/8 x 42-1/4 x 23-1/2
FEATURES
Microwave Watts (IEC-705)	1000 W
Fuel Type	Electric
Oven Interior	1 Halogen Interior Oven Light (Lower) 1 Halogen Interior Oven Light (Upper) Hidden Bake
Oven Features	10-Pass Bake Element 8-Pass Broil Element
Configuration	Double Oven
Turntable Size	16 in
Product Type	Double Oven Microwave Oven Combination
Oven Rack Features	3 Self-Clean Heavy-Duty Oven Racks (Lower) Embossed Rack Positions (Lower)
Cooking Technology	Microwave/Traditional
Self-Clean Oven Door Lock	Automatic (Lower)
Control Type	Dial Glass Touch
Style	Built-In
Sabbath Mode	Yes
OU Certified	No
Microwave Sensor Cooking Controls	Cook Defrost Express Reheat
Oven Cleaning Type	Self-Clean with Steam Clean Option (Lower)
Cleaning Time	Variable with Delay Clean Option (Lower)
Oven Rack Positions (Single or Upper/Lower)	6
Oven Control Features	Audible Preheat Signal Control Lock Capability C° or F° Programmable Defrost Mode Delay Clean Option Delay Start Electronic Clock & Kitchen Timer Sabbath Mode
Power Levels	10
