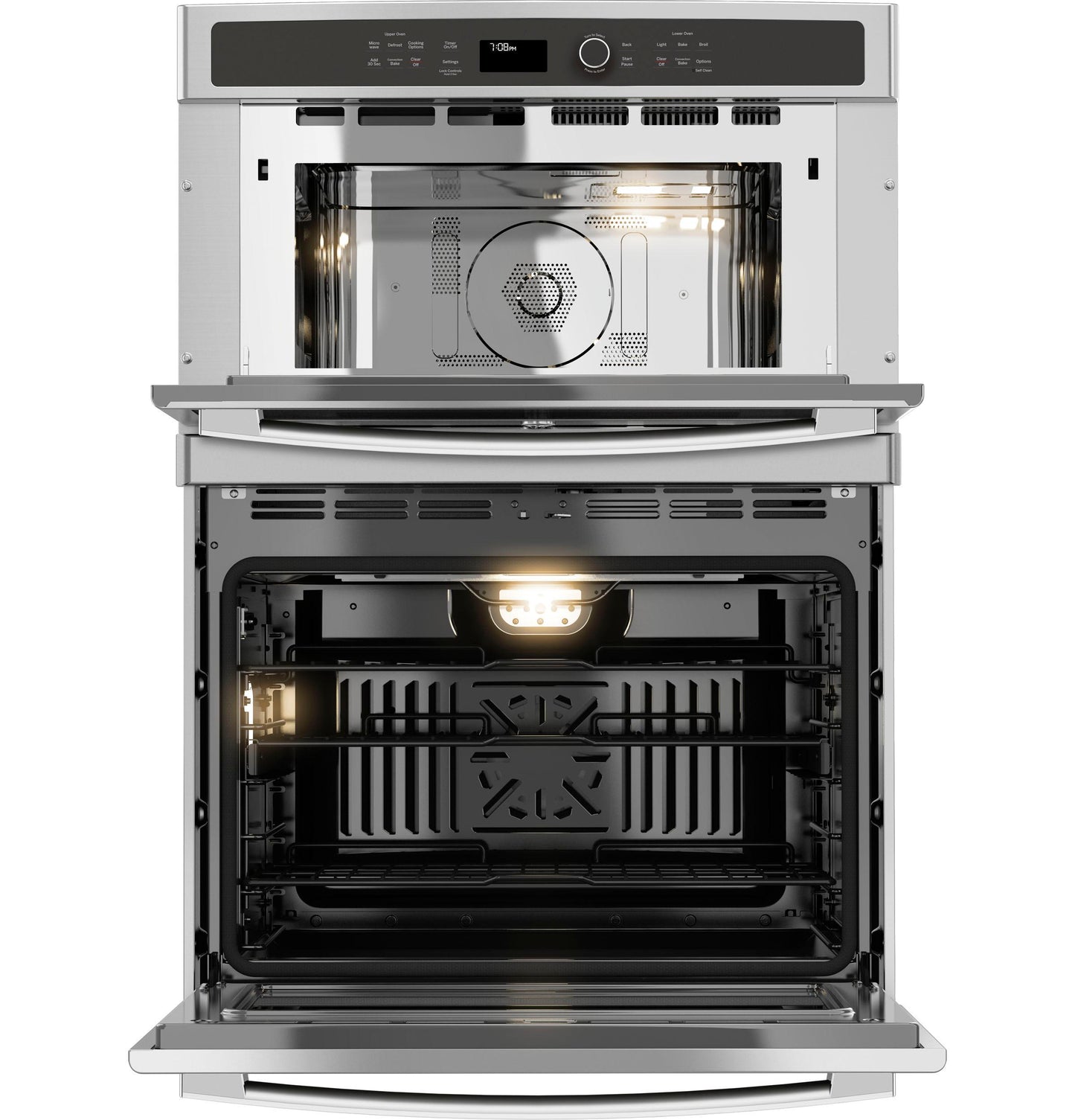

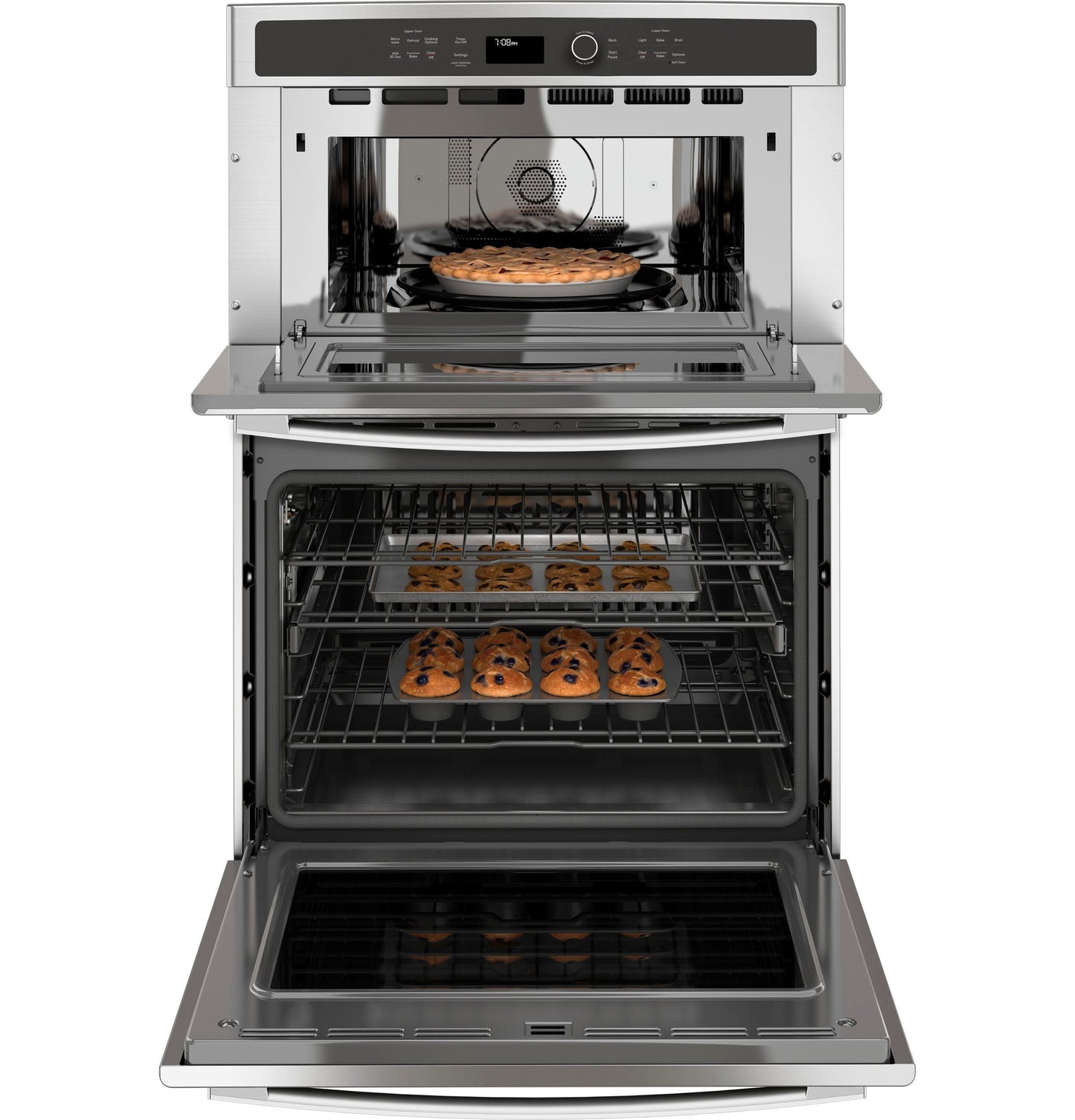

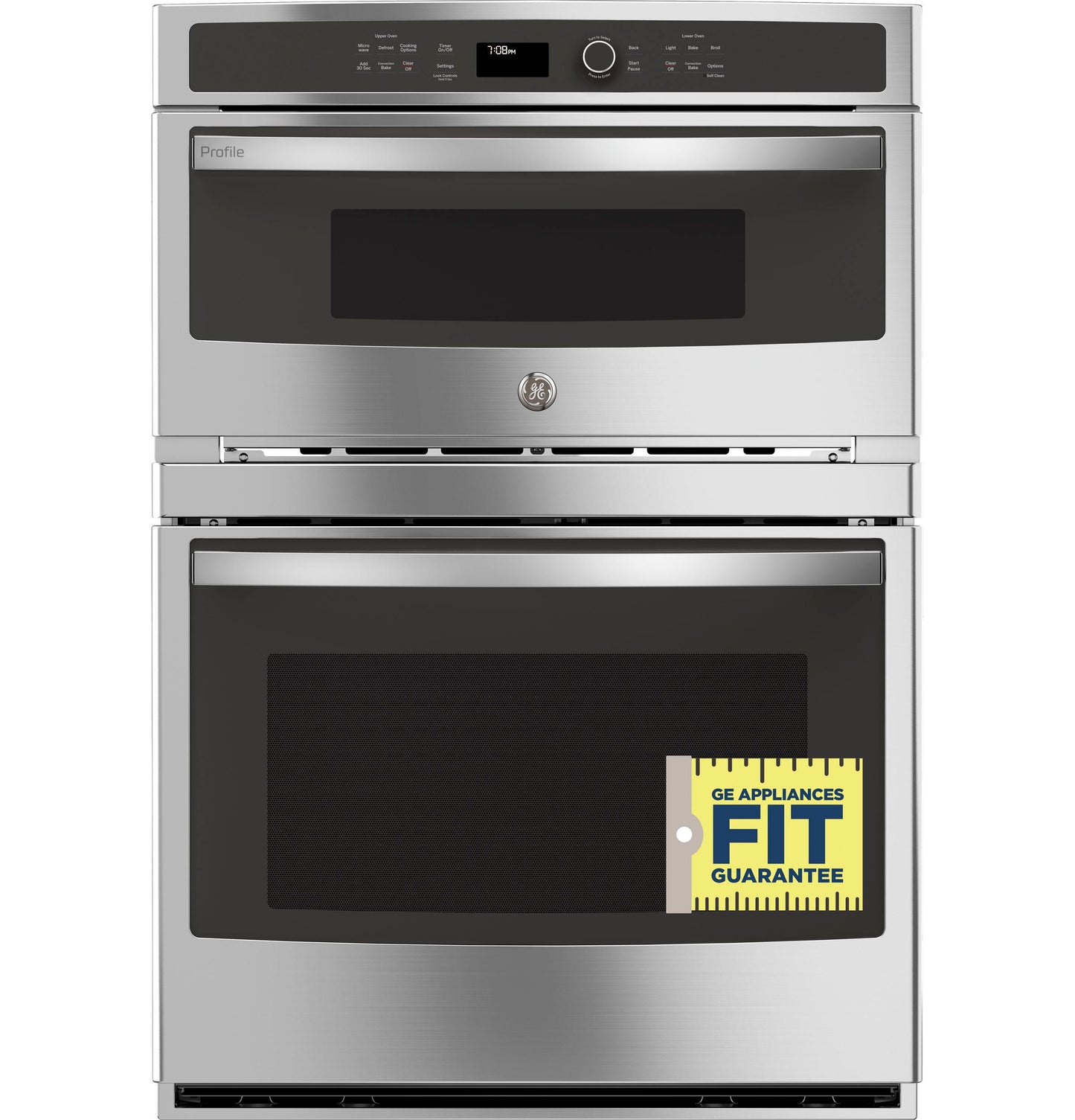

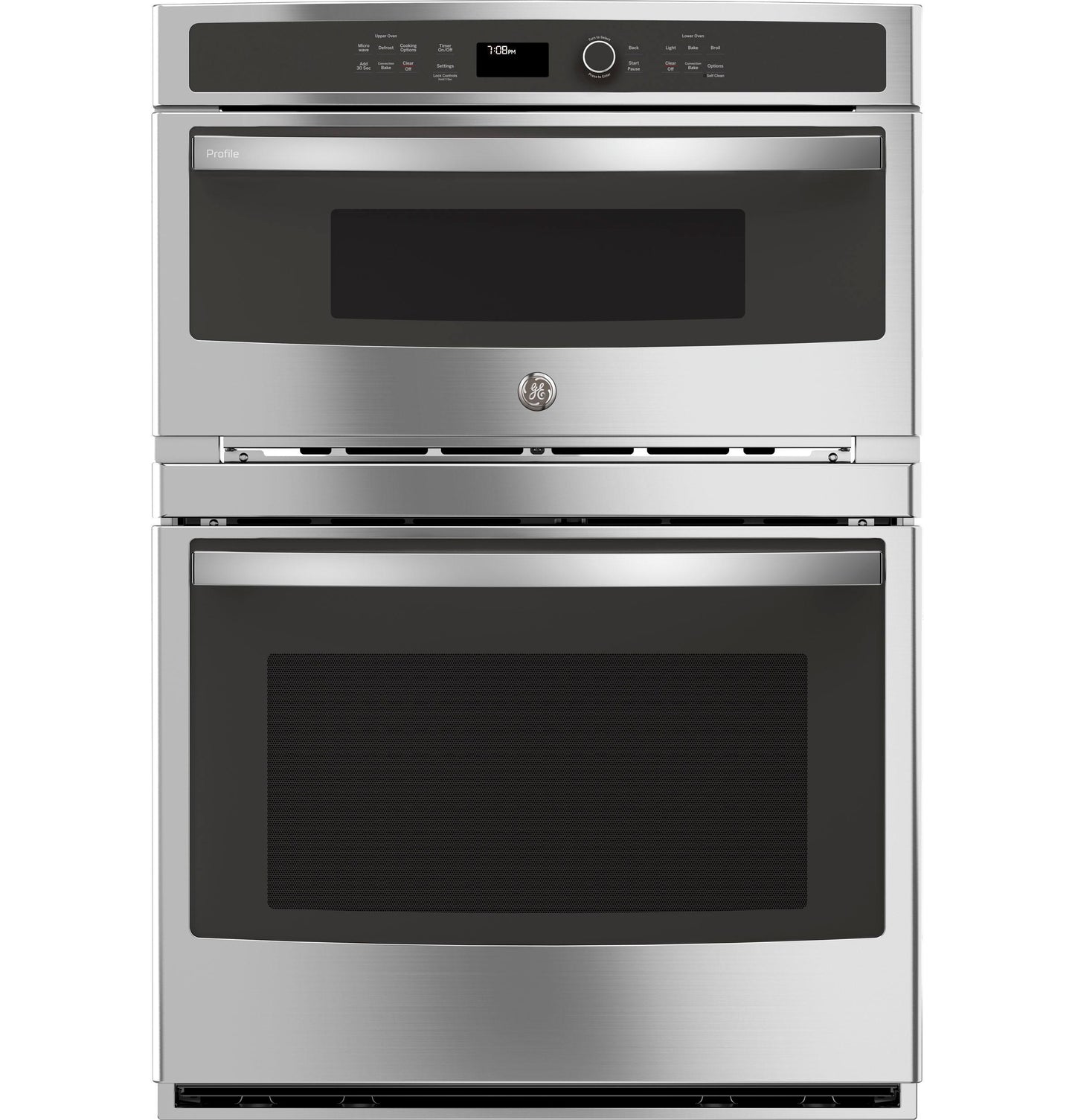

PT7800SHSS GE Profile™ 30" Built-In Combination Convection Microwave/Convection Wall Oven PT7800SHSS

Convection microwave (upper oven)
Circulates heat for high-quality results

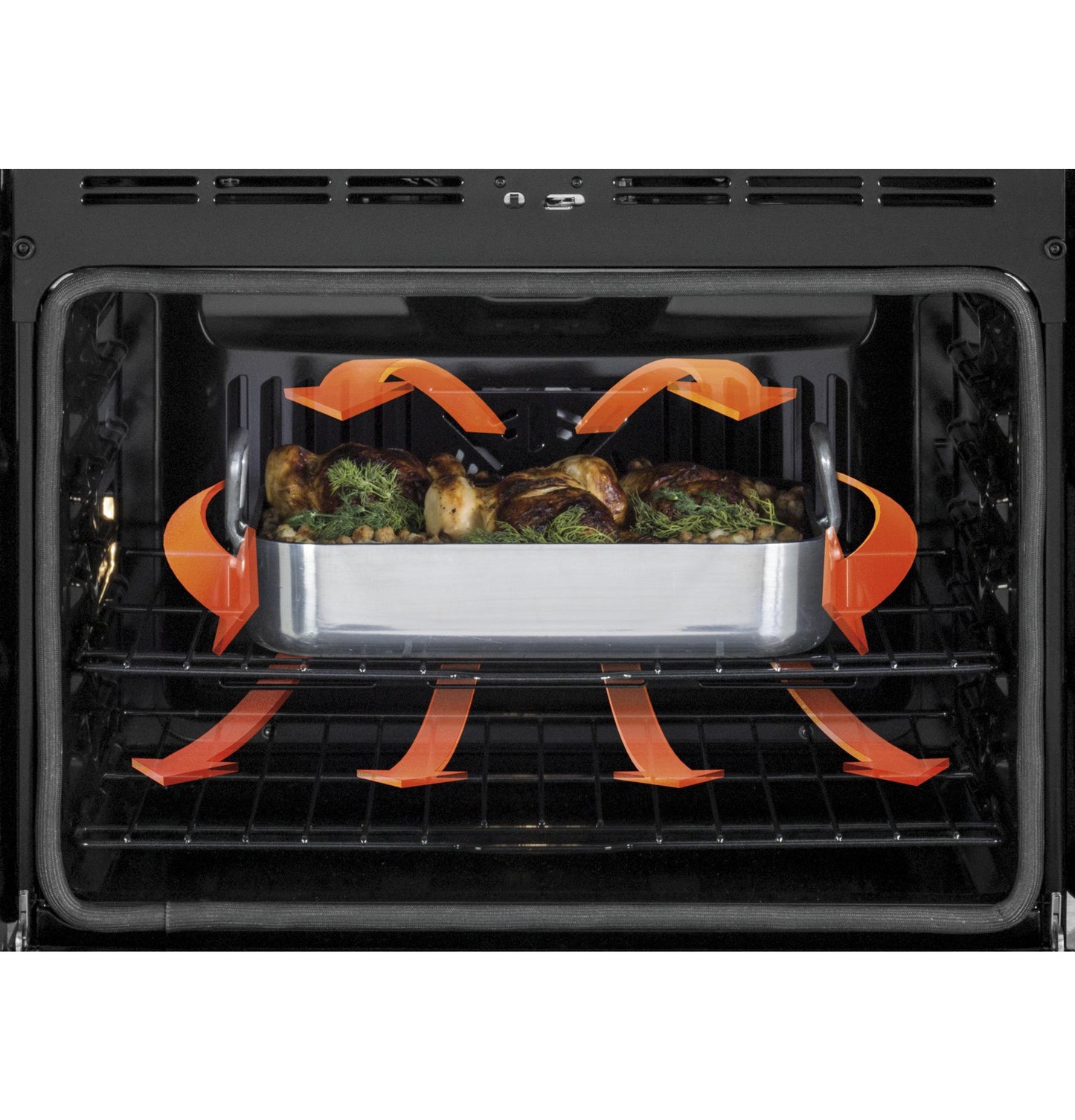

True European Convection (lower oven)
Achieve delicious results from a third heating element and fan combination

Never-scrub, heavy-duty roller rack (lower oven)
Easily access items with a rack that glides smoothly

Self-clean with Steam Clean option (lower oven)
Clean your oven the way you want

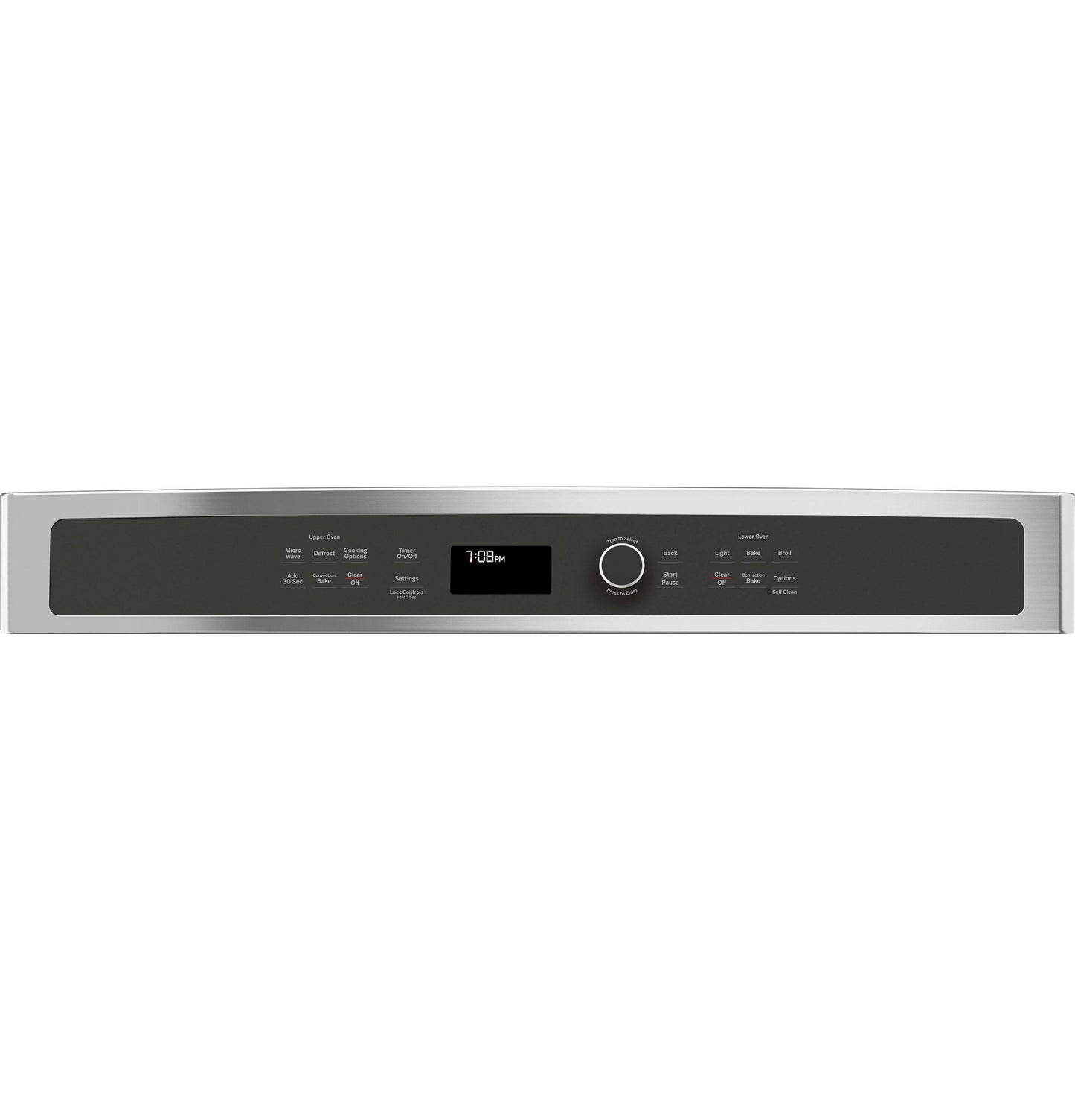

Glass touch controls
Set temperatures quickly and clean with little effort

Halogen interior oven lighting (lower oven)
Easily see how your food is baking

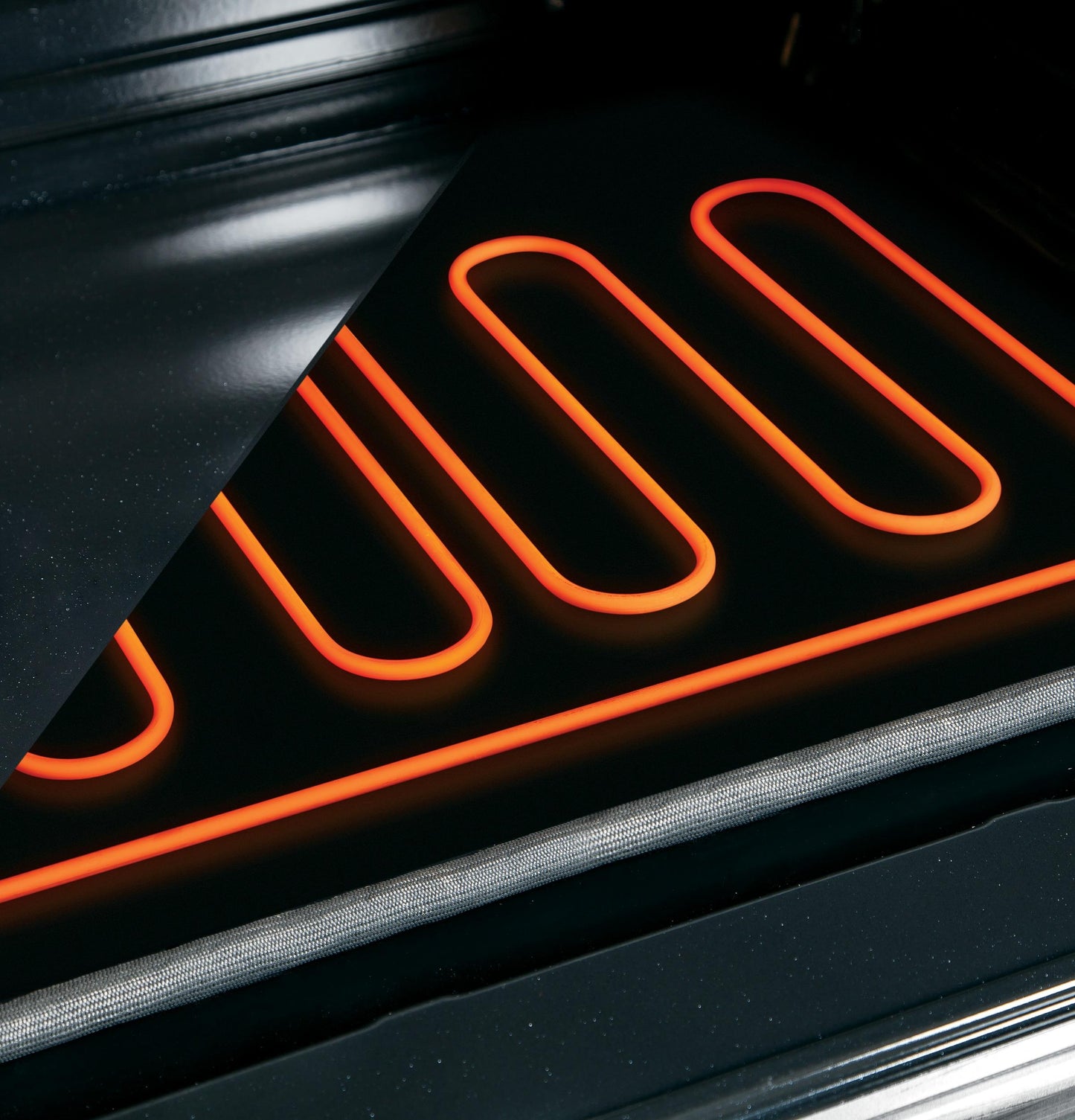

10-pass bake element (lower oven)
Even baking is assured with heat that covers more surface area

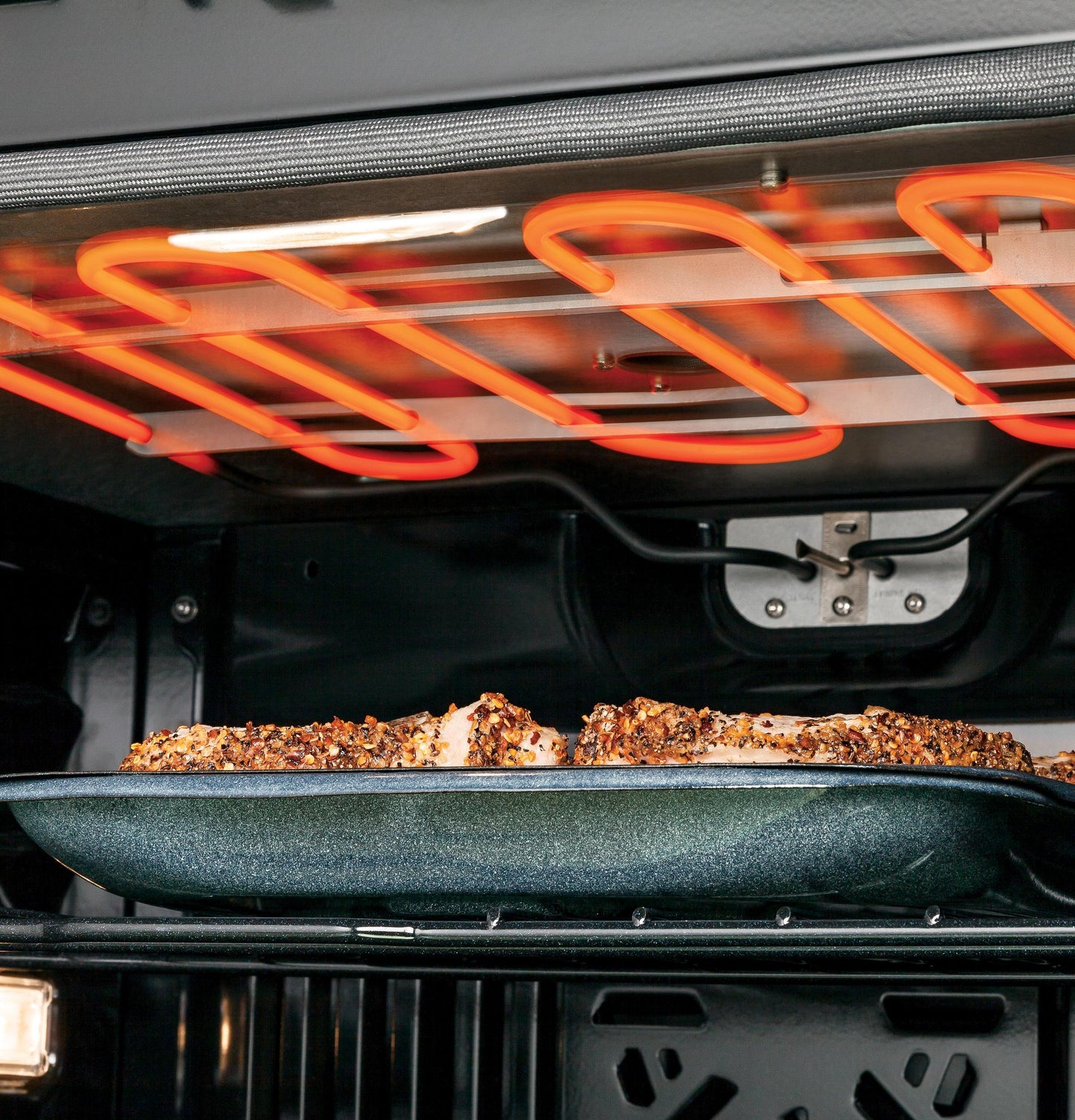

8-pass broil element (lower oven)
Get full broil coverage and even browning from edge to edge

1.7 cu. ft. microwave capacity (1000 Watts (IEC-705 test procedure)

16" turntable (upper oven)
Rotates food throughout the cooking cycle for even cooking results

Fit Guarantee
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

CAPACITY
Capacity (Cu. Ft.)	1.7 Upper / 5.0 Lower
FILTER
App Filter - Product Type	Wall Oven Microwave Oven Combination
App Filter - Cleaning Type	Steam and Self-Clean
App Filter - Fuel Type	Electric
App Filter - Cooking Technology	Convection Microwave Only
App Filter - Control Type	Electronic touchpad
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Brillion Enabled	No
APPEARANCE
Oven Door Features	Big Clear View Oven Window (Lower)
Handle Color	Stainless Steel
Color Appearance	Stainless Steel
Installation	Above Warming Drawer
Handle	Designer Style
POWER / RATINGS
Bake Wattage	2850W
Convection Wattage	2400W
Electrical Requirements	208/240V ; 60Hz ; 30A
KW Rating at 240V	7.2
Amp Rating at 208V	30
Broiler Wattage	3400W
Amp Rating at 240V	30
KW Rating at 208V	5.4
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Overall Depth	26.75 in
Cabinet Width	30 in
Cutout Width (in)	28.625 in
Net Weight	205 lb
Oven Interior Dimensions (upper)	20-1/16 x 8-1/2 x 17
Overall Width	29.75 in
Cutout Dimensions (w x h x d) (in.)	28-5/8 x 42-1/4 x 23-1/2
Oven Interior Dimensions (lower)	25 x 17-3/8 x 20-1/4
Cutout Height (in)	42.25 in
Approximate Shipping Weight	230 lb
Cutout Depth (in)	23.5
Overall Height	43.375 in
FEATURES
Oven Cooking Modes	Convection Bake (Lower Oven) Convection Bake Multi-Rack (Lower Oven) Convection Roast (Lower Oven) Thermal Bake (Lower) Thermal Broil (Lower)
Fuel Type	Electric
Product Type	Double Oven Microwave Oven Combination
Microwave Watts (IEC-705)	1000 W
Oven Interior	1 Halogen Interior Oven Light (Upper) 2 Halogen Interior Oven Lights (Lower) Hidden Bake
Cooking Technology	Microwave/Convection
Oven Features	10-Pass Bake Element 8-Pass Broil Element
Cleaning Time	Variable with Delay Clean Option (Lower)
Configuration	Double Oven
Oven Rack Positions (Single or Upper/Lower)	6
Turntable Size	16 in
Vent	Not Vented
Interior Oven Light	Halogen
Oven Control Features	Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability C° or F° Programmable Defrost Mode Delay Clean Option Delay Start Electronic Clock & Kitchen Timer Hi / Low Broil Proof Mode Temperature Probe Warm Mode
Power Levels	10
Sabbath Mode	Yes
Oven Rack Features	1 Self-Clean Heavy-Duty Roller Rack 2 Self-Clean Heavy-Duty Oven Racks Ladder-Rack Positions (Lower)
Self-Clean Oven Door Lock	Automatic (Lower)
Cooking System	True European Convection (Lower)
Control Type	Dial Glass Touch
OU Certified	No
Style	Built-In
Microwave Sensor Cooking Controls	Convection Cook Defrost Express Reheat
Oven Cleaning Type	Self-Clean with Steam Clean Option
